Description
OVERVIEW
Beam 21ft 9in (6.59m)
Draft 6ft 2in (1.9m)
Speed 24/28 Knots
Construction GRP
Gross Tonnage 145 t
Engines 2x MAN V12-1900 1900 hp / 1416 kW
Exterior Designer Stefano Righini
Interior Designer Achille Salvagni
Flag Croatia
Classification CE, A
CAPACITIES
Fuel capacity 9,500 l / 2,510 US g
Water capacity 2,000 l / 528 US g
Black water capacity 850 l / 224 US g
Grey water capacity 224 US g
Consumptions 26 p/h
Cruising Speed 24 Knots
Max Speed 28 Knots

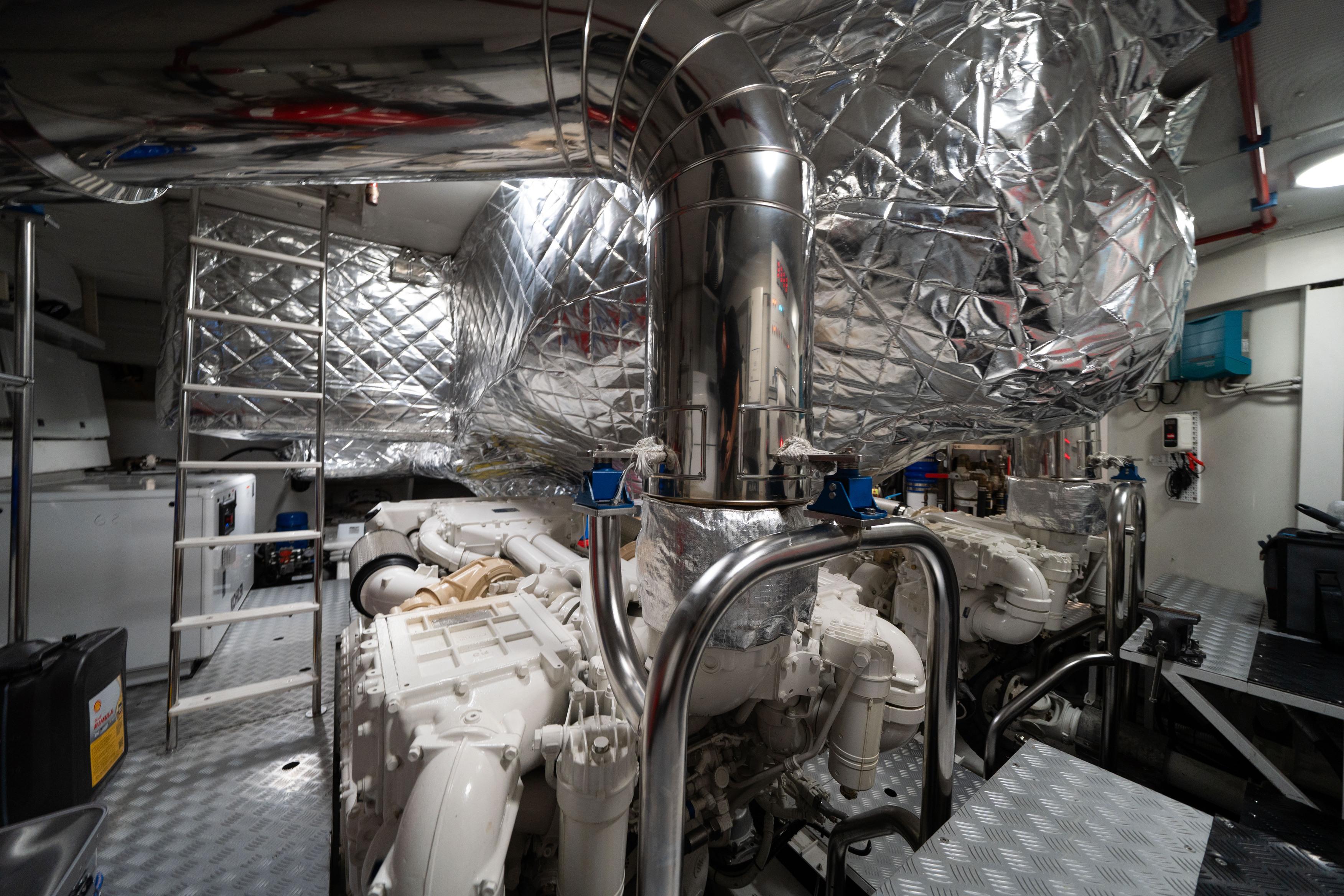

MACHINERY
Engines 2x MAN V12-1900 1900 hp / 1416 kW
Gearboxes ZF 3050A reduction ratio 3:1
Steering 5 blades propellers, Rudders made of stainless steel
Stabilizers Zero Speed
Bow Thruster CMC BTM 30H
Stern Thruster CMC BTM 30H
KEY FEATURES
• Excellent condition
• Five-cabin layout
• Best interior volume of her class
• Advanced options and upgrades
• Registered below 24 meters
• Low engine hours
• Bright and modern Salvagni interior design
• Full beam master cabin

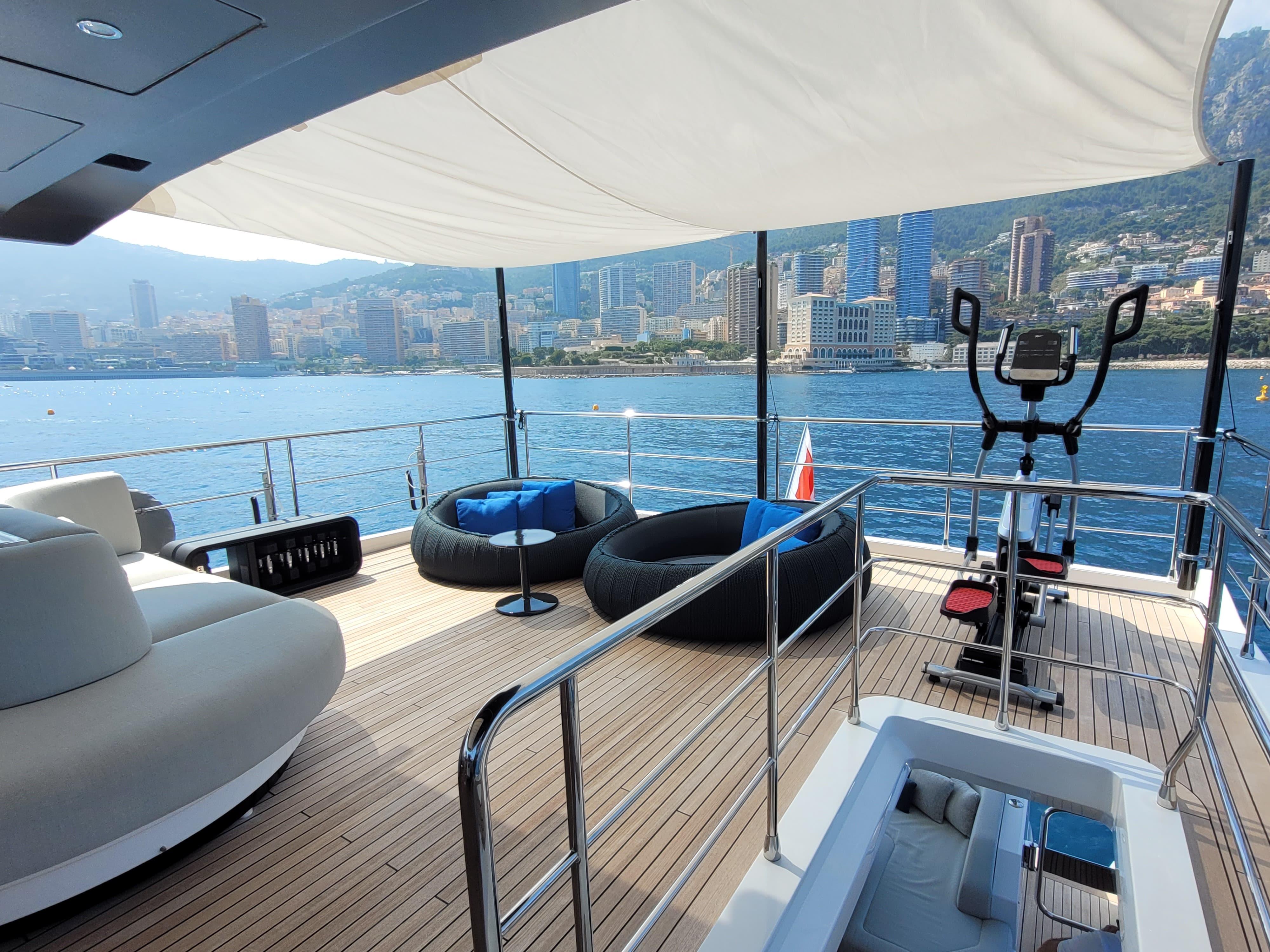

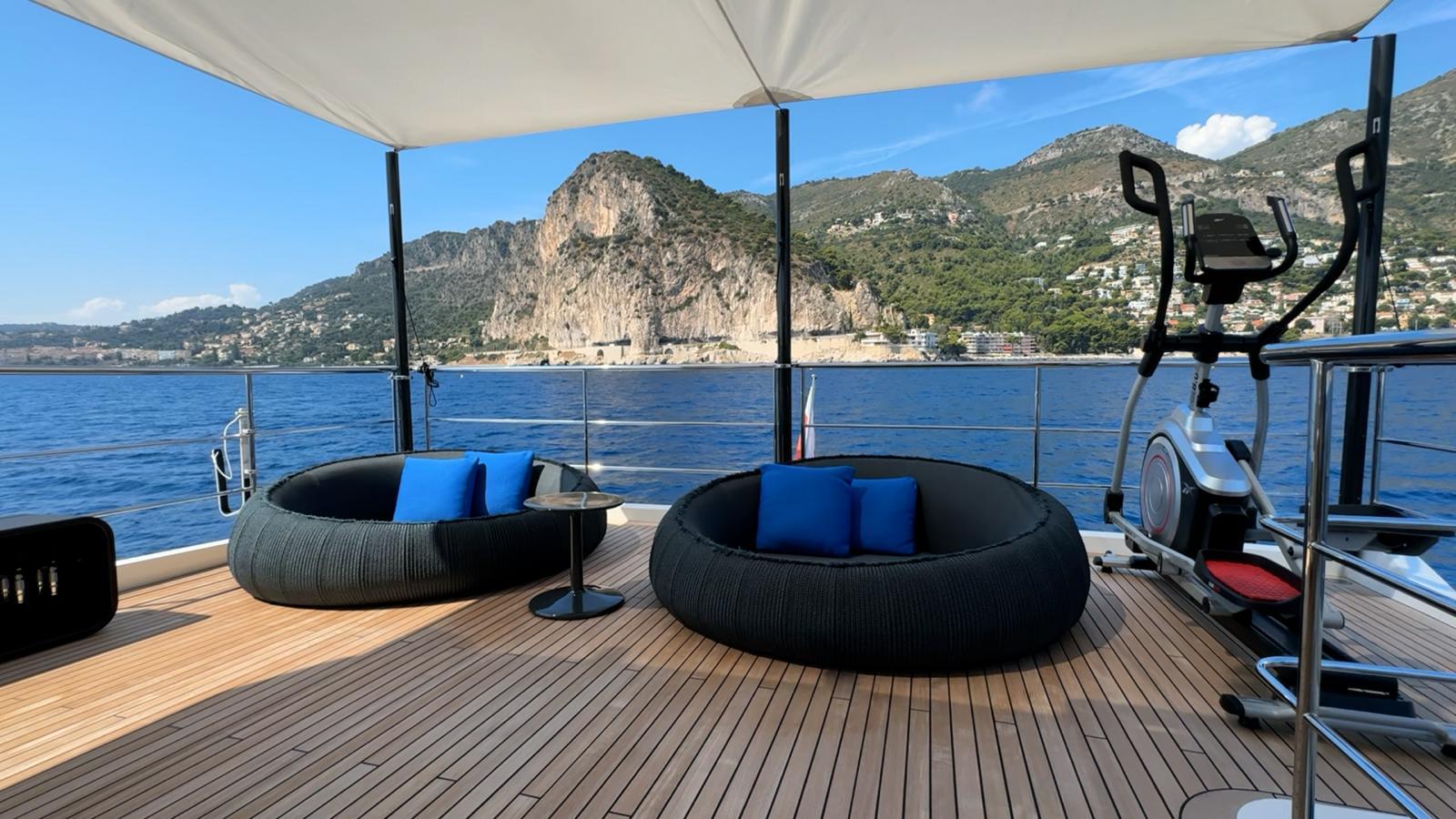

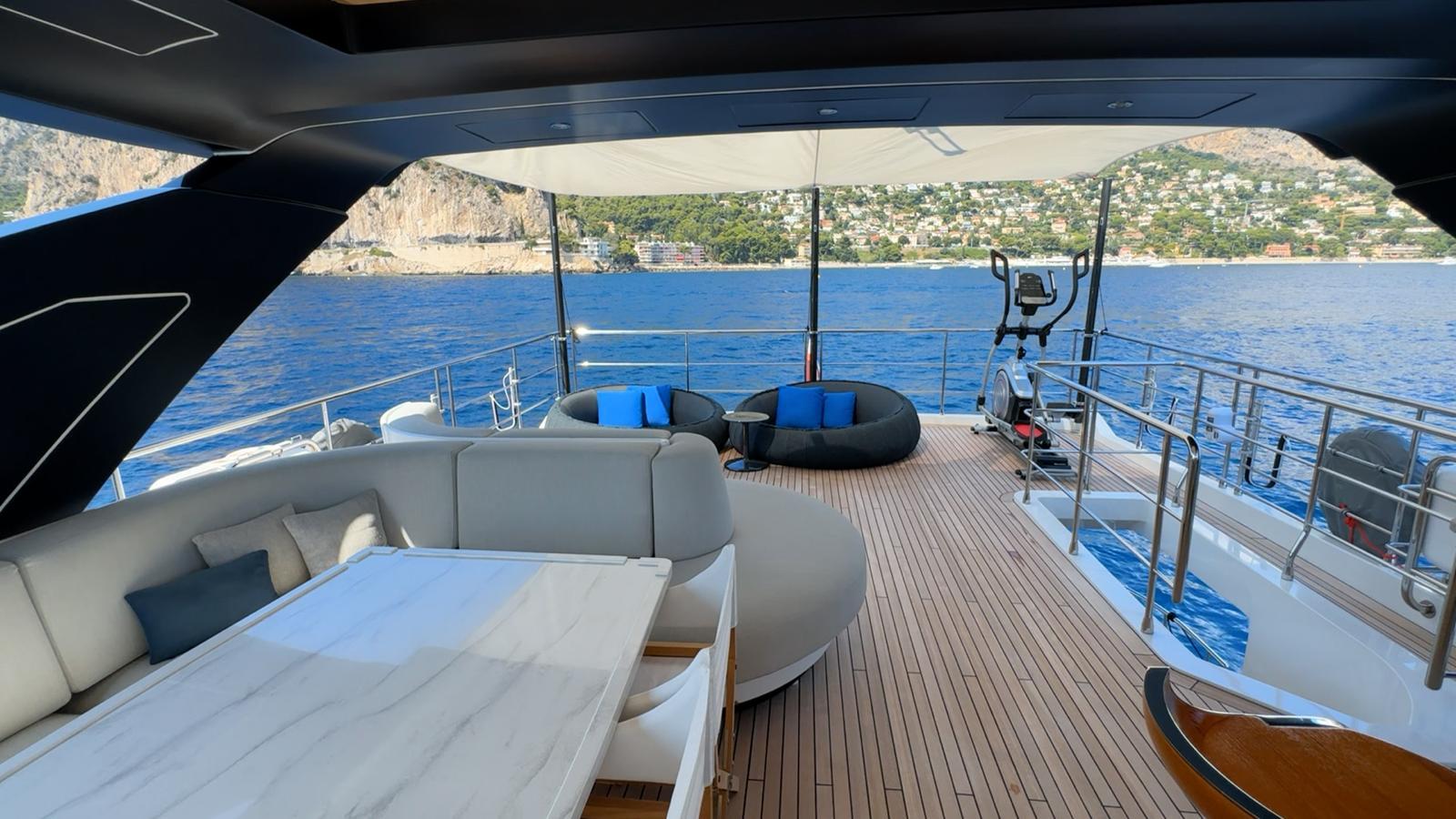

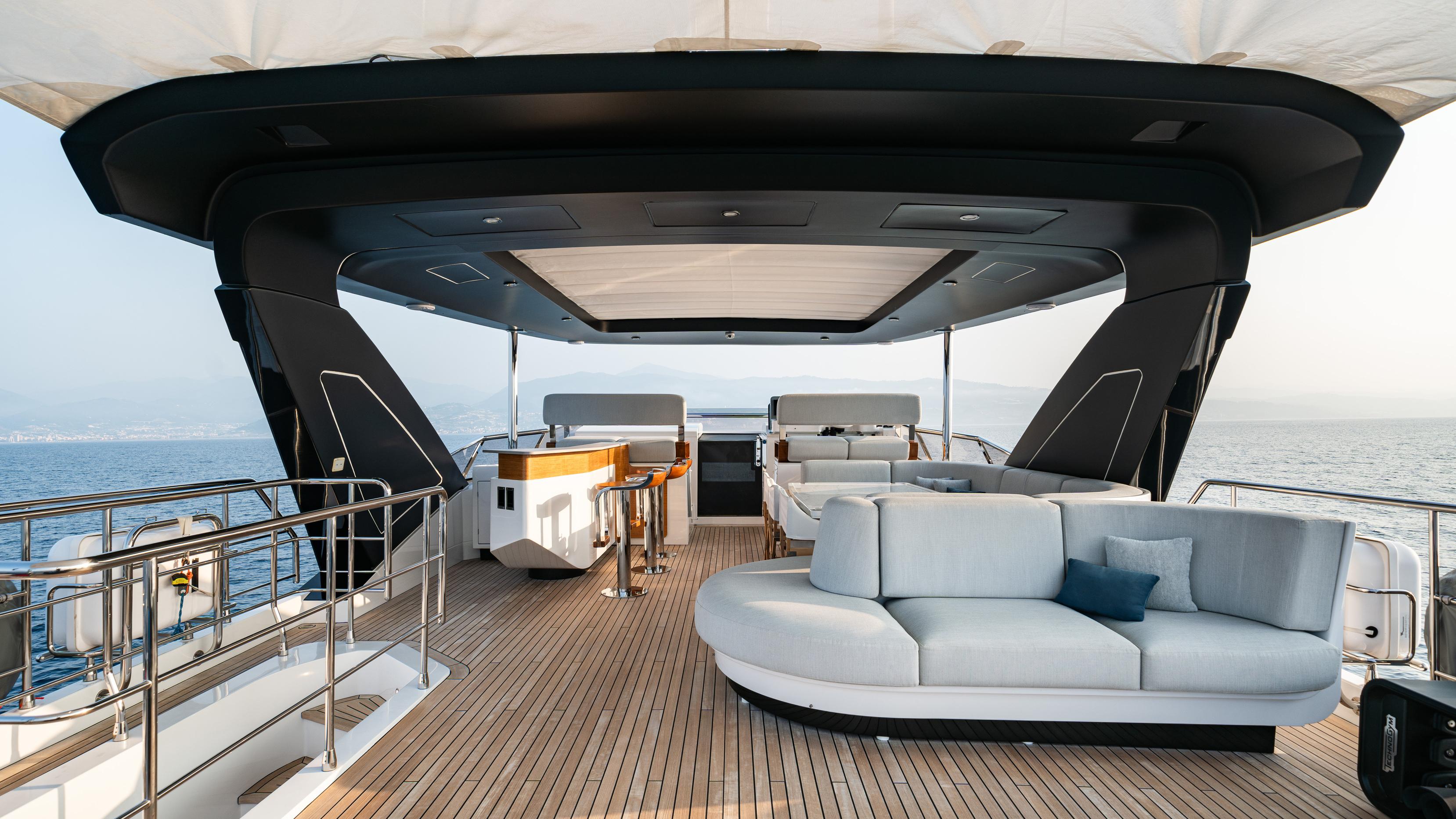

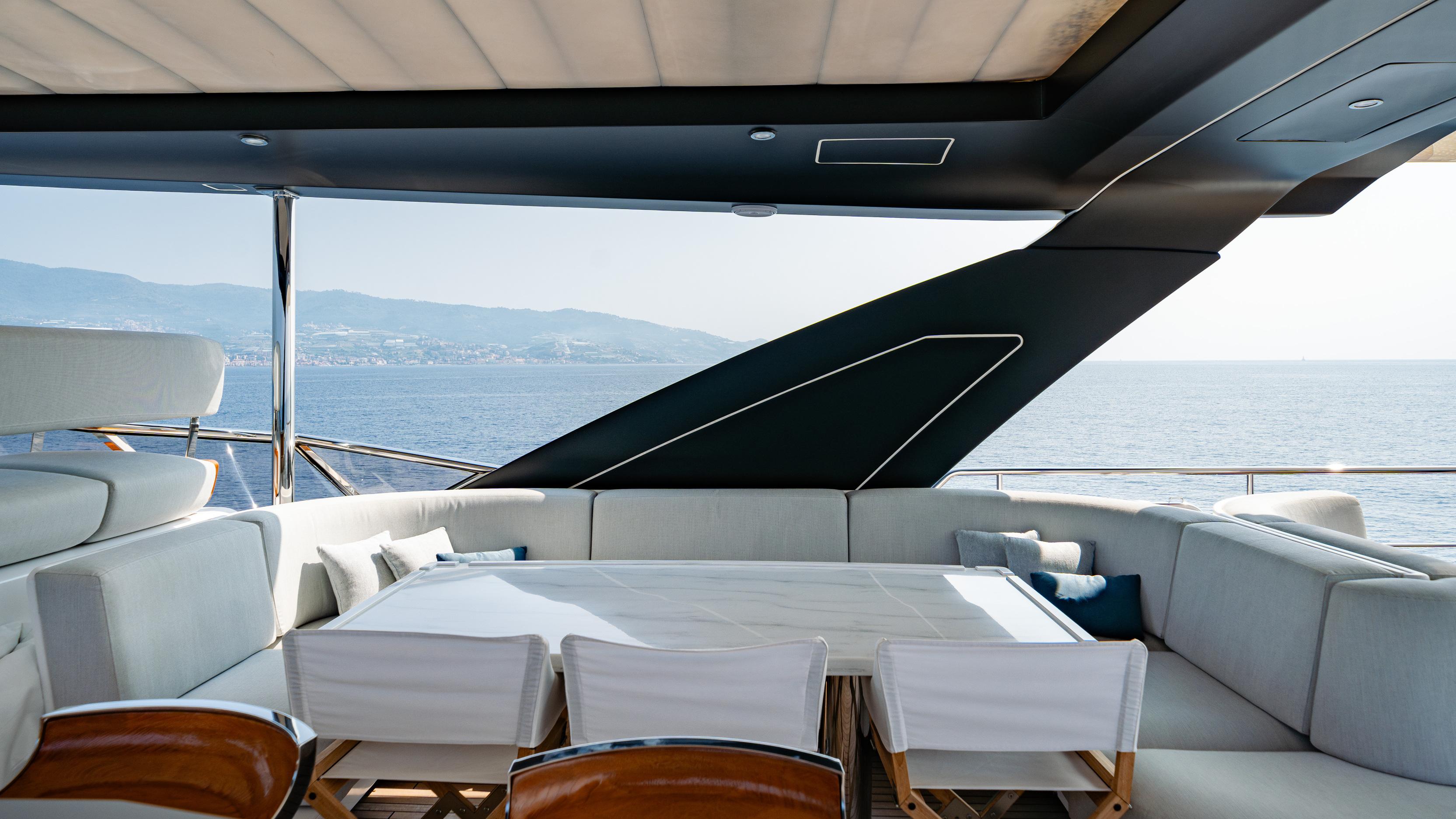

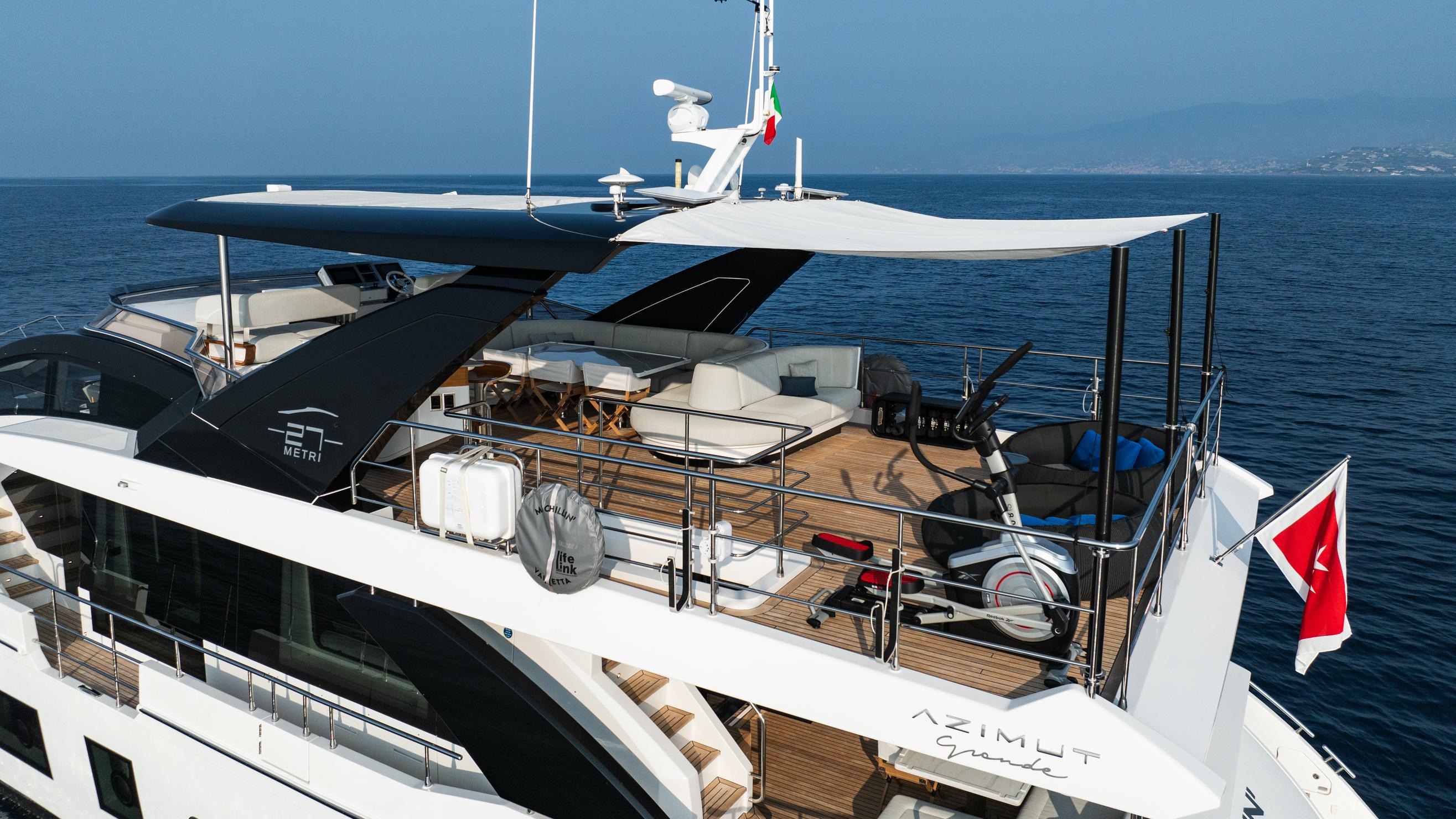

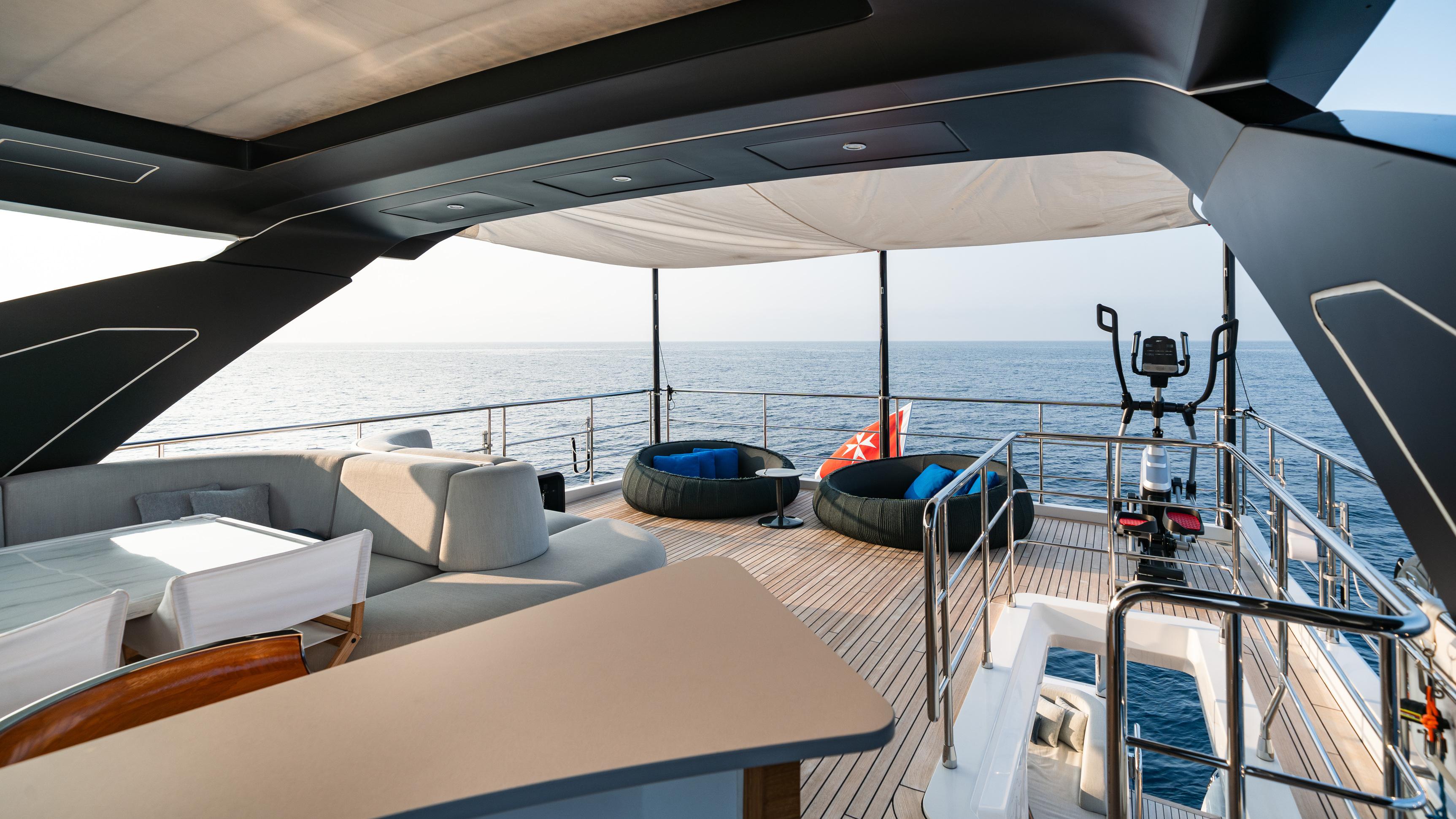

• Large flybridge

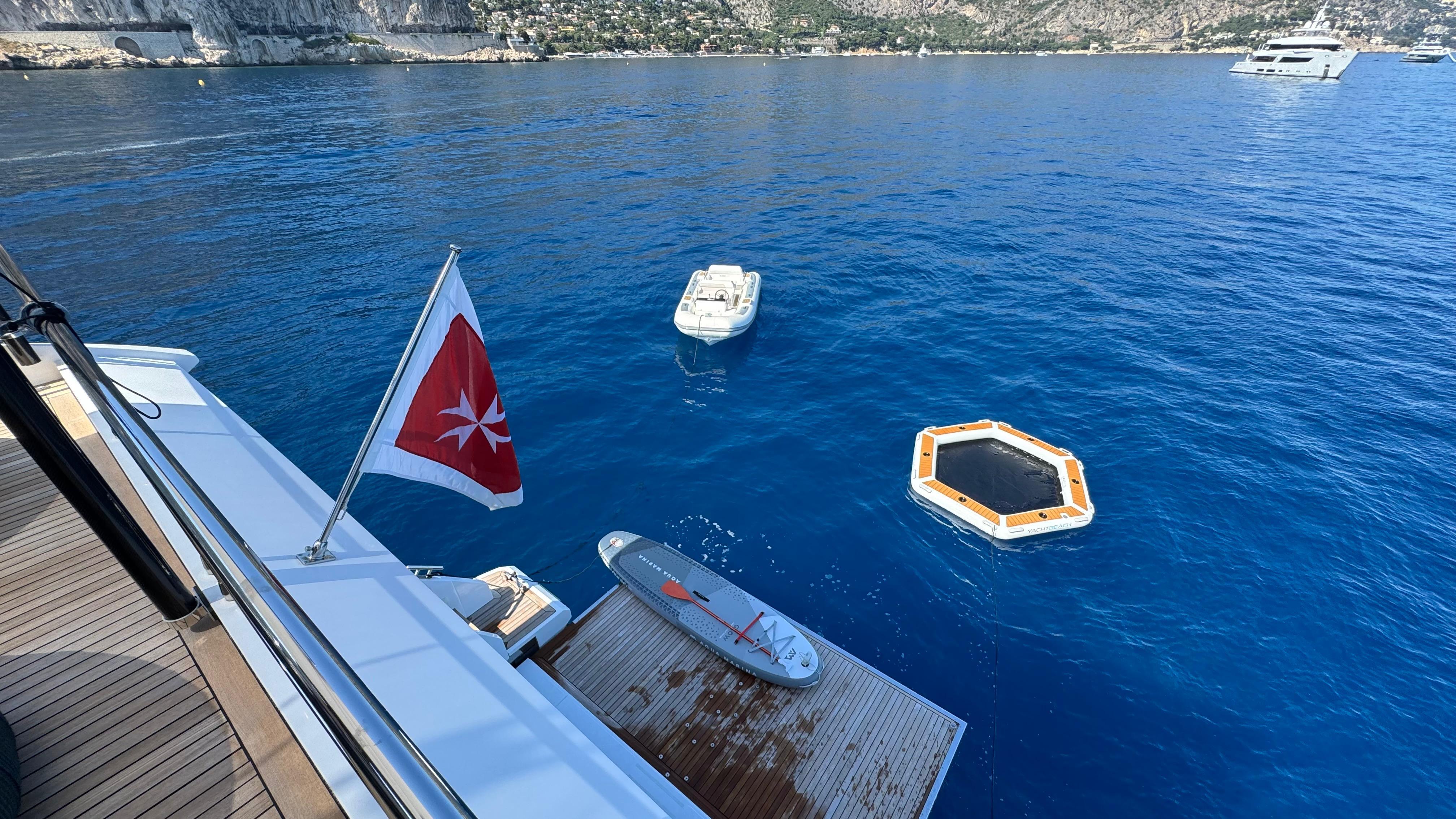

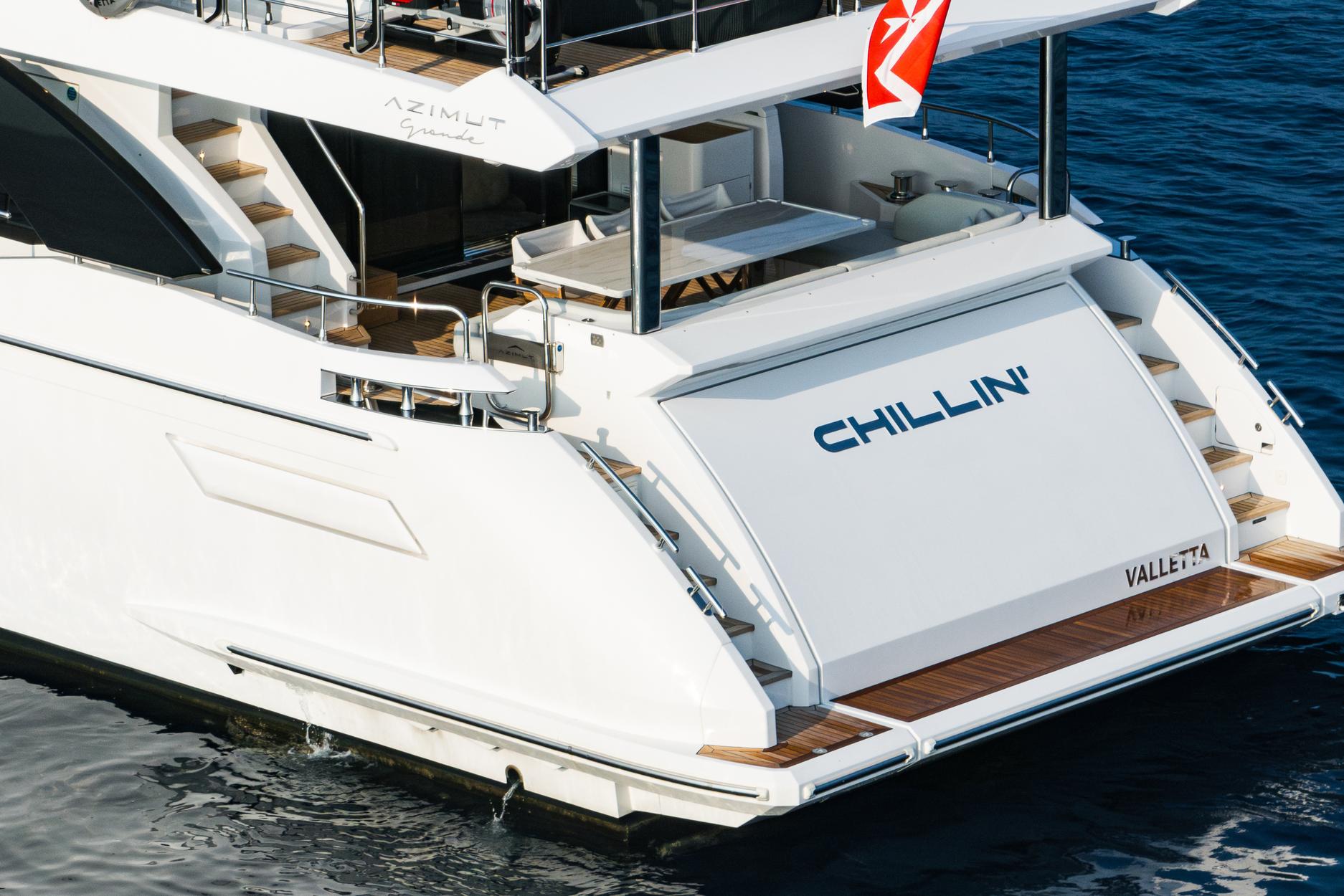

• Beach-club style aft platform
• New Jacuzzi Fitted
• Commercially Compliant
OTHER MACHINERY
ELECTRICITY: ONBOARD VOLTAGES
230 V – 50 Hz AC
24 V DC from battery set
12 V DC from battery set and AC/DC voltage reducer
Shore-powered power supply
DC electric panel: Installed on fore bulkhead of the engine room
AC electric panel: Installed on fore bulkhead of the engine room
Auxiliary electric panel: Installed in the wheelhouse
Emergency control panel: Installed in the wheelhouse
Battery cut-out/emergency/êre extinguishing system control panel:
located in the cockpit
Dimmable lights in the interior, cockpit and flybridge (option)
SHORE POWER:
EU 2 sockets, 3P 63A
USA 2 sockets, 4P 100A and 4P 50A
The AC power sources terminate on the main electric panel in the engine room, provided with a voltmeter and
ammeter for the 230 V power supply. The AC power sources are protected by suitably sized fuses, and introduced into the network by means of remote control switches
2x electrical shore power cable entry (option)
BATTERIES:
Services: 12x 10.90 Ah@12 V
Engines: 6x 6.90 Ah@12 V
Generator: 2x 2.90 Ah@12 V
Service battery charger / service backup: 2x Mastervolt 80 Ah – 24 V
Engine start-up battery charger: 1x Mastervolt 30 Ah – 24 V
Genset start-up battery charger: 1x Mastervolt 10 Ah – 12 V
AIR CONDITIONING:
Air conditioning type: The system is of the thermally-treated water circulation type, with fan coils located in various rooms
Compressor unit in engine room, total 180,000 BTU with inverter technology
One seawater pump
DISTRIBUTION:
Wheelhouse: three fan coils of which two AP5 (9,200 BTU) and one AP10 (16,000 BTU)
Owner’s cabin: two fan coils AP8 (12.500 BTU)
Owner’s head: one fan coil AP3 (6.200 BTU)
Galley: one fan coil AP8 (12.500 BTU)
Dining: two fan coils AP8 (12.500 BTU)
Saloon: two fan coils AP8 (12.500 BTU)
VIP cabin: two fan coils AP5 (9.200 BTU)
Port guest cabin: one fancoil AP5 (9.200 BTU)
Starboard guest cabin: one fancoil AP5 (9.200 BTU)
Commander’s cabin: one fancoil AP1 (4.480 BTU)

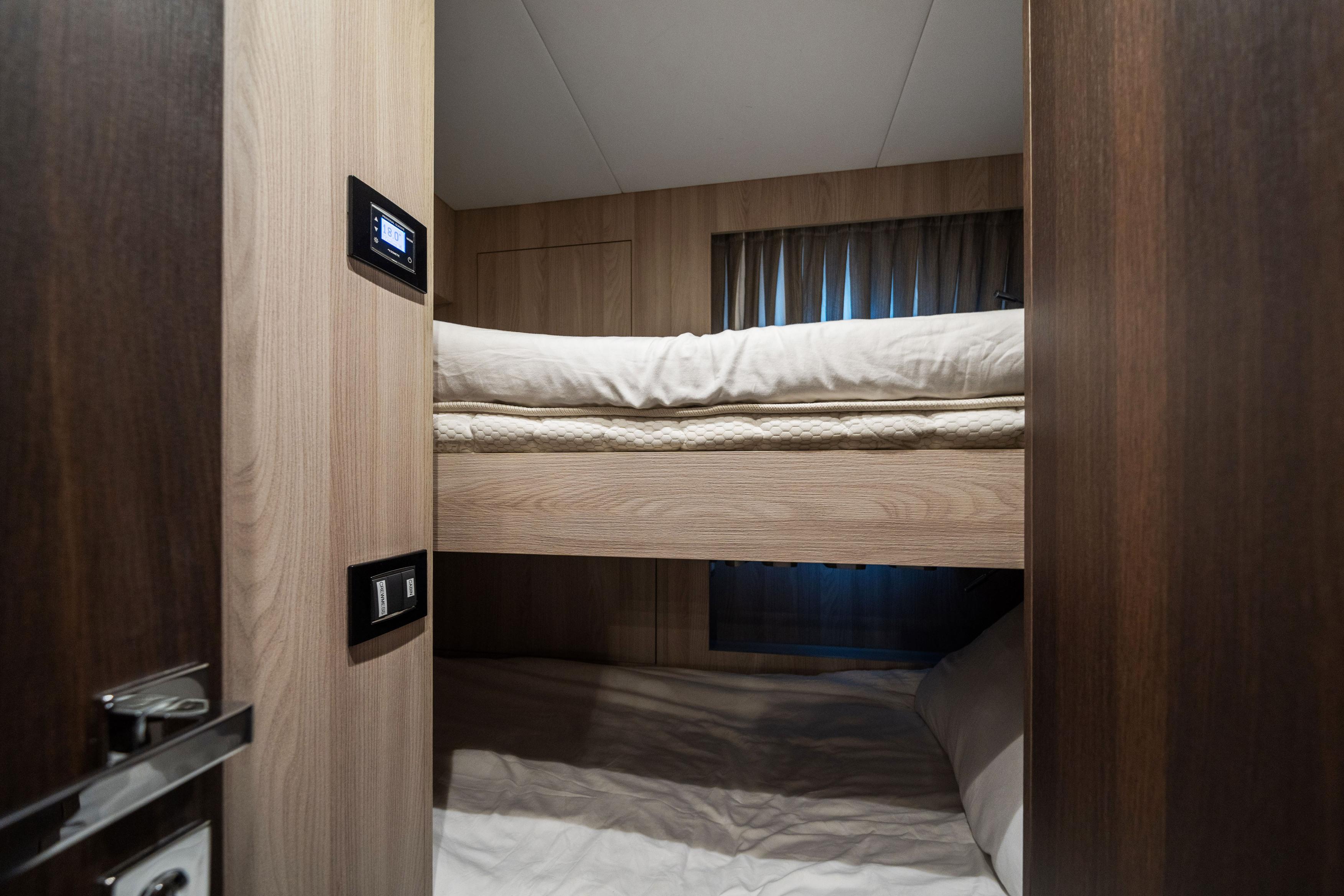

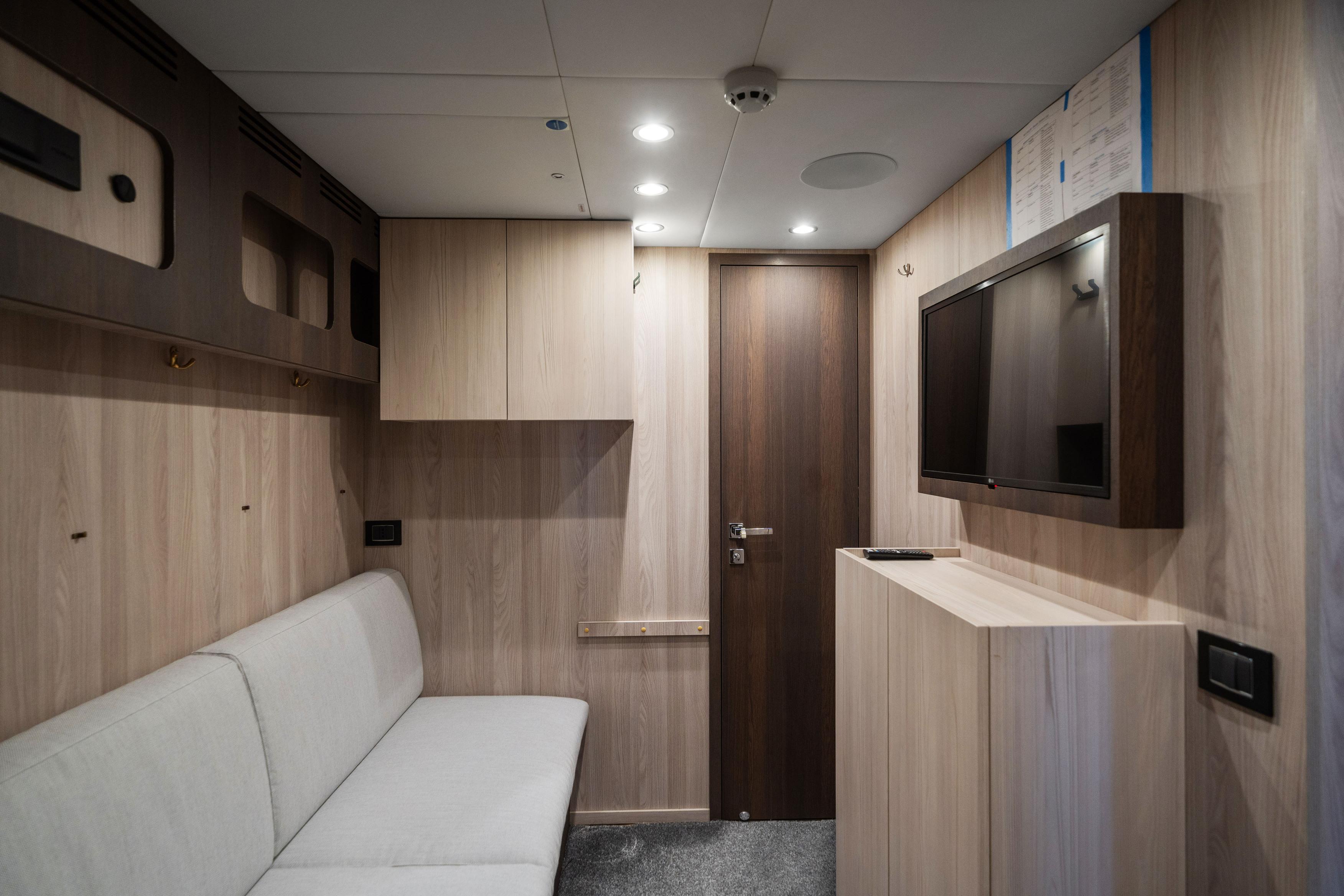

Crew cabin and crew dinette: one fancoil AP3 (6.200 BTU)
Each area has its own control panel making it independent
Underwater lighting at the stern – oceanLed Explore (4x) (option)
Underwater lighting lateral – oceanLed Explore (2x each side, total 4) (option)
Watermaker 180L hour HP (option)
ACCOMMODATION

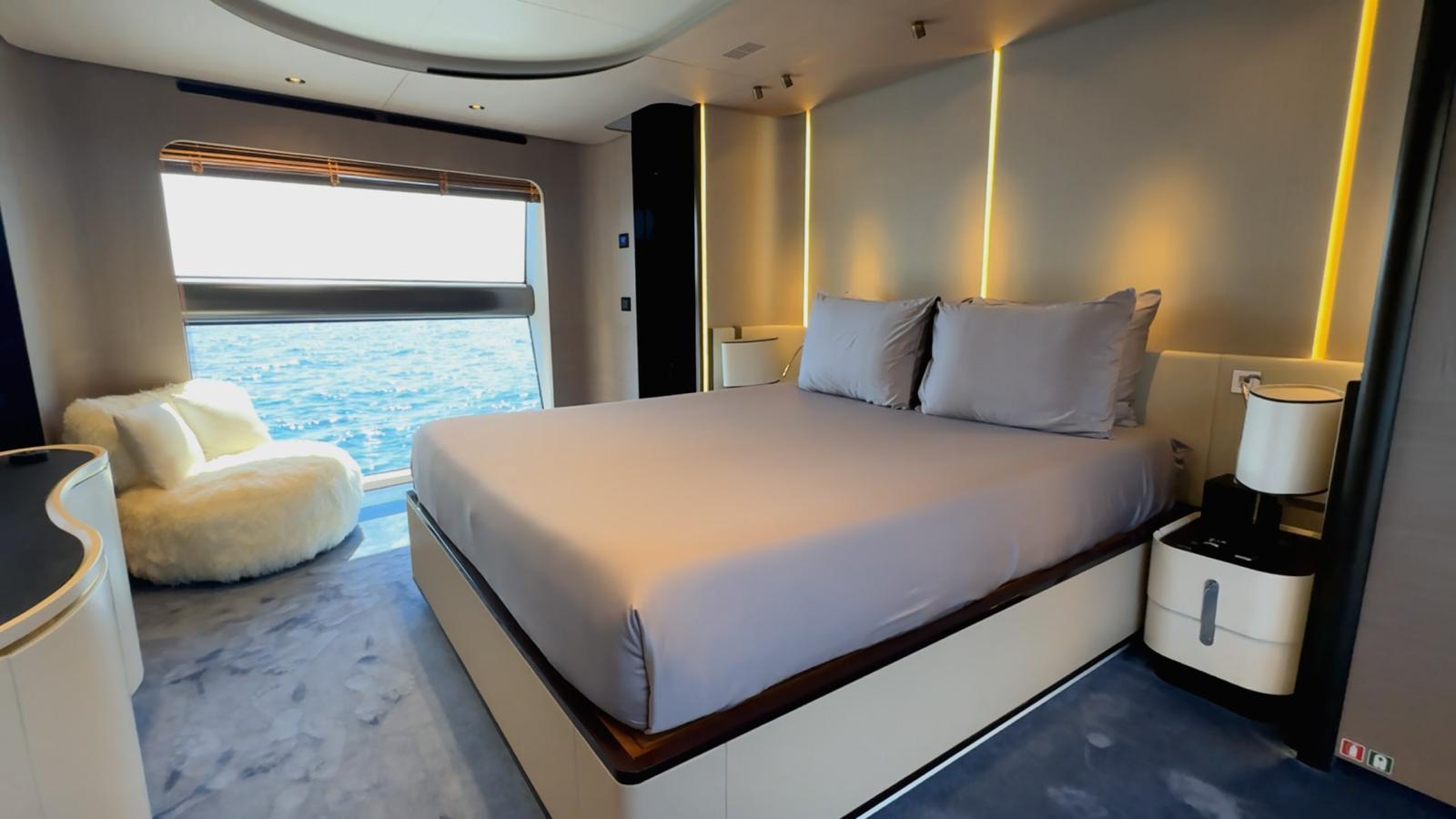

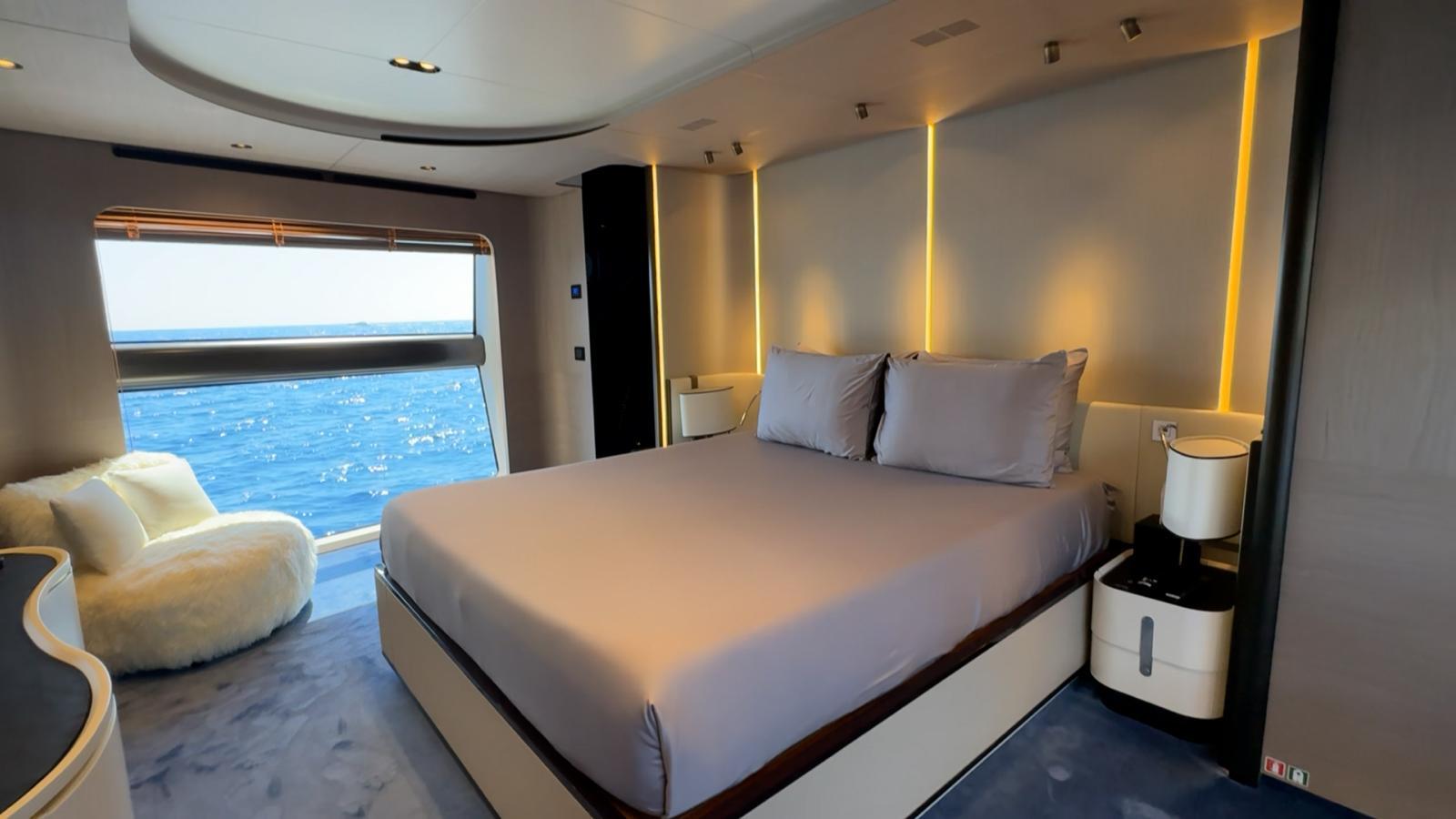

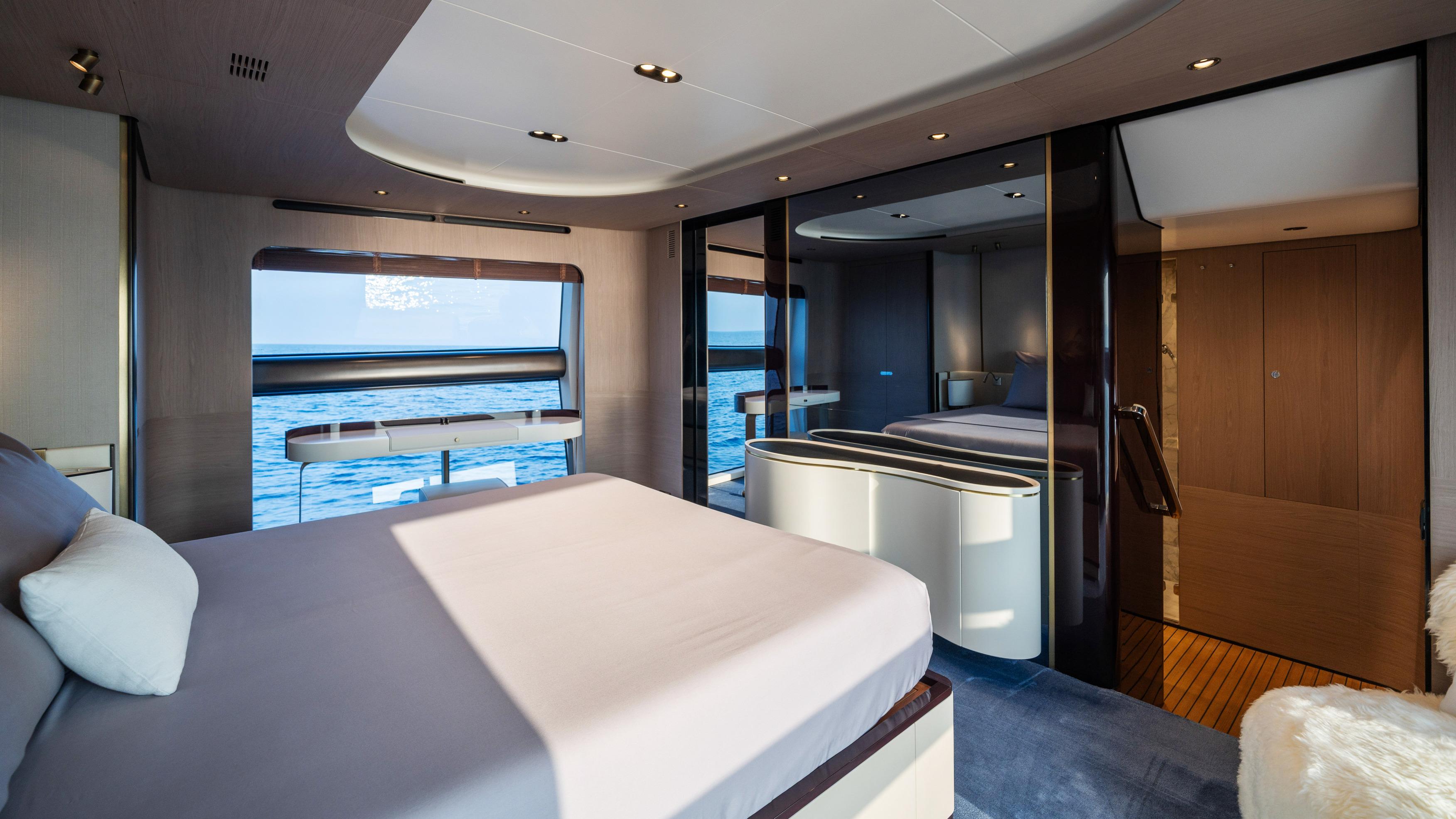

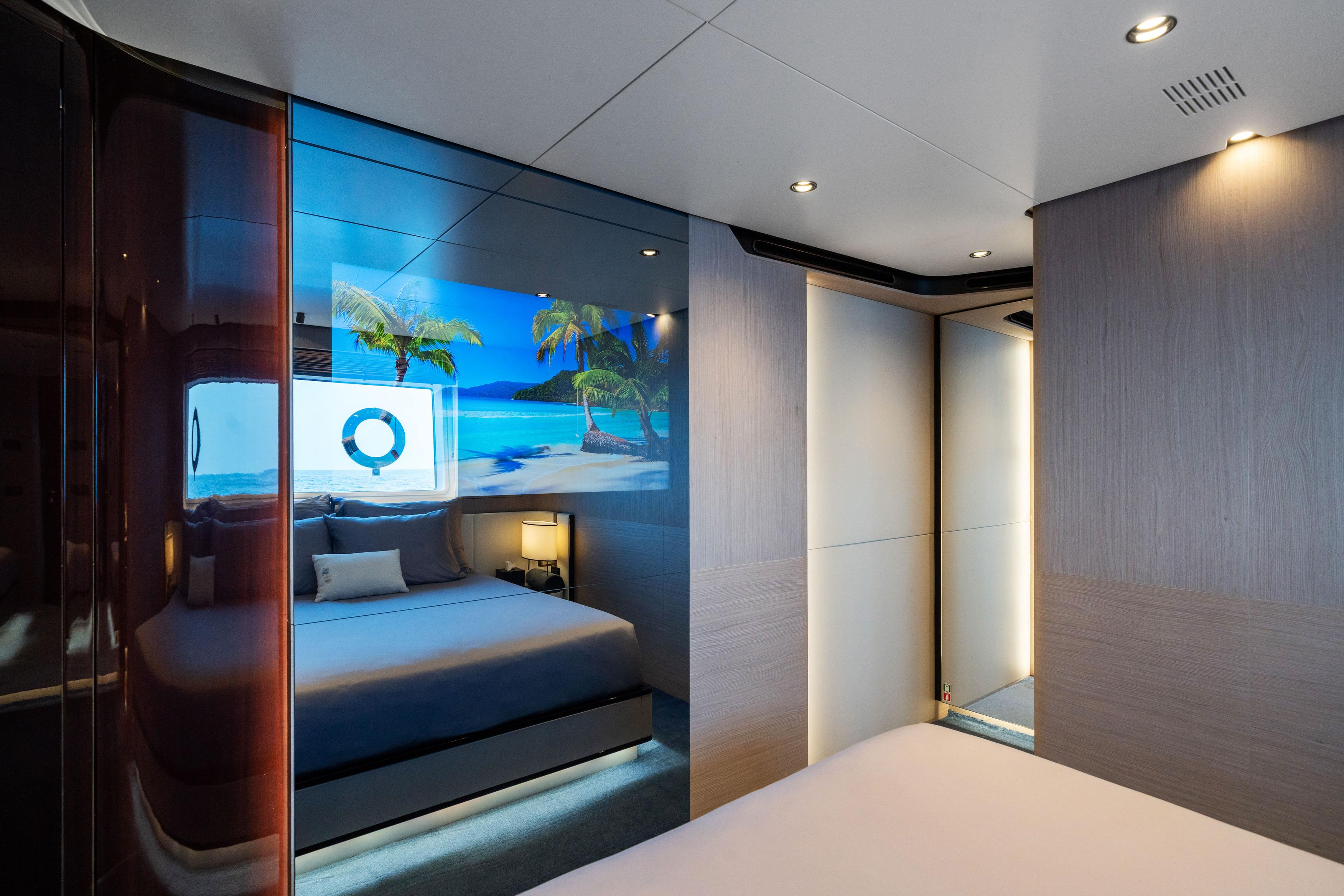

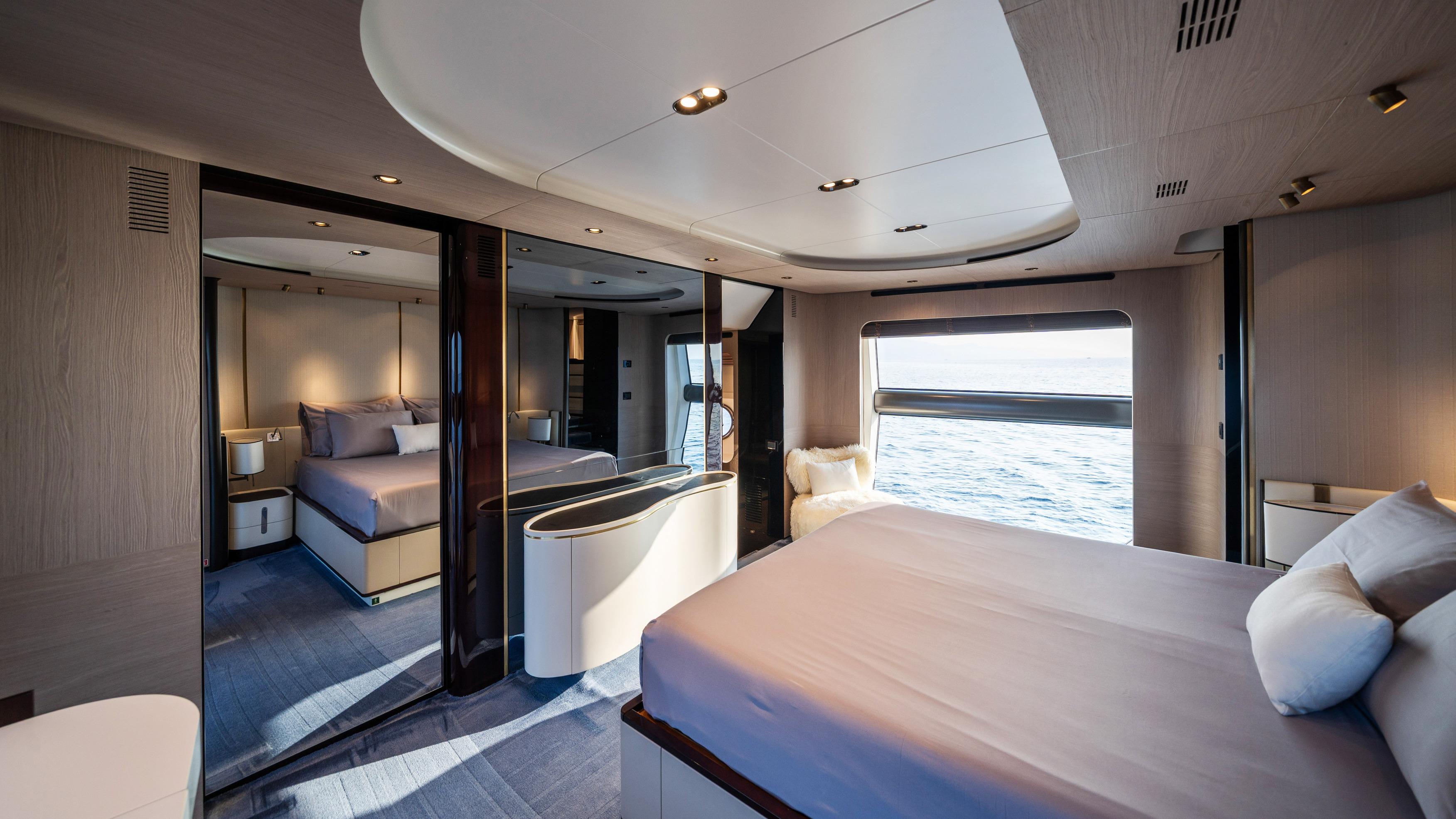

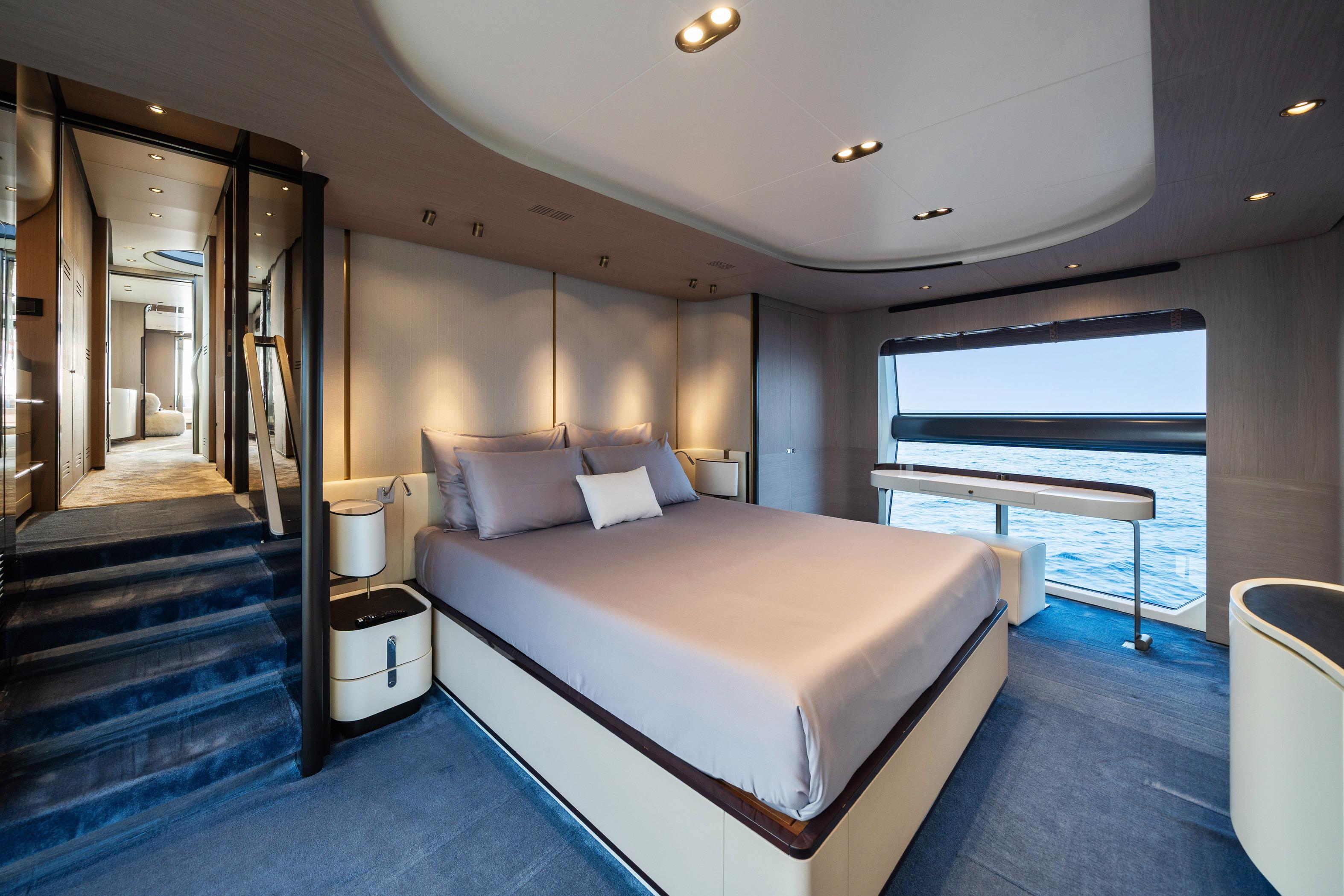

OWNER’S CABIN:
Double bed at the center of the yacht, with foldaway bed base and locker Access to service
compartment under the bed

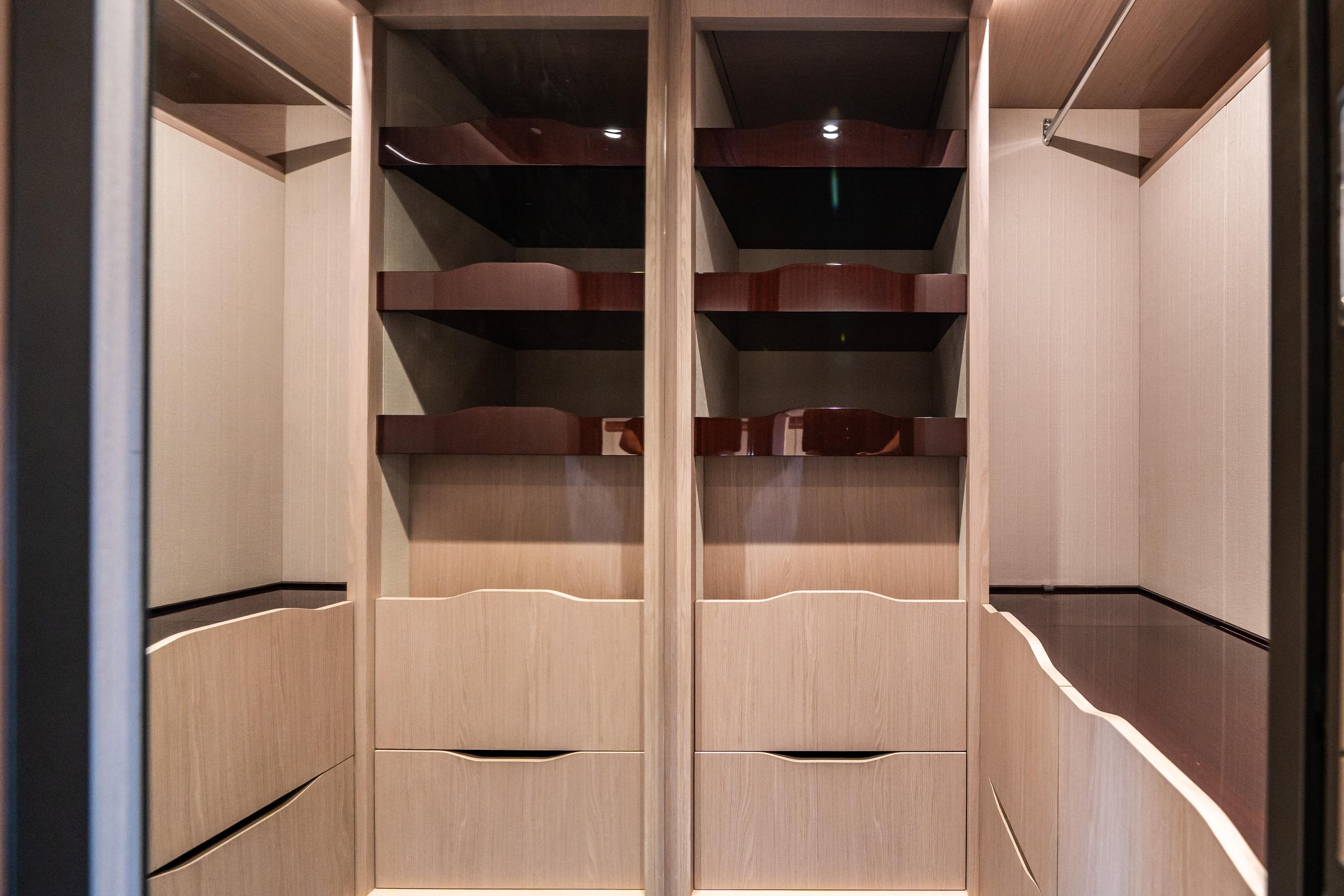

Walk-in wardrobe with wardrobes equipped with hanger bar, internal lighting, chest of
drawers, full-heightmirror with concealed sliding door
Two bedside tables with drawer
Fix side windows on each side of the cabin, full height
Chest of drawers, forward of the owner’s bed
Main lighting with dimmer, LED technology
LED technology courtesy lighting
Full-length mirror
Venetian blinds
Wood-upholstered bulwarks
Lacquered and wood ceiling
Carpeted Door
Air conditioning system control panel

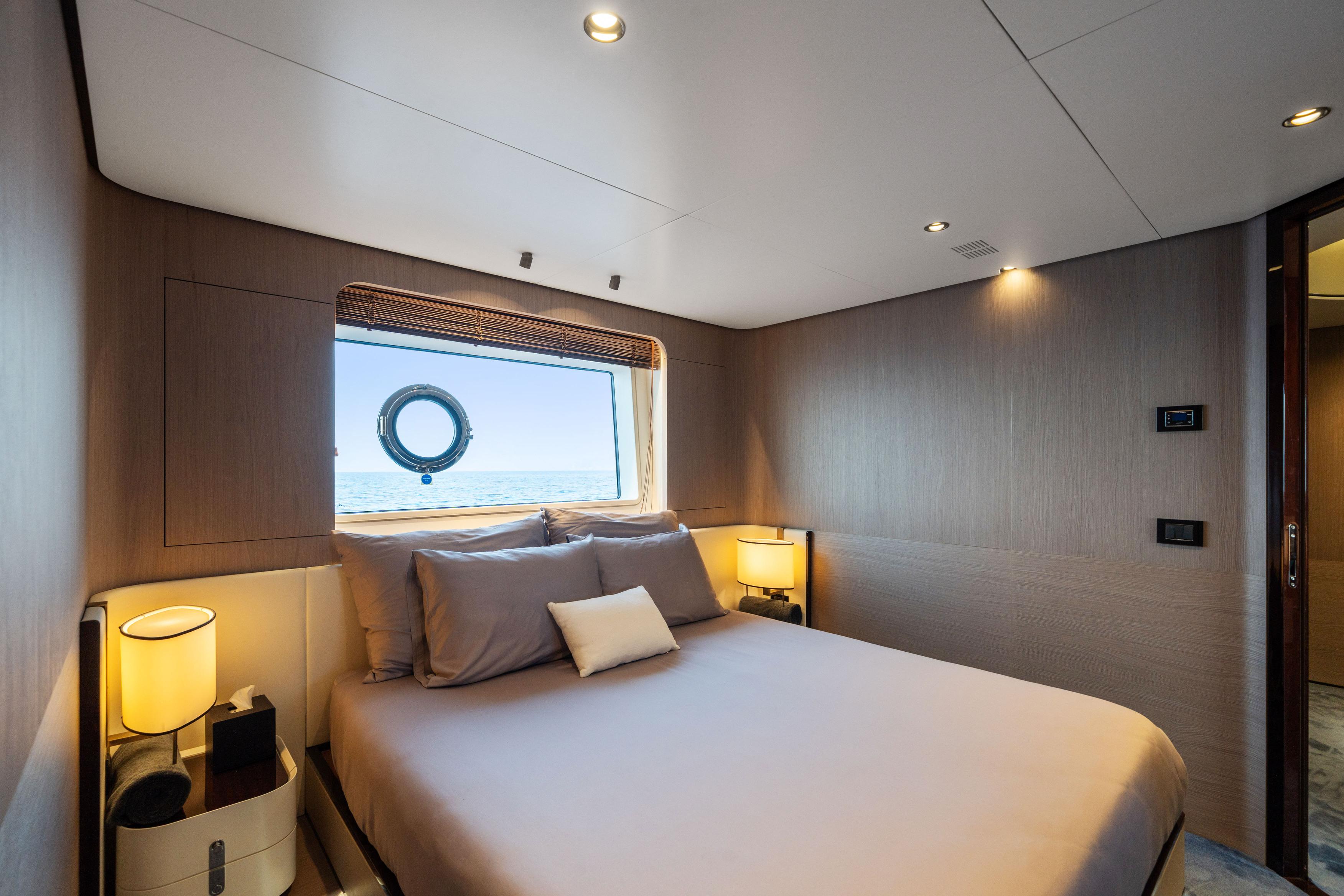

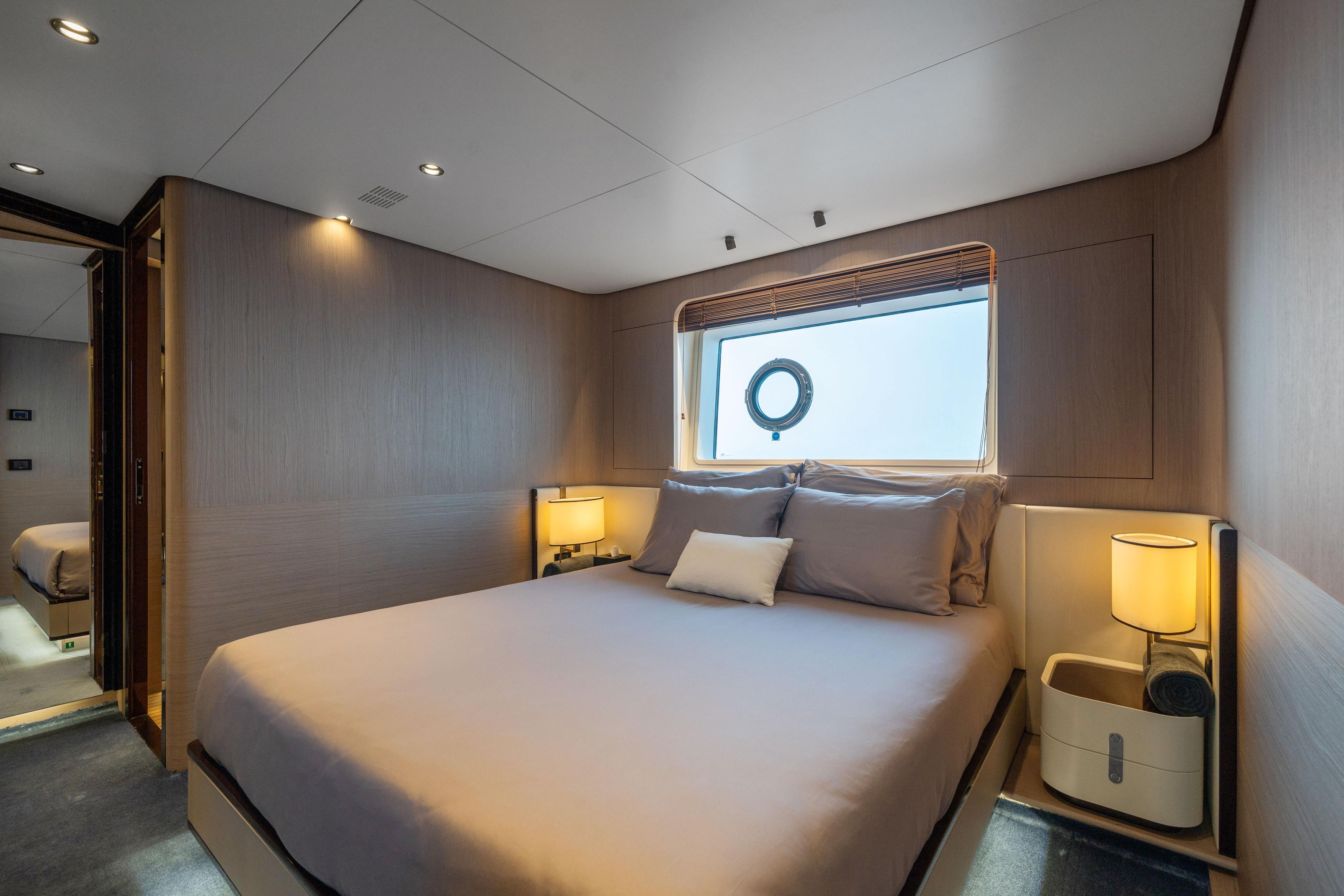

TWO DOUBLE CABINS
Double bed with foldaway bed plane and locker below, headboard
Two bedside tables
Wardrobe on port side with hanger bar and internal lighting
Chest of drawers
Two wall units with storage above side panoramic windows
Lighting with recessed LED spotlights
Two LED wall lights on headboard
Fixed panoramic windows
Openable round portlights built-in the panoramic windows
Wooden Venetian blinds
Lacquered and wood ceiling
Wooden/fabric upholstered bulwarks
Lacquered/fabric-upholstered headlining
Carpeted oor
LED courtesy lights
Air conditioning system control panel

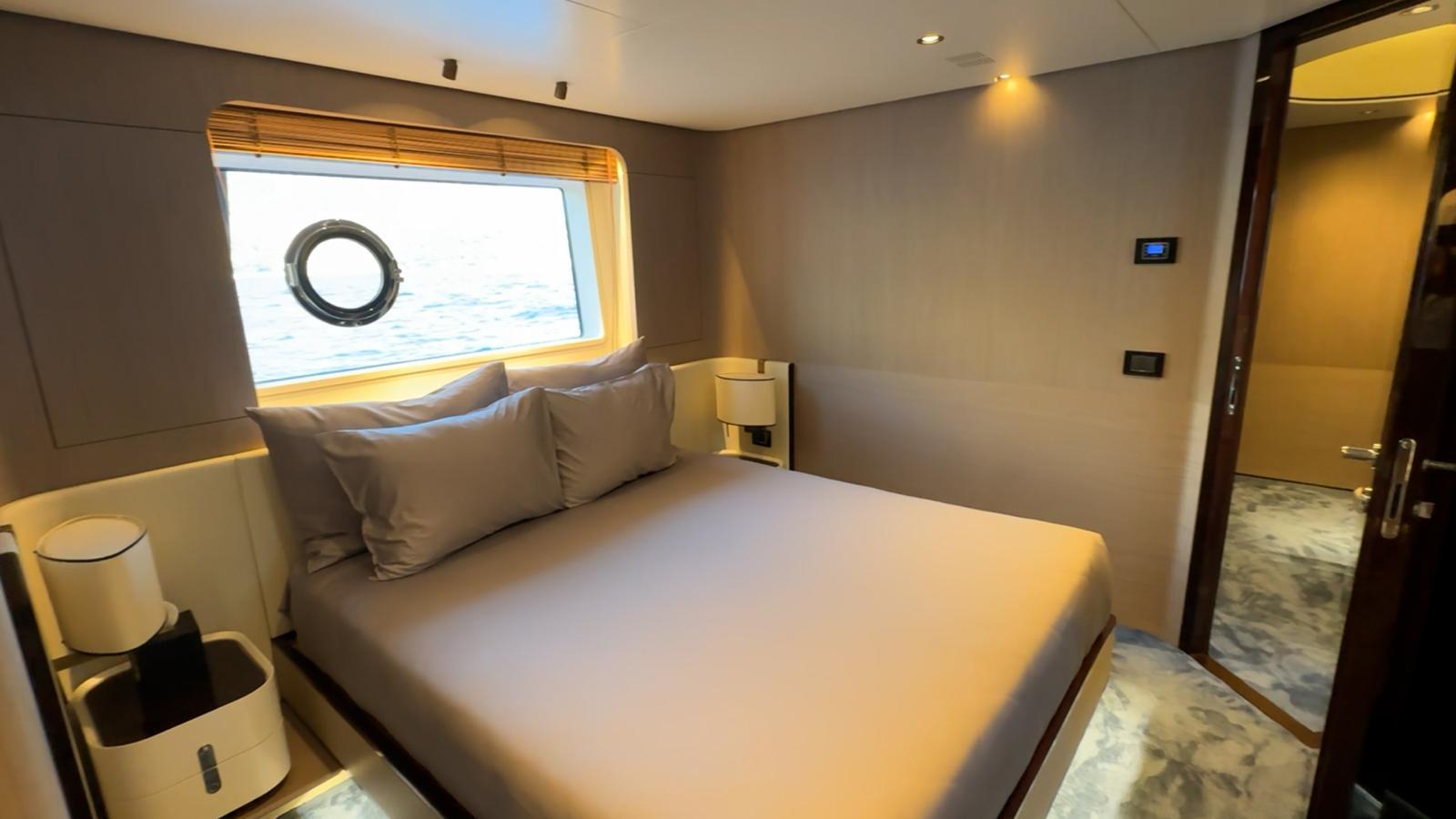

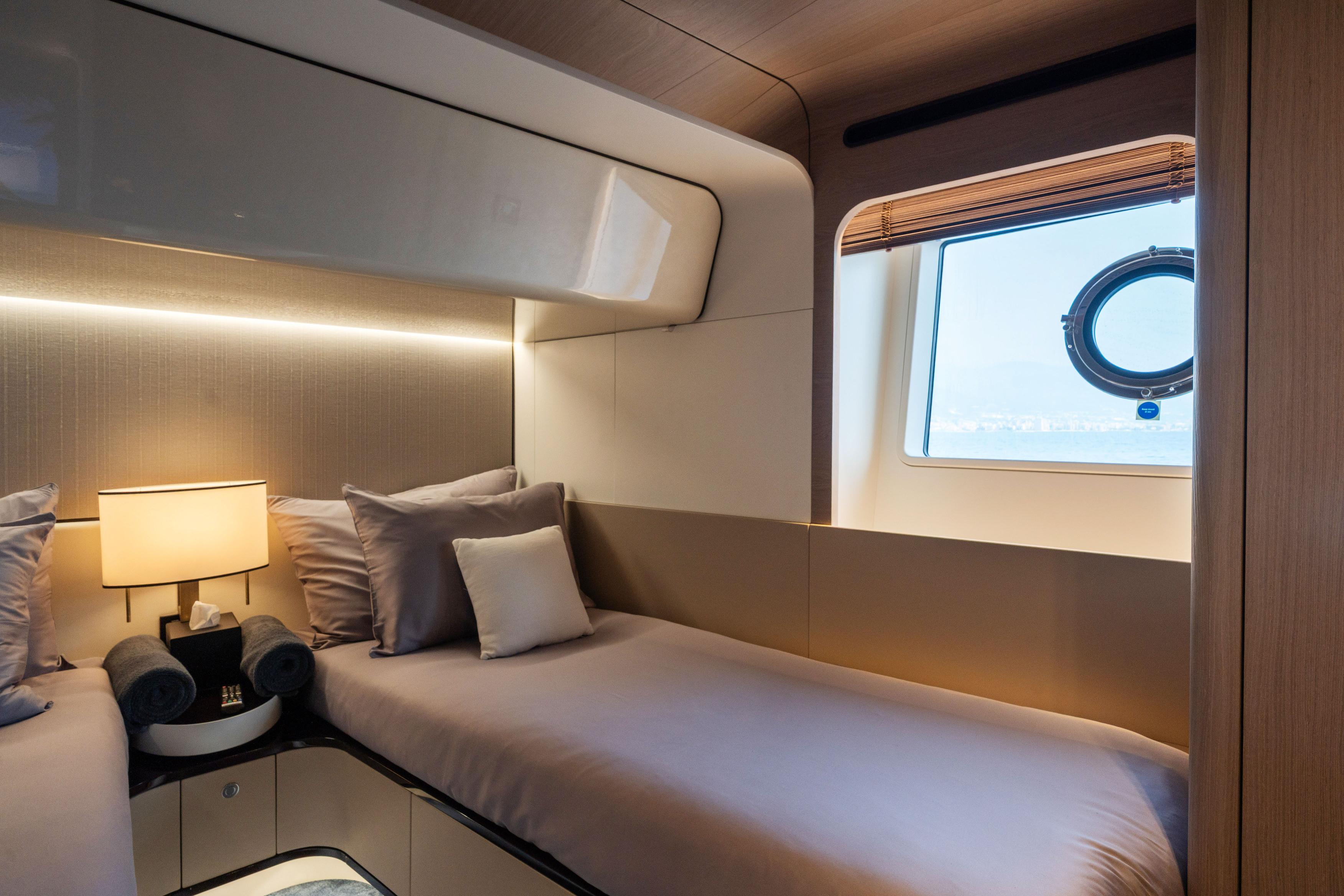

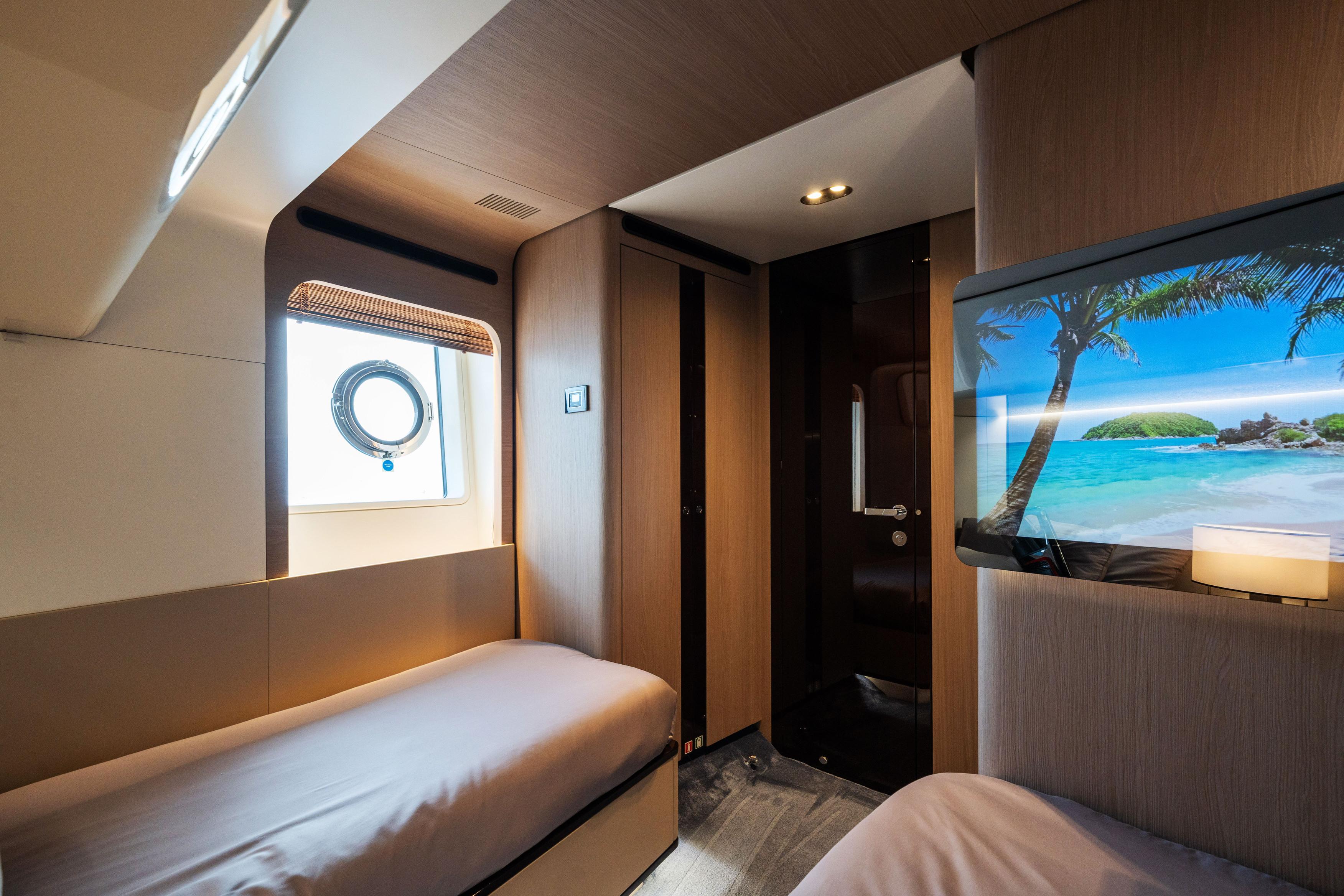

TWO TWIN GUEST CABINS
Double bed placed transversally on
bulwark, with foldaway bed plane and locker below, headboard
Two bedside tables with drawer
One wardrobe with a hanger bar and shelves
Lacquered ceiling
Upholstery on bulwark in wood essence
Full-length mirror
Panoramic êxed window with built-in
portlight
Venetian blind
Carpeted ëoor
LED technology lighting
Headboard light
Air conditioning system control panel
CUSTOM OPTIONS
Flybridge U-bench extension, curved furniture

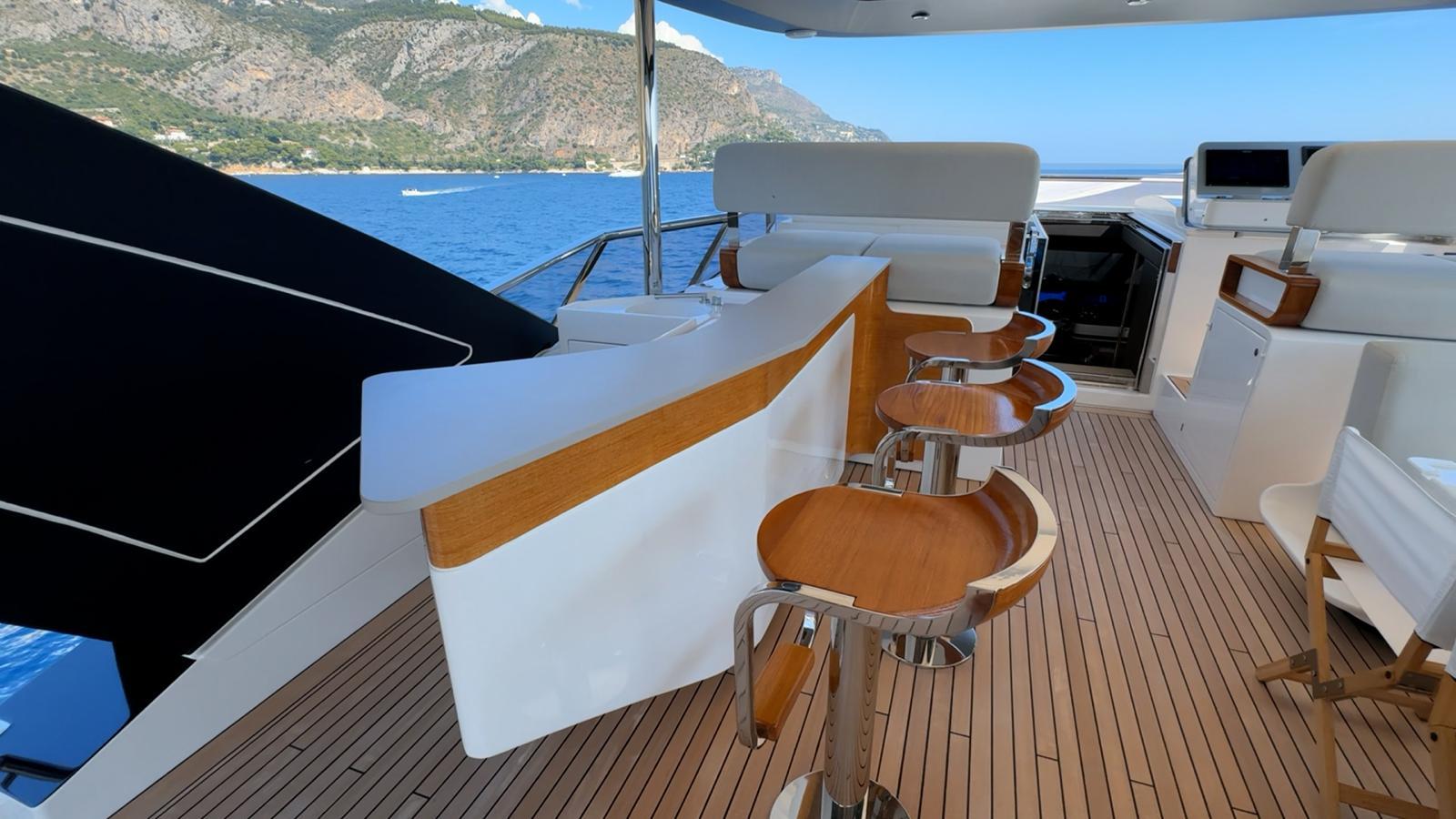

Stainless Steel Teak Bar Stool on ëybridge 3 pieces

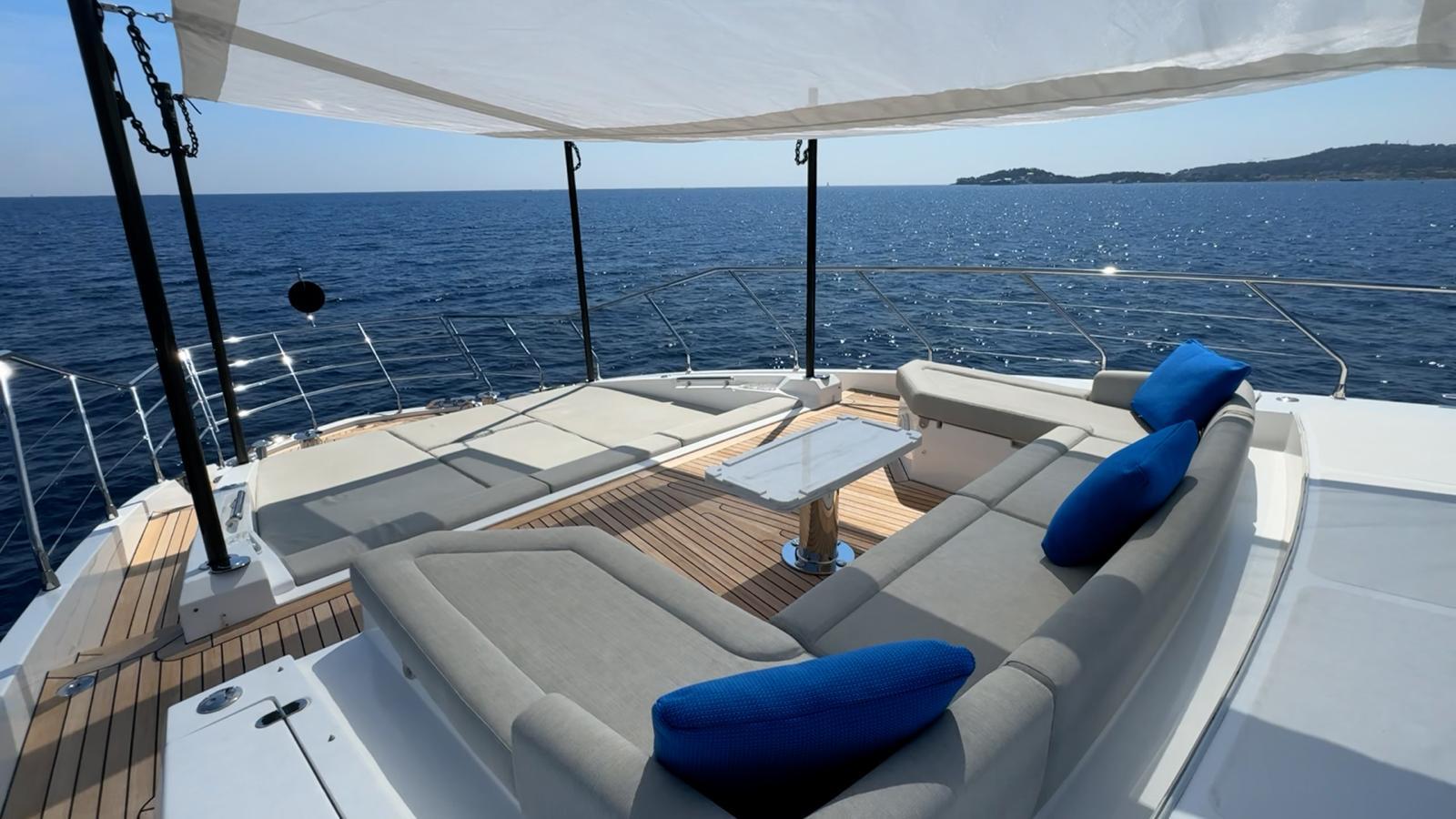

Teak table on bow
Mosquito nets for portholes
Salon round table
Wooden ëoor in salon/couch area
Lacquer table
Marble washbasins, shower cubicle ëoor and wall and kitchen exchange
Reading lights flexible installation in owner’s cabin
Glass top fixed on dining table in salon
GALLEY & LAUNDRY EQUIPMENT

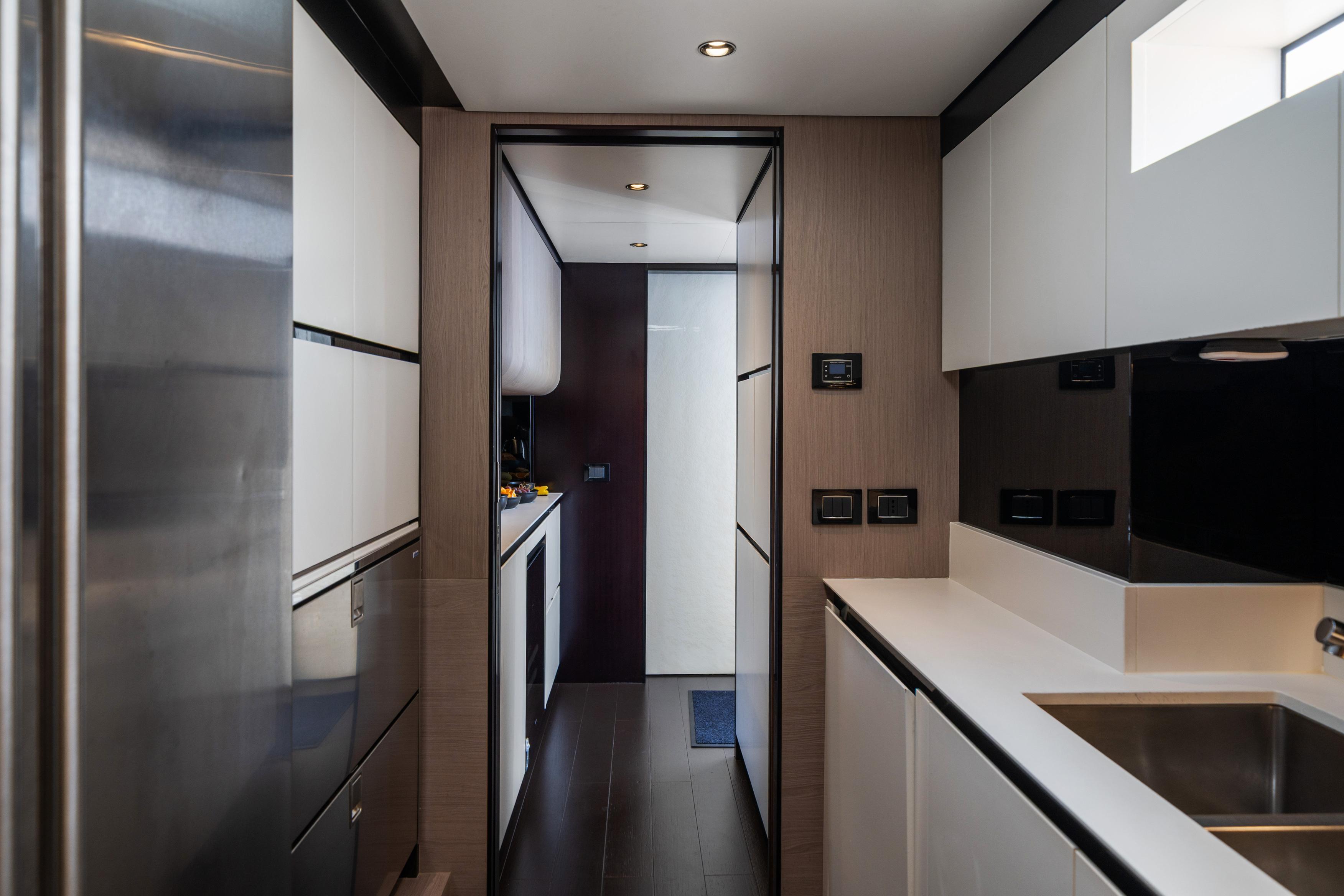

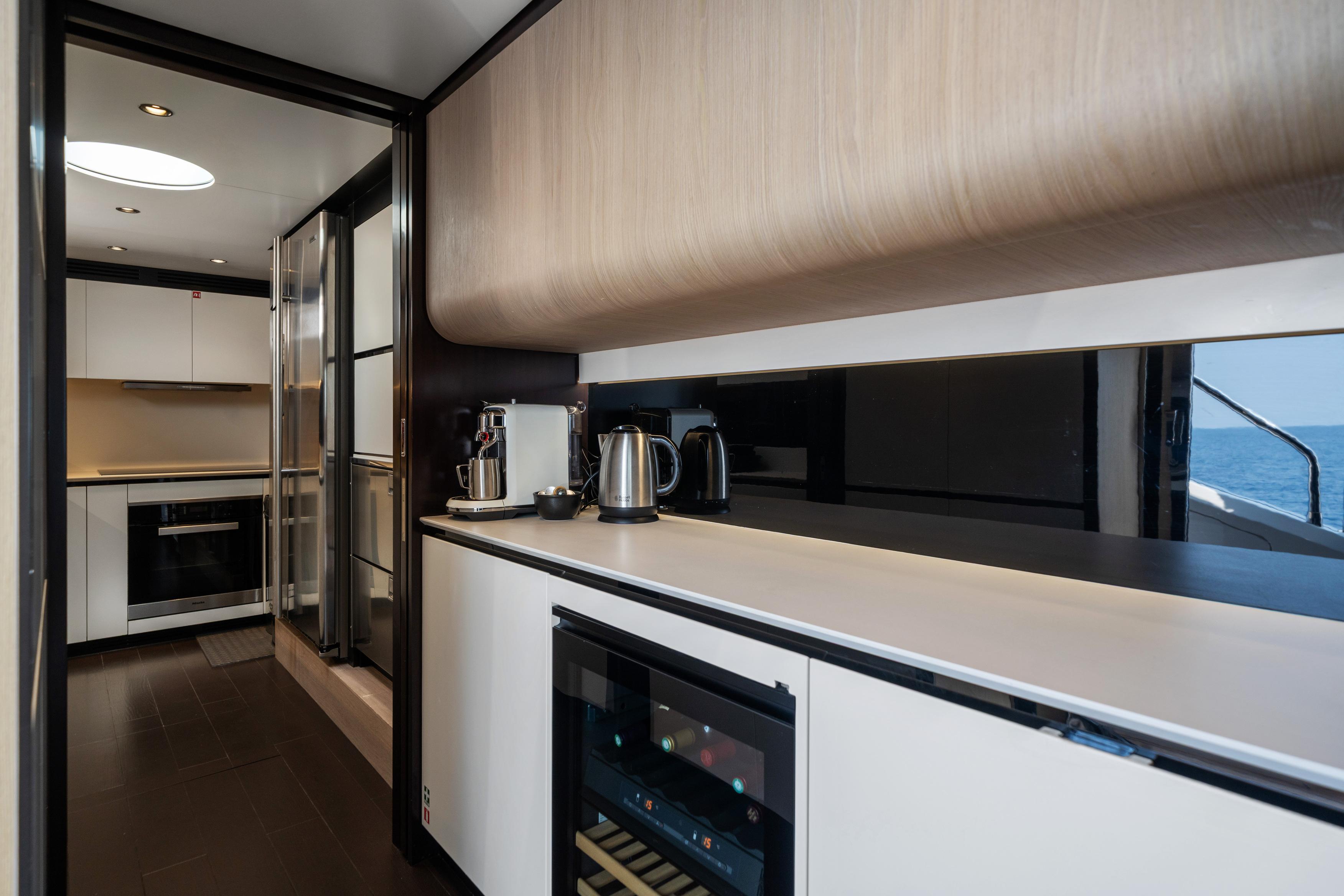

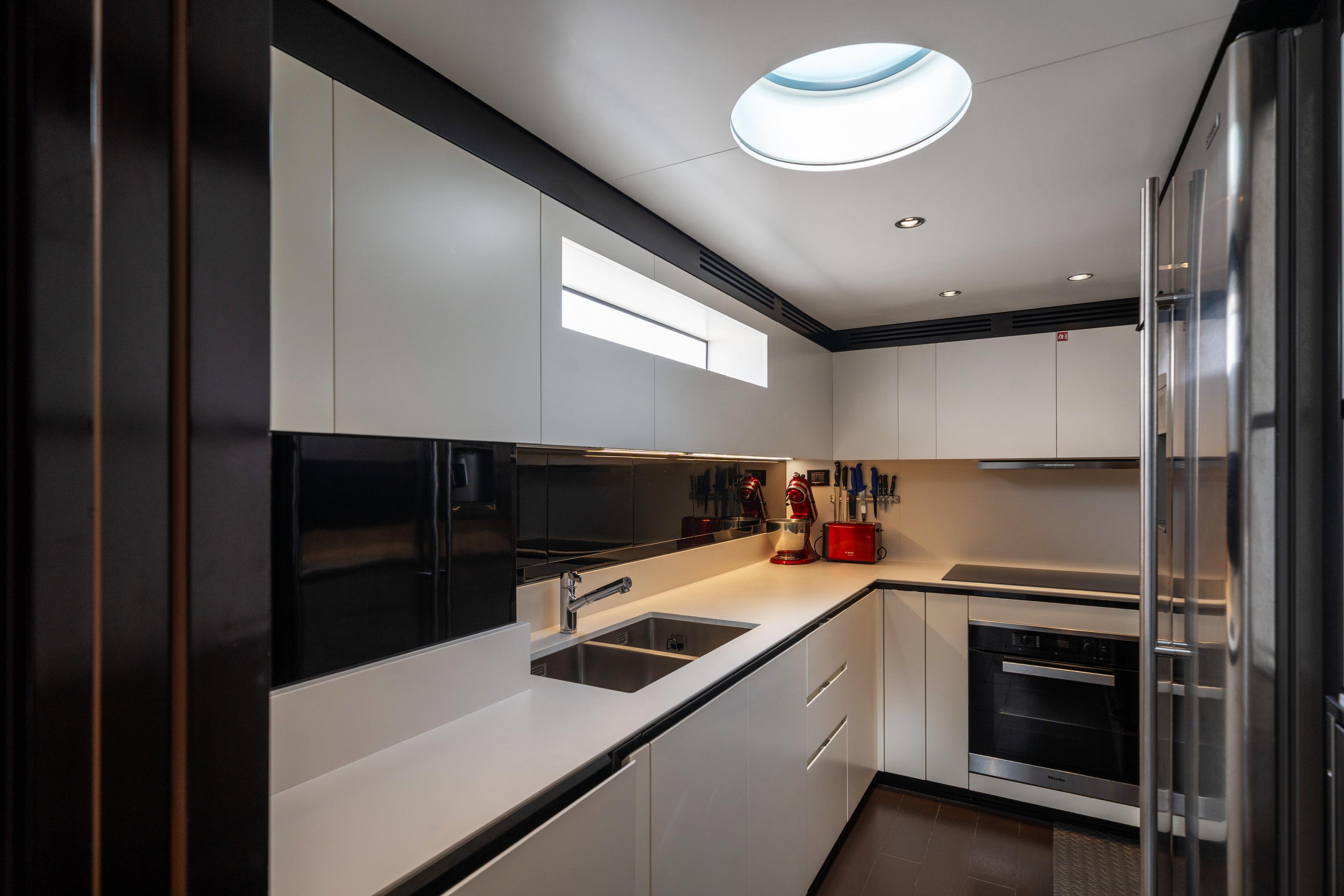

GALLEY
–
Located on port side, the access is through concealed sliding door located forward of the pantry. This layout allows
full isolation of this area from the saloon and dining area reserved for the owner and his guests.
419 l (14.8 cu.ft) refrigerator + 247 l (8.7 cu.ft) freezer
Dishwasher
Stainless steel sink with faucets Extractor hood
76 l (2.68 cu.ft) oven Four-burner induction range
Flooring in vinyl
Composite material worktop
Storage wall units on port bulwark
LED technology spotlights
Sockets
Air conditioning outlet grating
Wine cooler in galley (option)
LAUNDRY:
Washer-dryer in crew cabin (option)
EXTERIOR APPLIANCIES:
Icemaker flybridge (option)
Refrigerator in cockpit furniture (option)
