Descripción

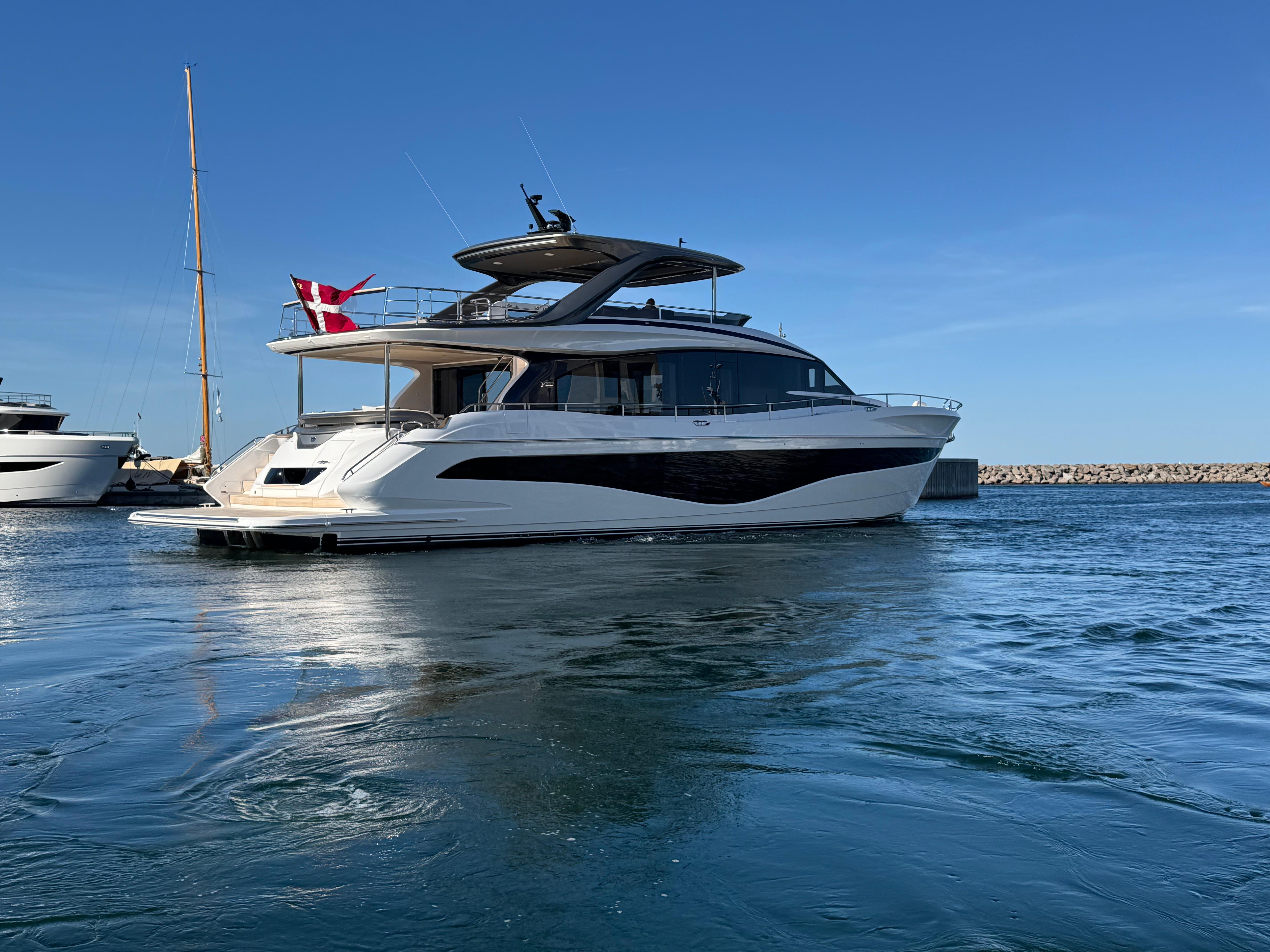

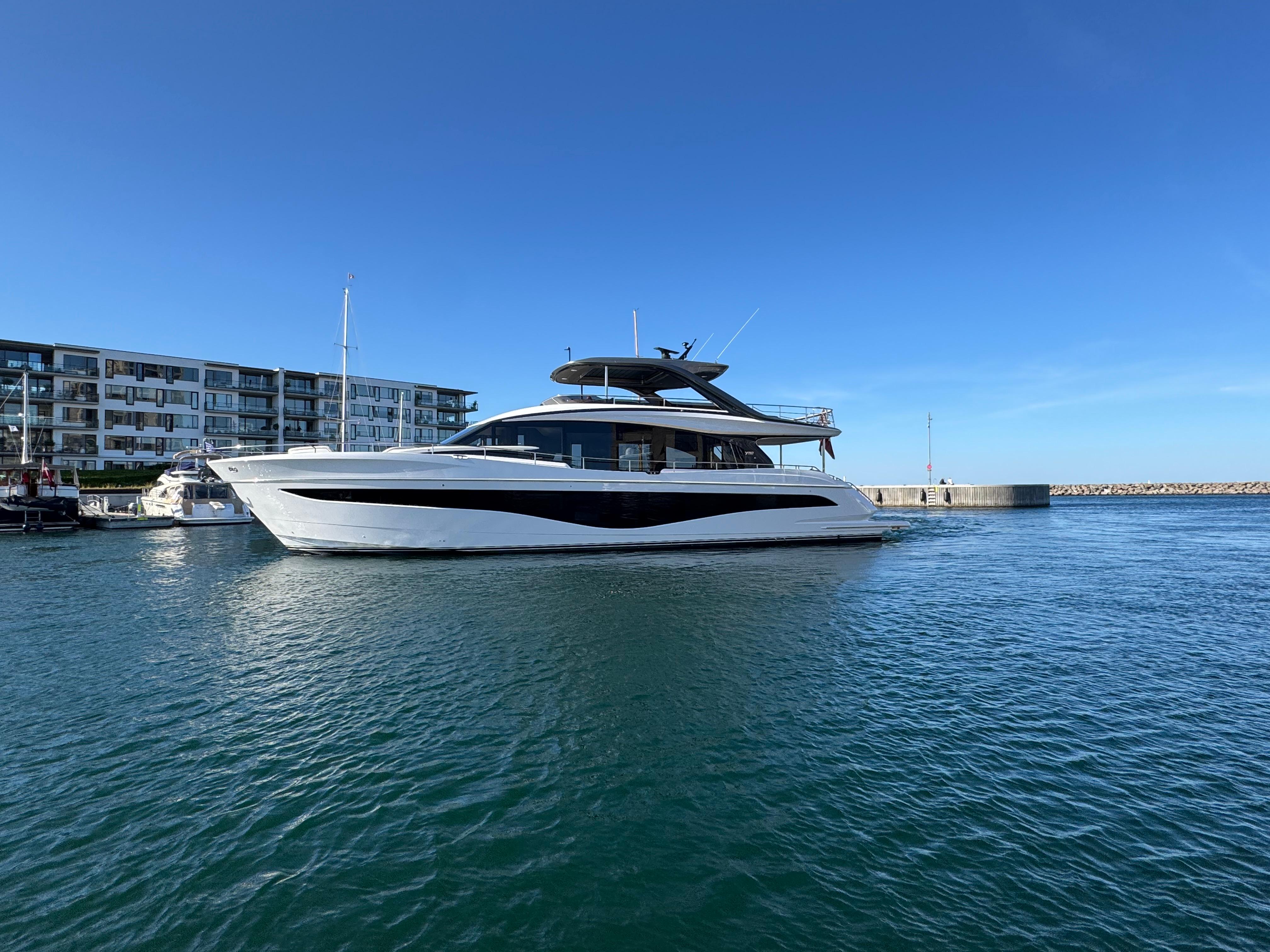

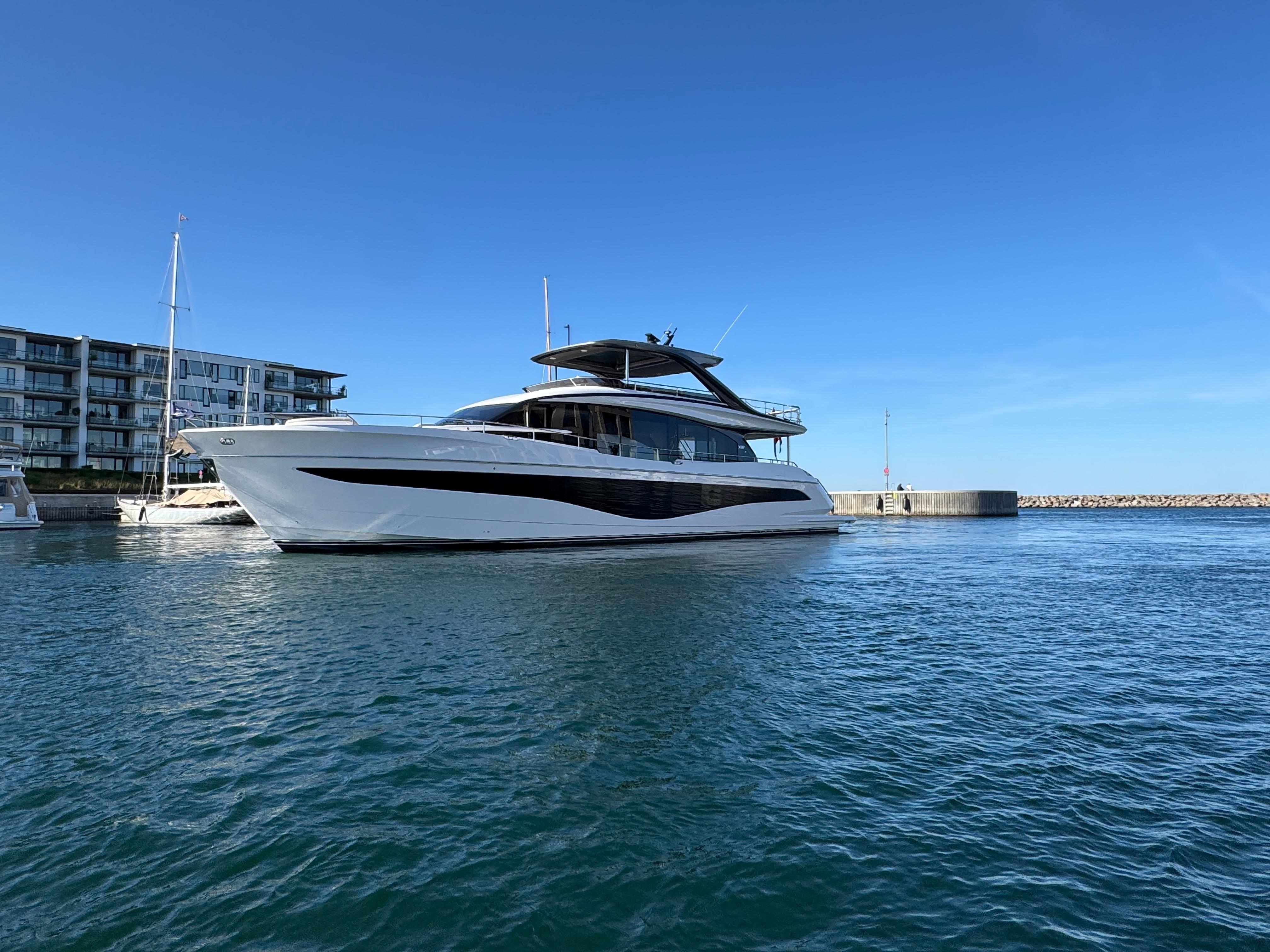

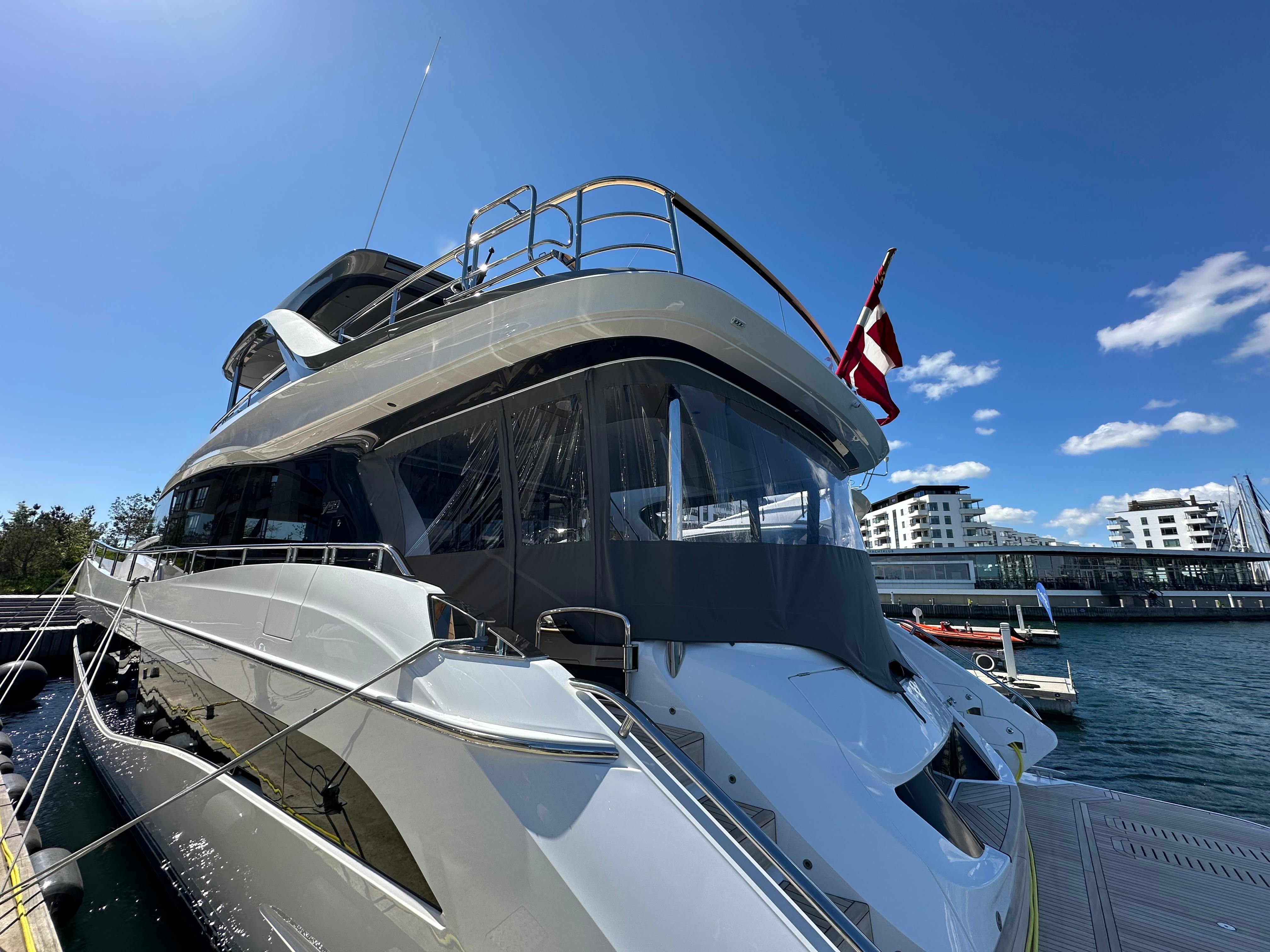

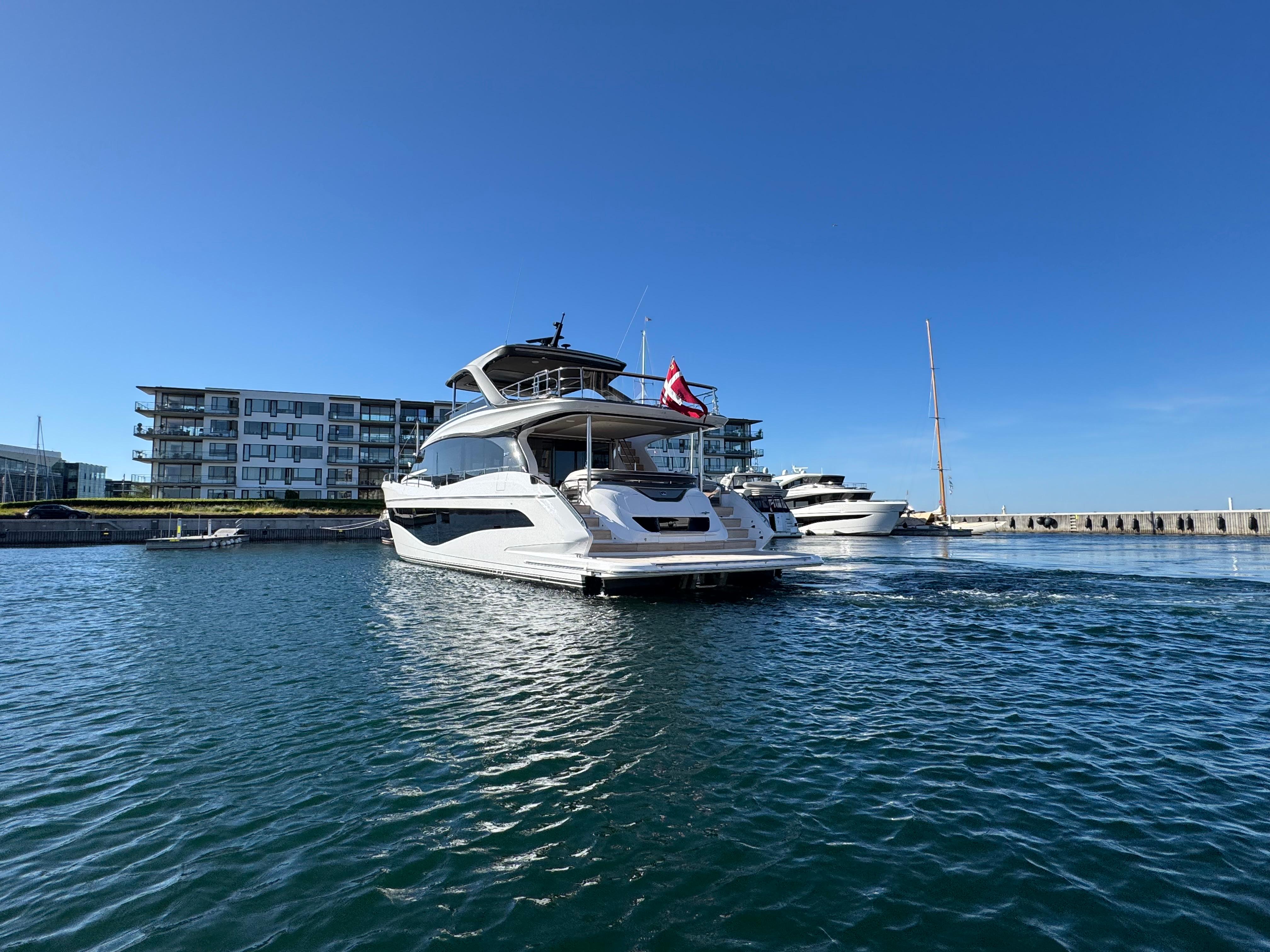

FACTORY NEW VERY HIGHLY OPTIONED PRINCESS Y80 READY FOR IMMEDIATE DELIVERY.
PART EXCHANGE WELCOME…
ENGINES & DRIVE

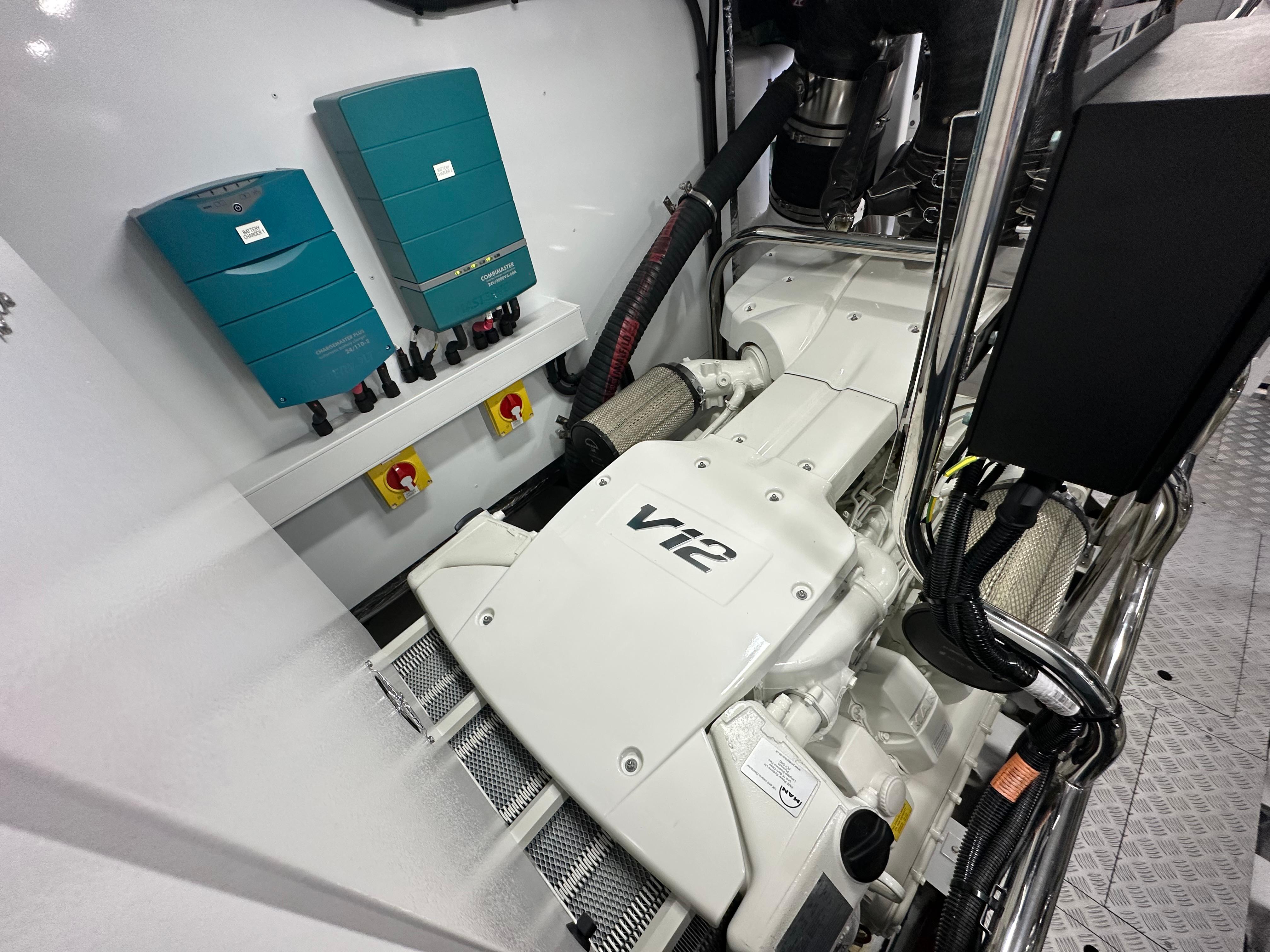

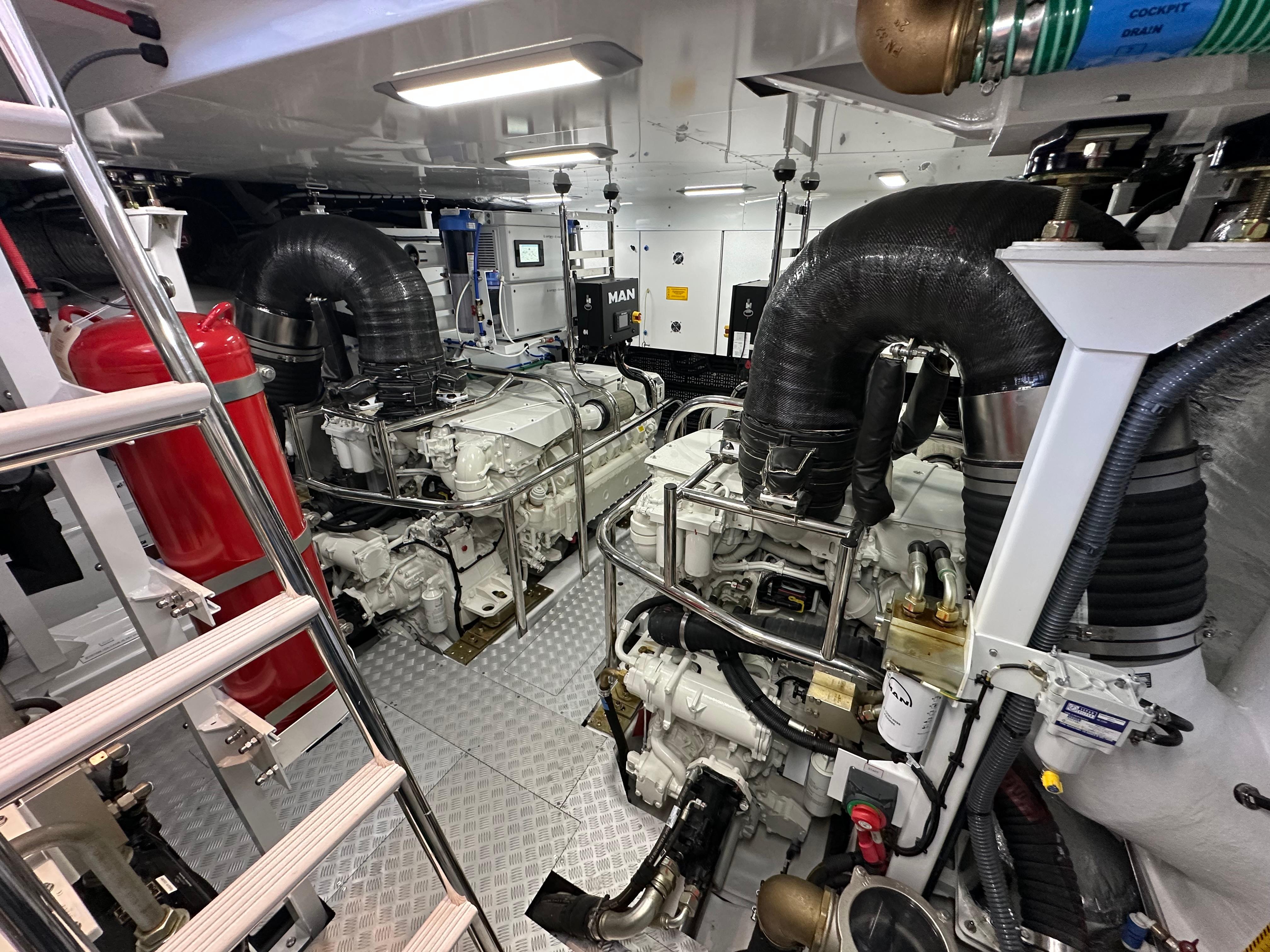

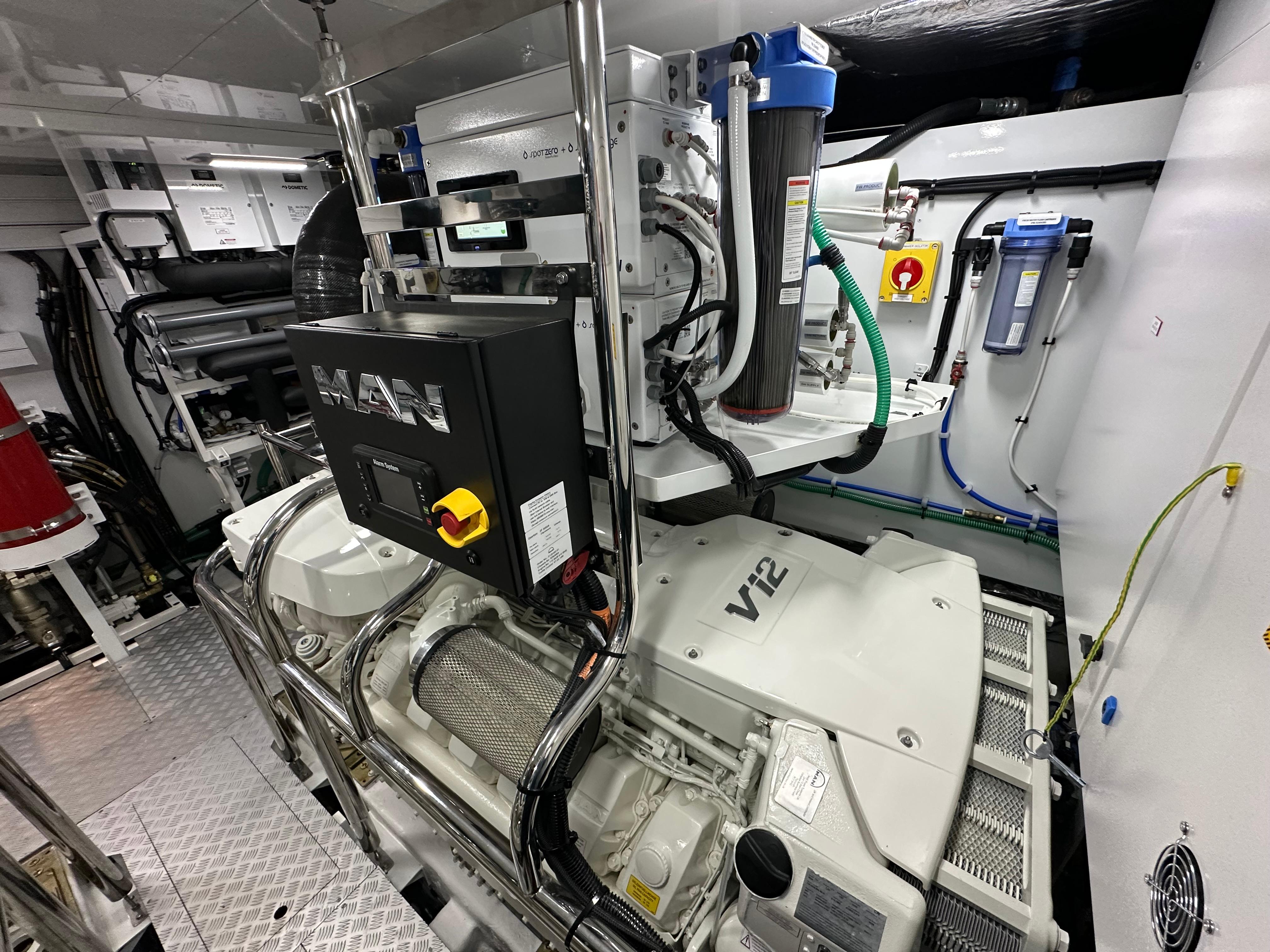

MAN V12-1900 (2 x 1900hp)

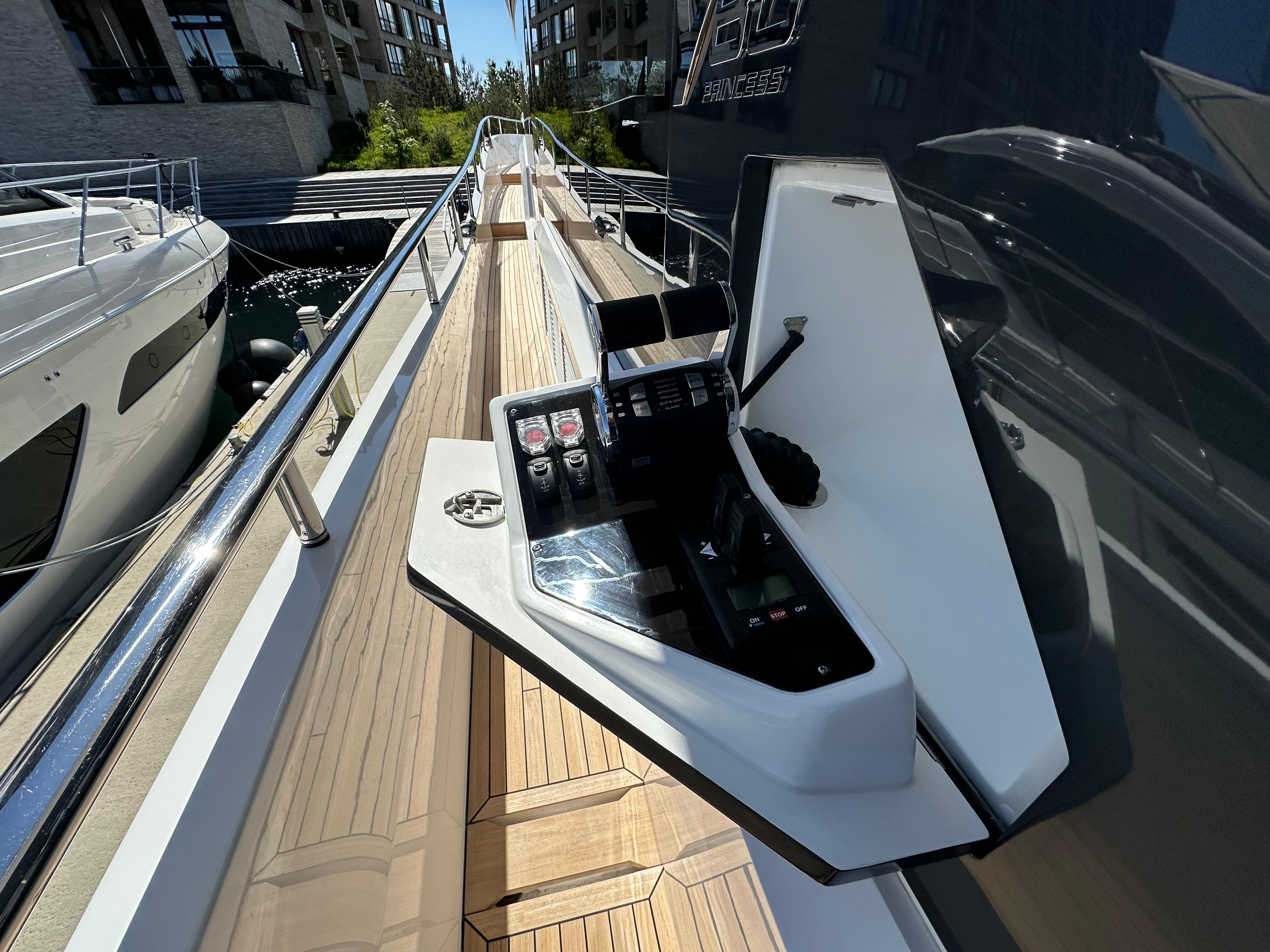

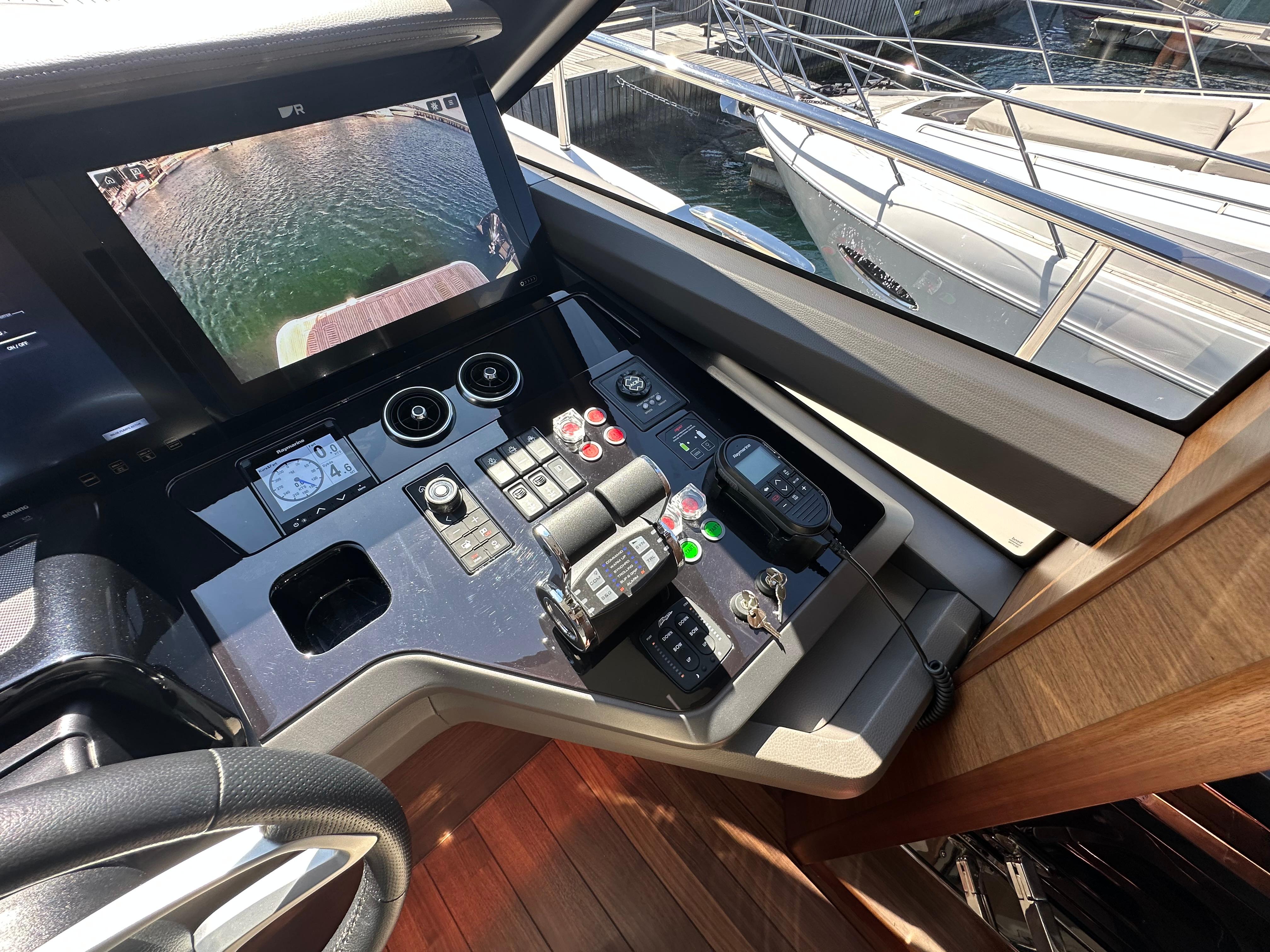

Stern docking (third) station controls in port side cockpit (Includes engine controls, emergency engine stops and thruster controls)
HYDRAULICS
Standard system comprises of separate engine driven hydraulic pumps allowing any system to be supplied with hydraulic power from either engine. Including hydraulic anchor winch and 340kgF hydraulic bow thruster and hold function docking system. All with dual station controls. Hydraulic Sternthruster (variable speed 320 KgF)
STABILISATION

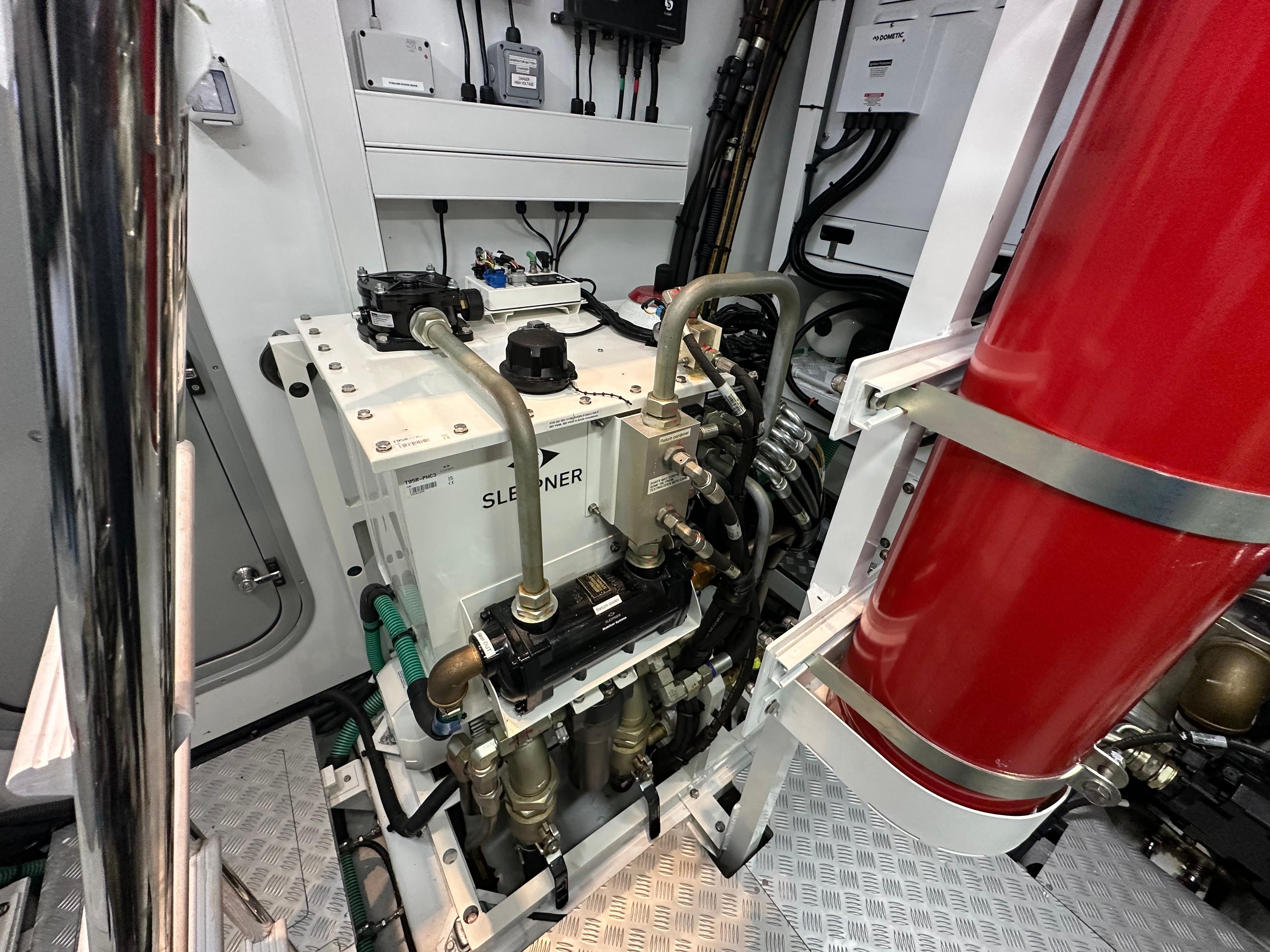

Sleipner Vector Fin stabilizer system with VF1350. When underway fins are driven by engine powered hydraulic motors or by a generator powered electric motor when the main engines are turned off.
HULL COLOUR
Canopy style line, canopy cockpit overhang and canopy buttress legs are finished in Graphite Grey
Canopy forward legs finished in Onyx Black
Engine air intakes are finished in Onyx Black
Exterior/cockpit furniture finished in Oyster Grey metallic
White (with dark grey water line, black antifouling, hull & bathing platform fendering is white with stainless steel insert)
INTERIOR FURNITURE

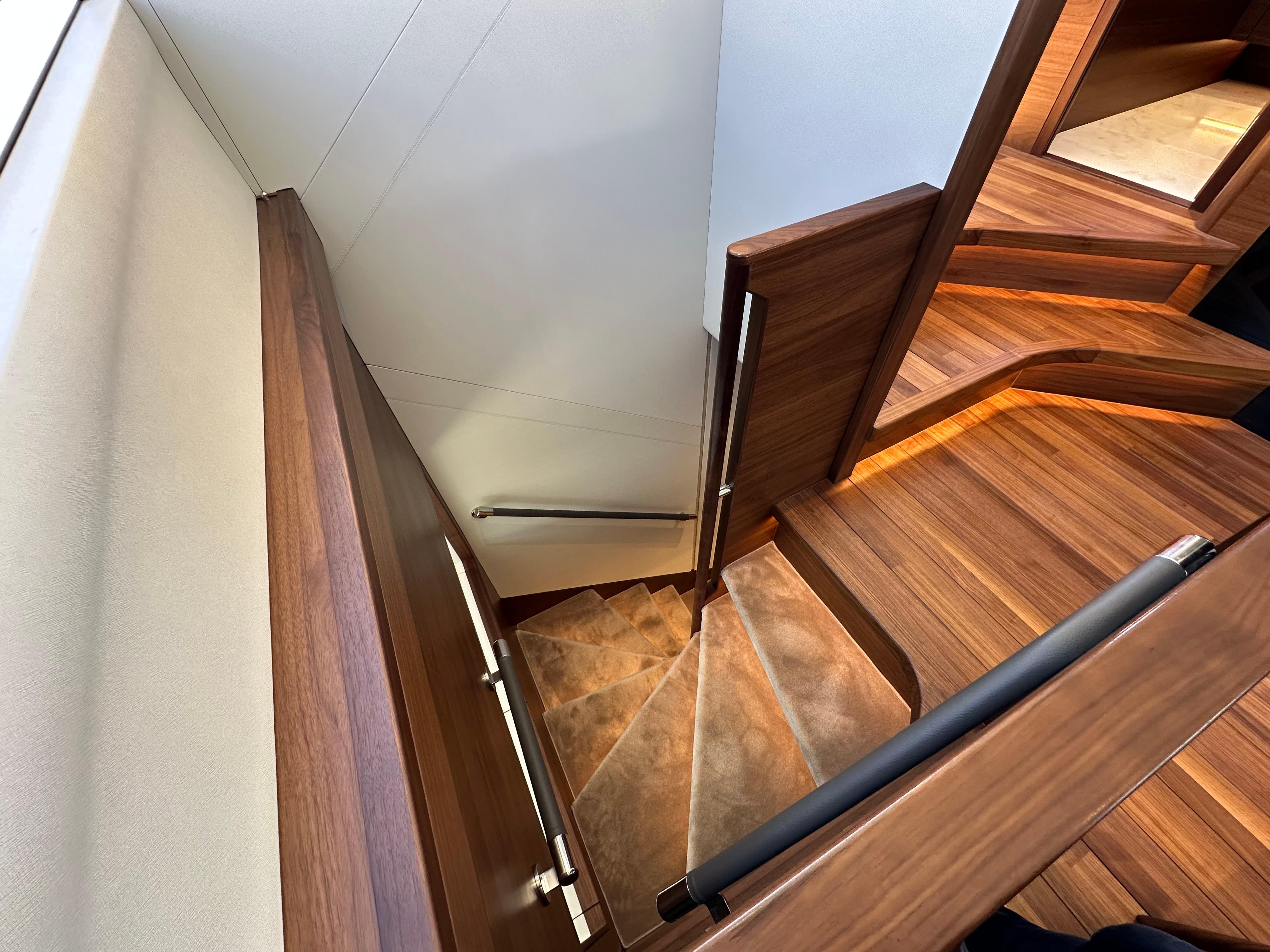

Walnut interior wood Satin finish (galley and wheelhouse floors are V groove planked Walnut as standard)
Main deck living area (aft saloon seating and dining area) floors to be in V groove planked timber (wood type same as galley)
Interior rally are in walnut timber in place of standard HPL mat soft fell 6170.
LAYOUT

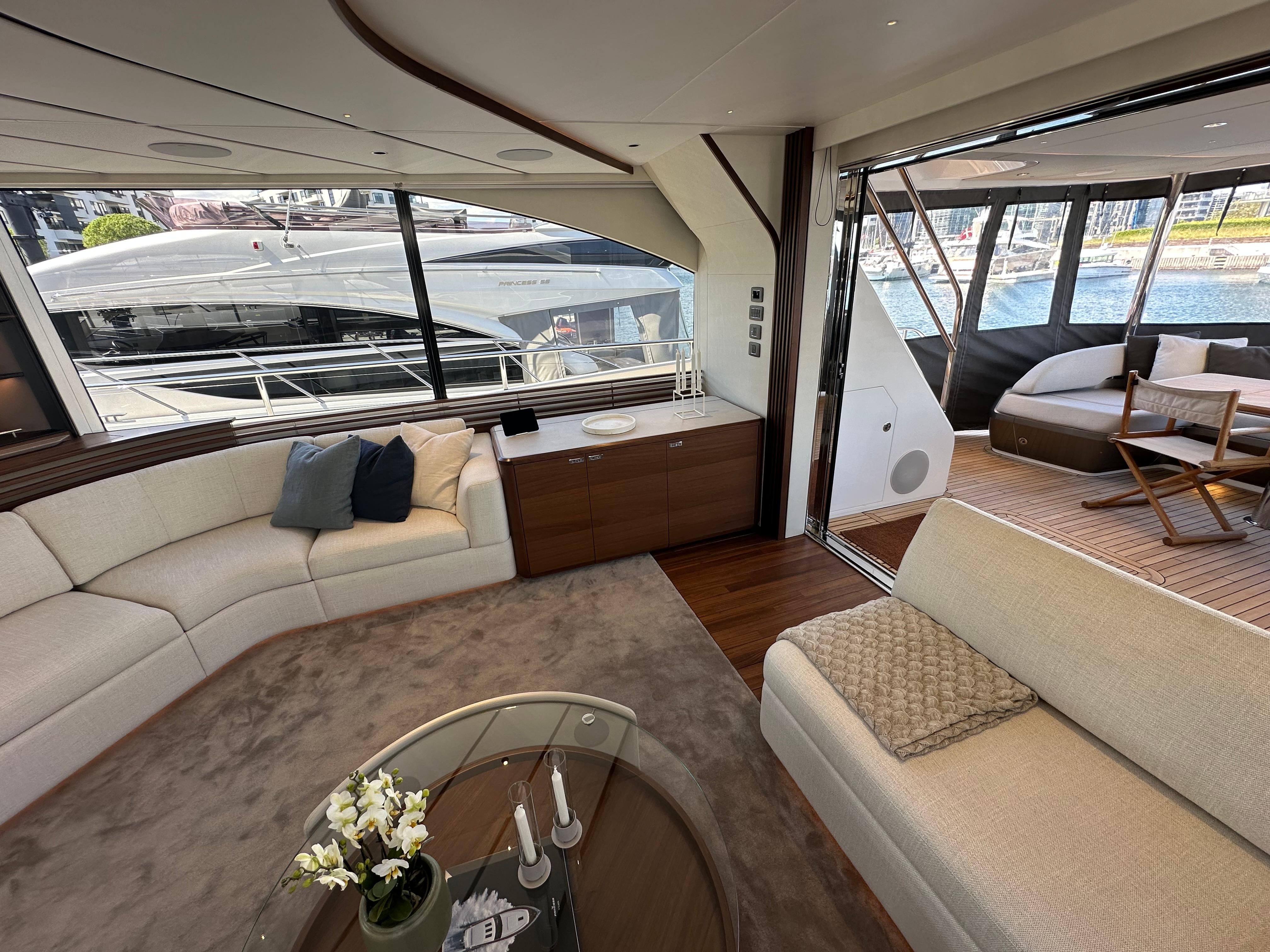

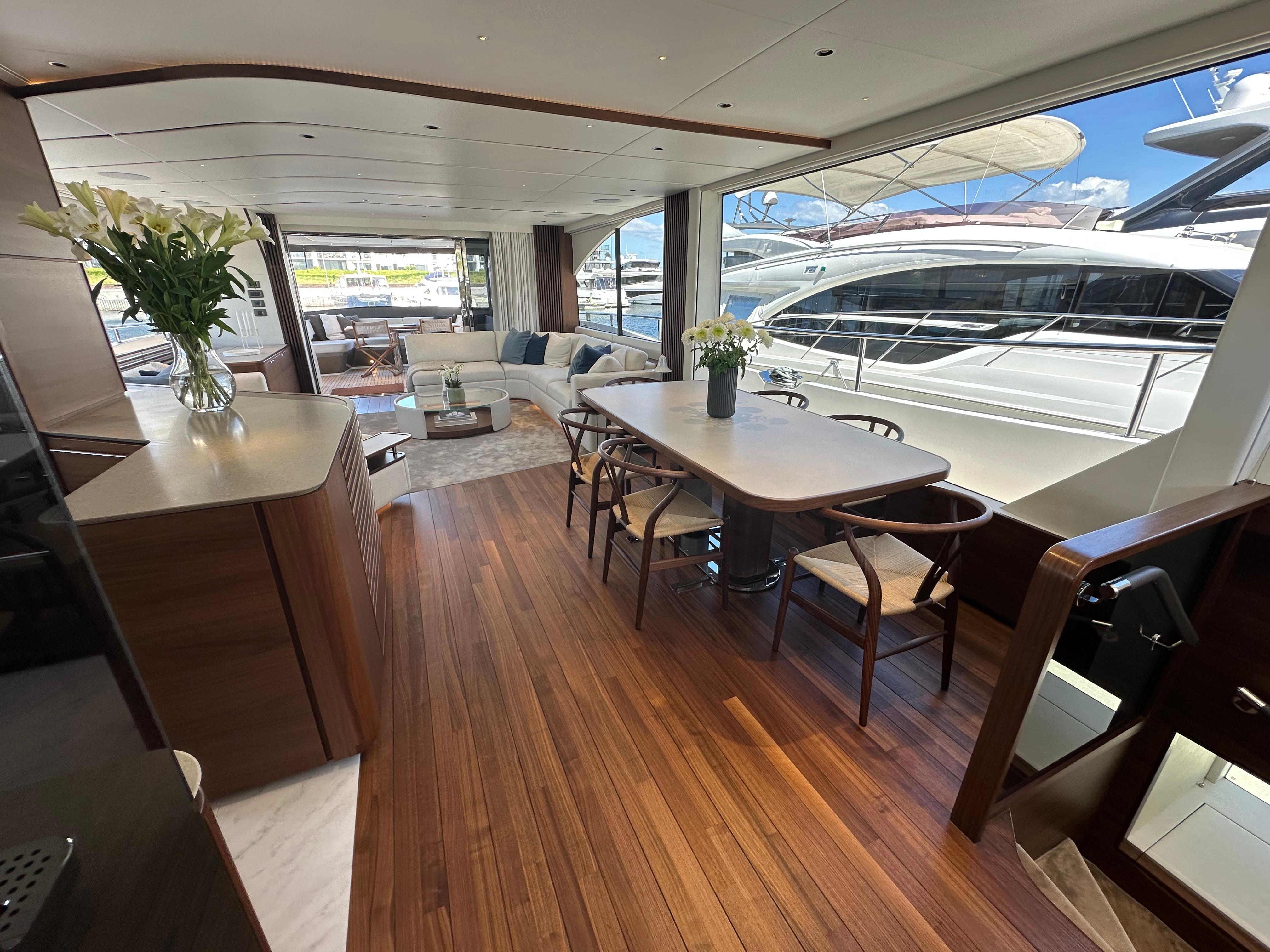

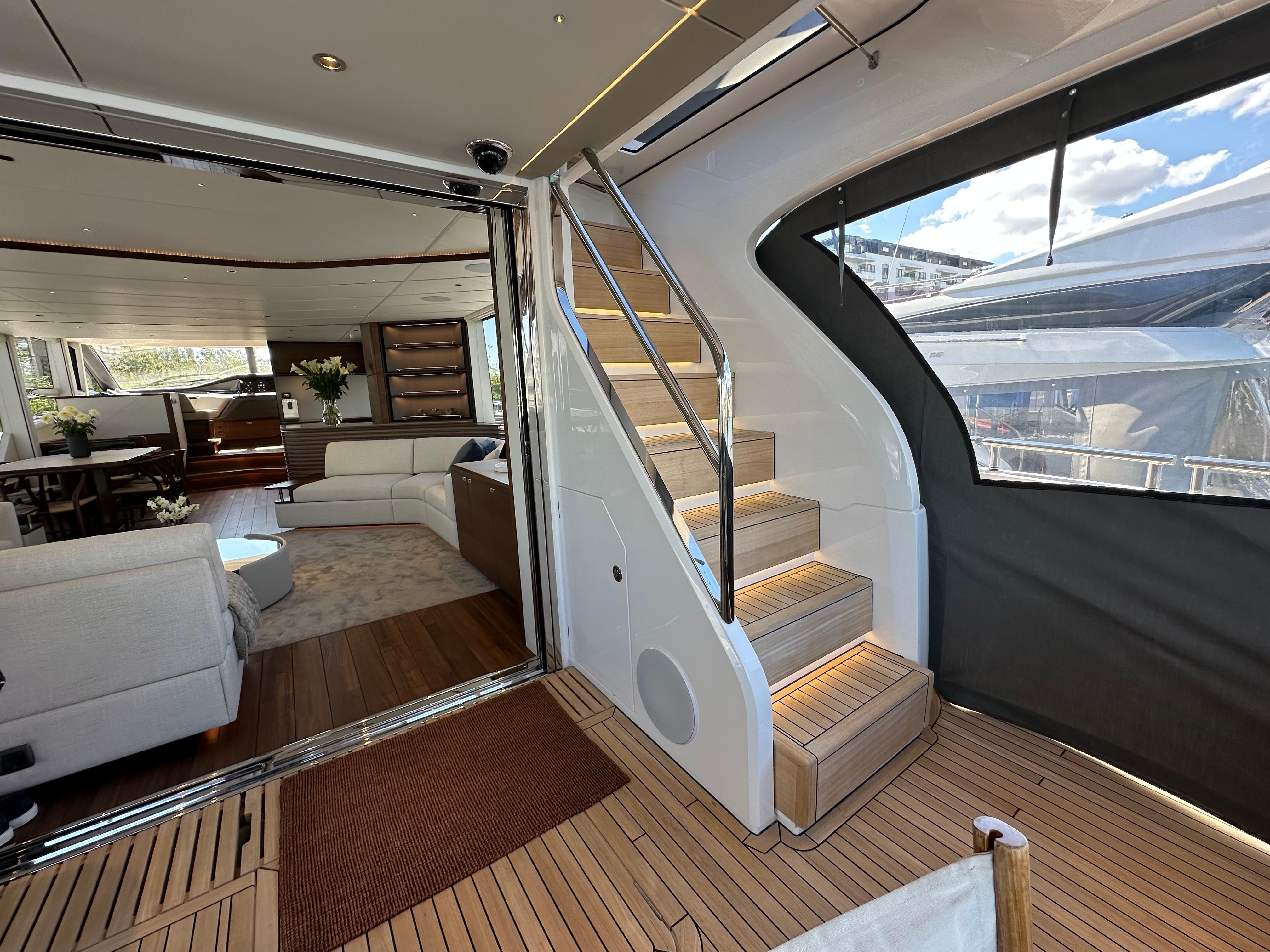

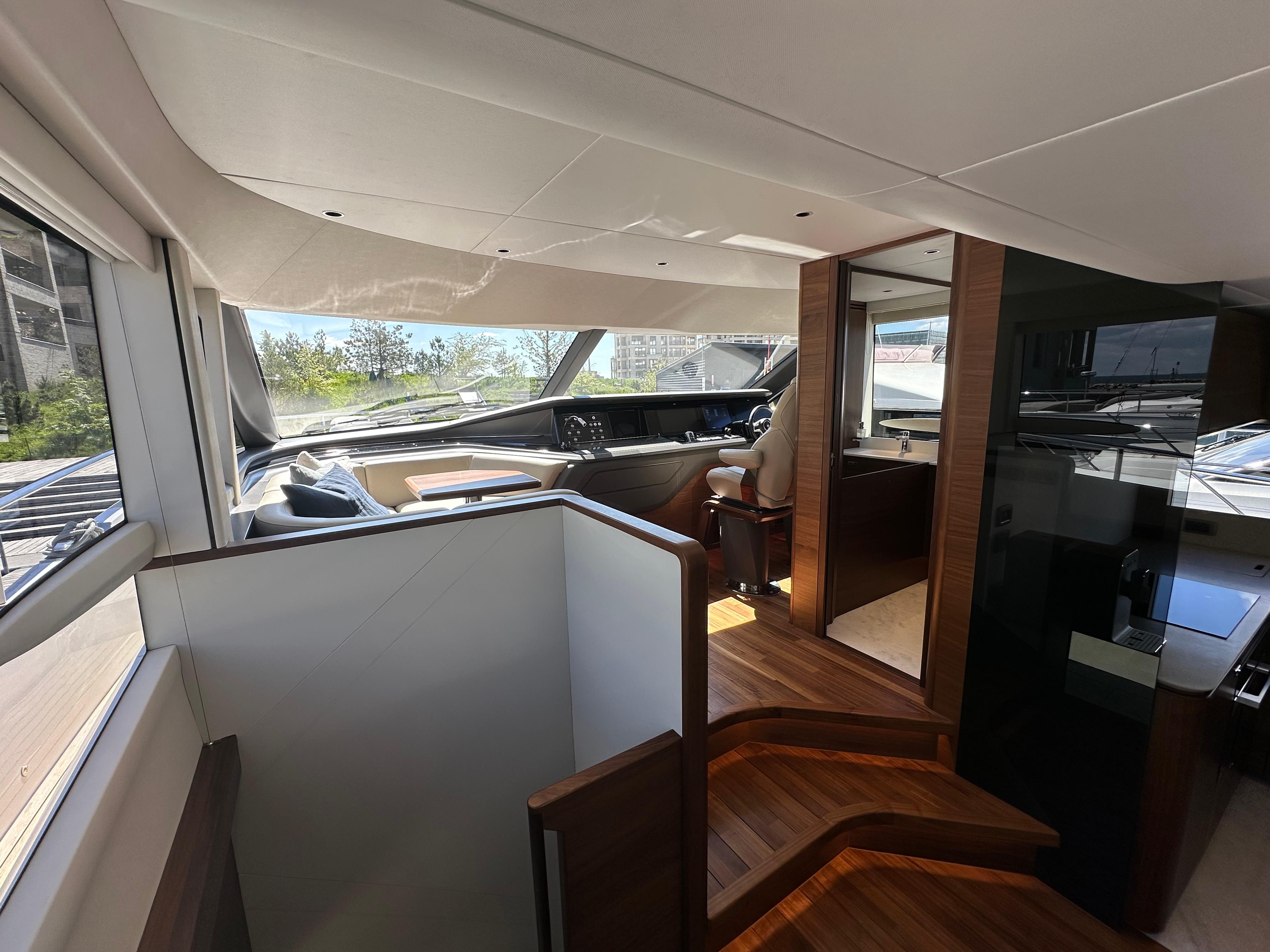

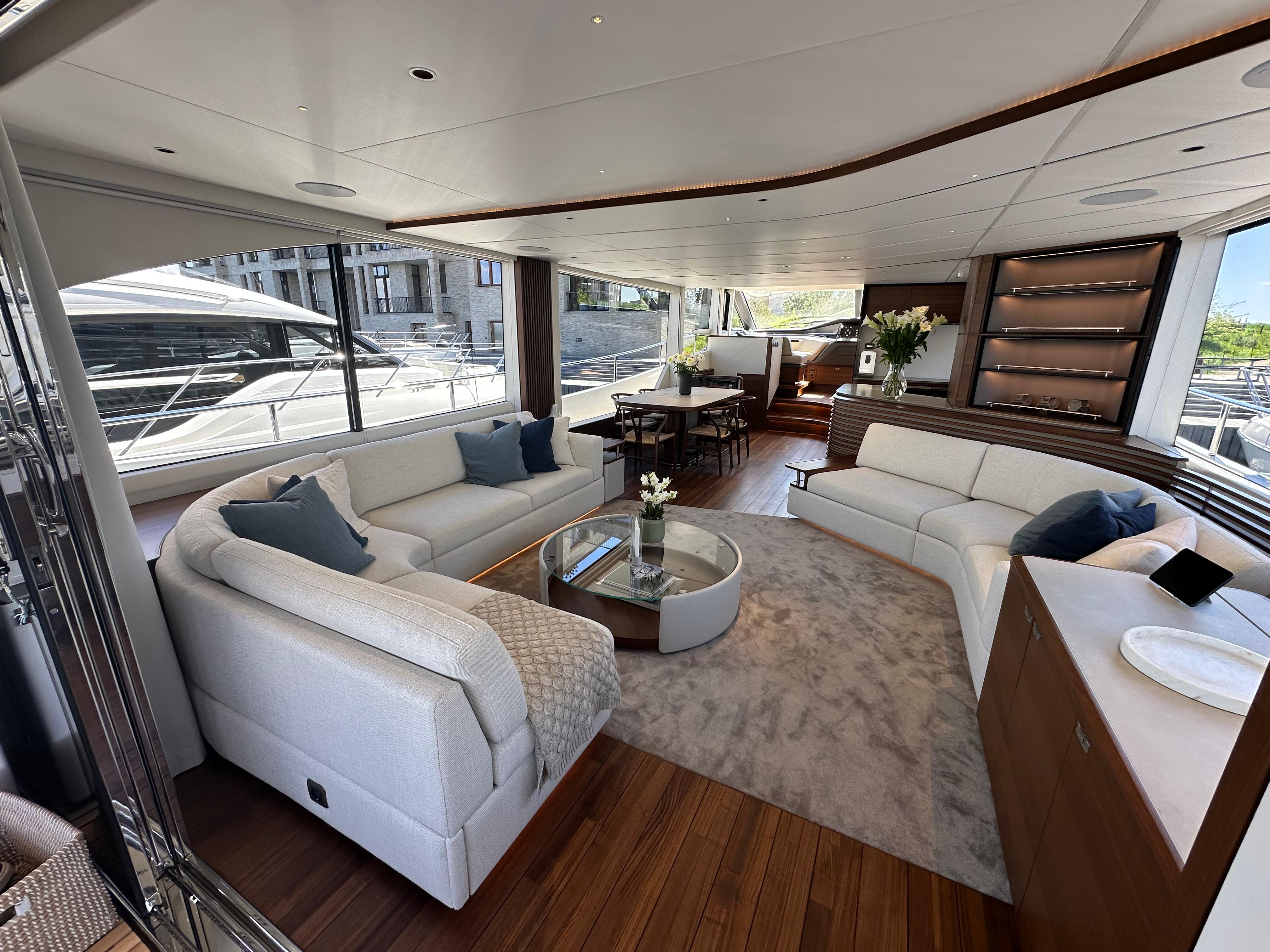

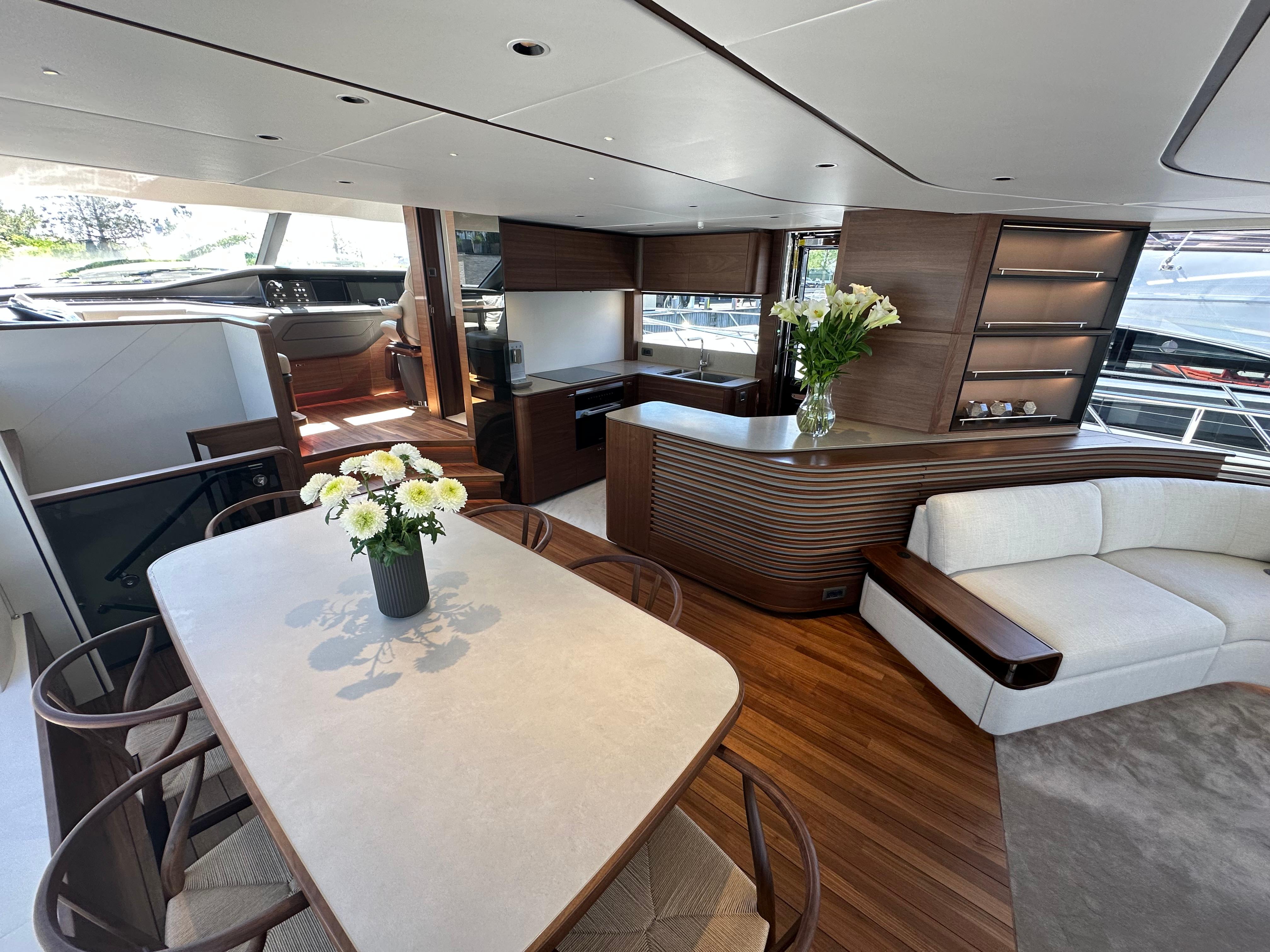

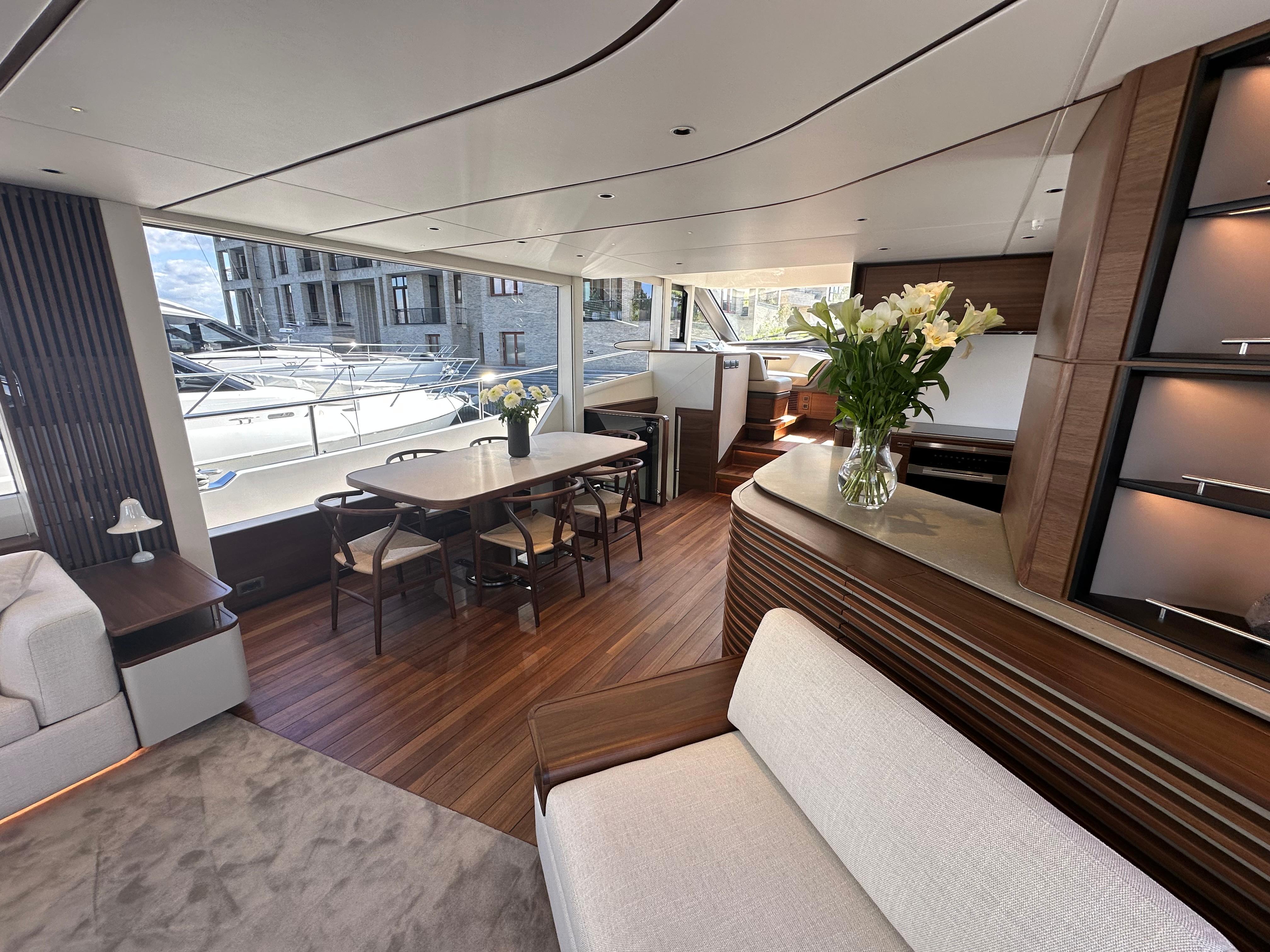

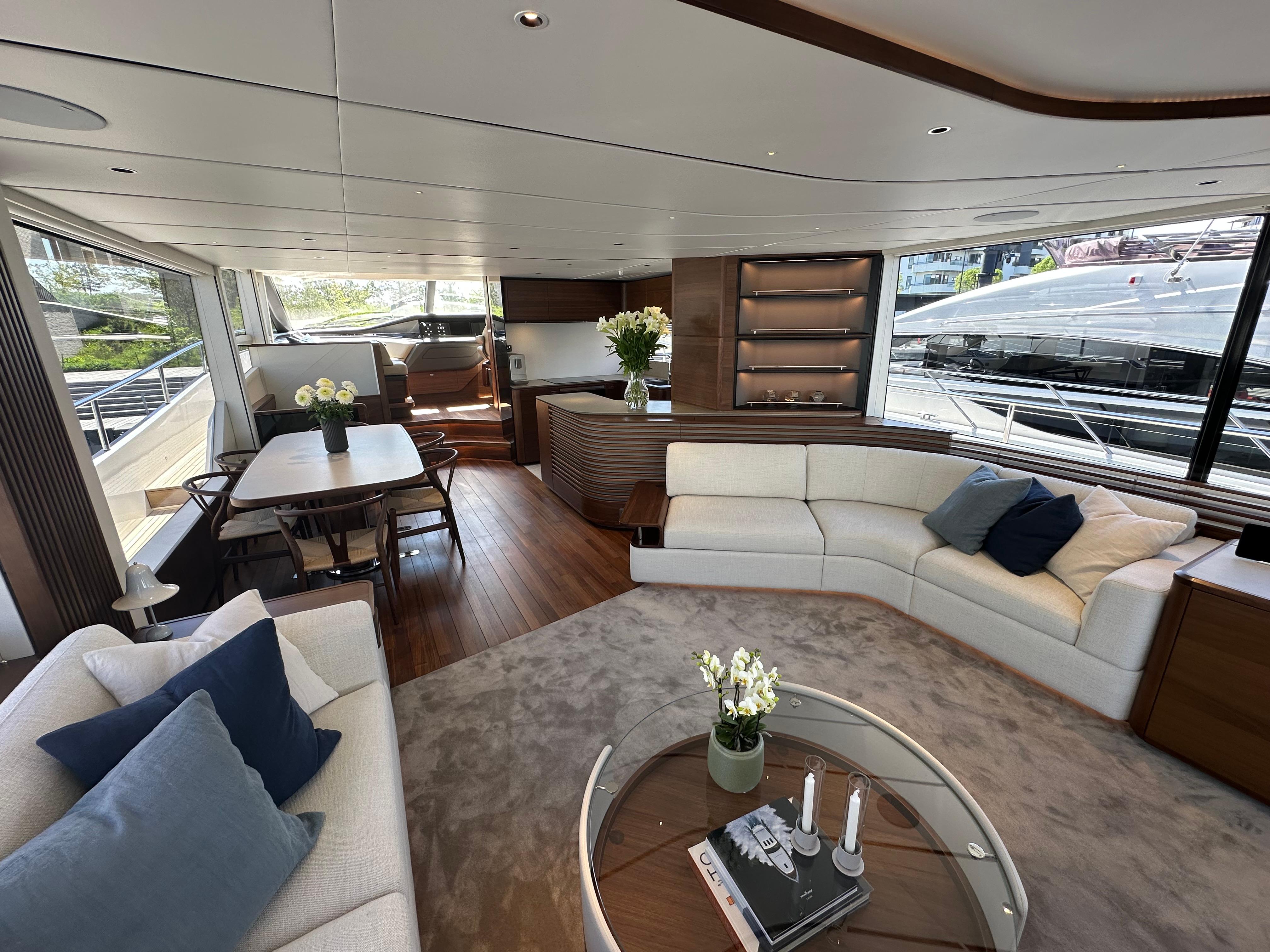

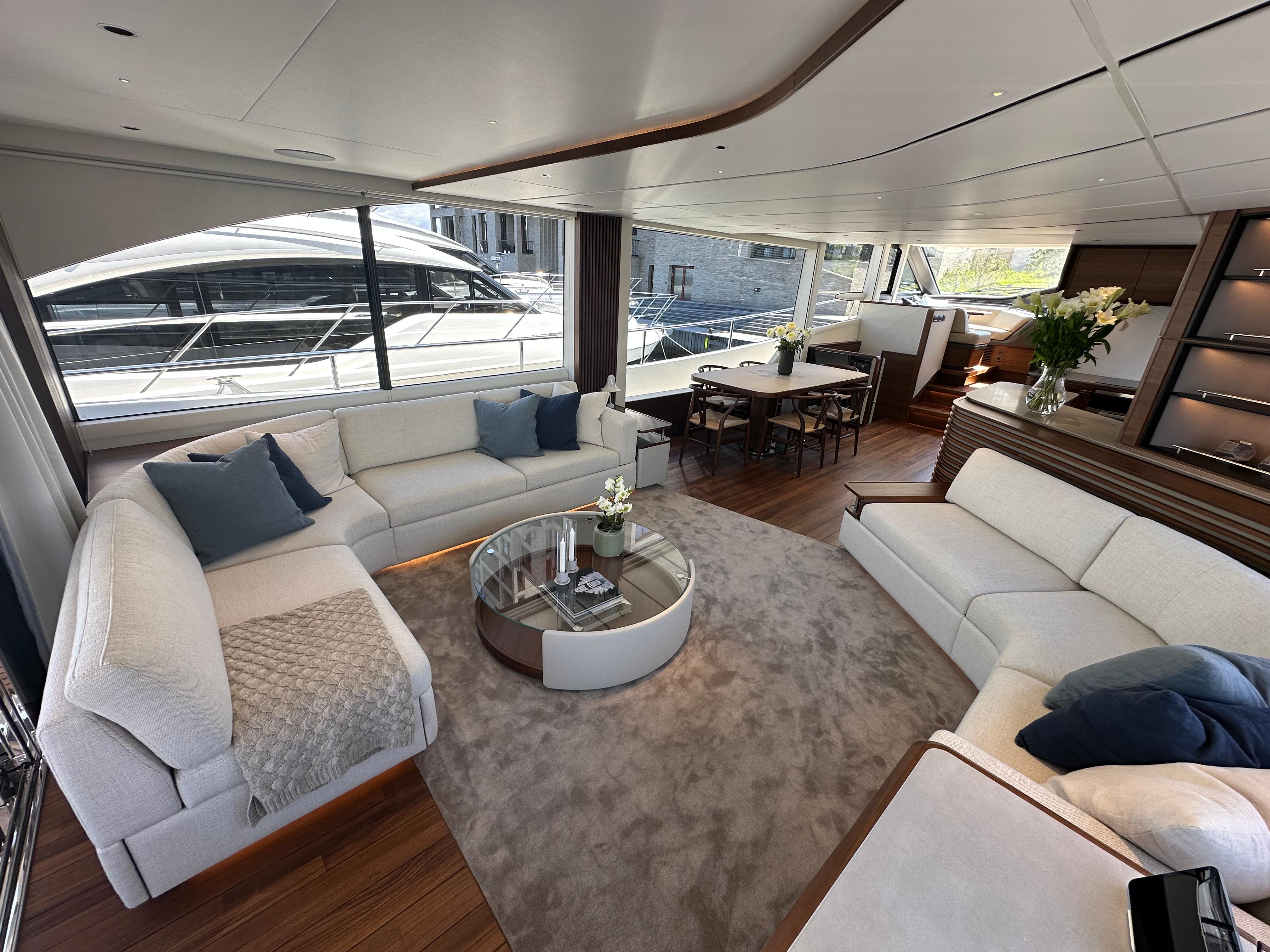

Standard saloon layout incorporates aft portside sofa with coffee table, aft starboard sideboard, starboard sofa, port side dining area with dining table and 8 chairs

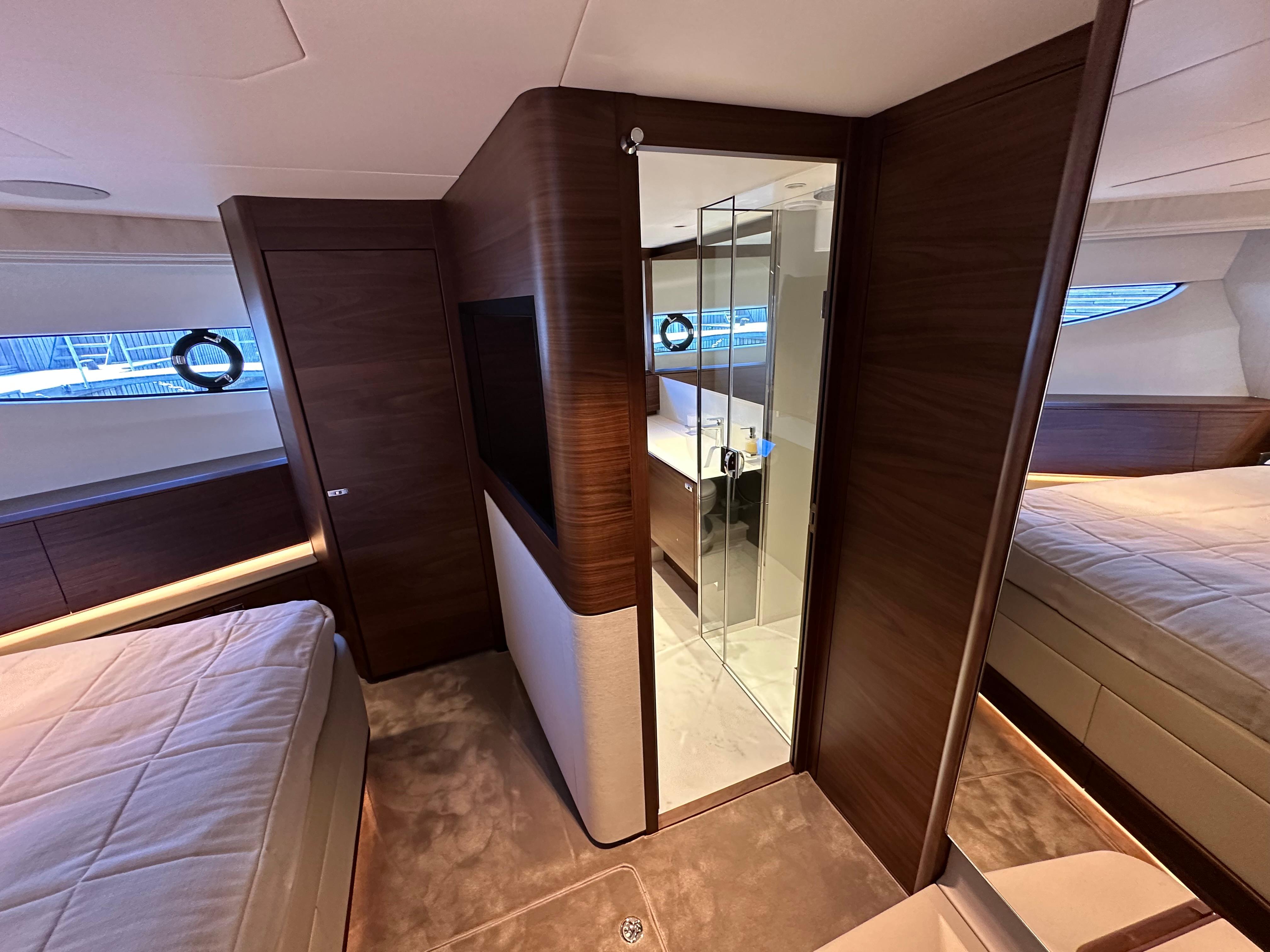

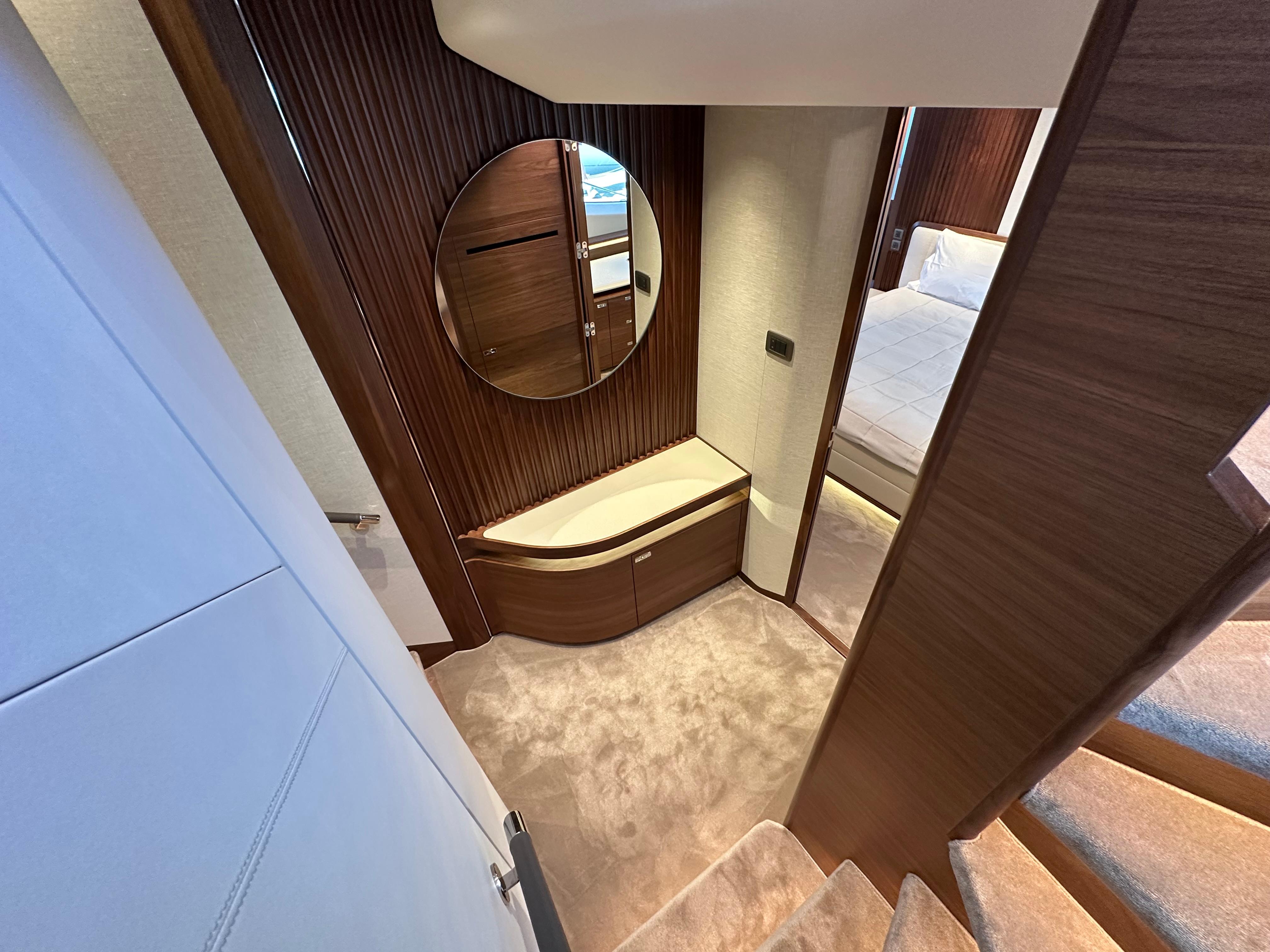

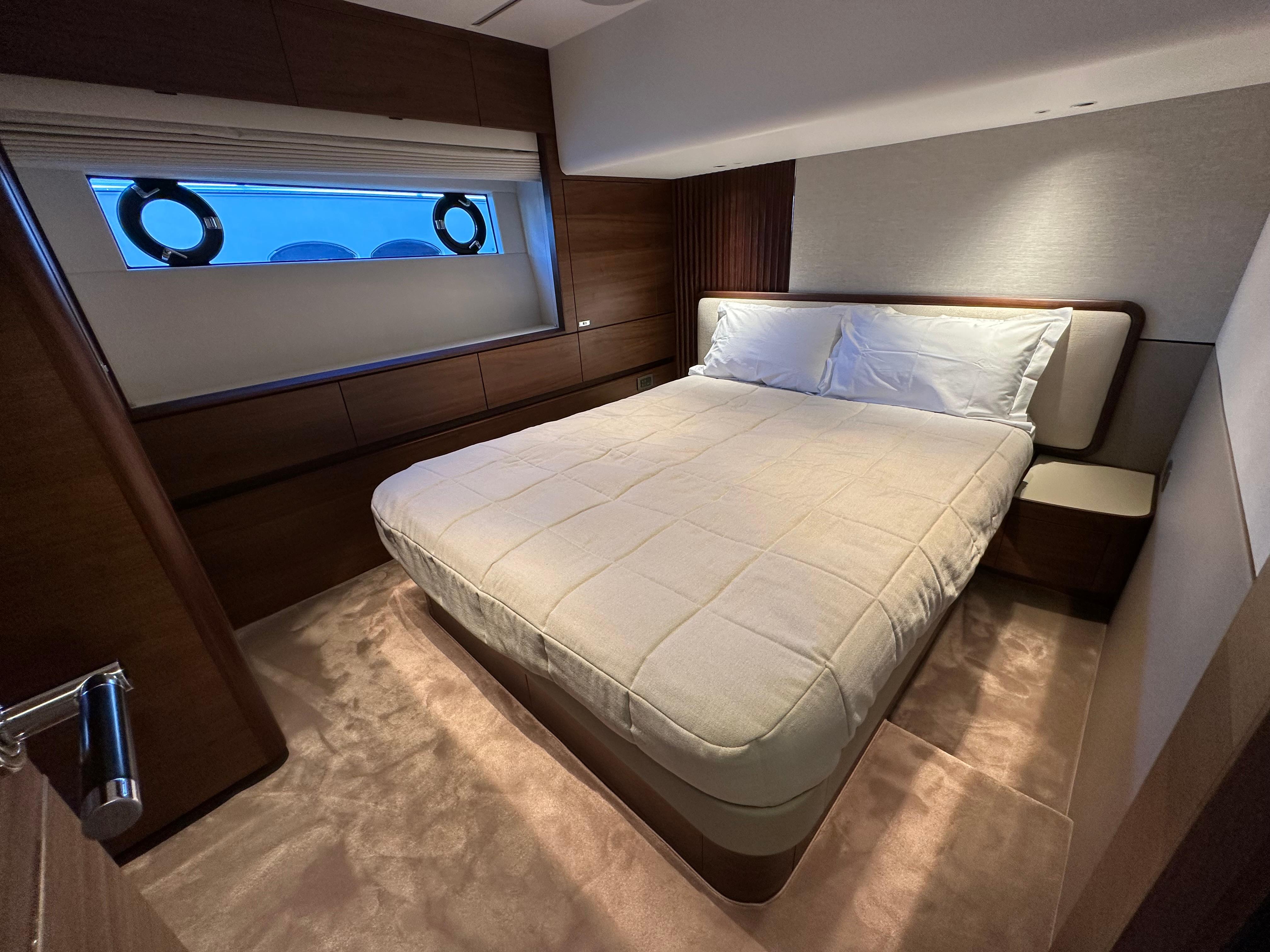

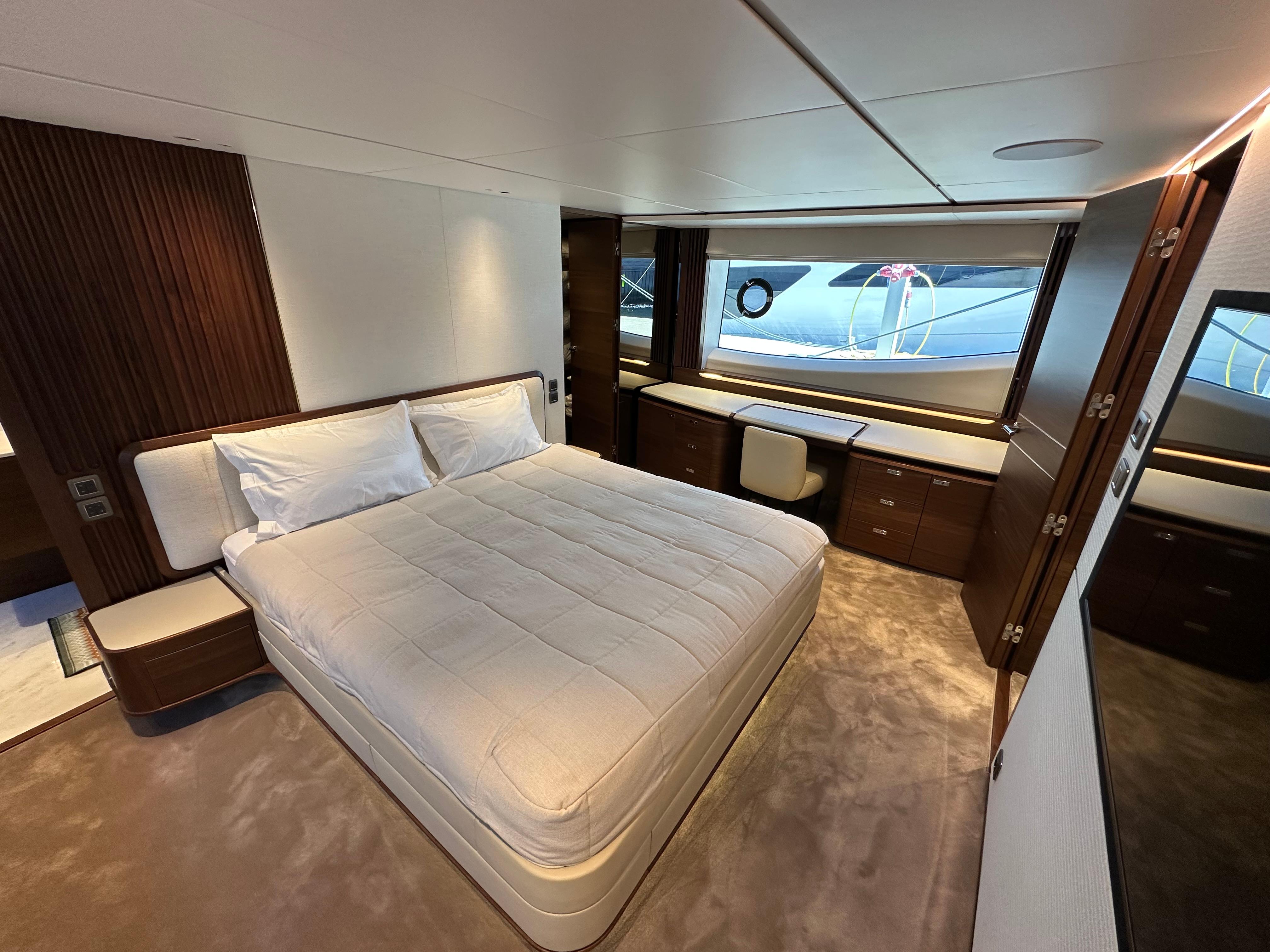

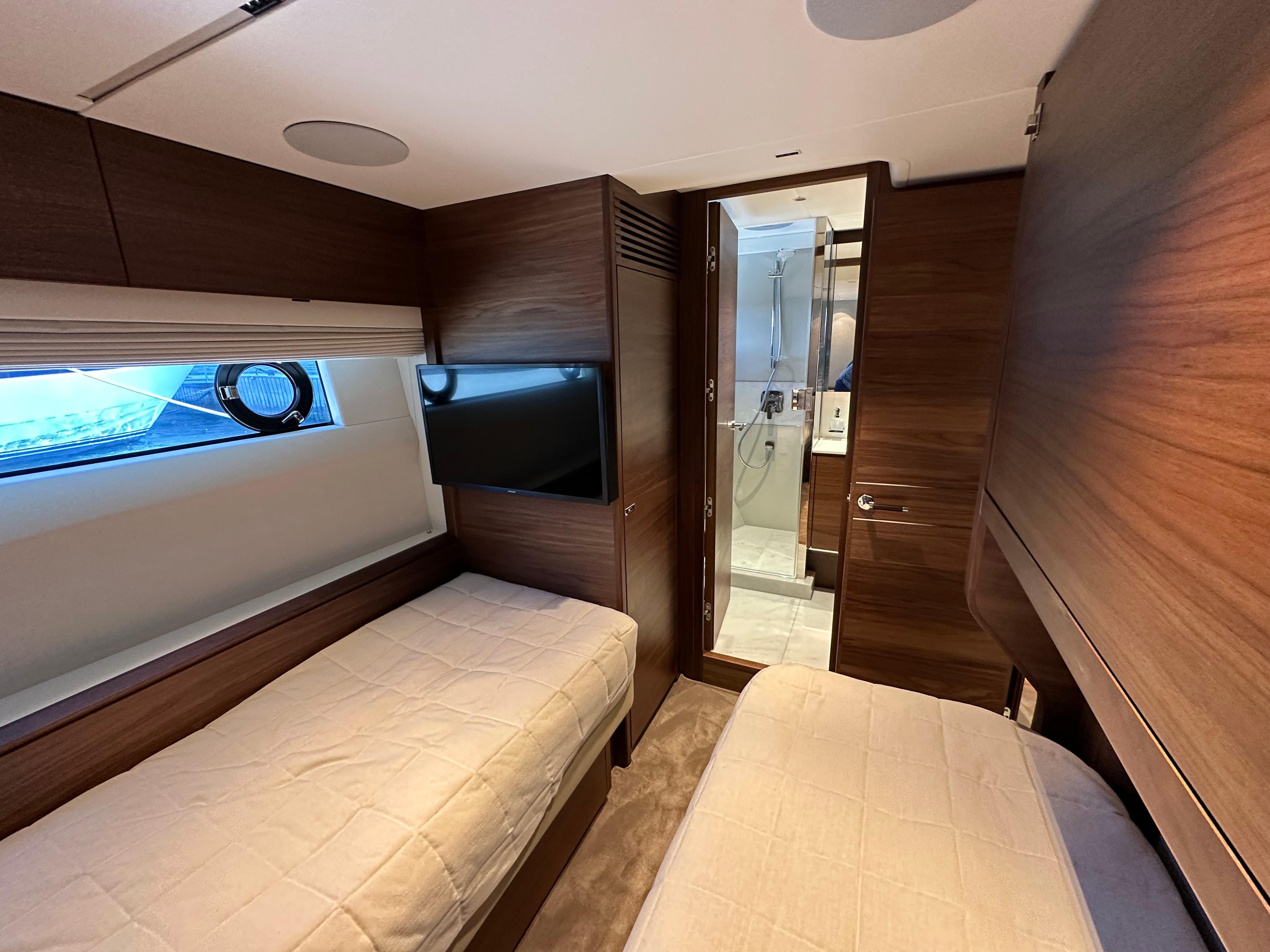

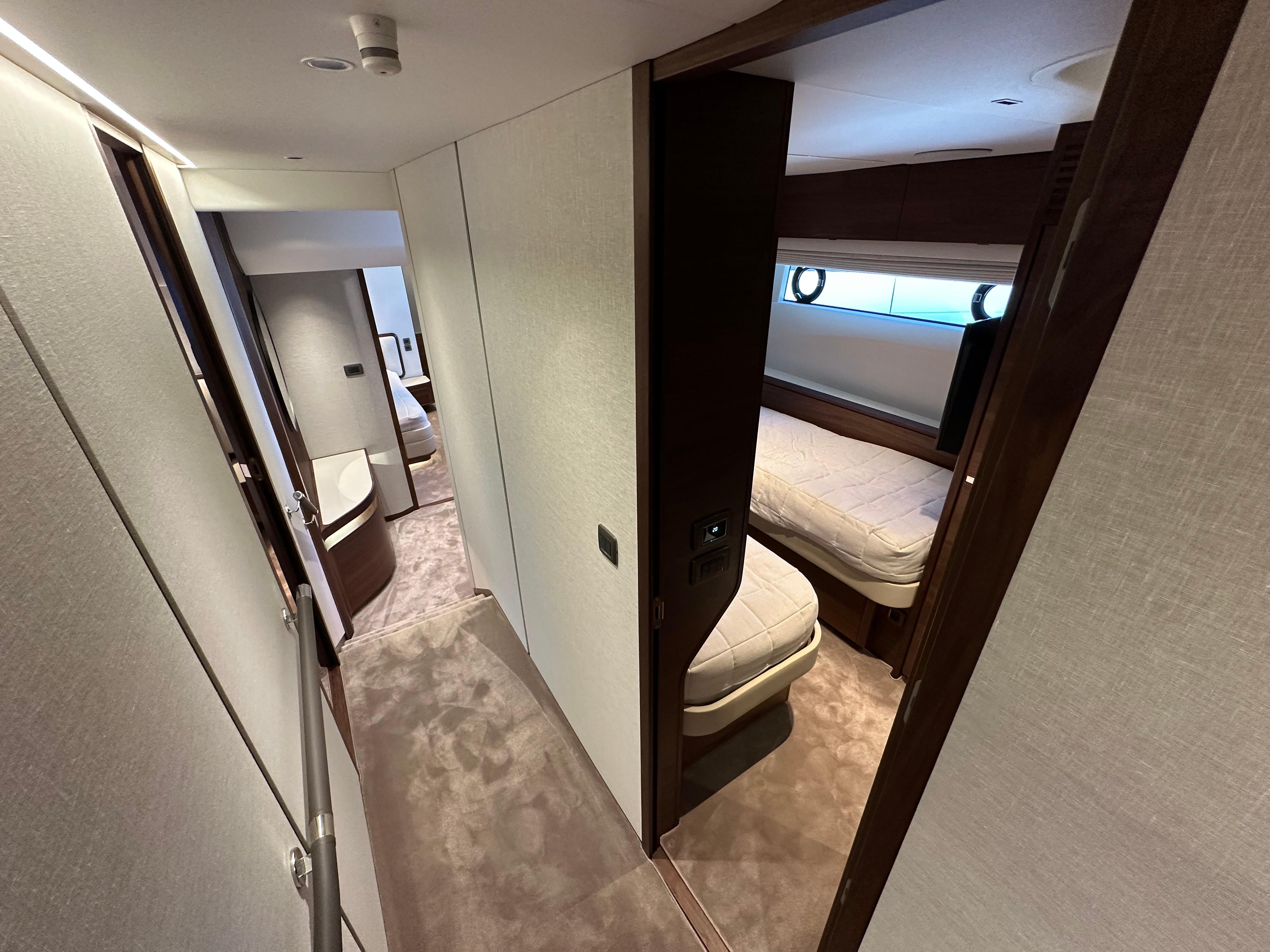

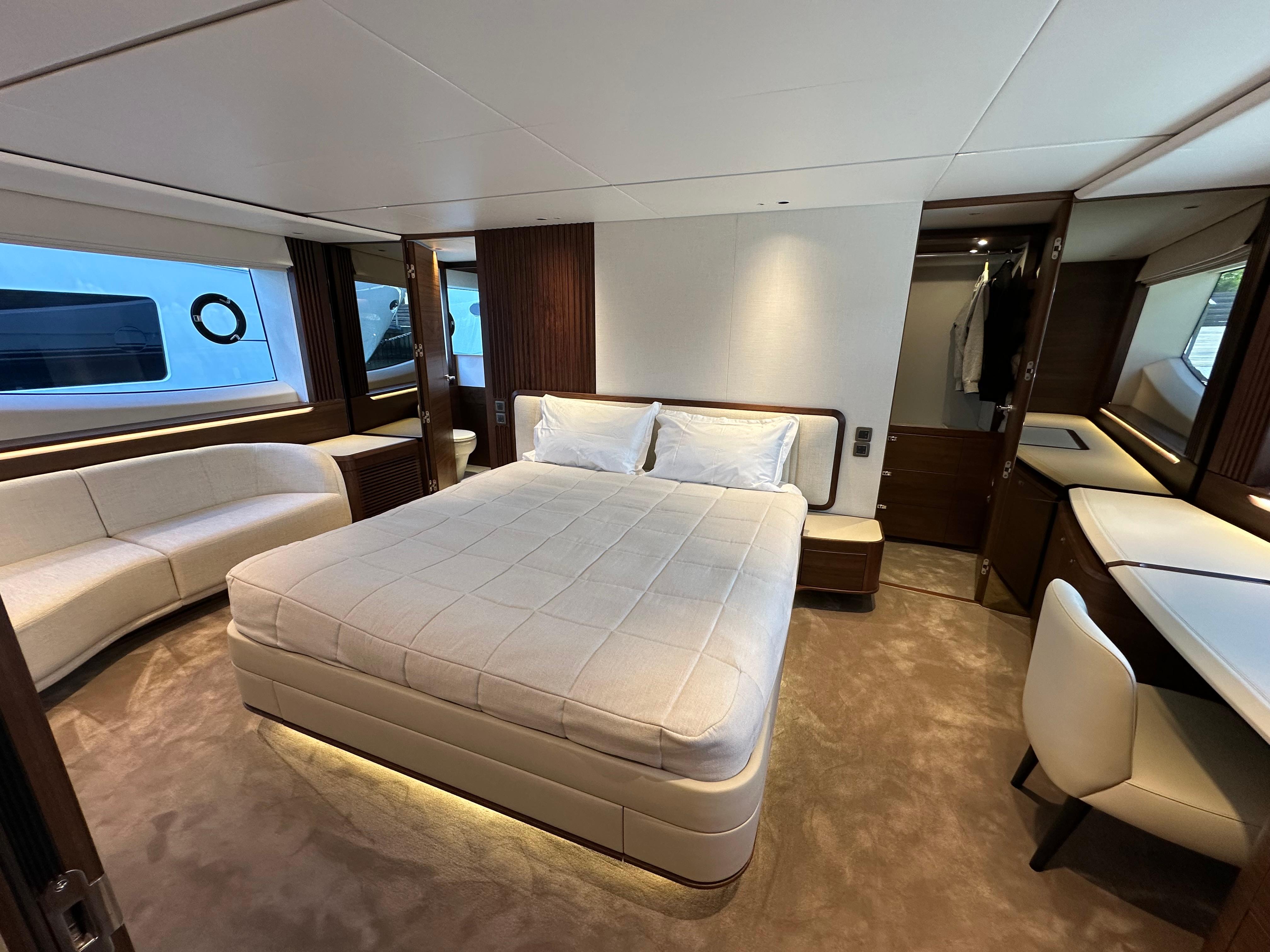

Standard lower deck layout of four cabins incorporates aft stateroom, forward stateroom, starboard guest cabin and port side twin berth cabin, all en-suite.

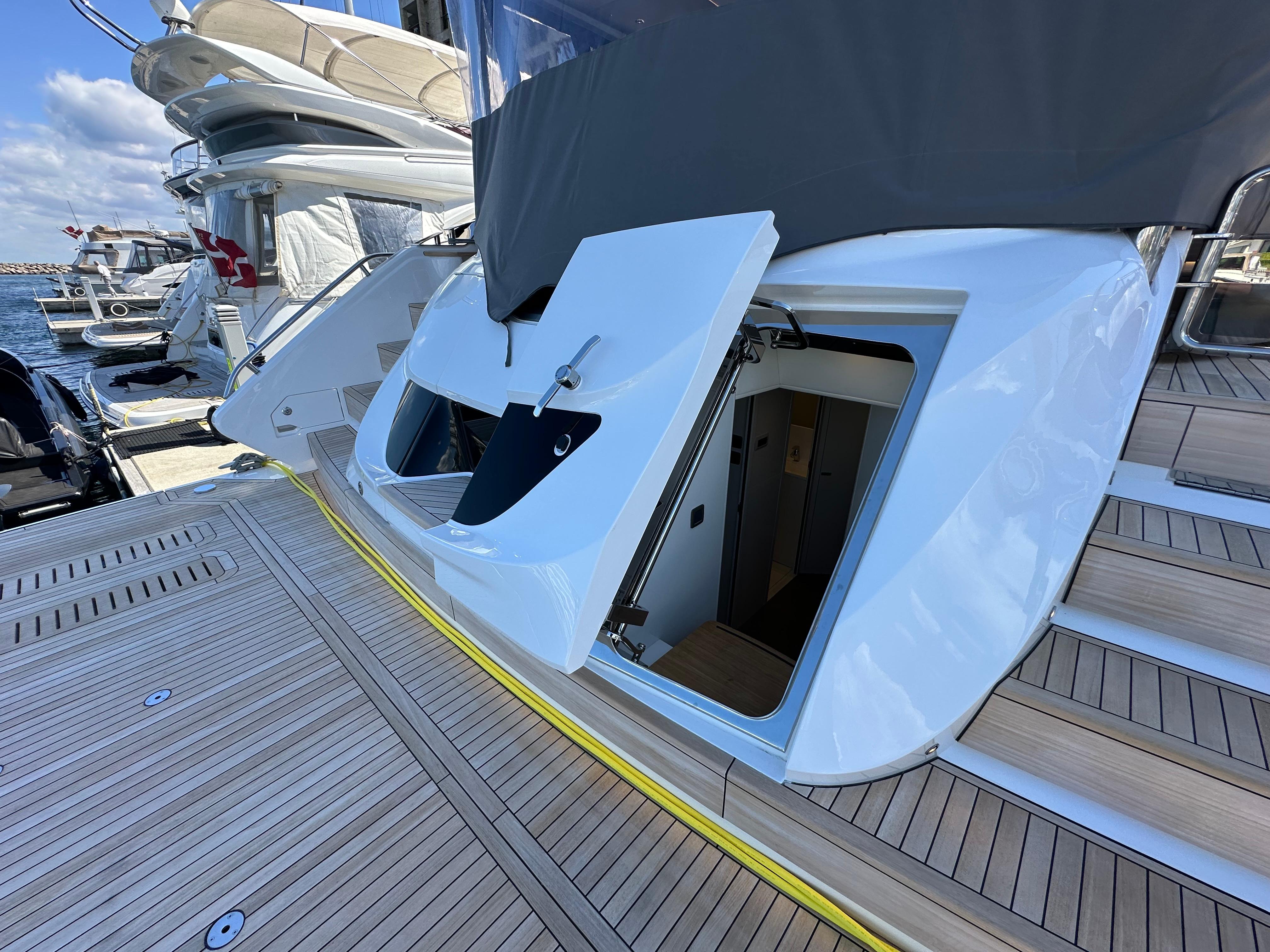

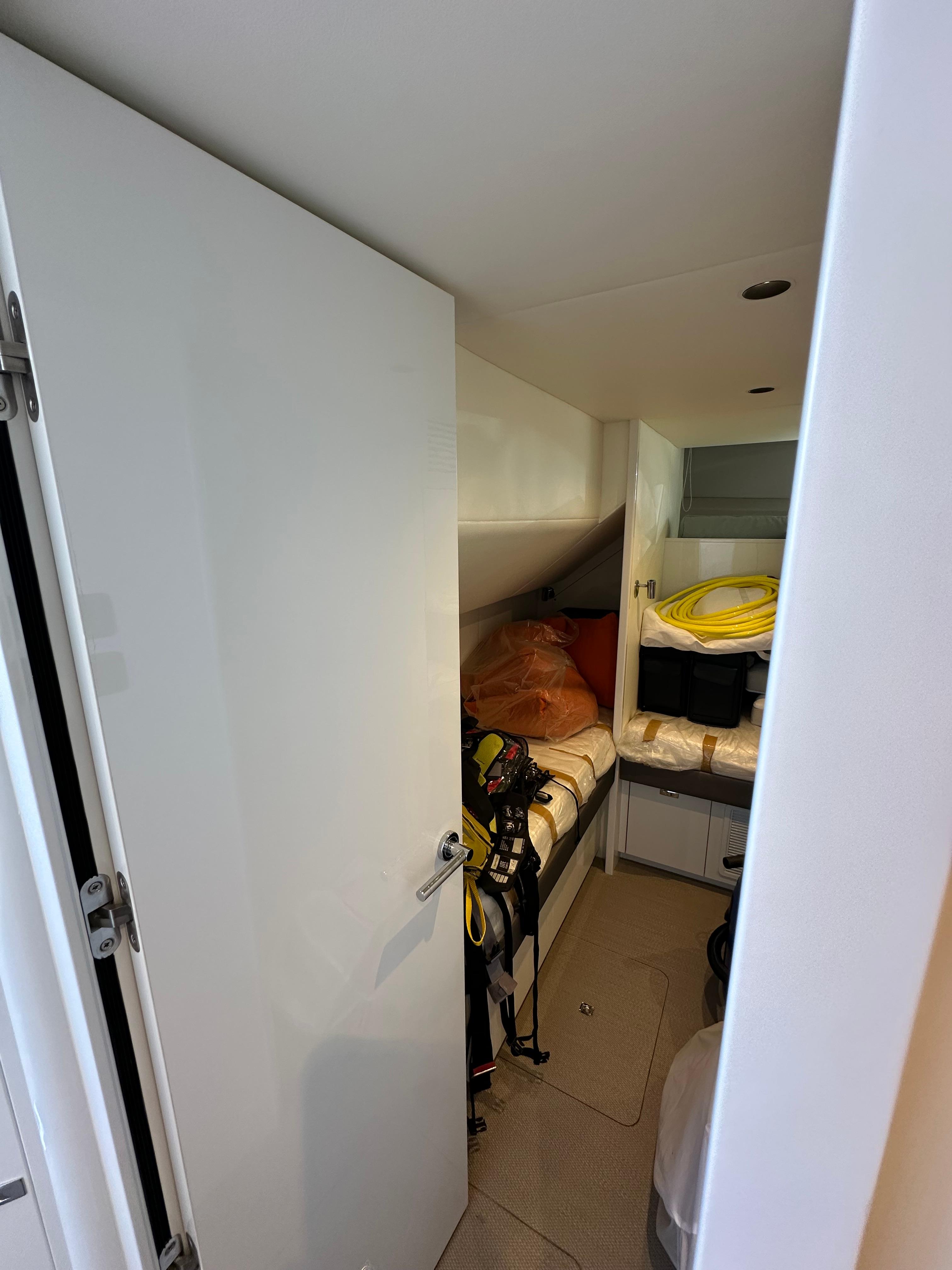

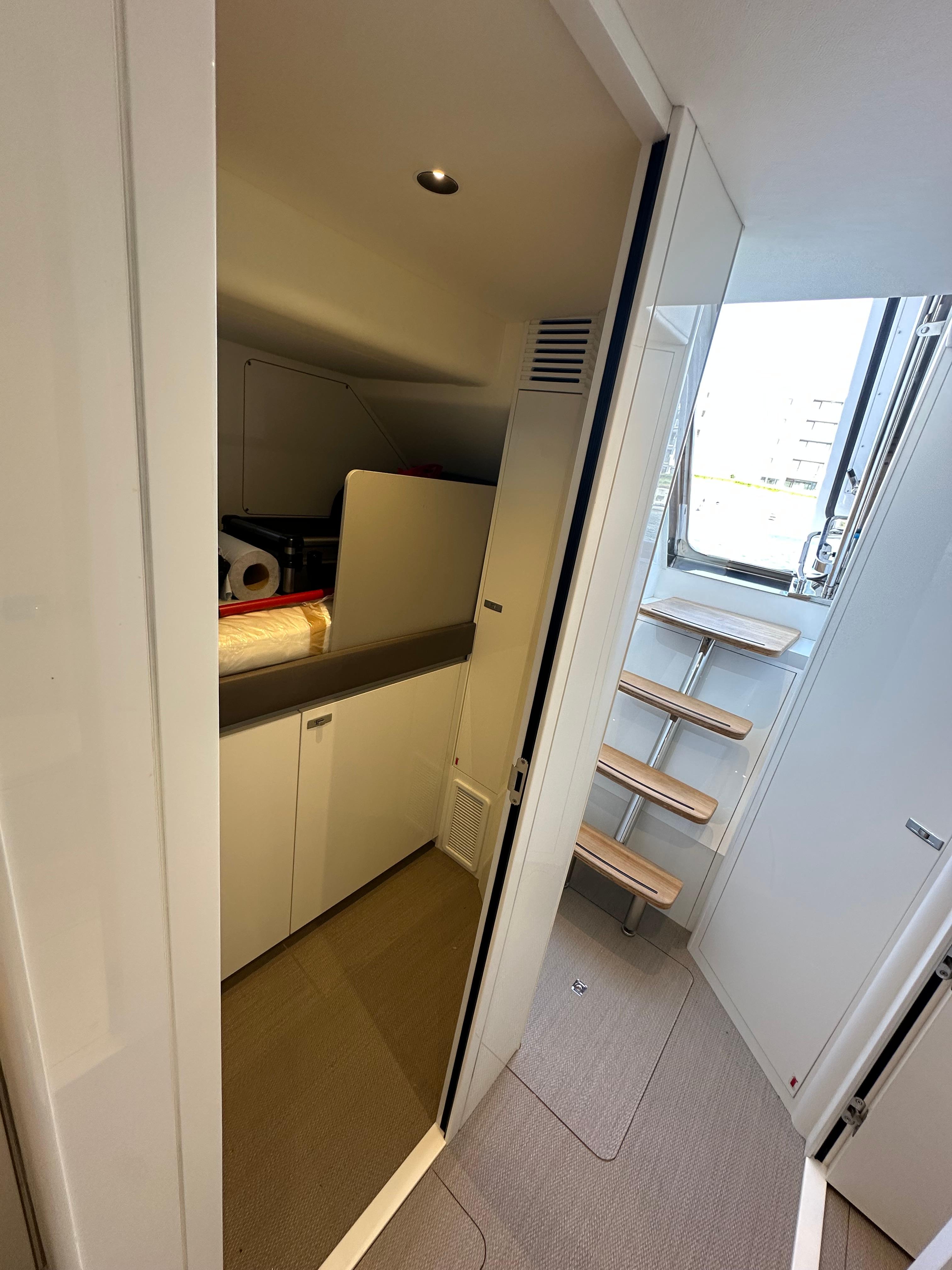

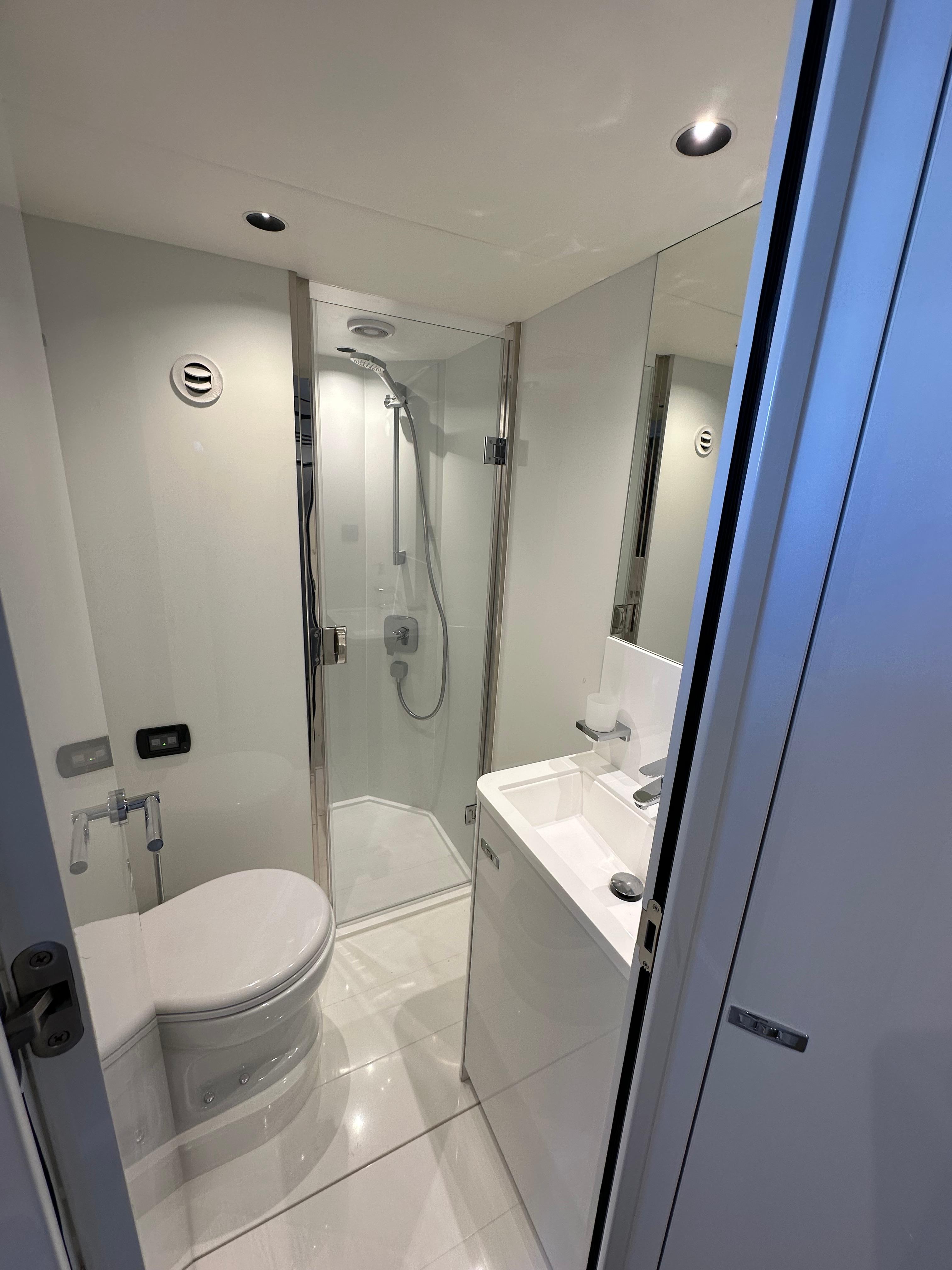

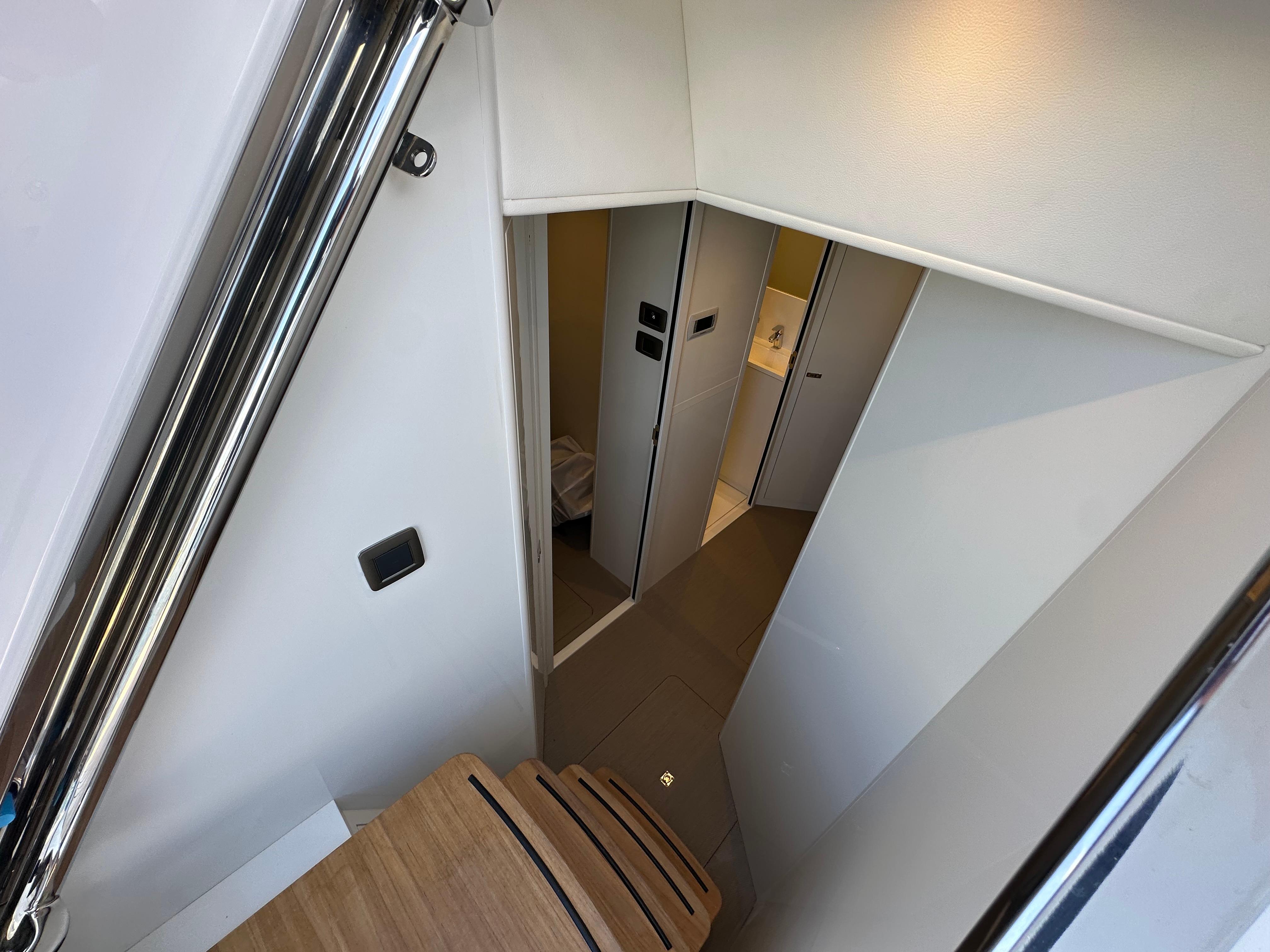

Standard crew accommodation layout incorporates two cabins – port cabin (2 berth), starboard cabin (1 berth), crew bathroom (with separate shower), stacked separate washer and dryer and

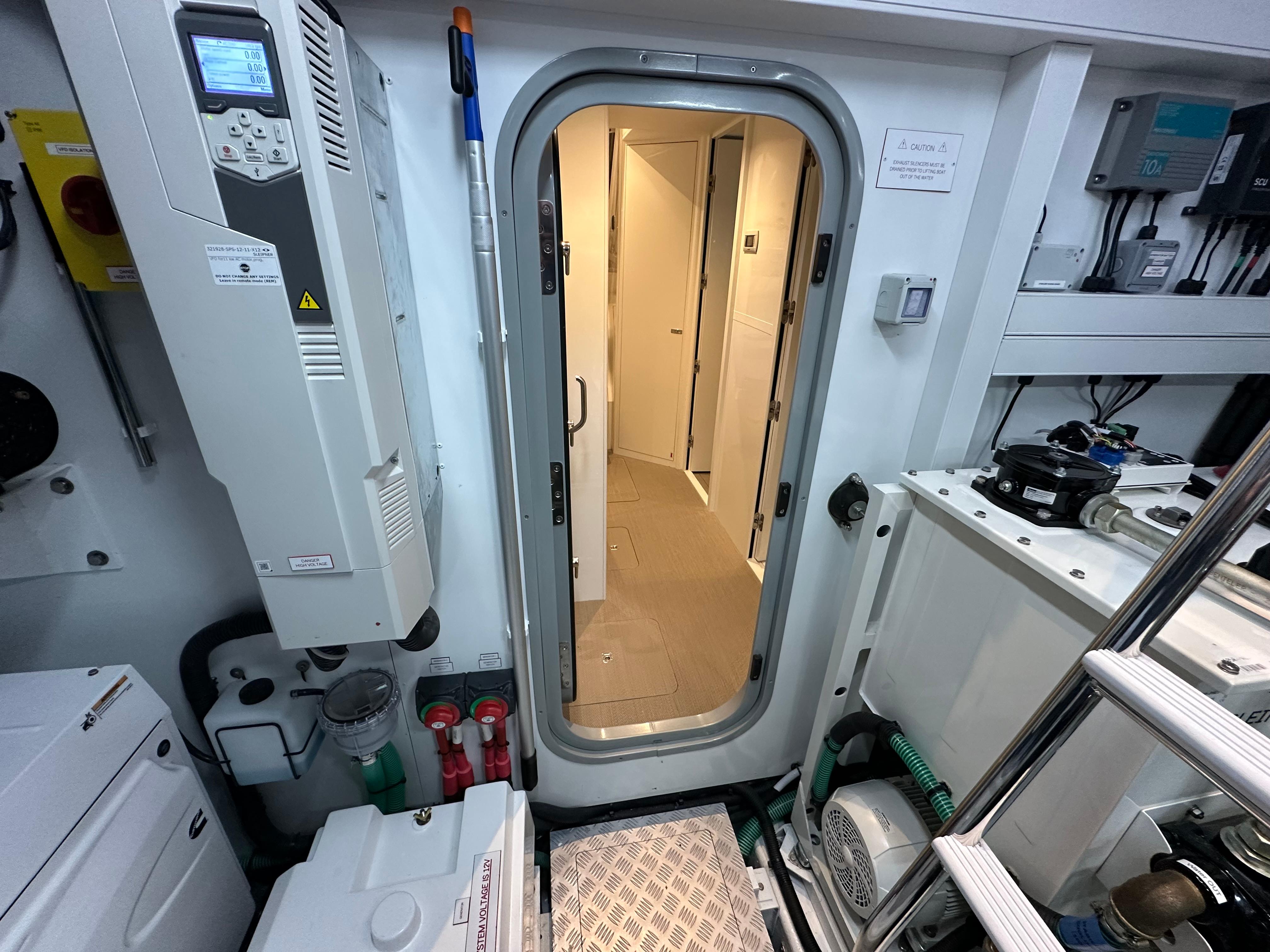

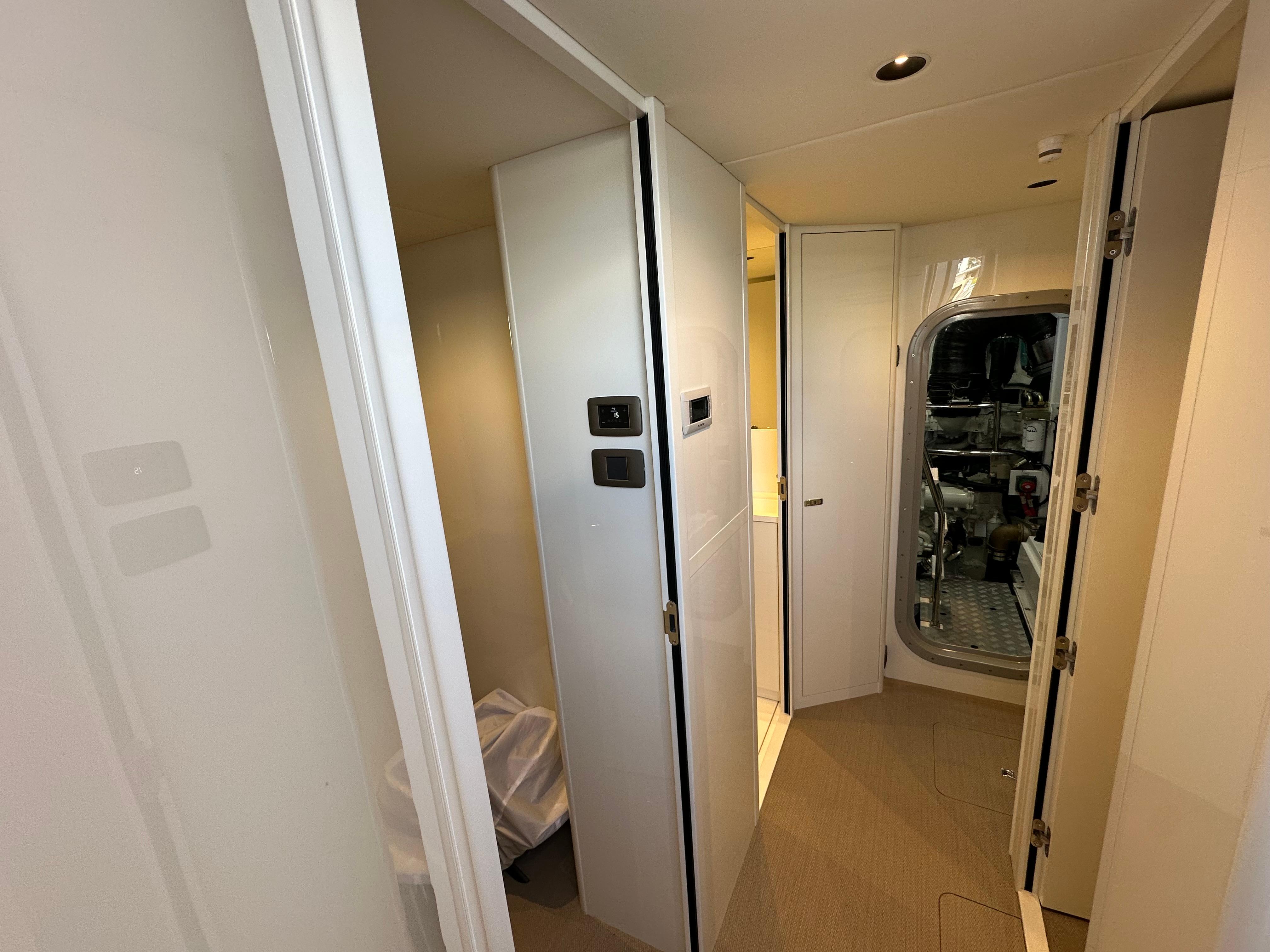

service corridor to access engine room

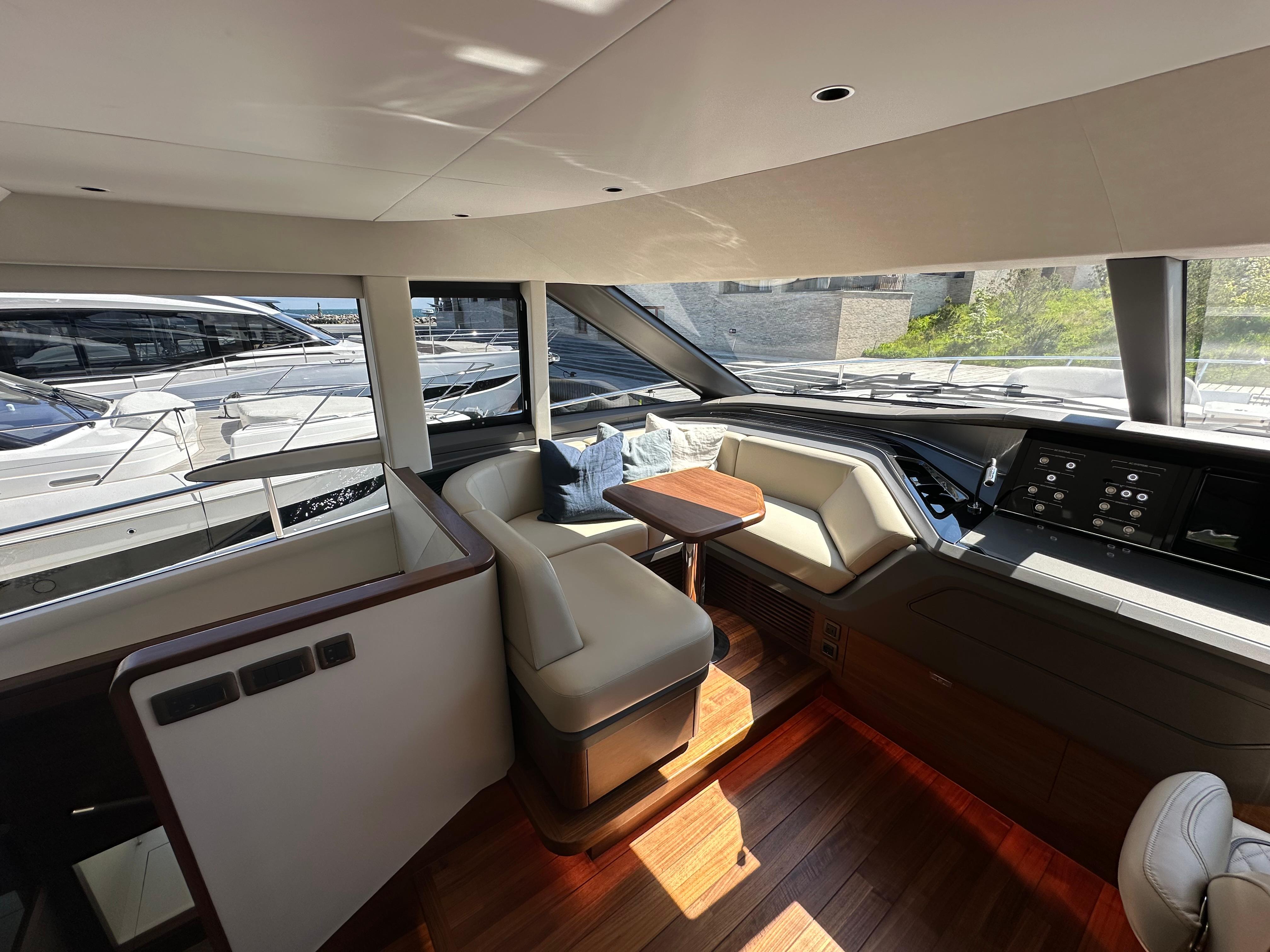

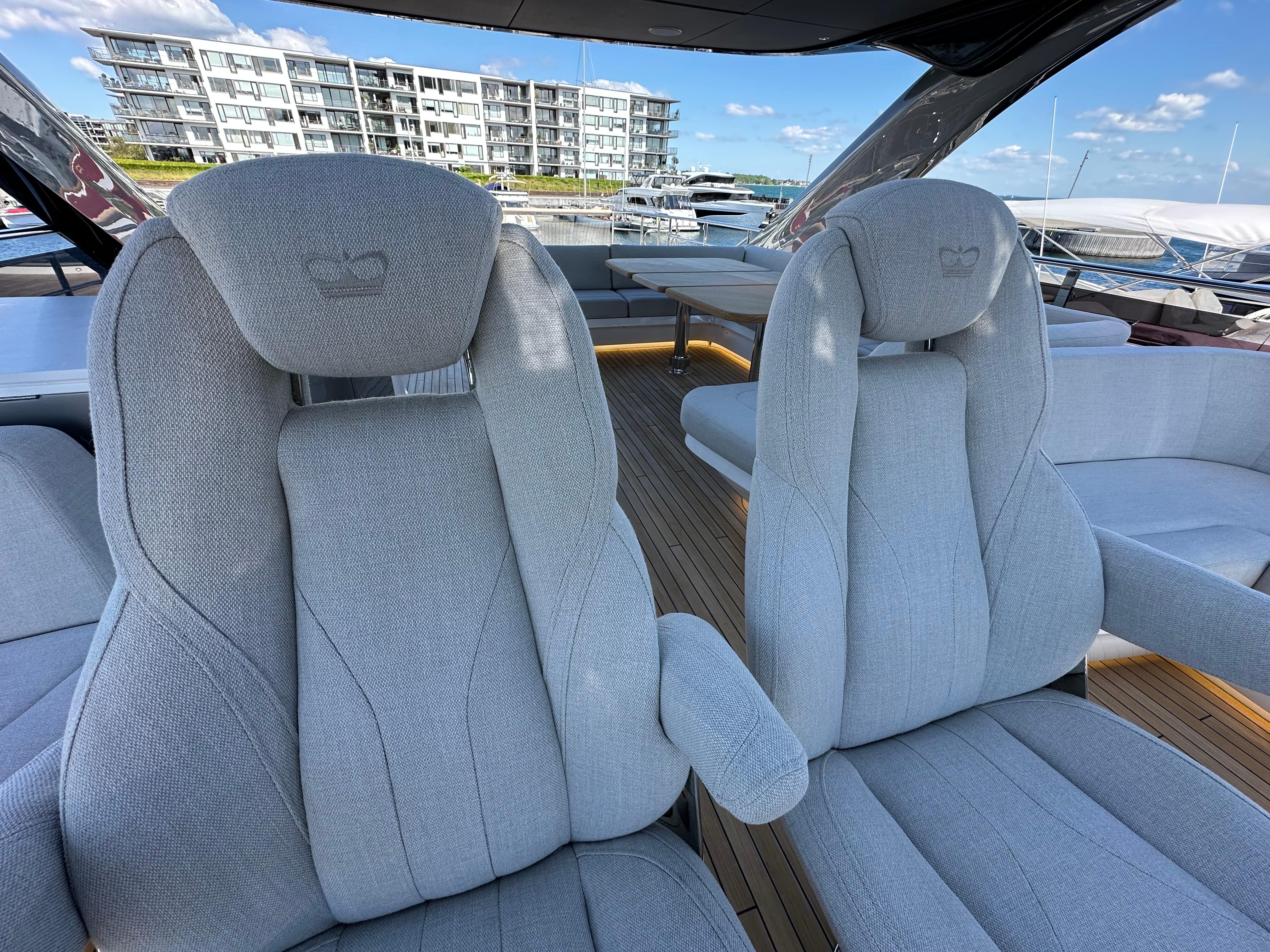

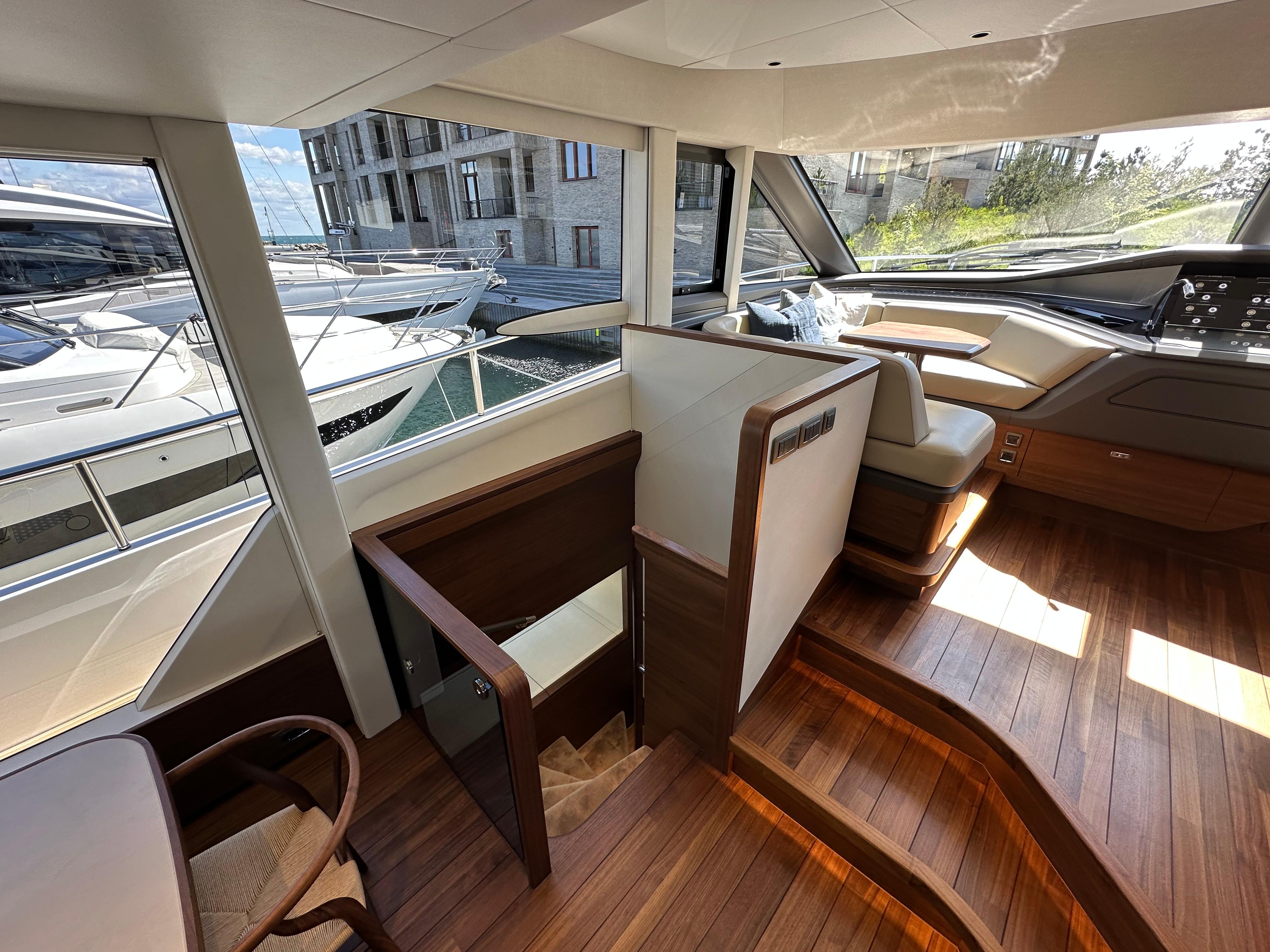

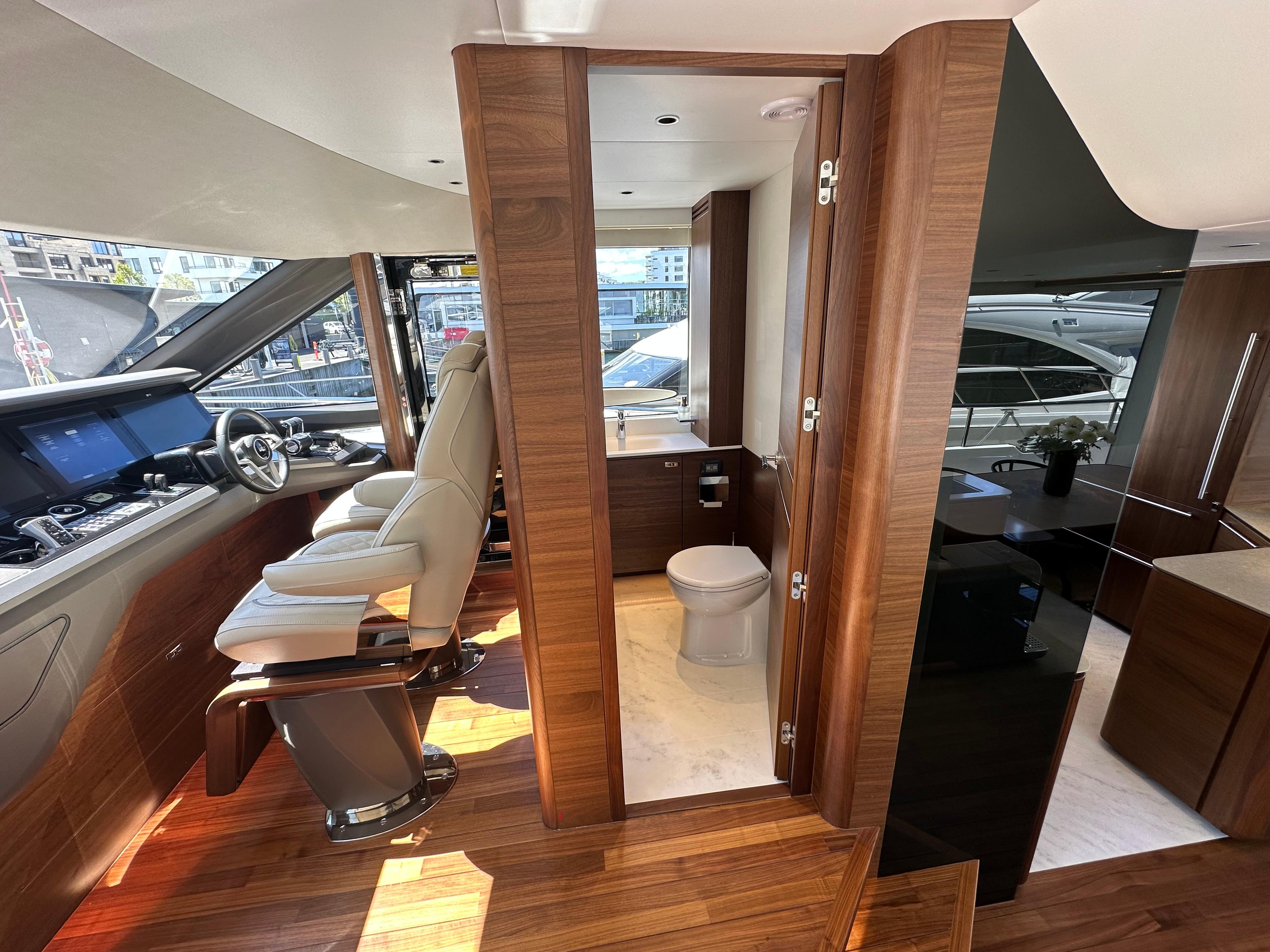

Flip-up arm rests to upper helm & navigator seating (1 inboard, 1 outboard & 1 shared)

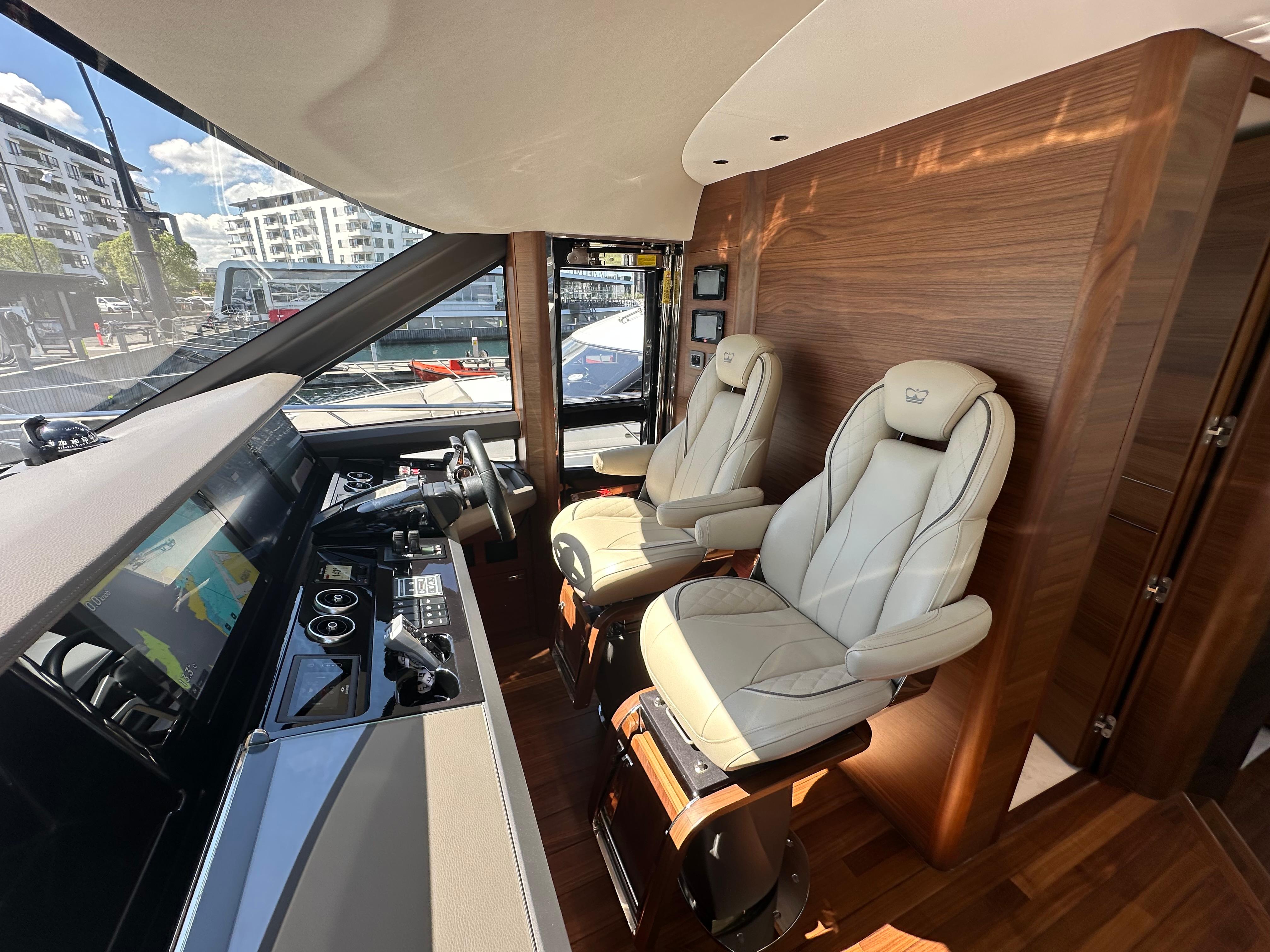

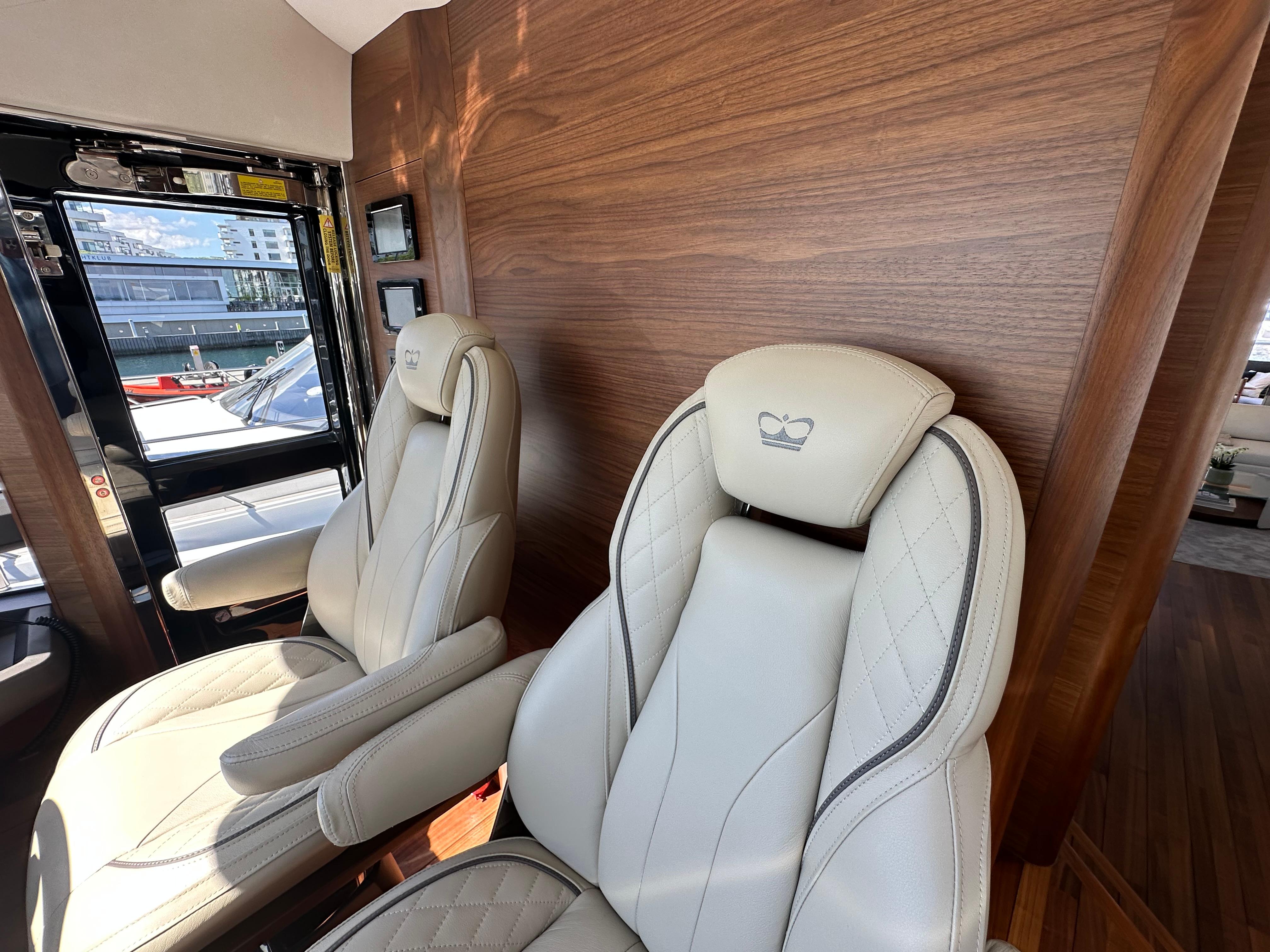

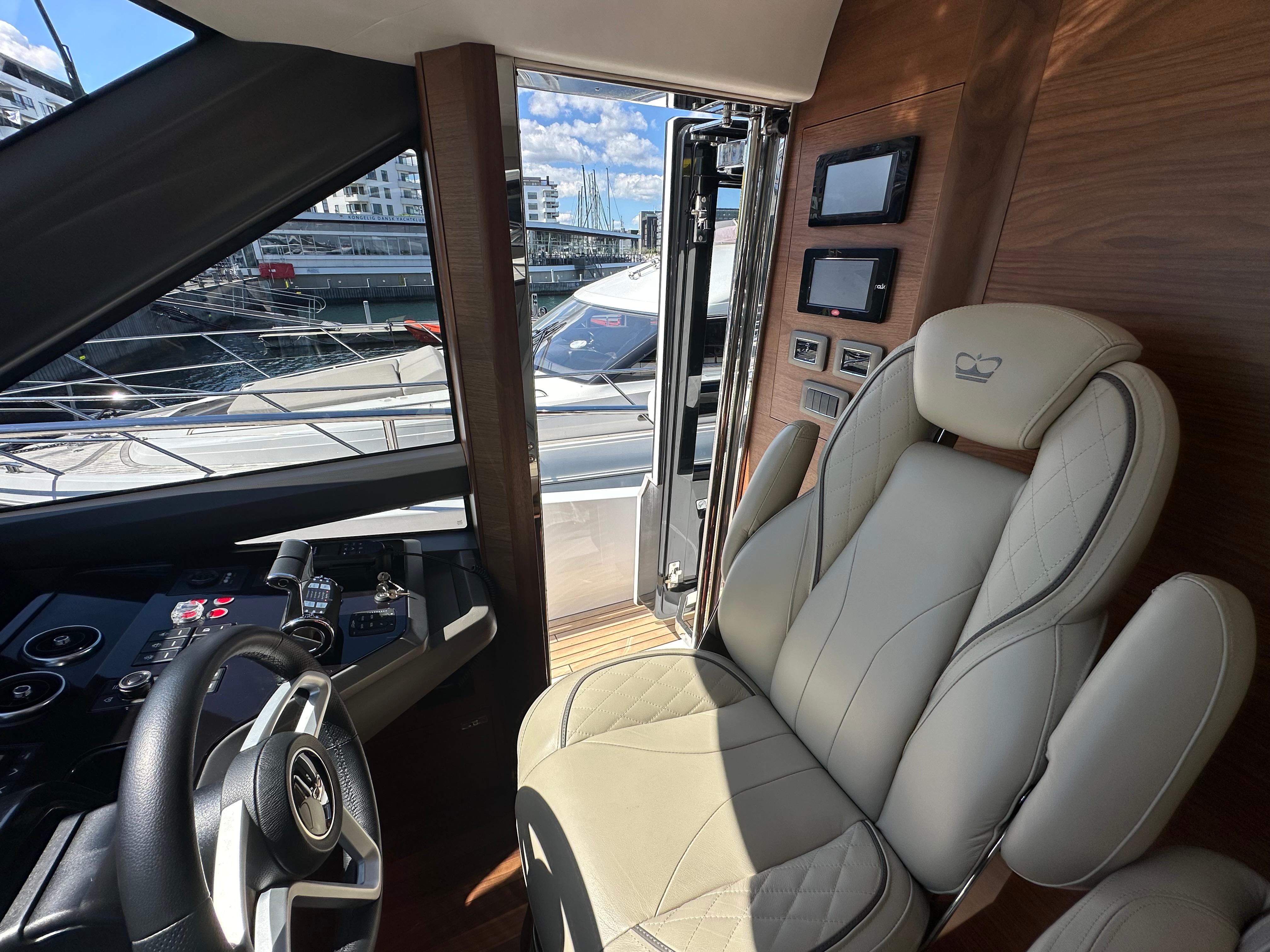

Flip-up arm rests to lower helm & navigator seating (2 per seat)
Port cabin to have double berth conversion with powered sliding mechanism on inboard berth.

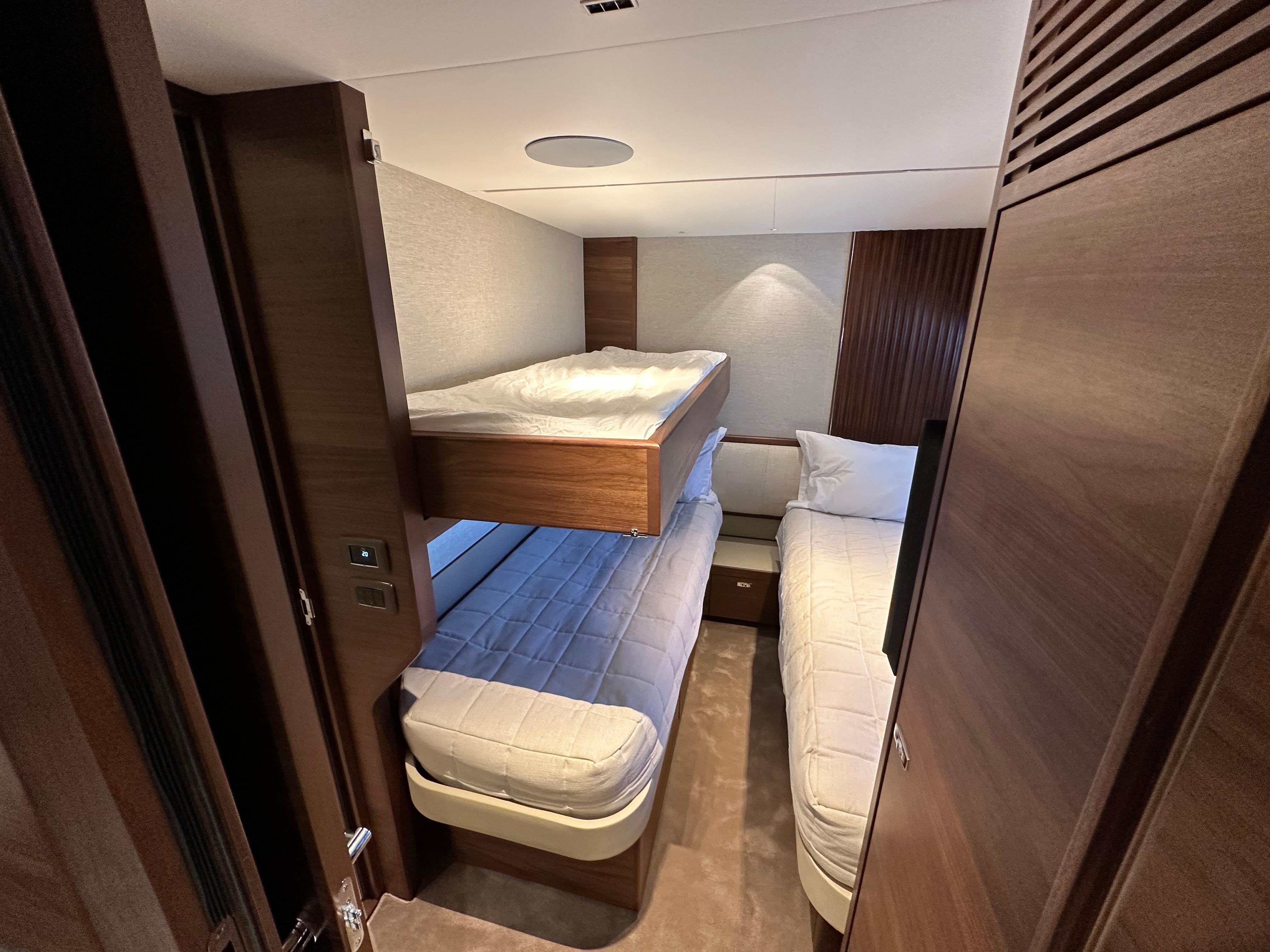

Port guest cabin to have additional single high-level bunk (pullman)
Concealed galley storage in counter top with a counter top infill.

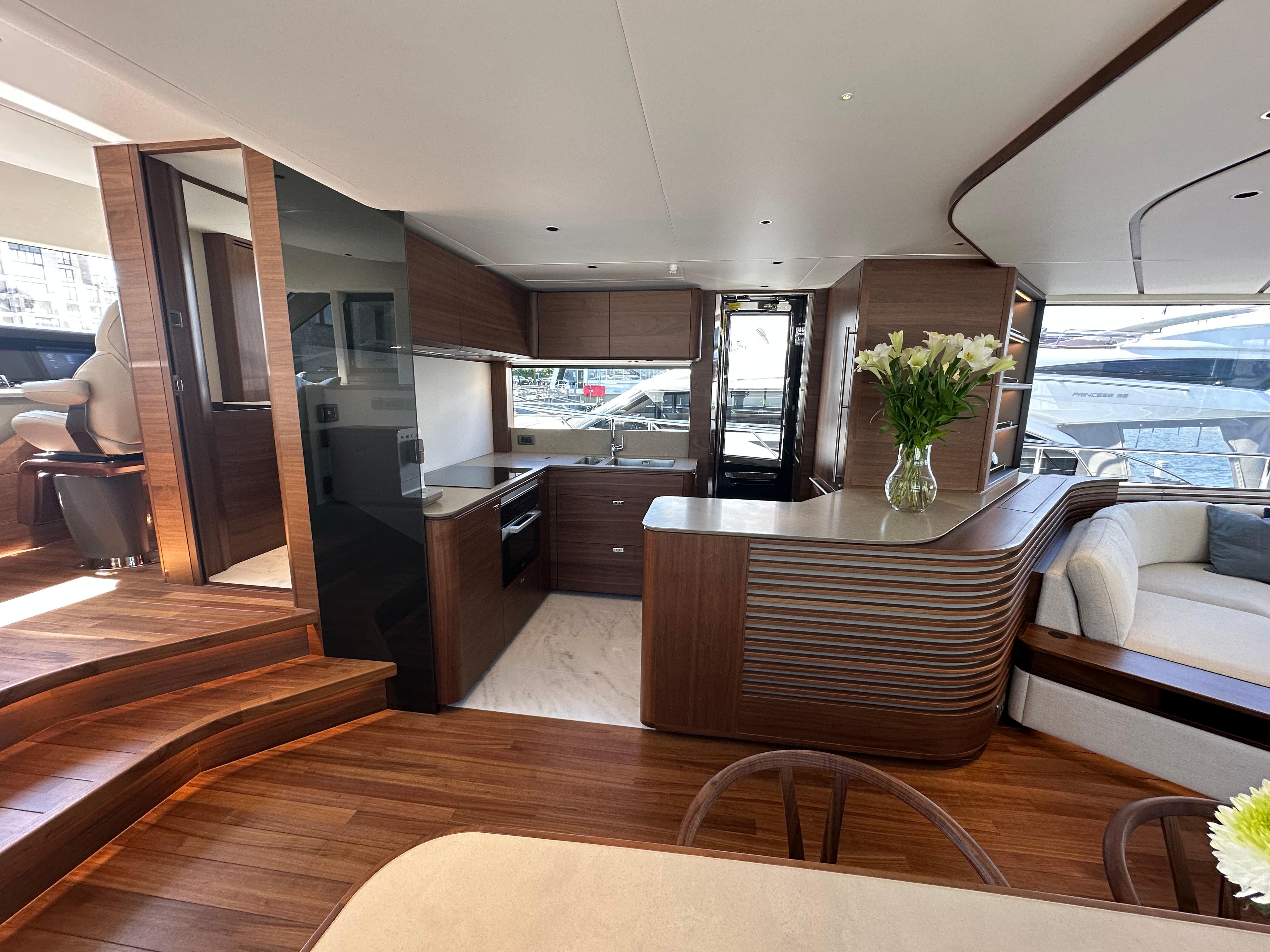

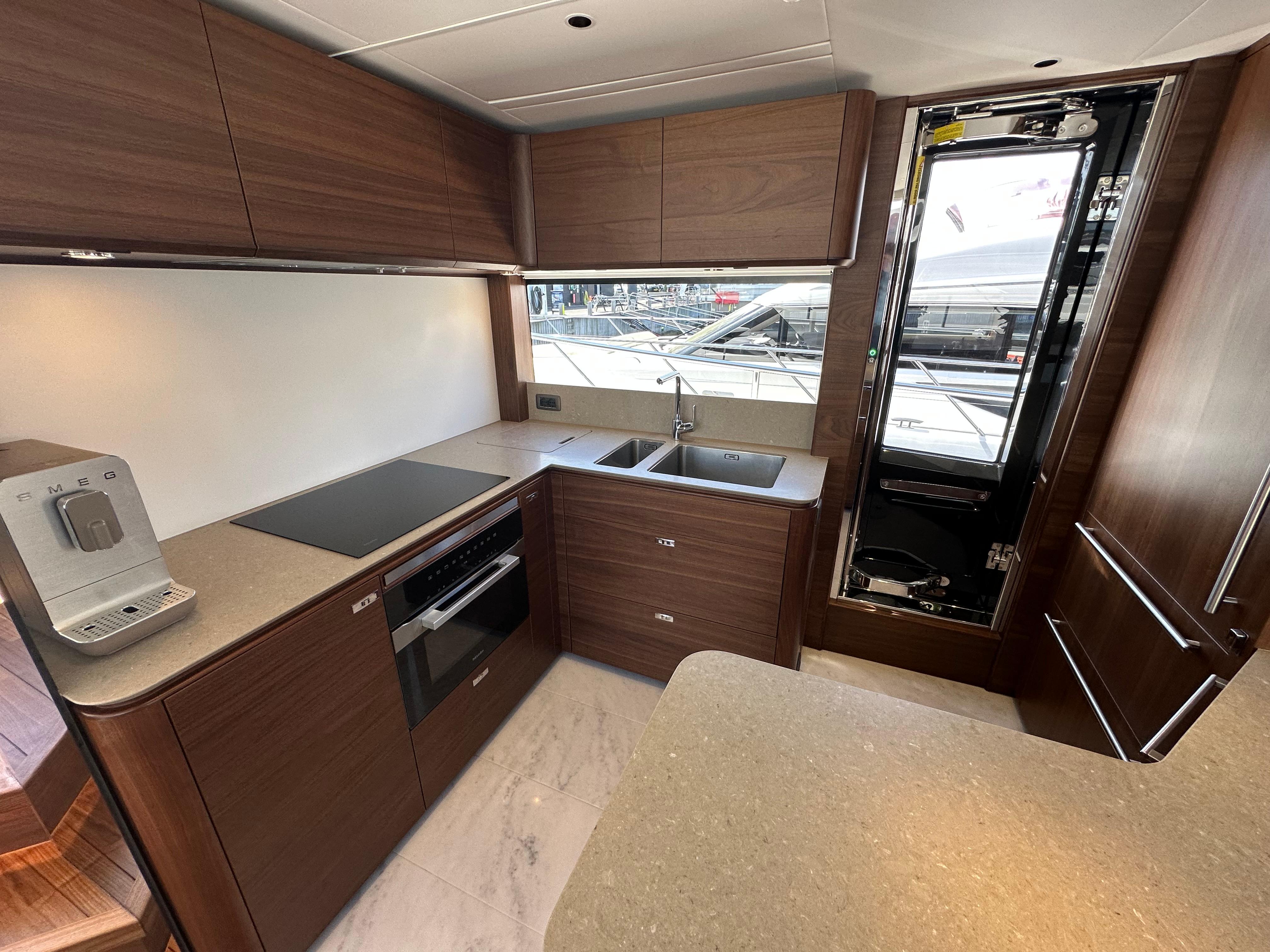

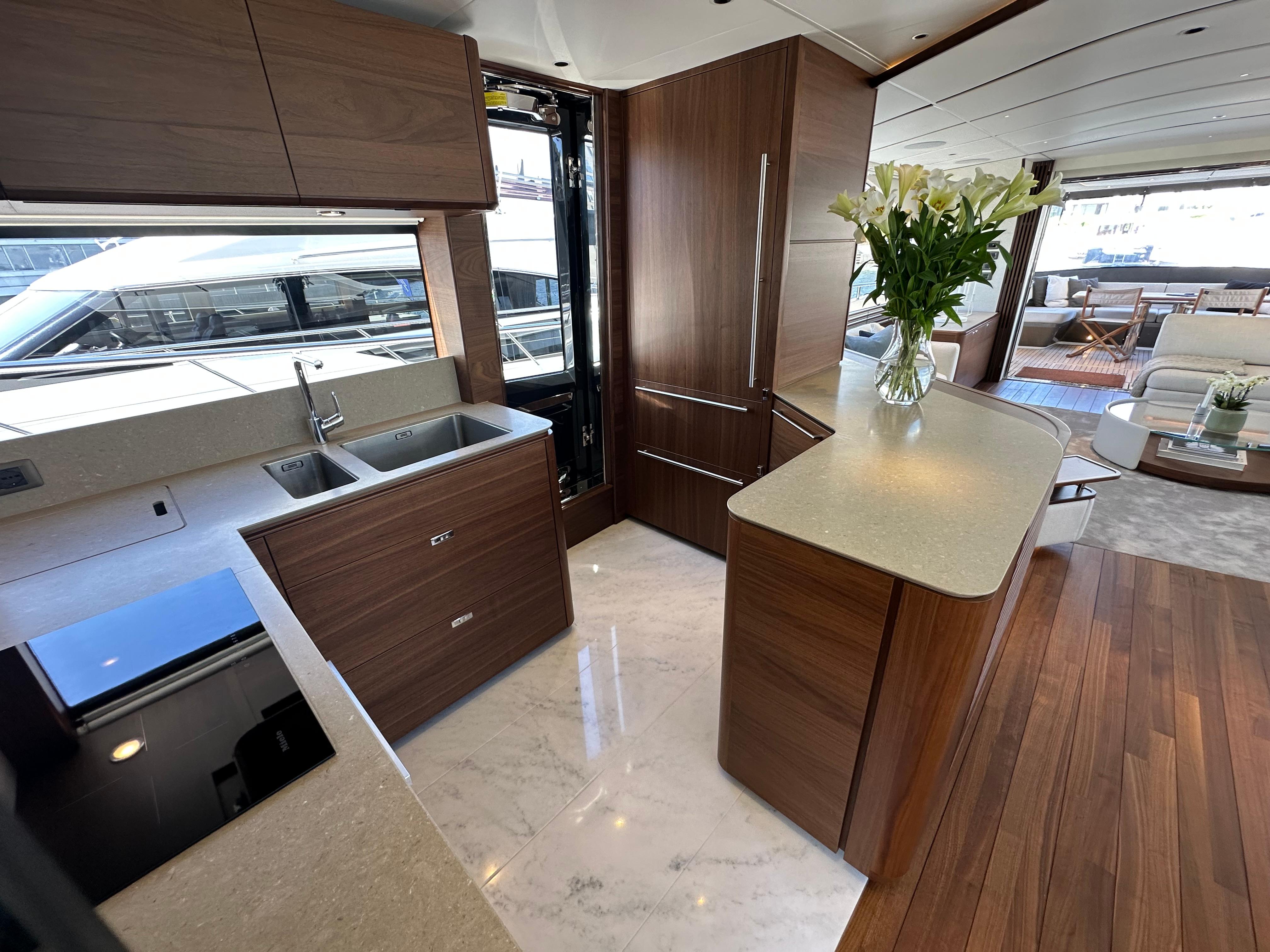

GALLEY
Granite & Quartz choices suitable for the galley worktop
Heated solid surface flooring Carrera White in galley

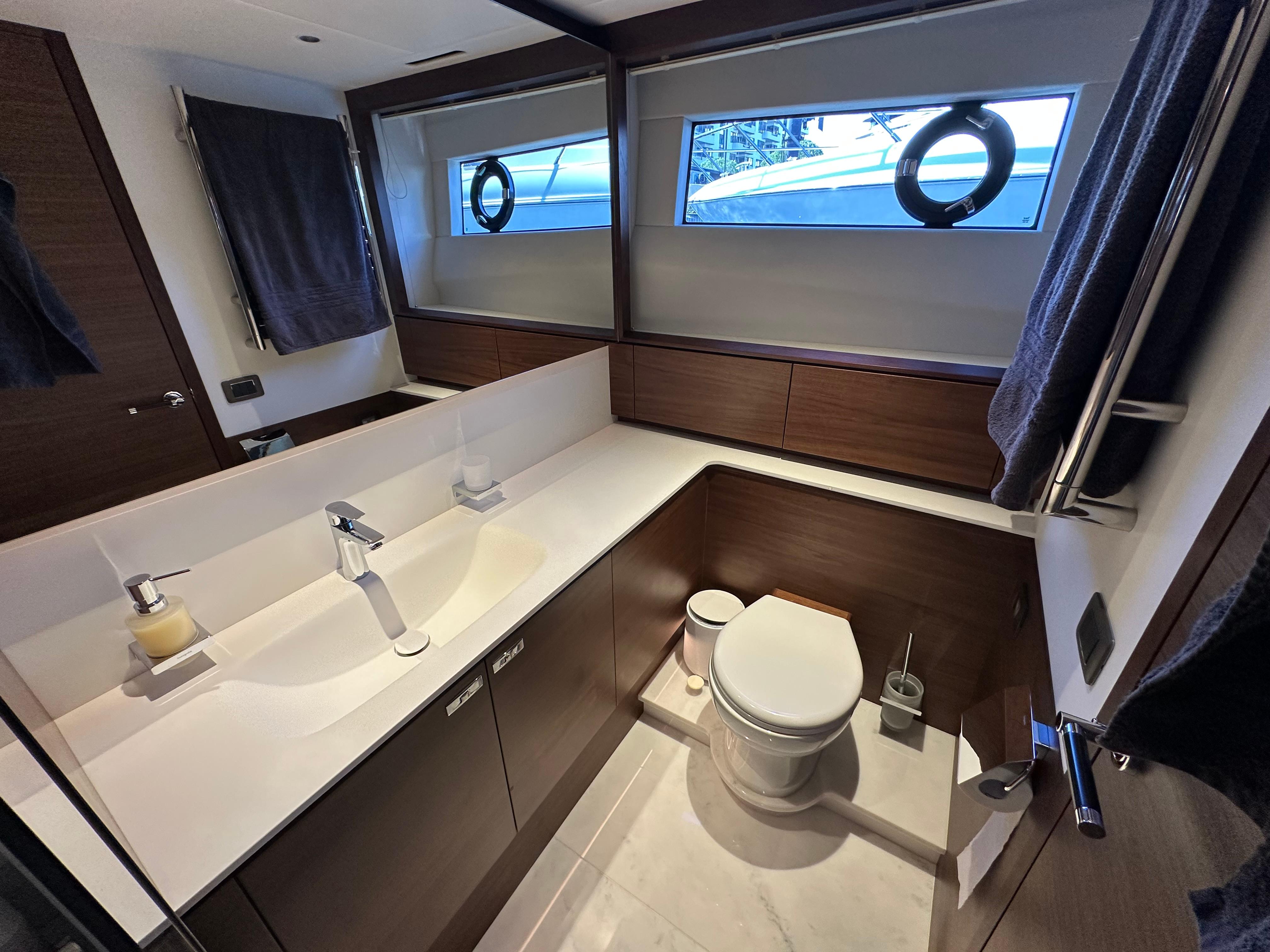

BATHROOMS

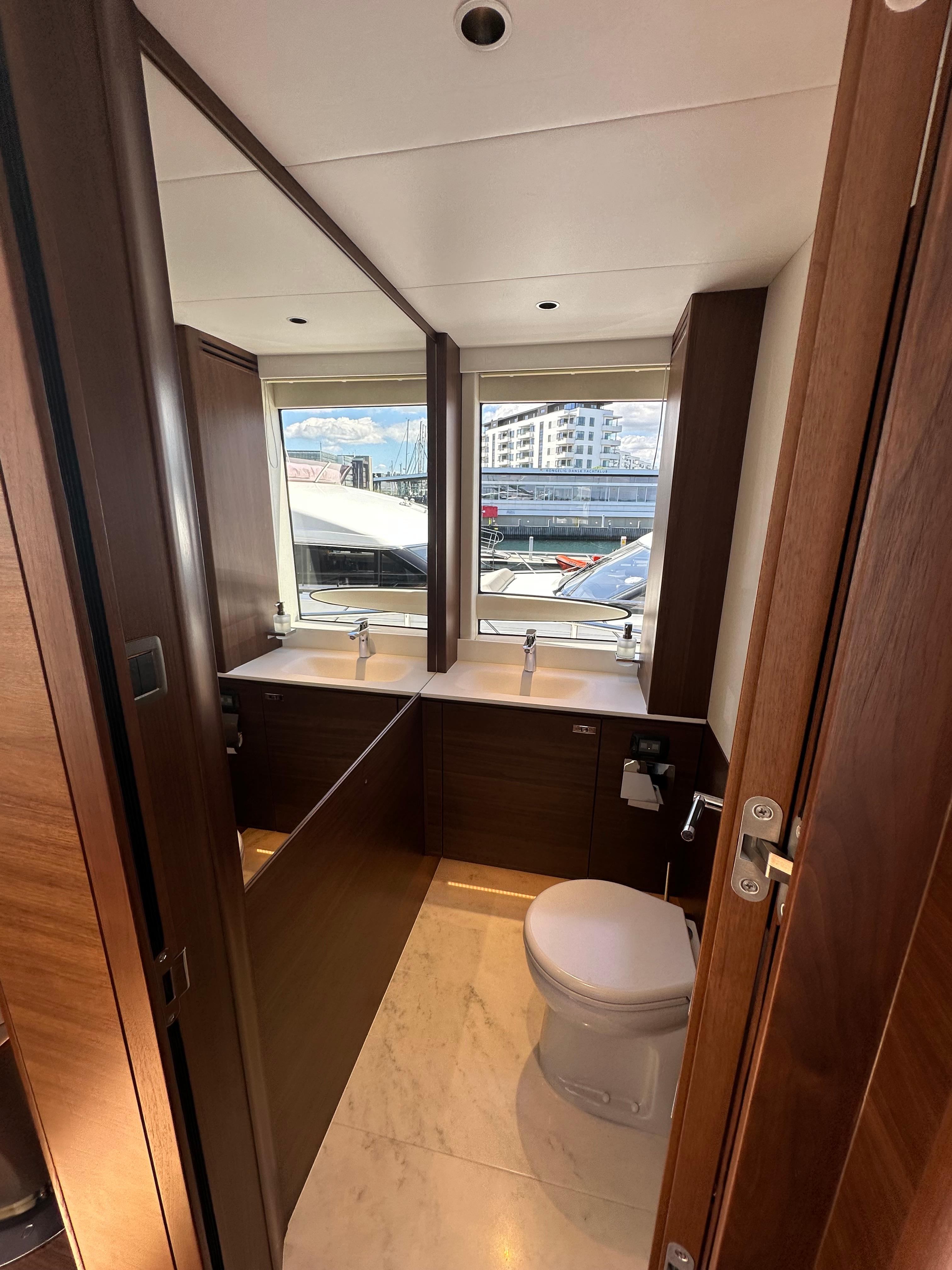

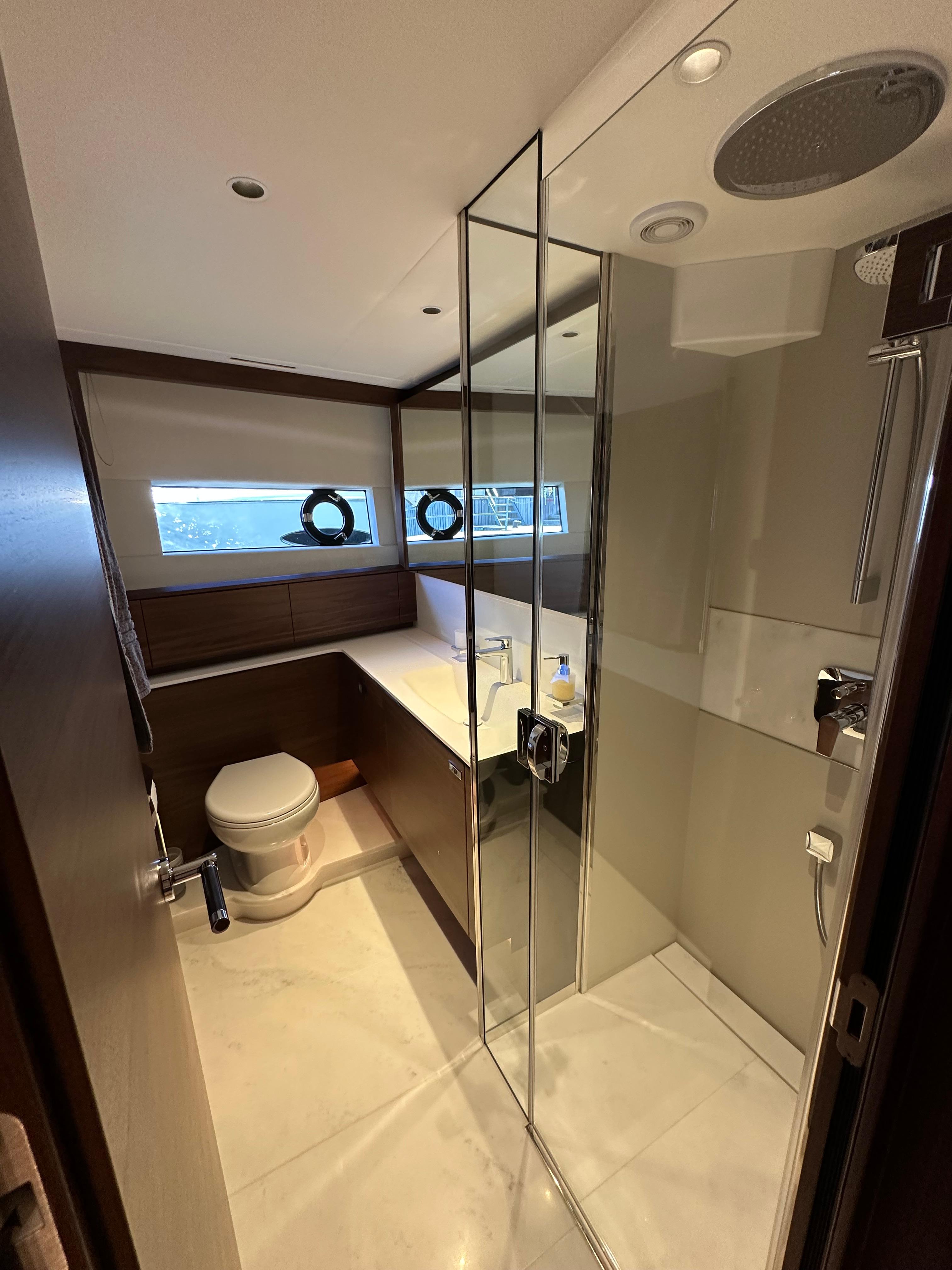

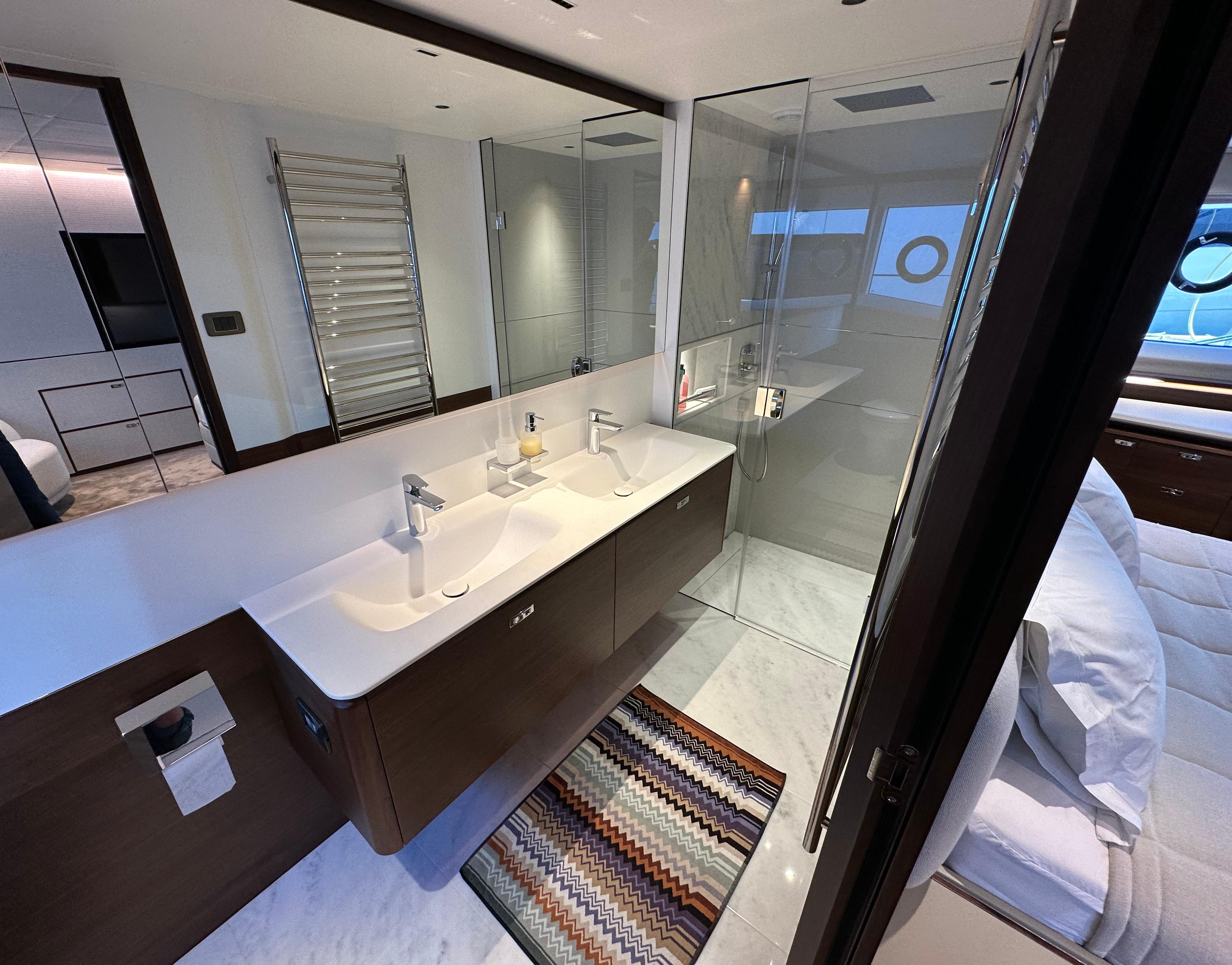

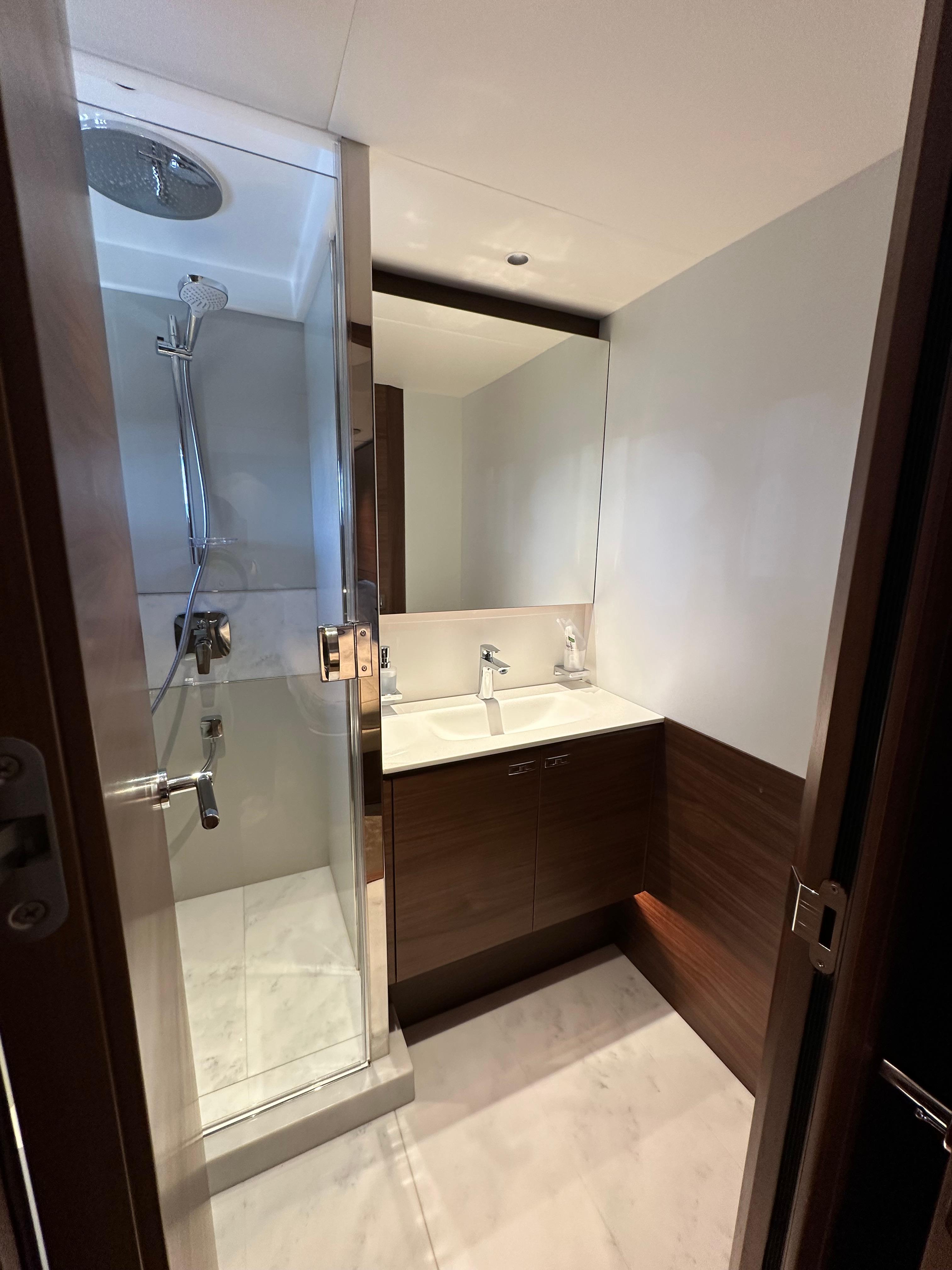

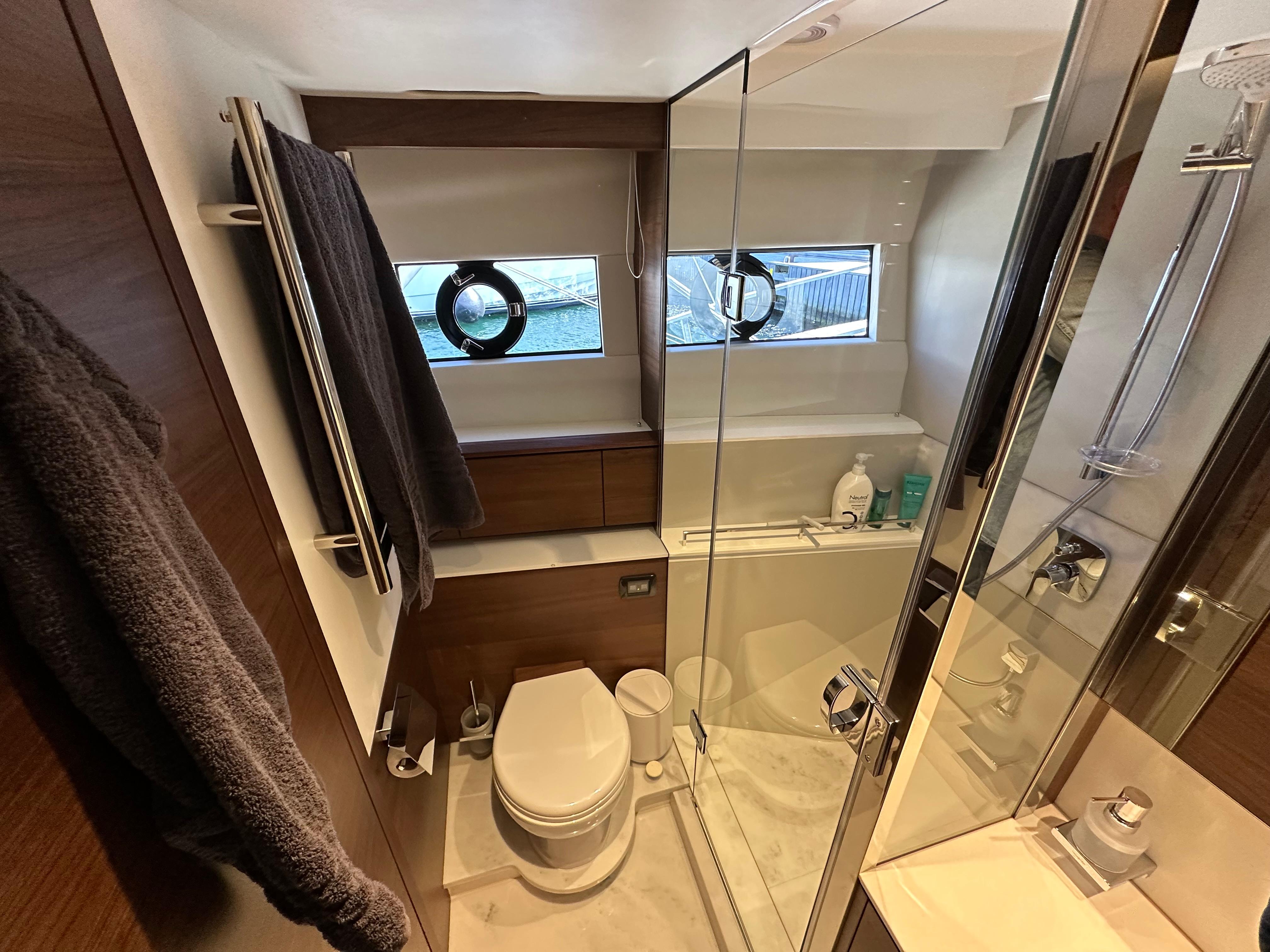

Bathroom floors have Carrera White Solid Surface (satin finish) as standard in the Master cabin, guest bathrooms and day head Wash hand basins and vanity tops in thermoformed white solid surface (satin finish).

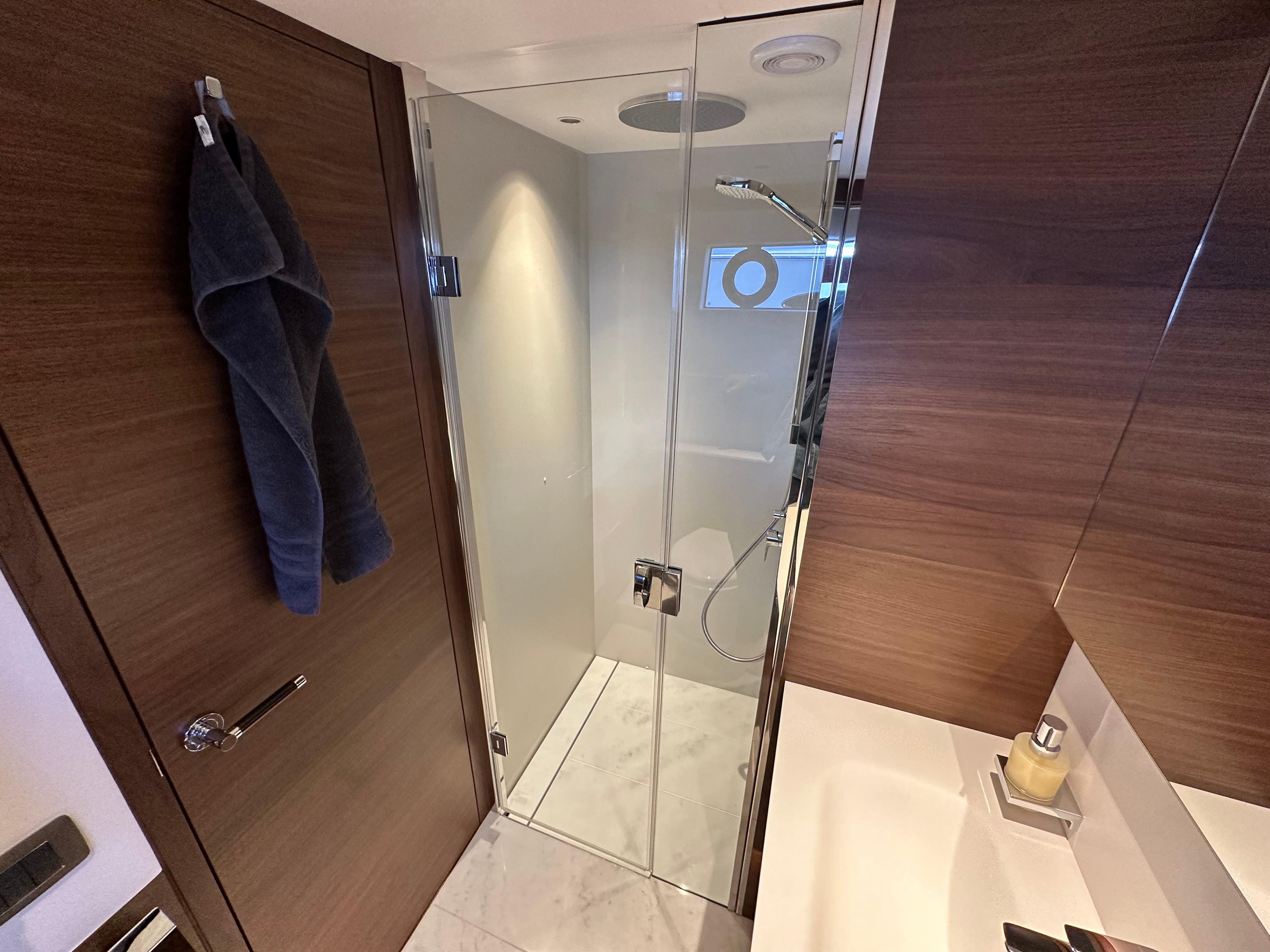

Feature shower bulkheads and shower floor in Solid Surface (to match Solid Surface floor), in place of standard synthetic teak accents.
COLOUR SCHEME
A Design Studio Consultant is available to assist in the selection of interior and exterior styling. Alternatively, the colour scheme can be selected from the Quartz VIII and Milan X range of fabrics and the Quartz III carpet book as standard. Leather upholstery from the Quartz III collection is available at no extra charge
Upgrade to premium carpets Elements London Symphony Dresden
DECK HARDWARE

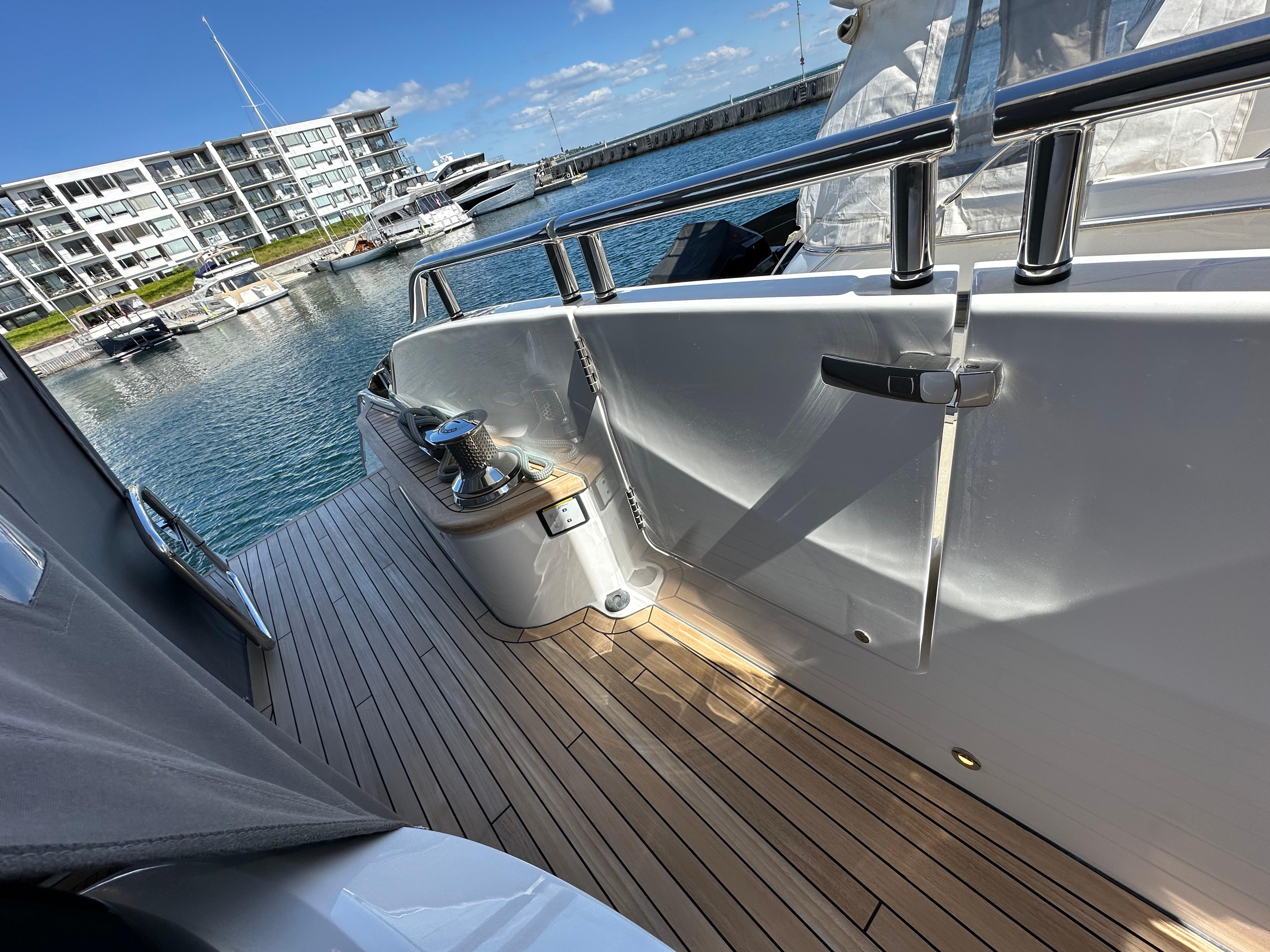

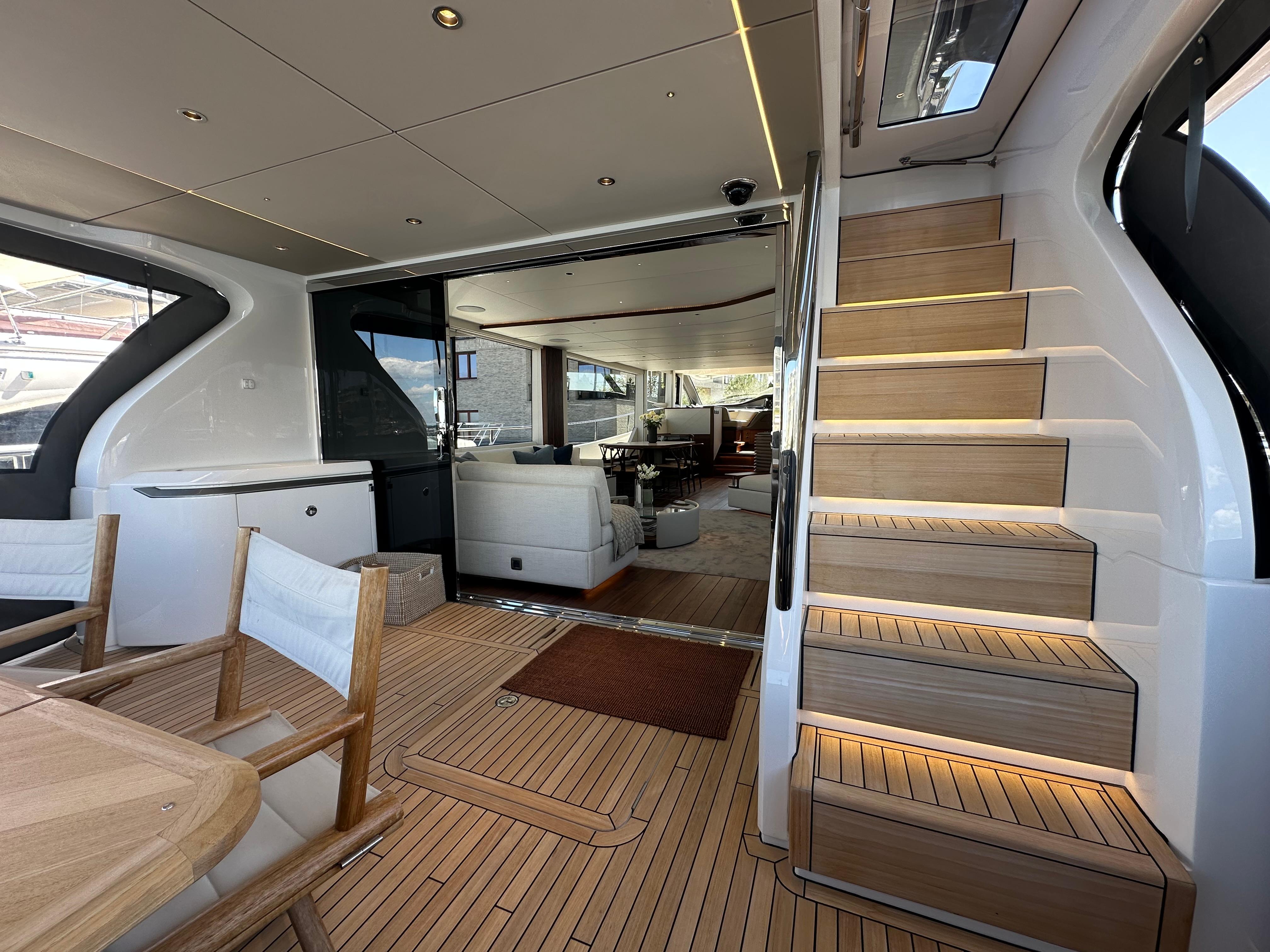

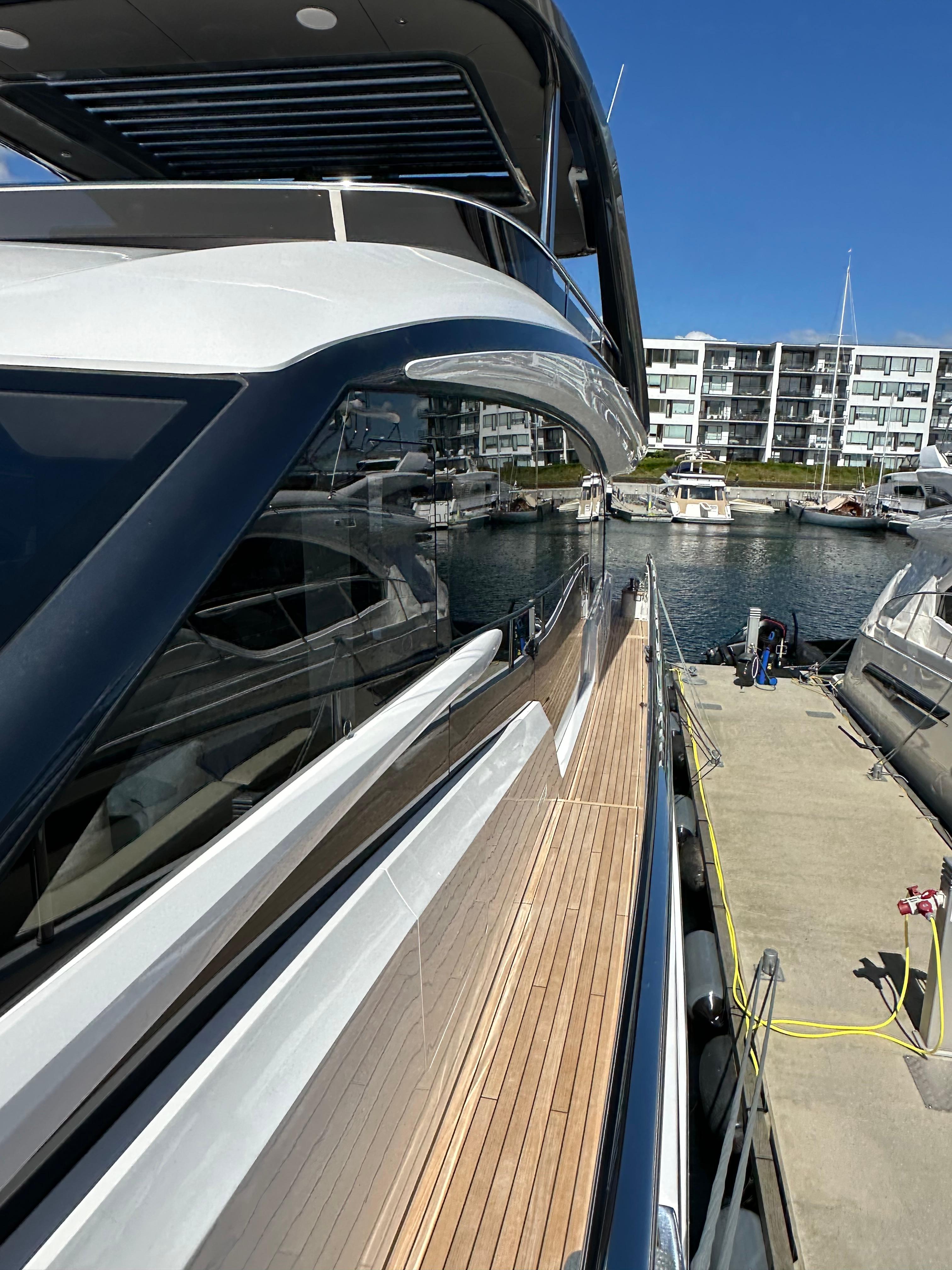

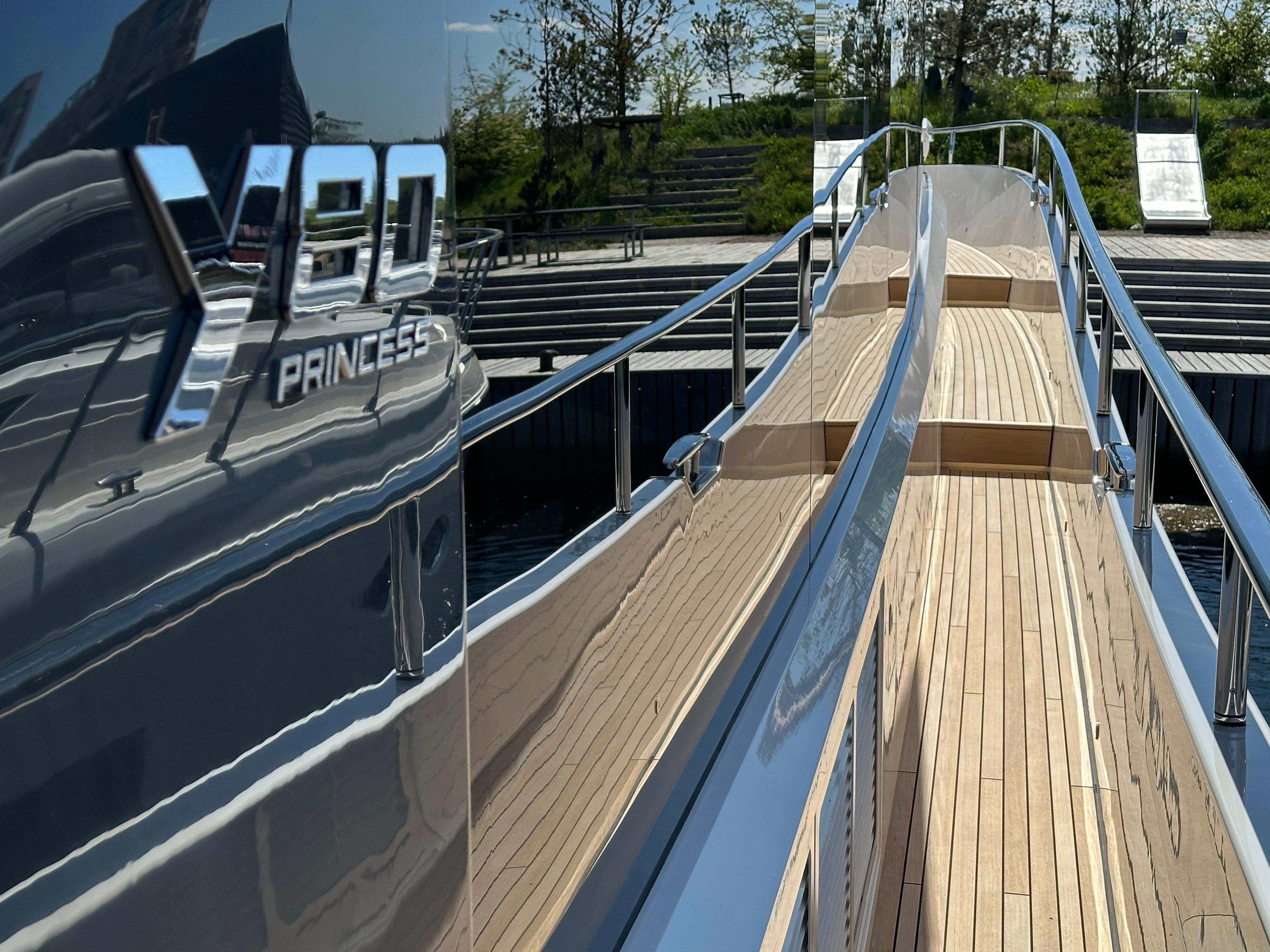

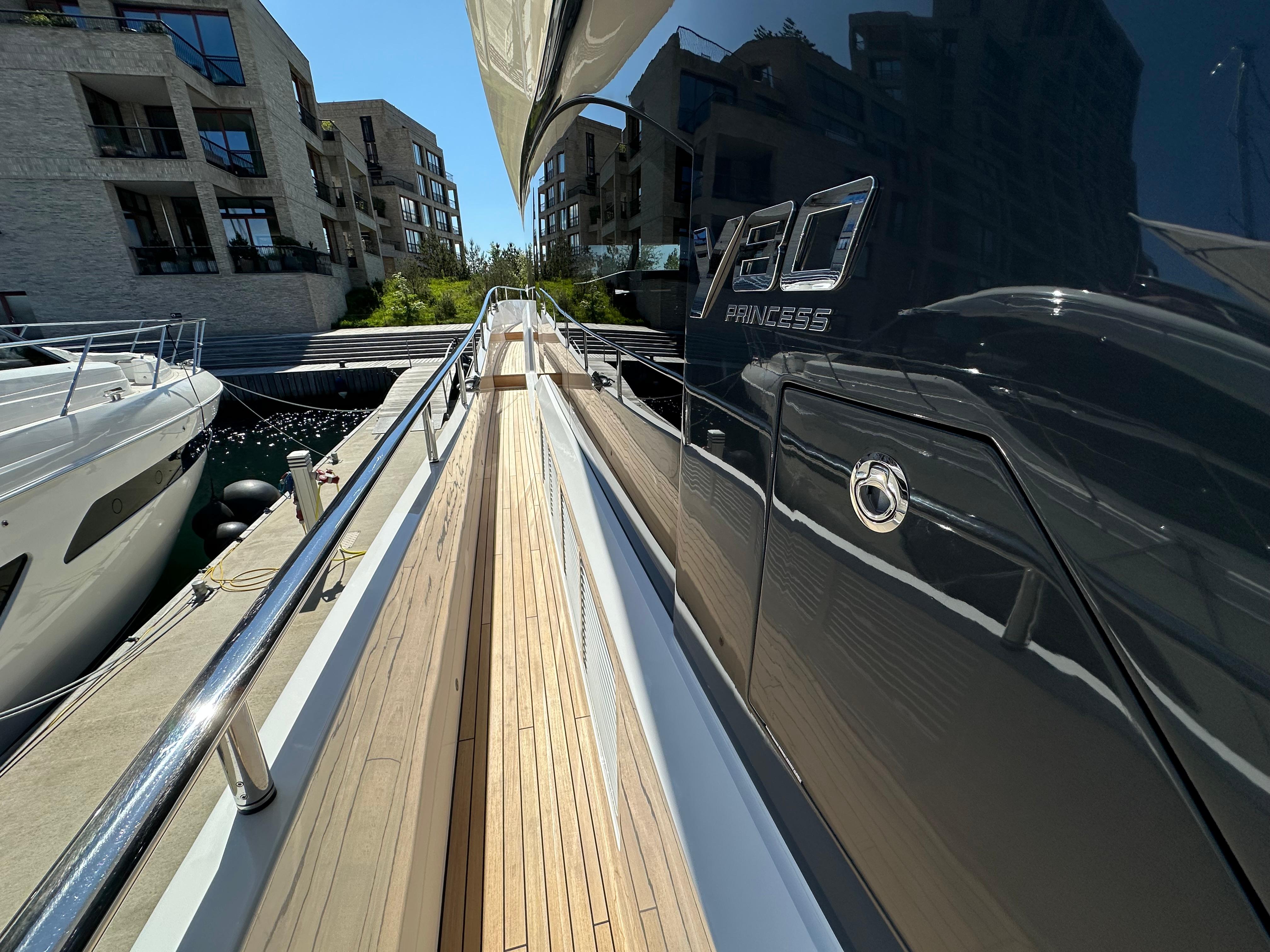

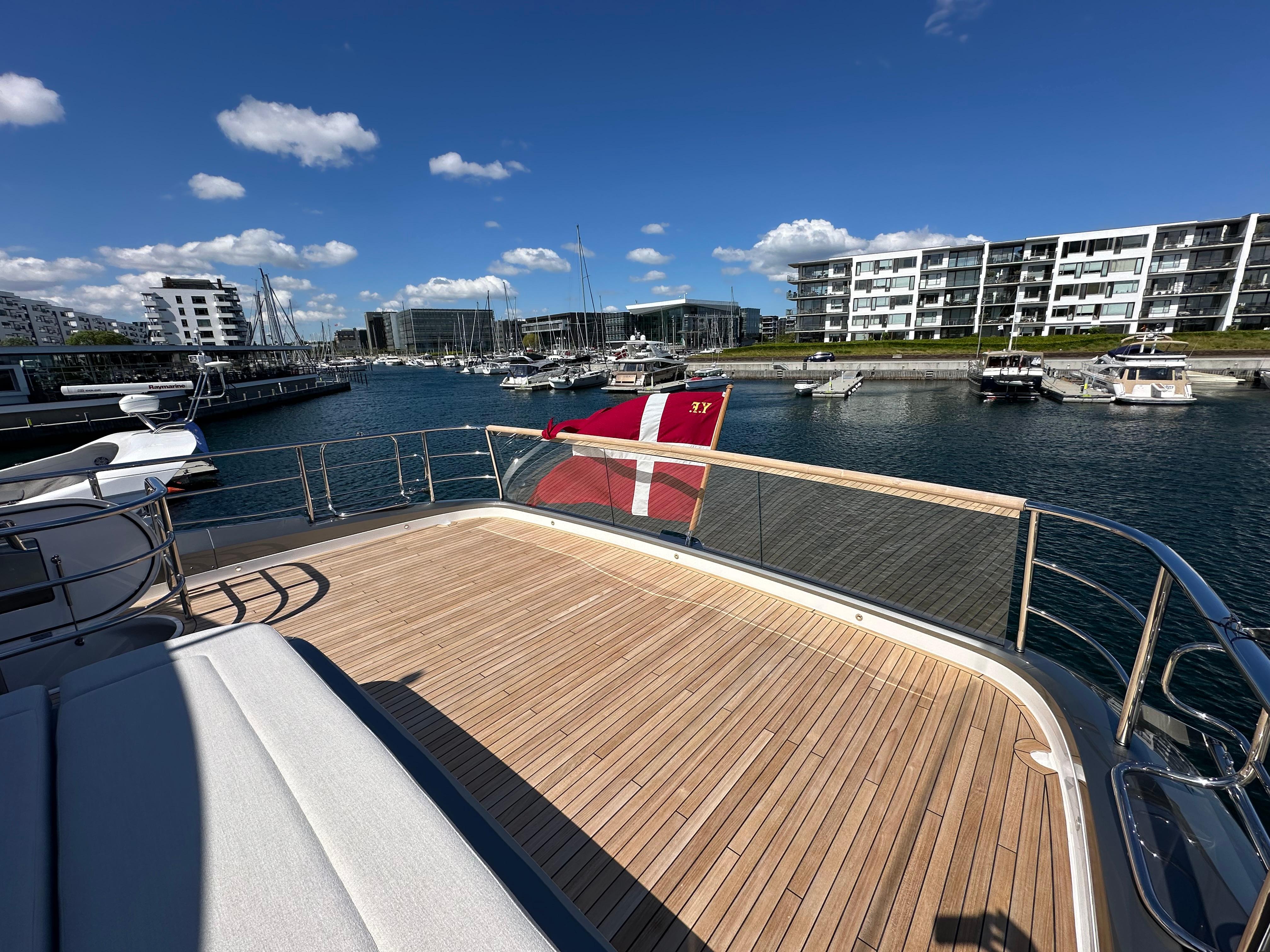

Teak decking to transom platform, transom steps, cockpit deck, stairway to flybridge, side decks, foredeck & flybridge (6mm with black caulking)

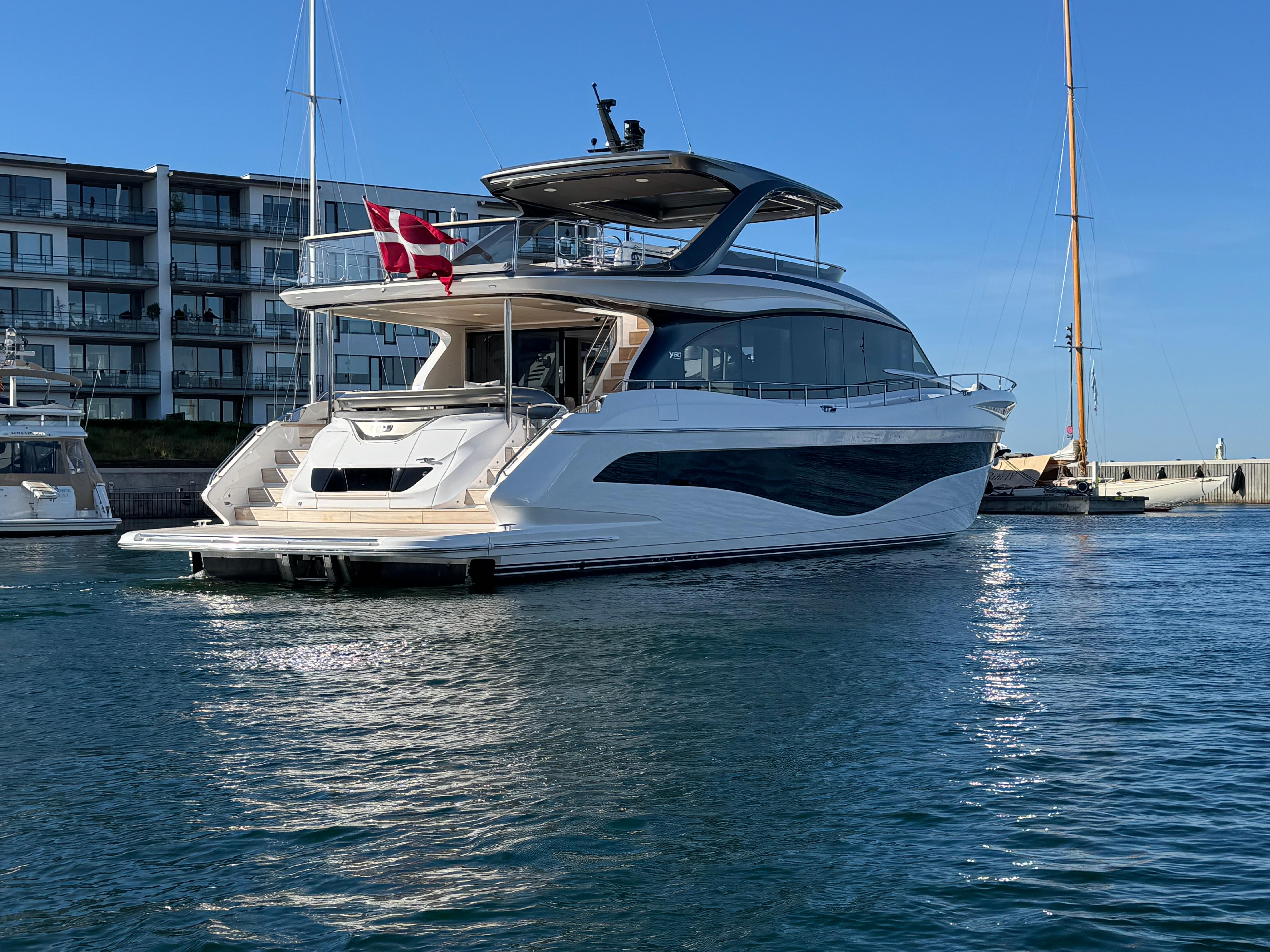

Note: The Princess Y80 has an up/down electro hydraulic transom platform with 550Kg SWL fitted as standard (maximum recommended tender weight is 430kg) – suitable for up to a Williams Sportjet 395 or equivalent
GRP flybridge hardtop featuring electric opening louvres (including lighting with scene selection) is finished in White Gelcoat and White legs
Hardtop main panel finished in Oyster Grey with Oyster Grey metallic aft section of legs and Graphite Grey forward section of legs, in place of standard White (note: radar mast and navigation equipment finished in dark

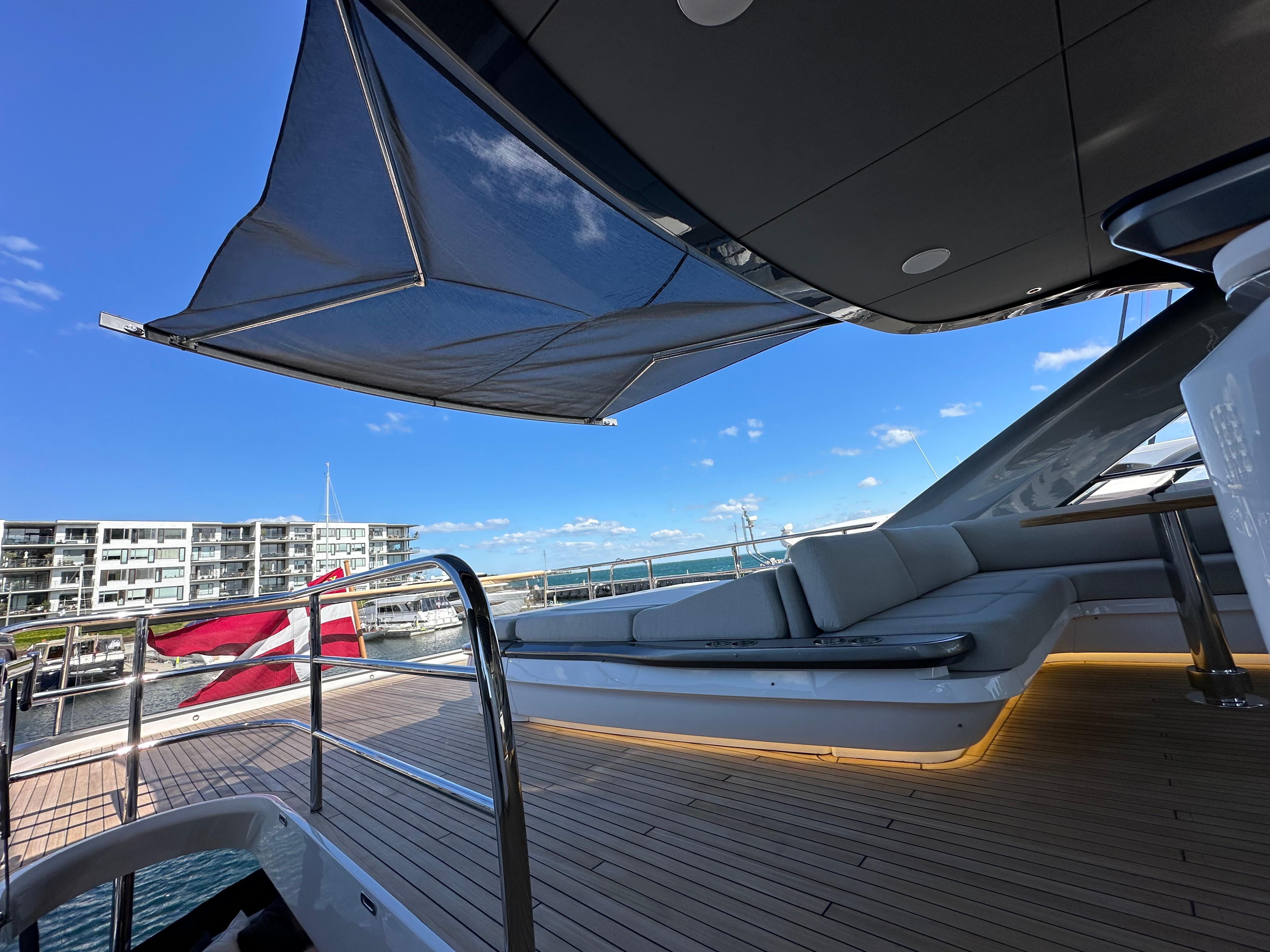

Electrically operated sun awning to aft end of hardtop in Anthracite grey mesh (Note: Only available when optional hardtop is selected)
Servery unit in cockpit immediately aft of patio doors on port side, inboard of buttress (with fridge, sink & tap)
Flybridge deck wash

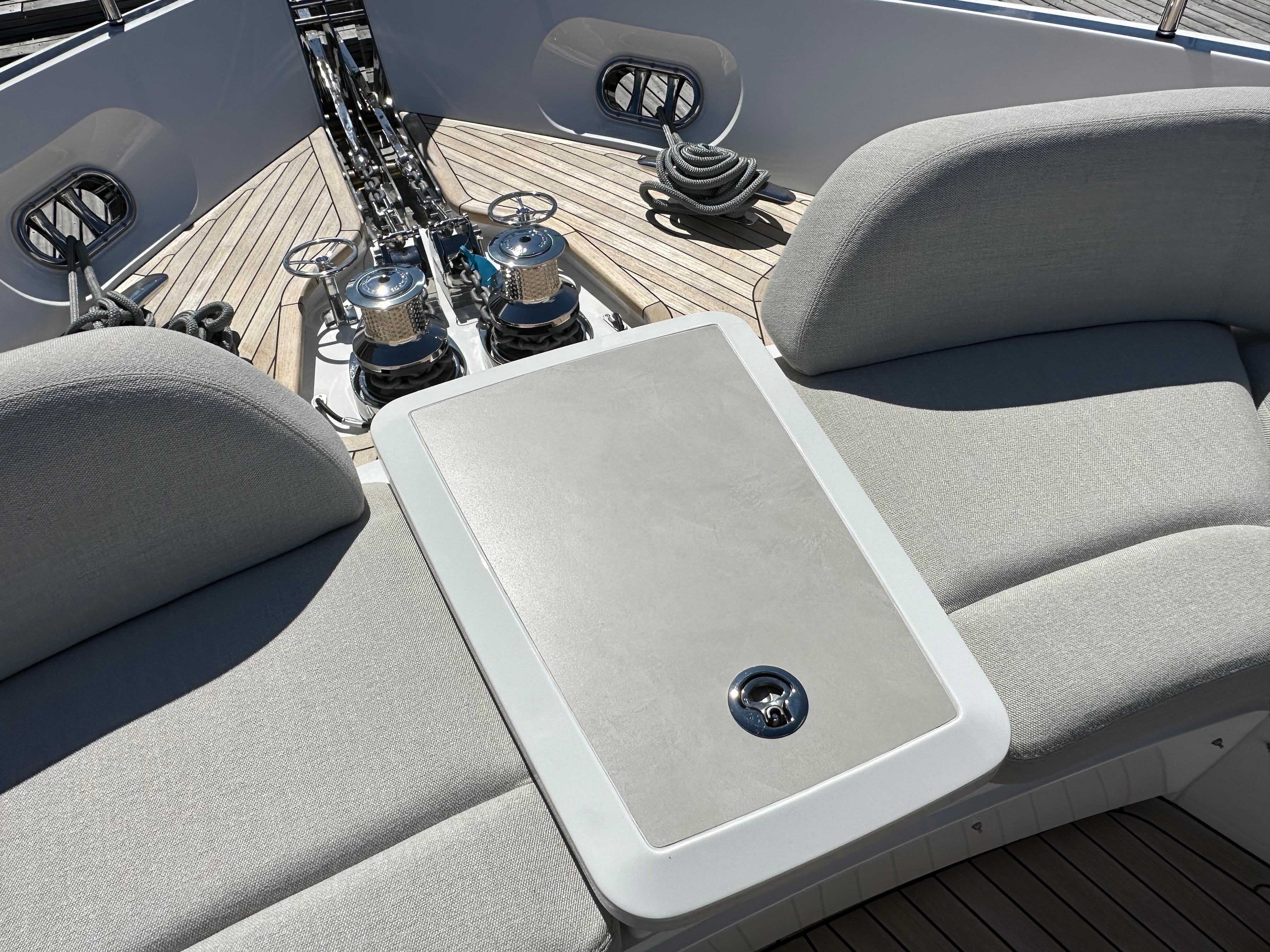

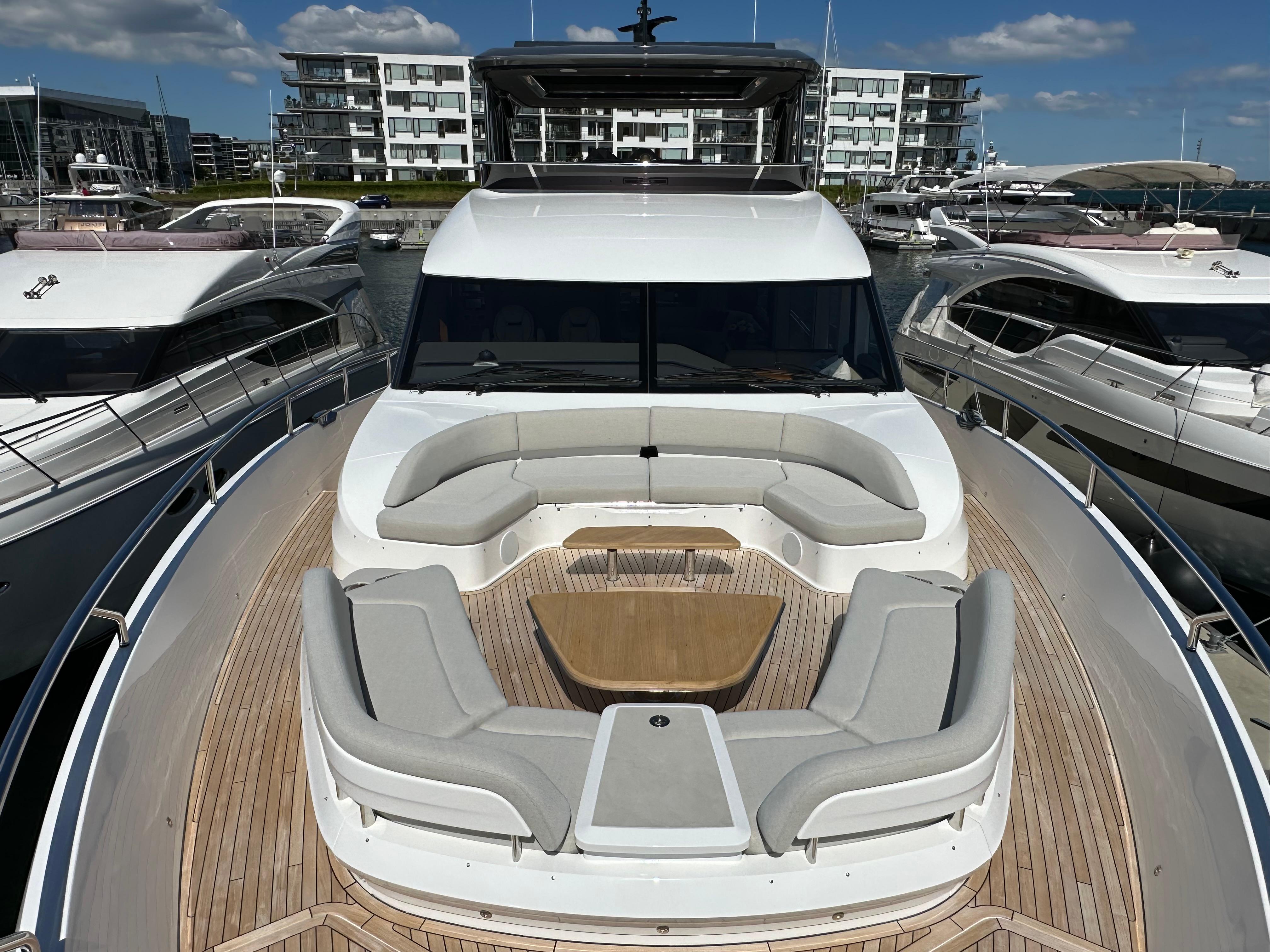

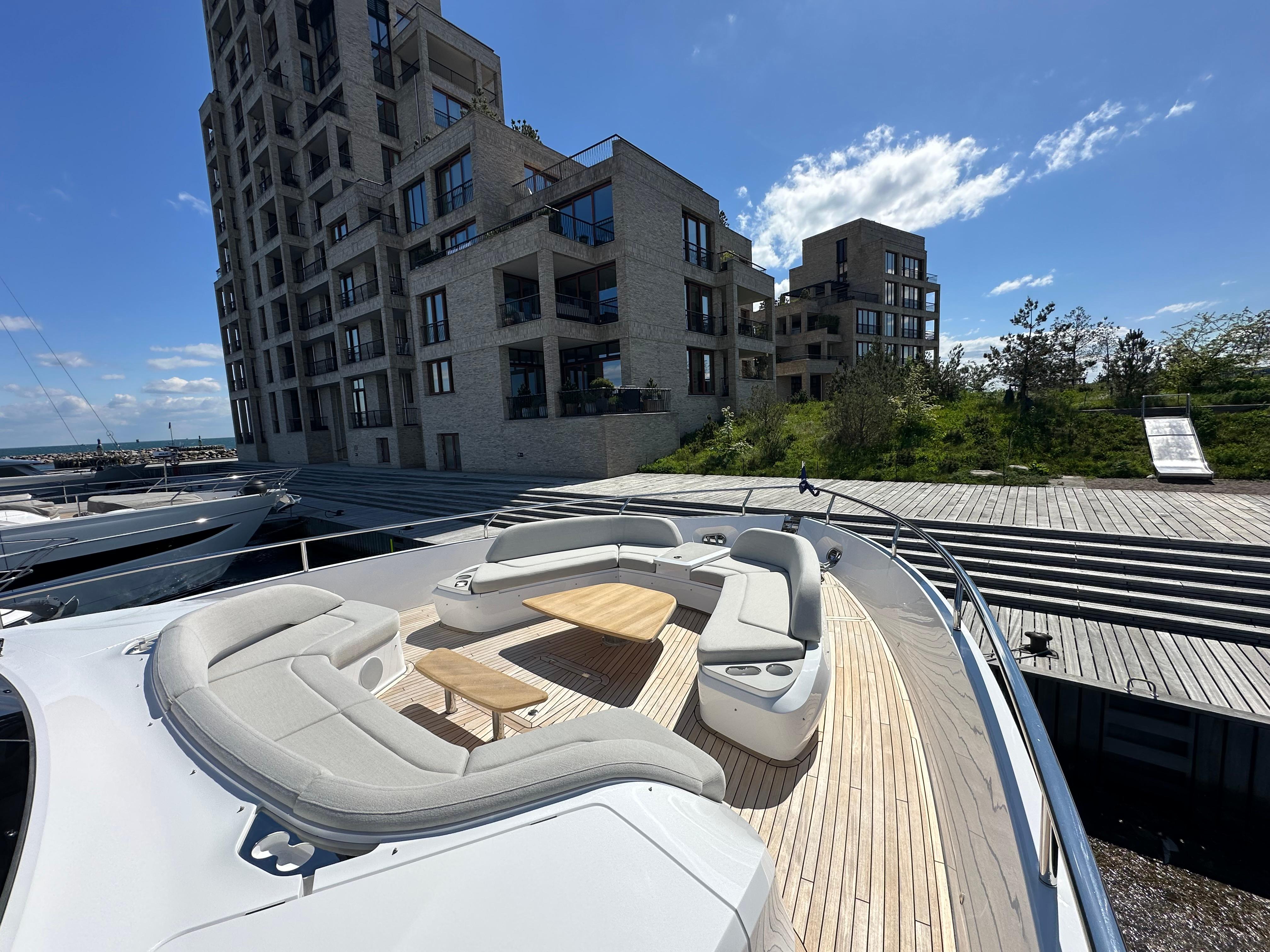

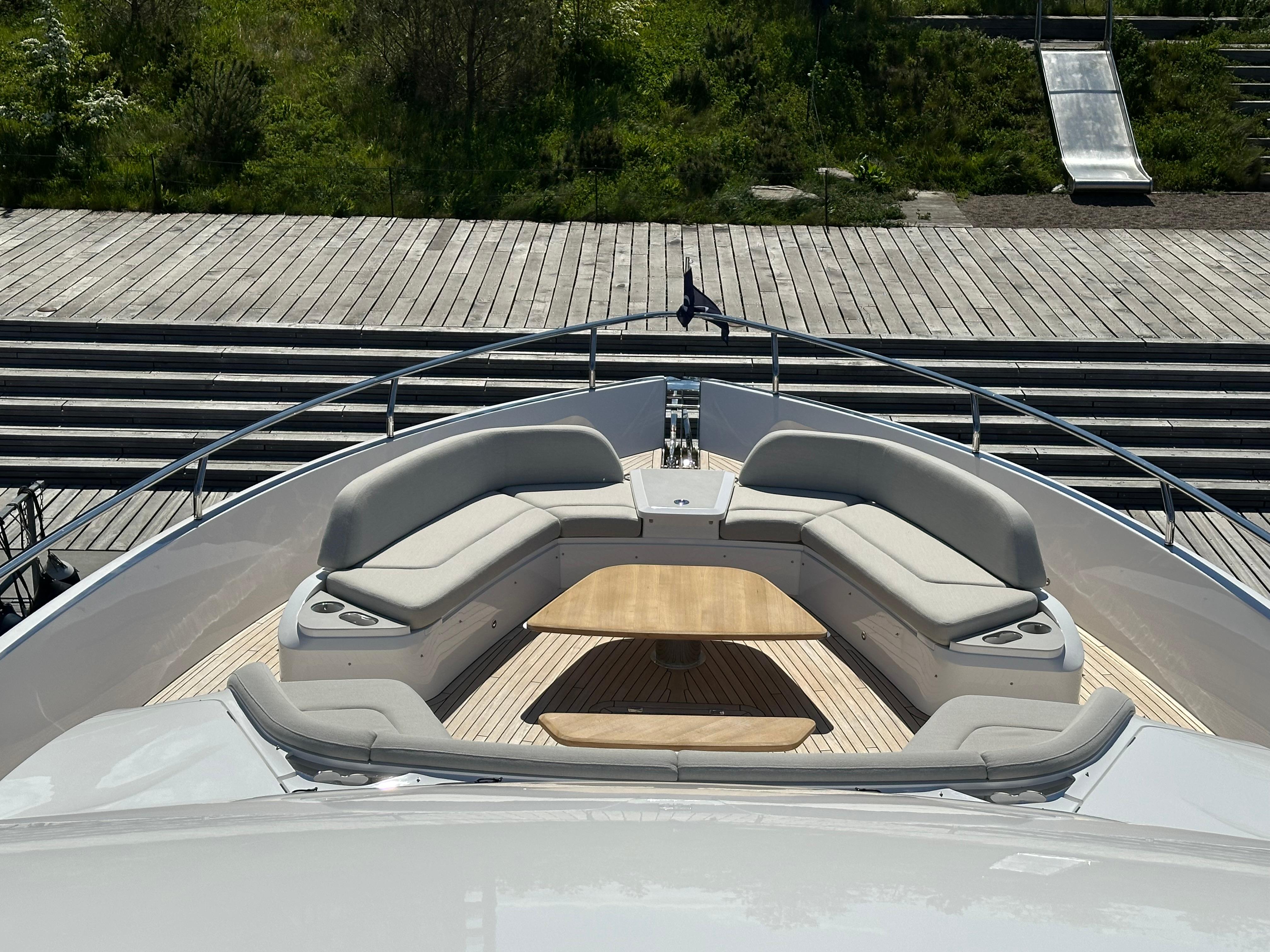

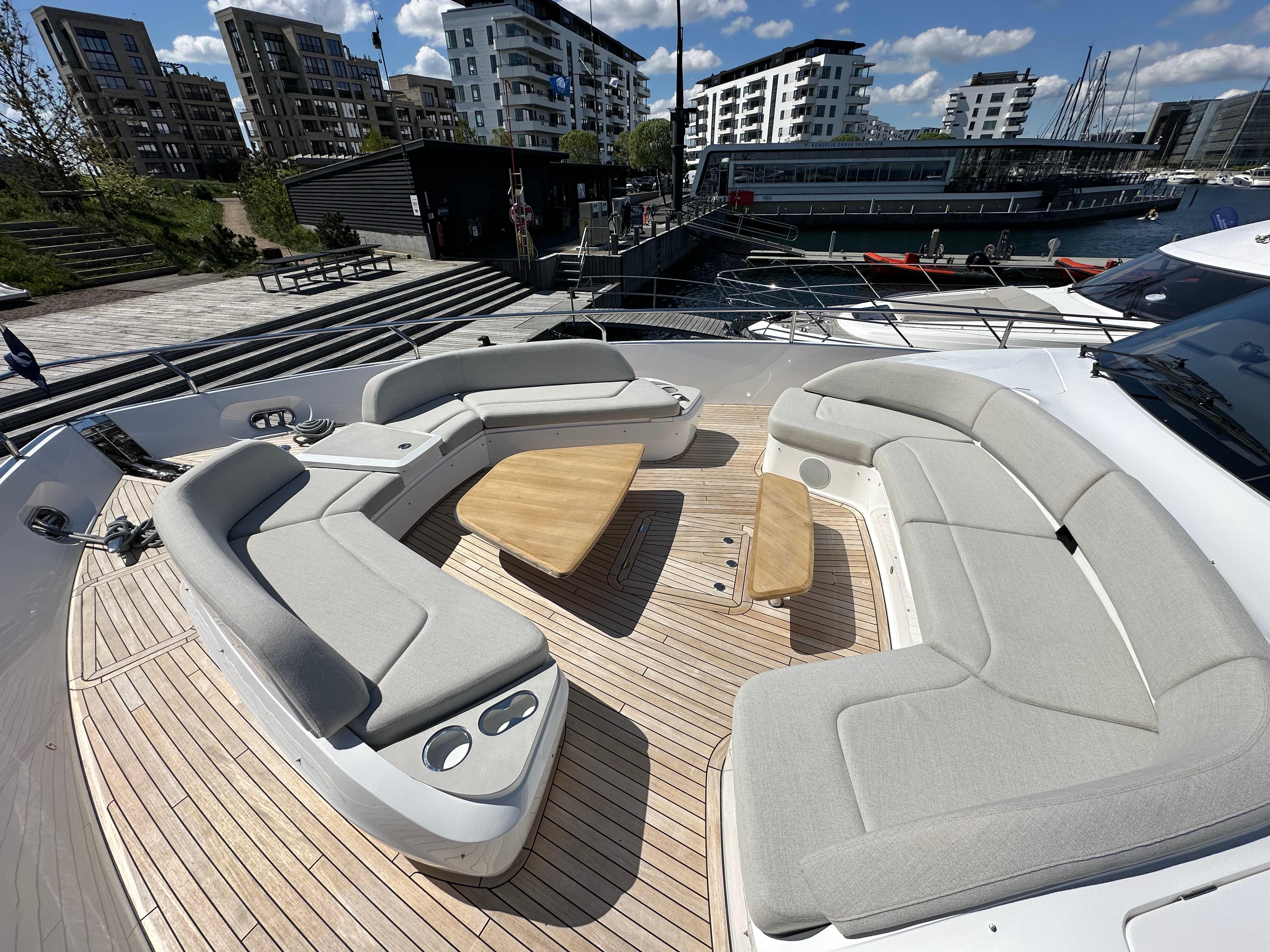

Coffee table to foredeck forward-facing U-shaped seating

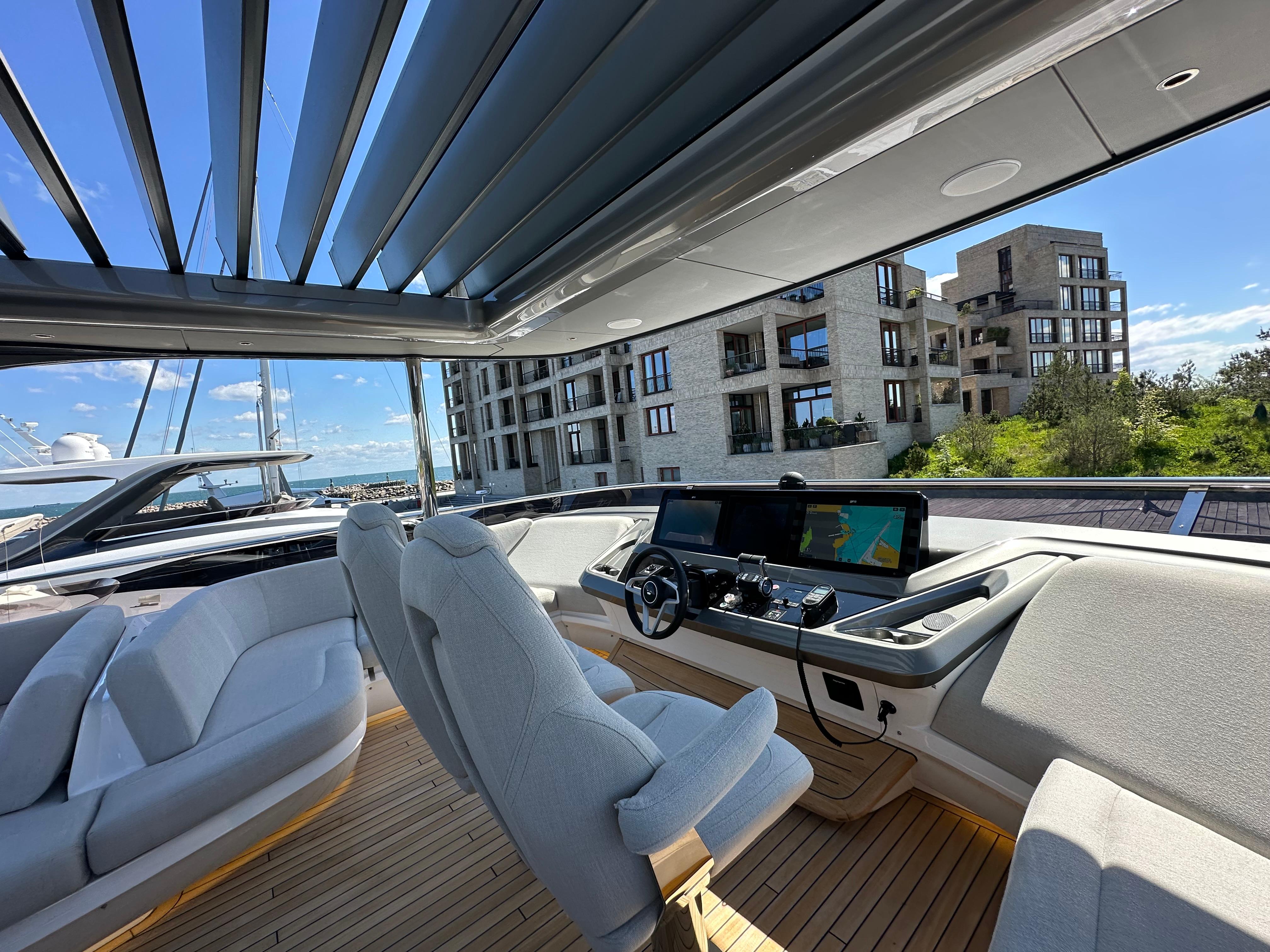

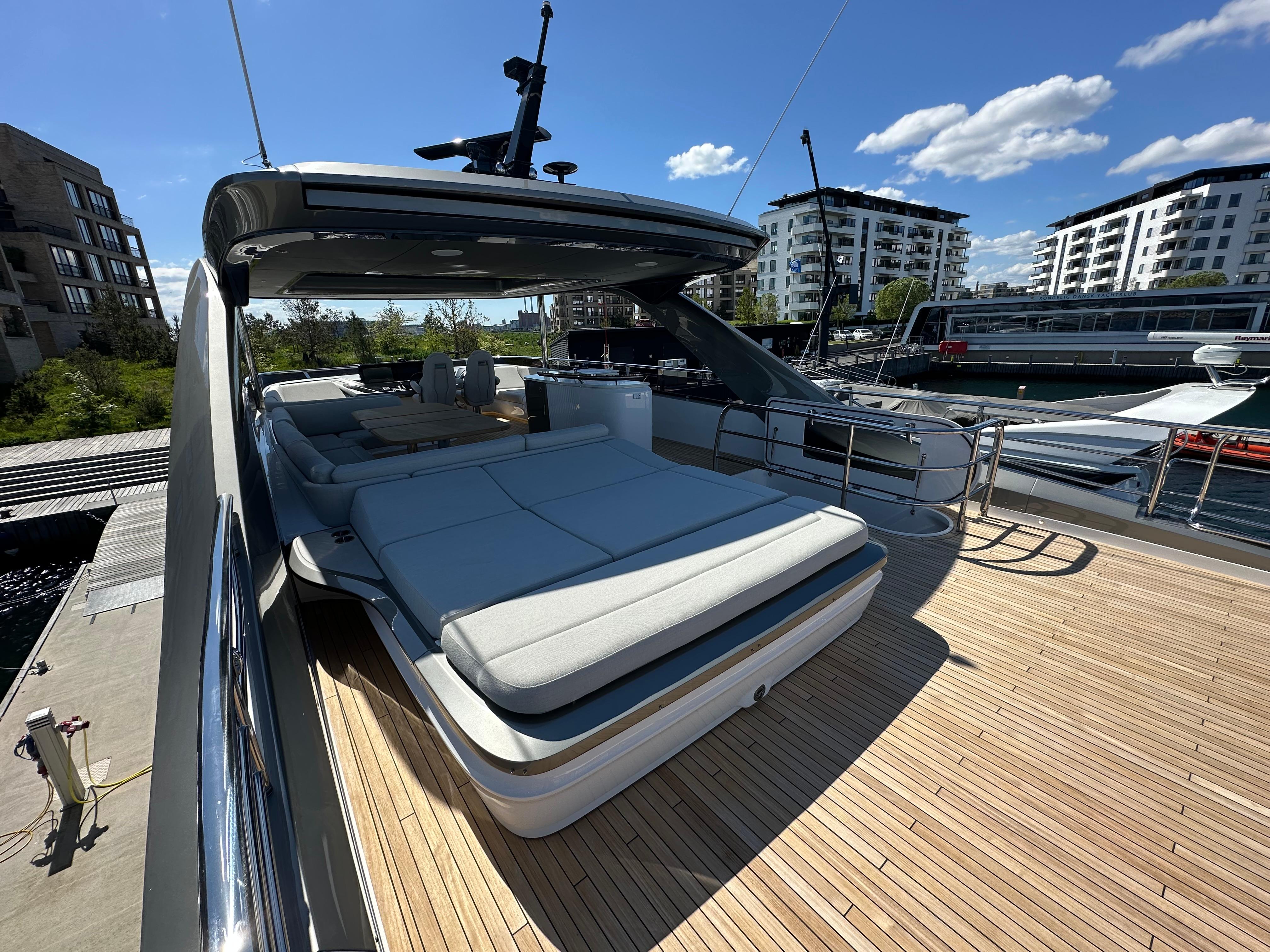

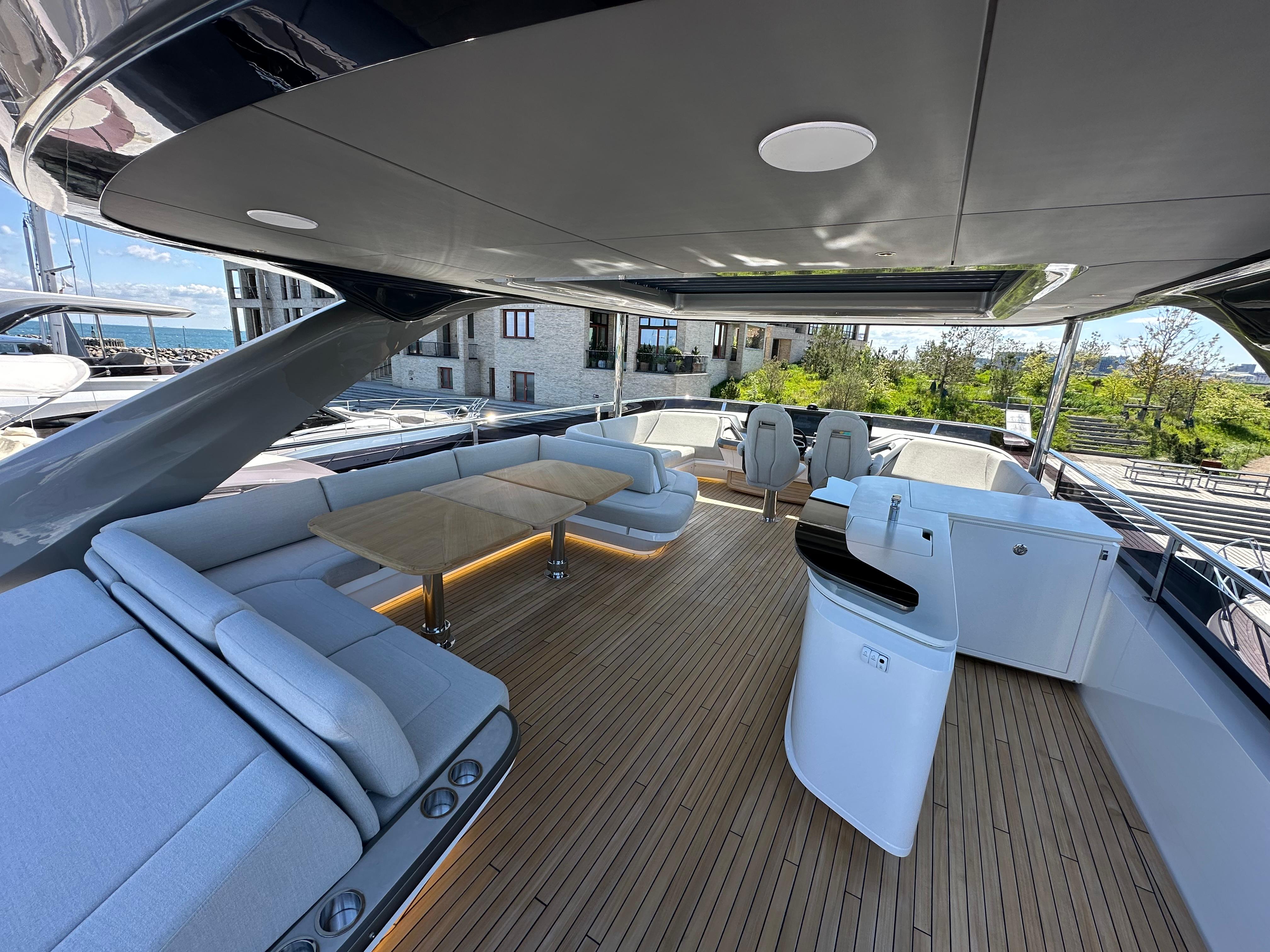

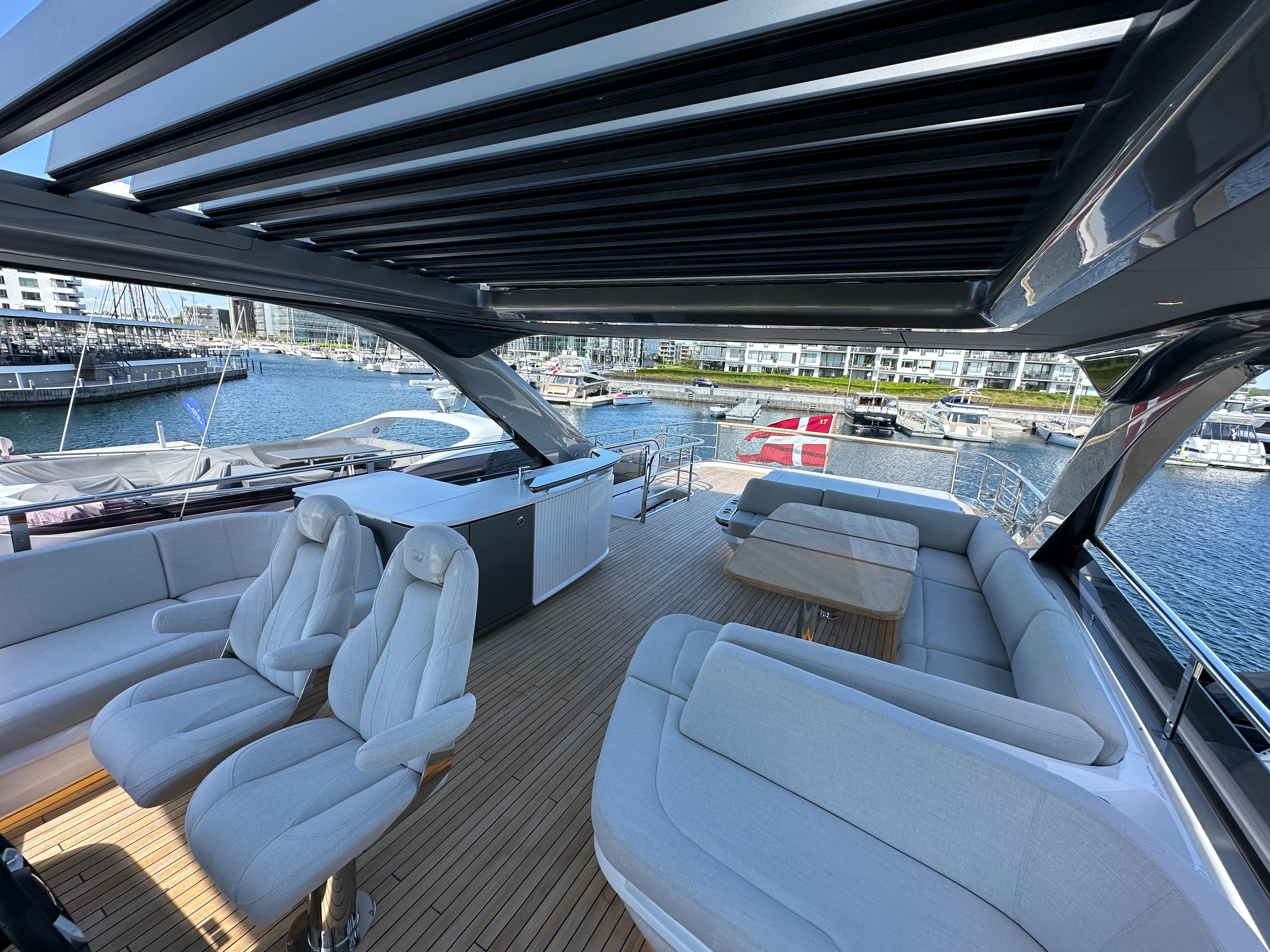

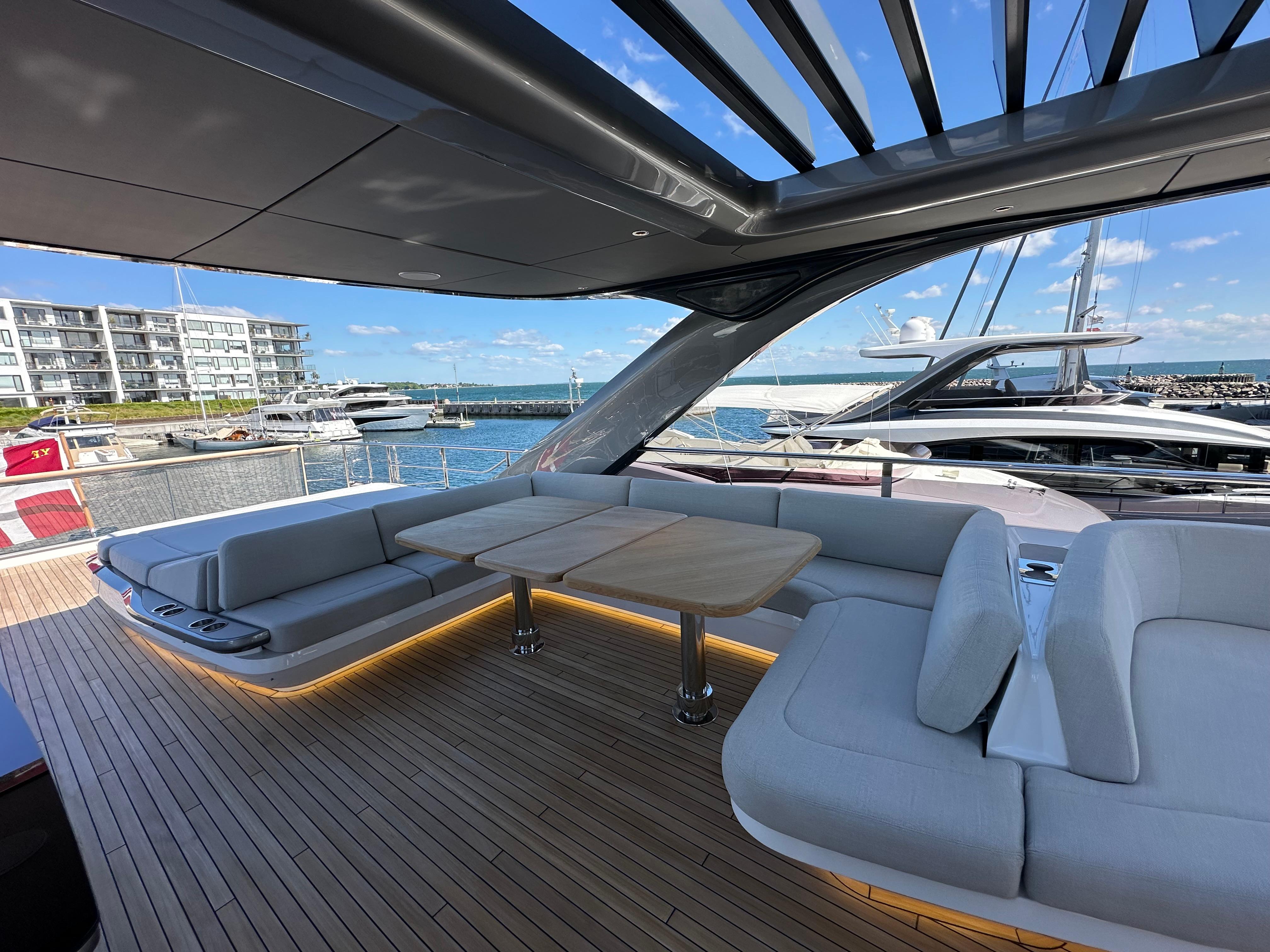

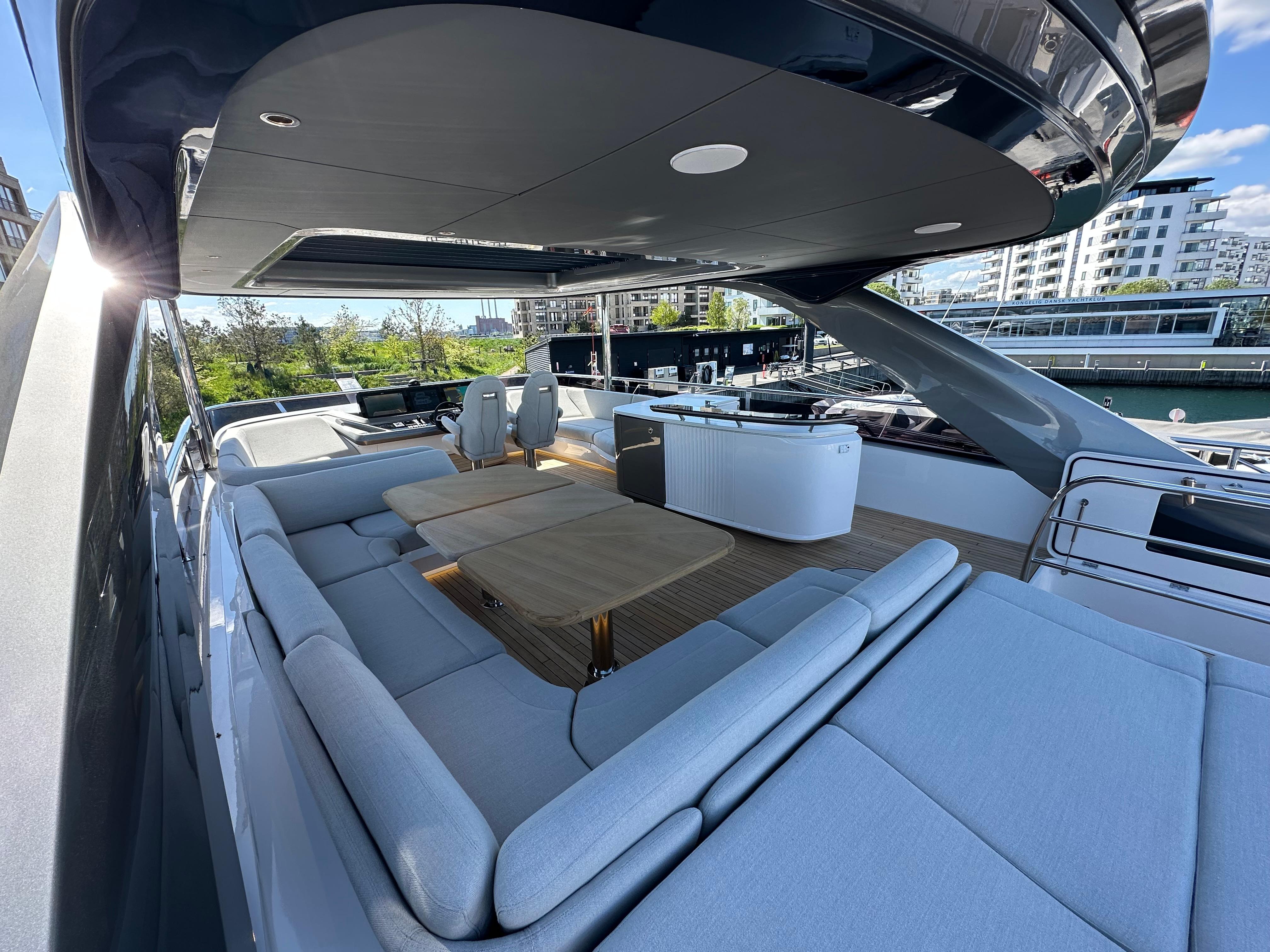

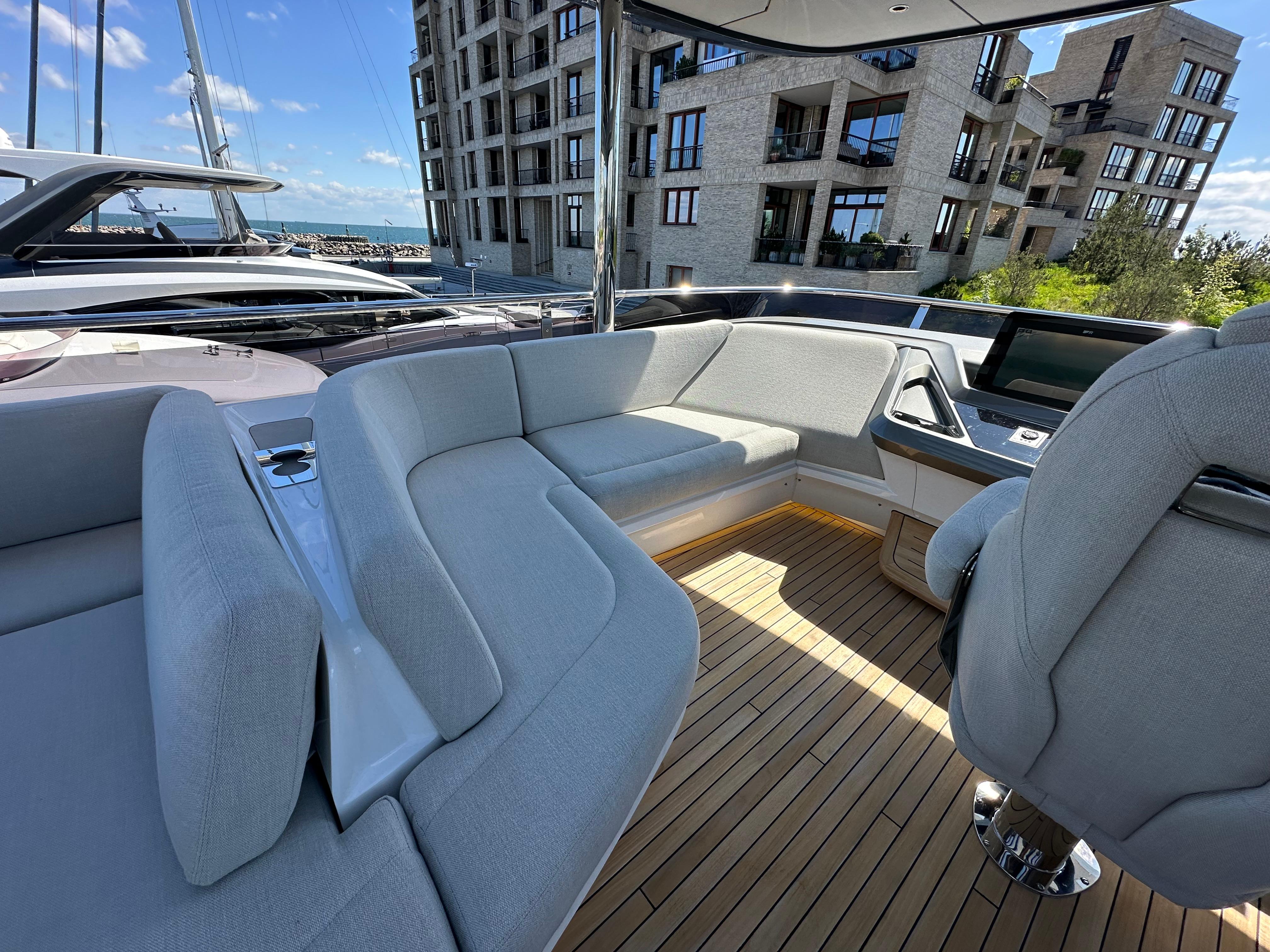

Standard flybridge layout incorporates an aft facing sunbed, port side Ushaped sofa with table (with removable central section), forward port side L-shaped seating, forward starboard side seating and wetbar.
Sunbed conversion with infill/cushions for foredeck aft facing seating area (stows in foredeck seating outboard wings)

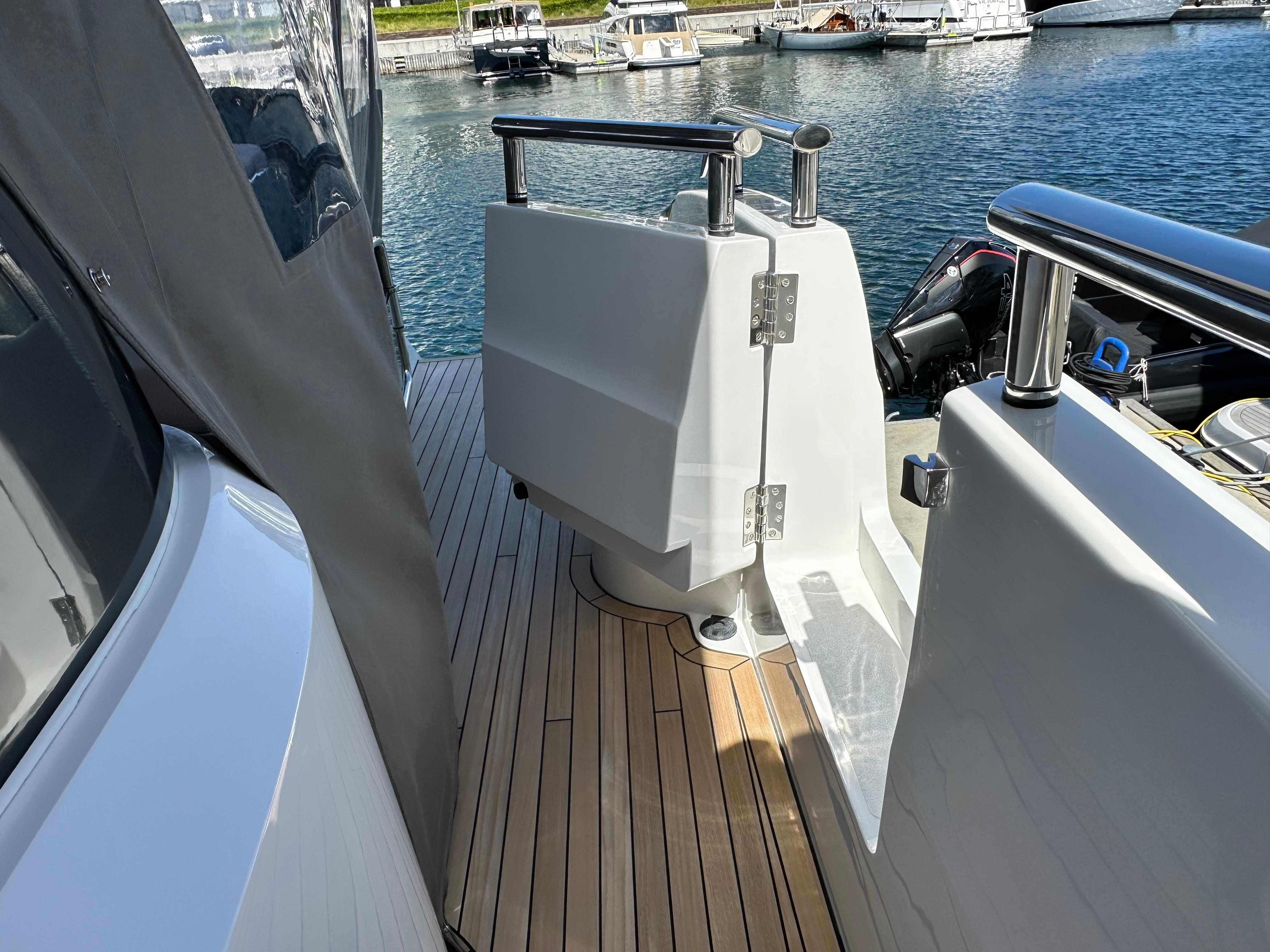

Side entry gates to aft port & starboard side decks in addition to standard passerelle

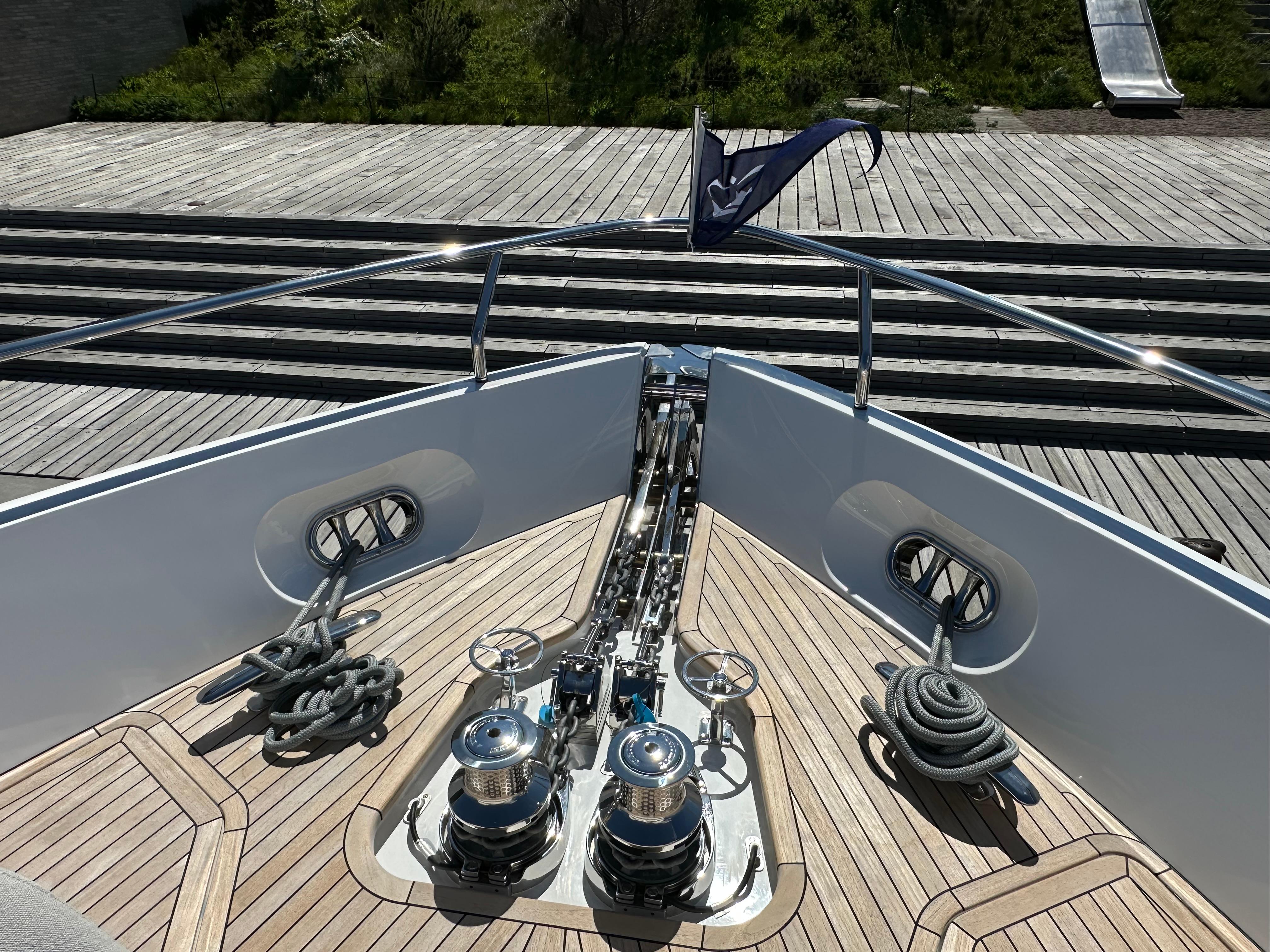

Primary anchor 80kg stainless steel Lewmar claw anchor, with stainless steel Lewmar swivel, secondary anchor 50kg stainless steel Lewmar claw anchor, with stainless steel Lewmar swivel, in place of standard.
Additional 50m, per side, of 14mm galvanised anchor chain (Note: standard is 100m attached to 80kg anchor & 70m attached to 50kg anchor)
Plug in carbon pole transom shower and deck socket to bathing platform
GENERATOR

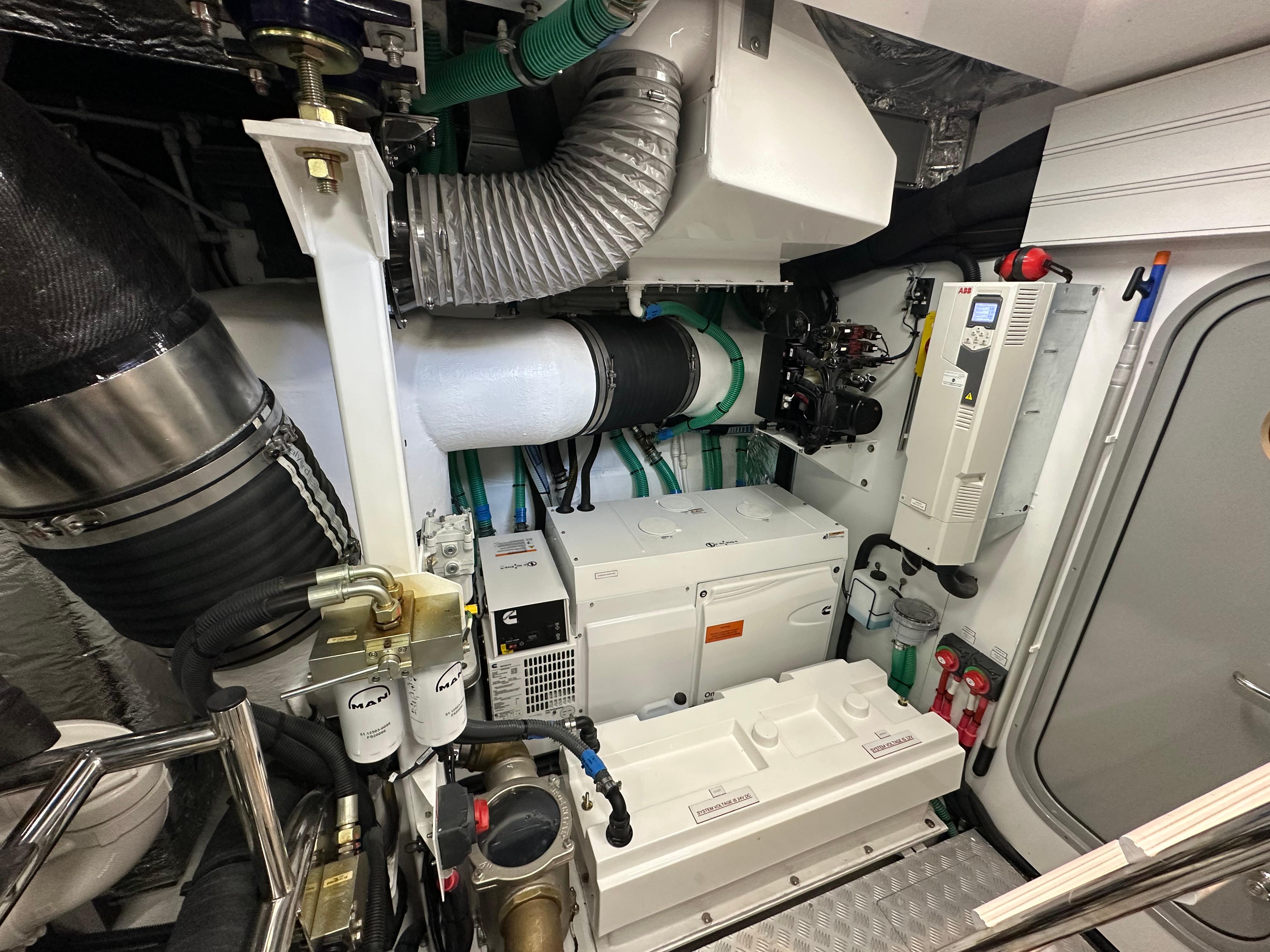

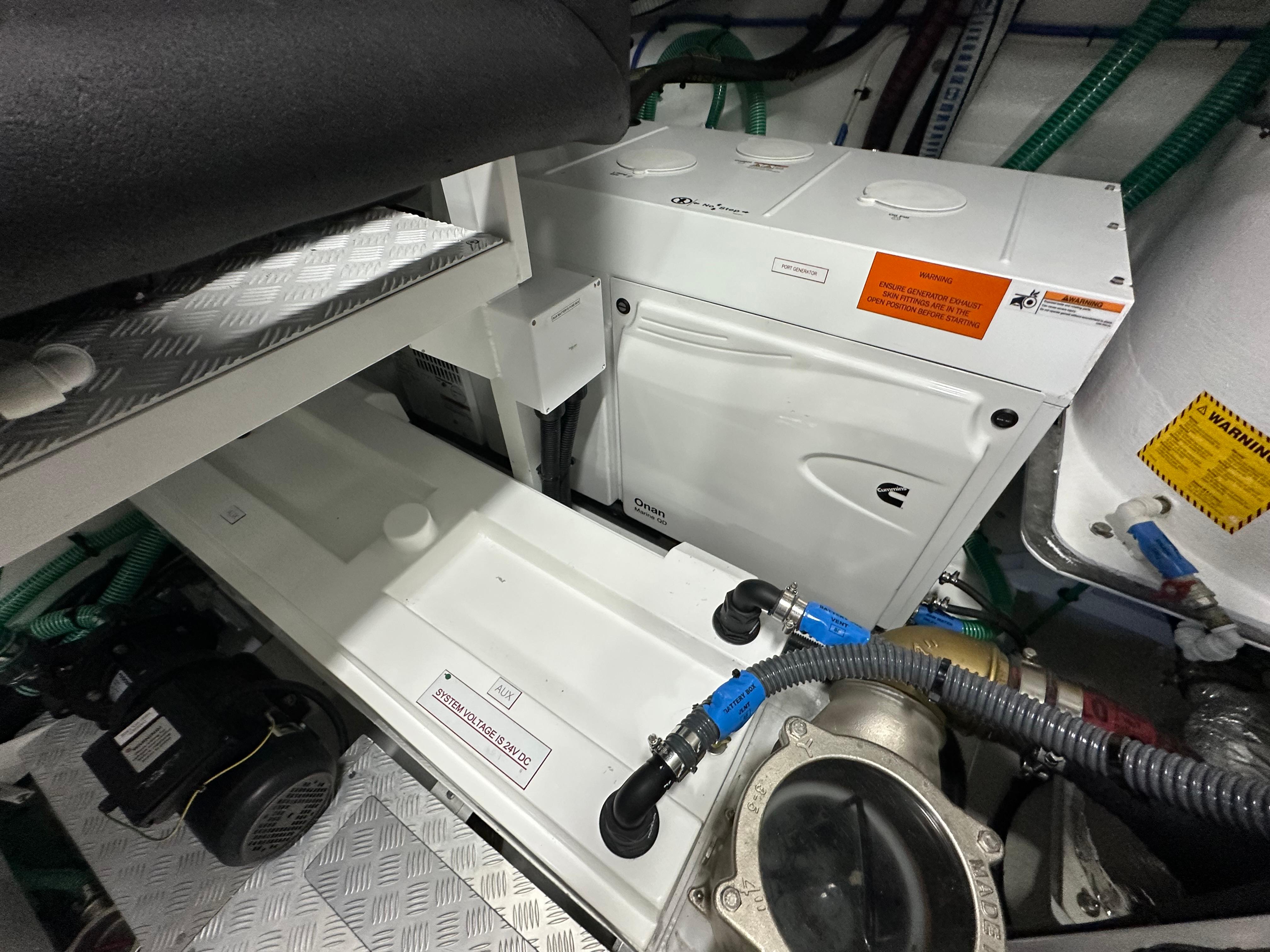

Two ONAN 27kW/50 Hz generators
ELECTRICAL
Continental 220v/240v sockets
Power Socket upgrade Additional Power sockets (deck saloon, galley & all cabins, including crew quarters). Qi wireless chargers to flybridge foredeck & main deck foredeck seating.
Passerelle wiring – in order to be able to use the remote control when the main battery master switches are off, the passerelle is wired directly to the domestic batteries via an isolation switch on the main AC/DC panel
CCTV system with pan/tilt/zoom camera in aft cockpit and two fixed cameras in engine room, displayed on lower helm display
Reverse cam connected to Raymarine
Underwater transom lights (4x Lumishore THX 803 full colour interfaced with Radar/Chartplotter MFD
Underwater lighting to aft hull sides (4x Lumishore THX 803 full colour interfaced with Radar/Chartplotter MFDs – 2 per side)

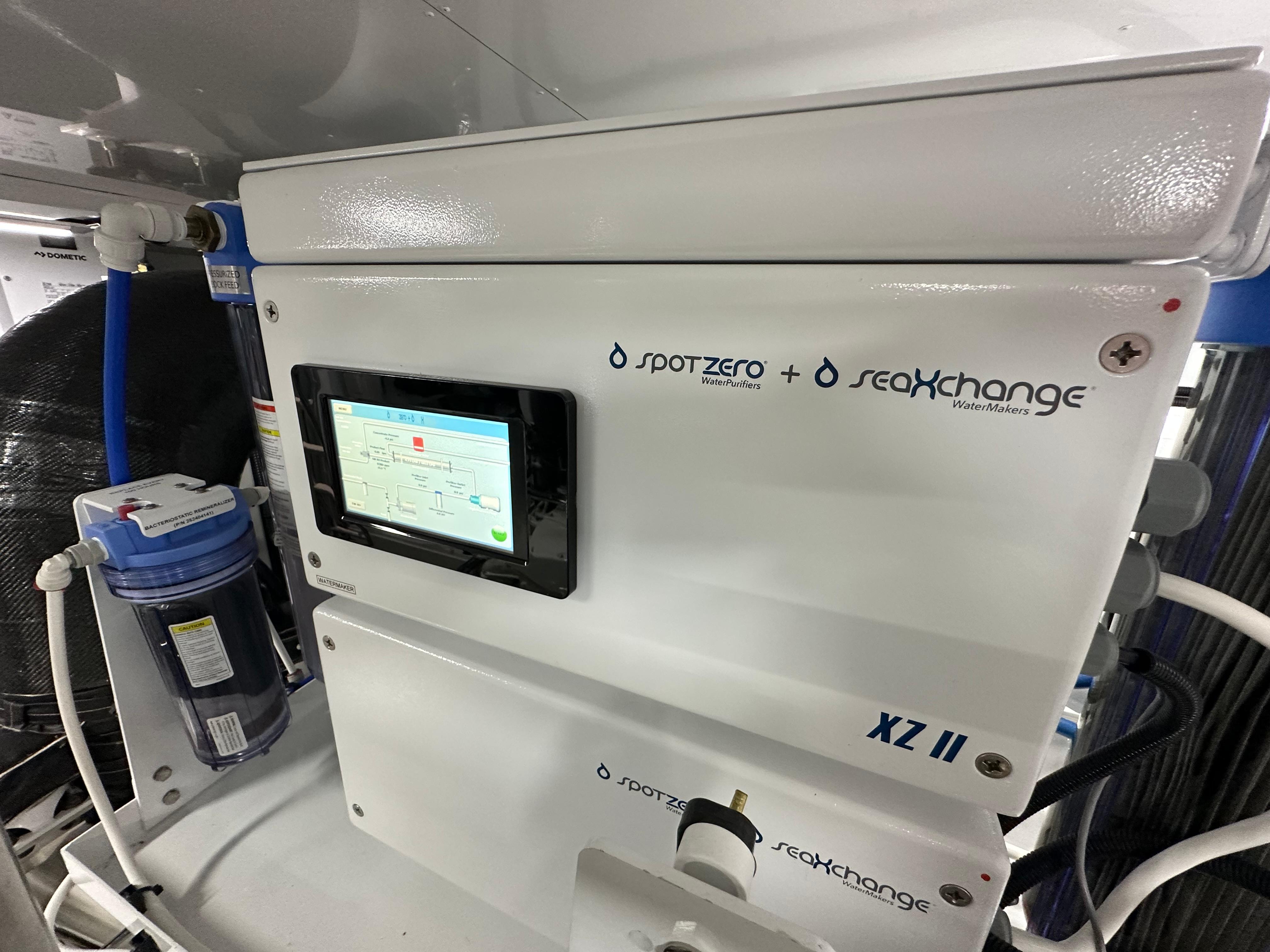

Combined watermaker (189l/hr) and water purification system (314l/hr) – Purifies seawater and dockside water by removing dissolved solids
Underfloor heating in all bathrooms (Note: not applicable in crew bathroom or day head)
Heated towel rail to all bathroom
Miele combination washer/dryer in lobby
Miele upgrade washer/dryer in crew
Exterior lighting upgrade package (incorporated into scene selection)
Interior lighting upgrade package (incorporated into scene selection)

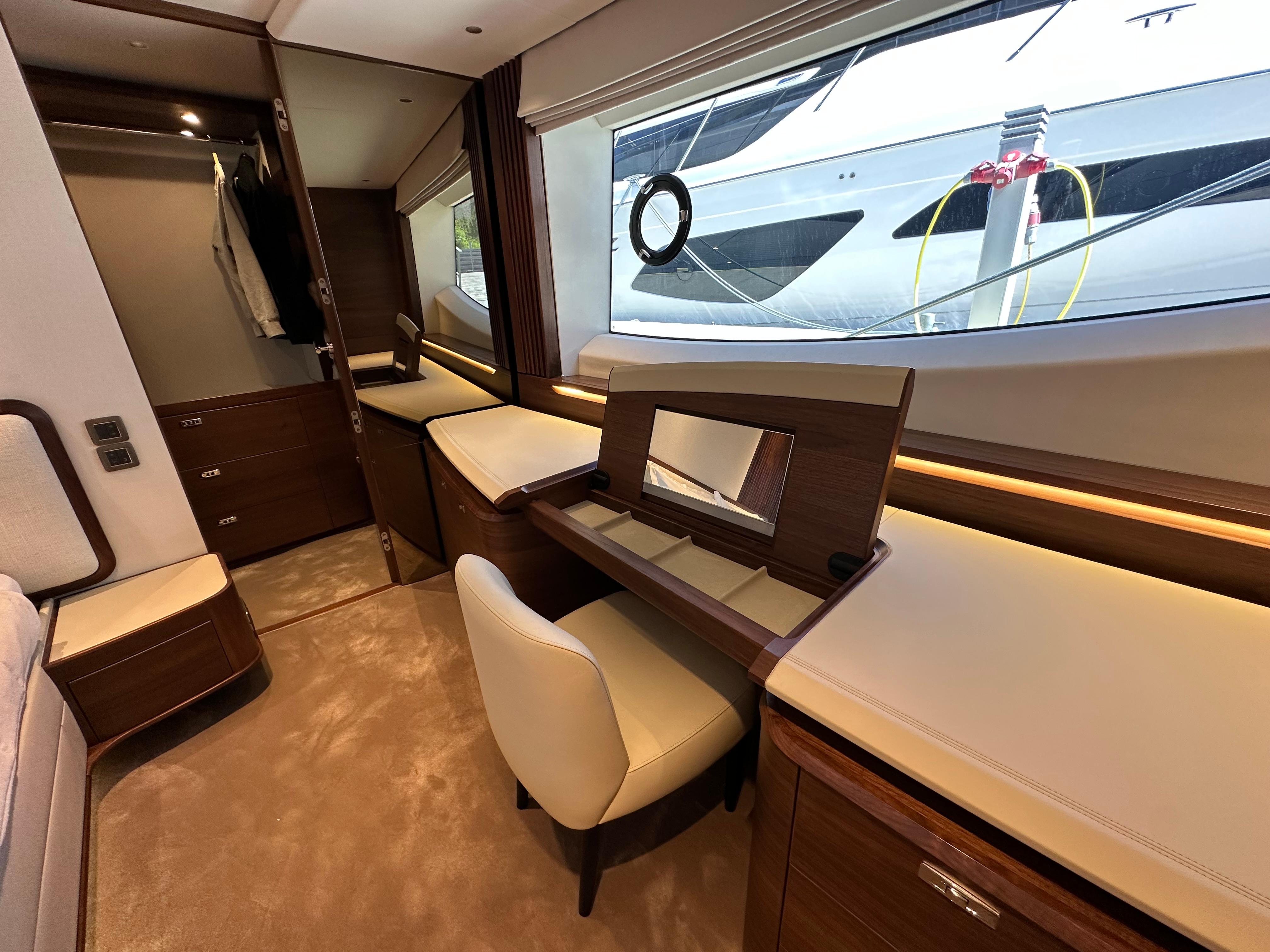

Electric roman blinds in place of manual in the Master stateroom
Electric roman blinds in place of manual in all guest cabins
Electric roller blinds to all main deck living area windows (excluding day head area) including galley, passageway and lower stateroom lobby, in place of manual blinds
Cool box accessed from foredeck walkthrough area

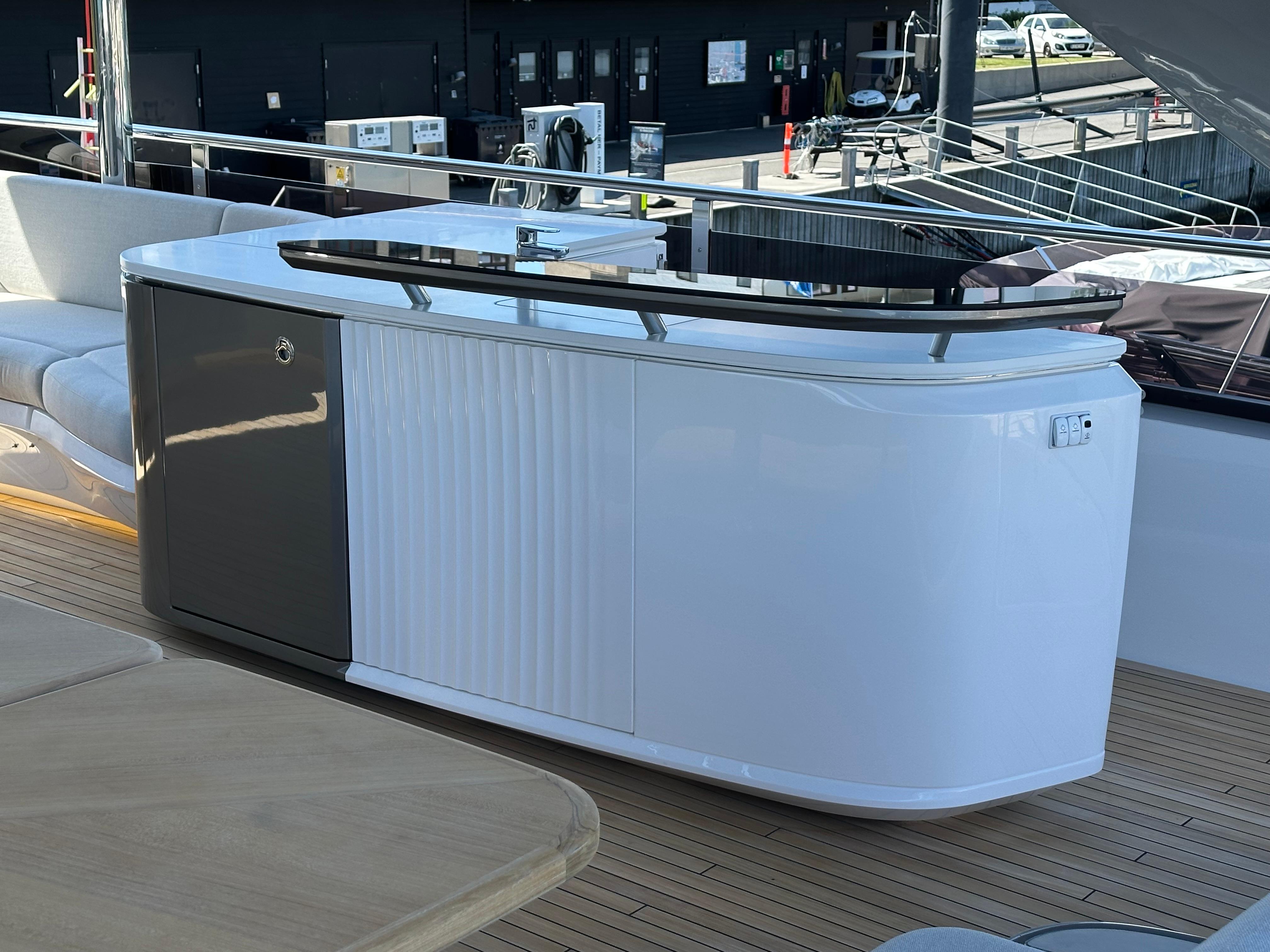

Icemaker fitted in flybridge wet bar unit
Run copex with mouse for future installation of FLIR camera
AUDIO VISUAL & COMMUNICATIONS
PREMIUM AUDIO/VIDEO SYSTEM
Deck Saloon – 55” LED TV on a power lift. Naim Uniti Star audio system – Stream your music in high-resolution, play, backup your CDs, store and access your music library or tune in to your favourite radio stations via DAB & FM radio. Access a world of music with a host of streaming and media sources with intuitive app enabled features. Paired with upgraded Focal speakers (4) and a subwoofer.

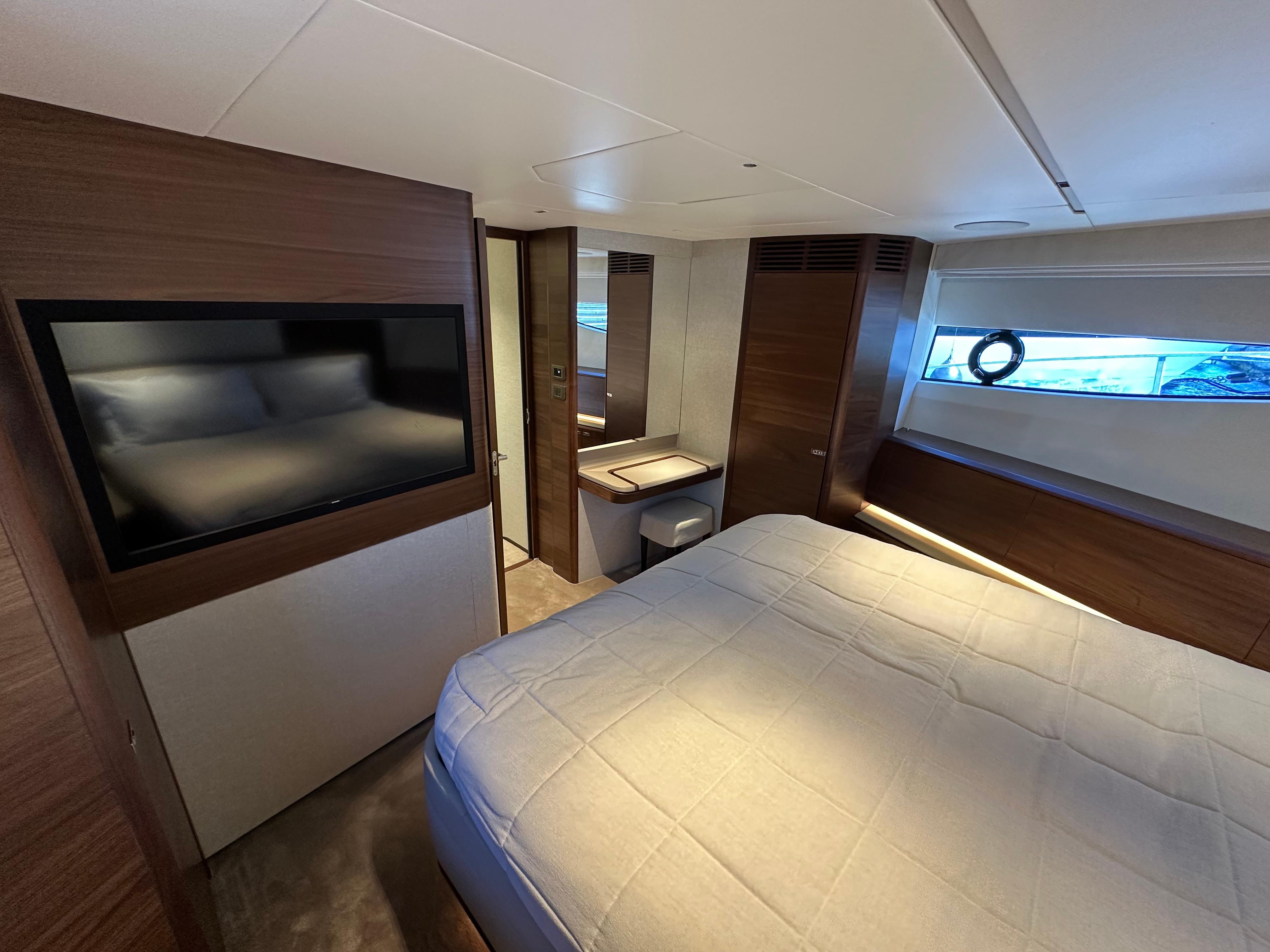

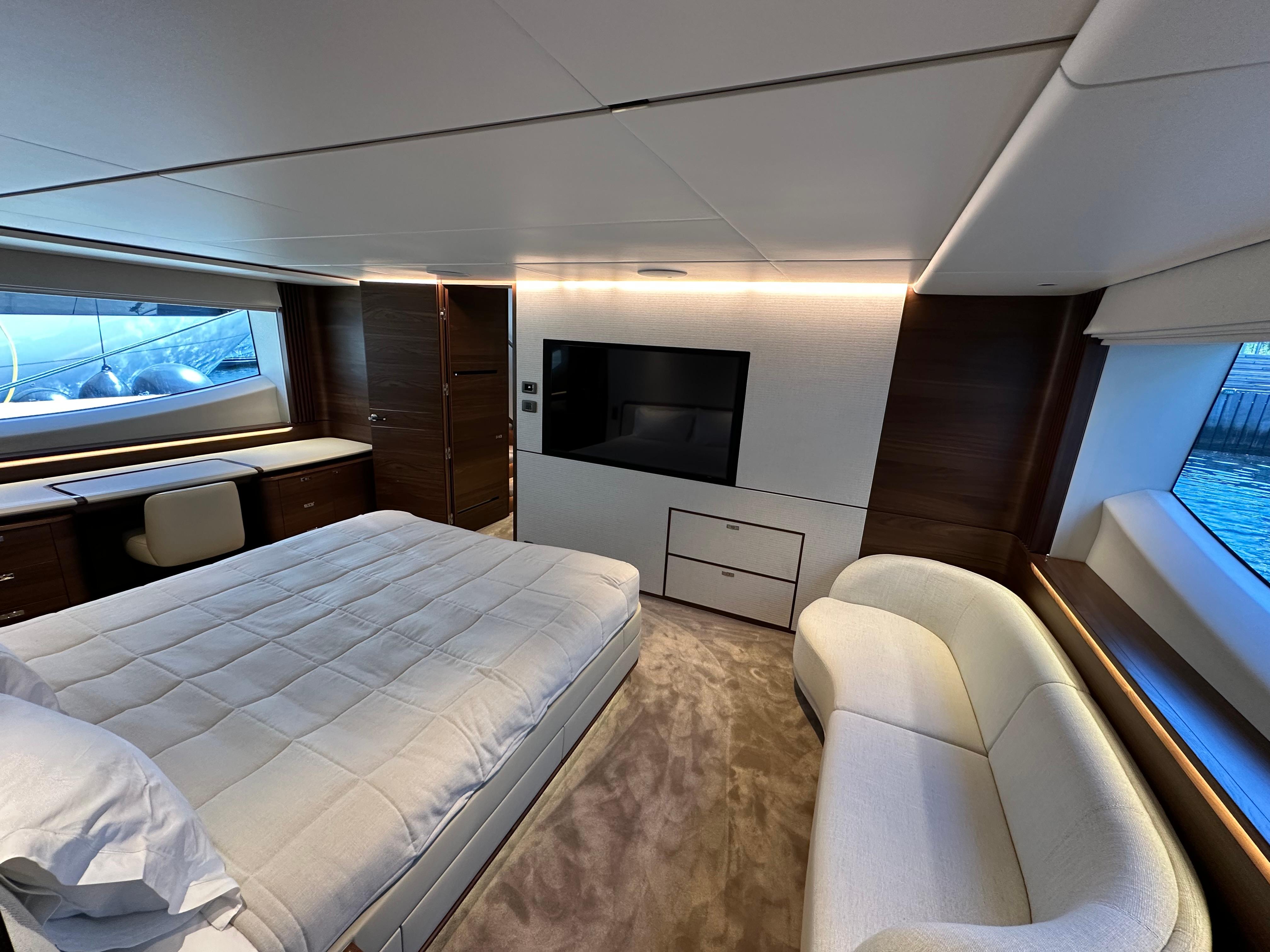

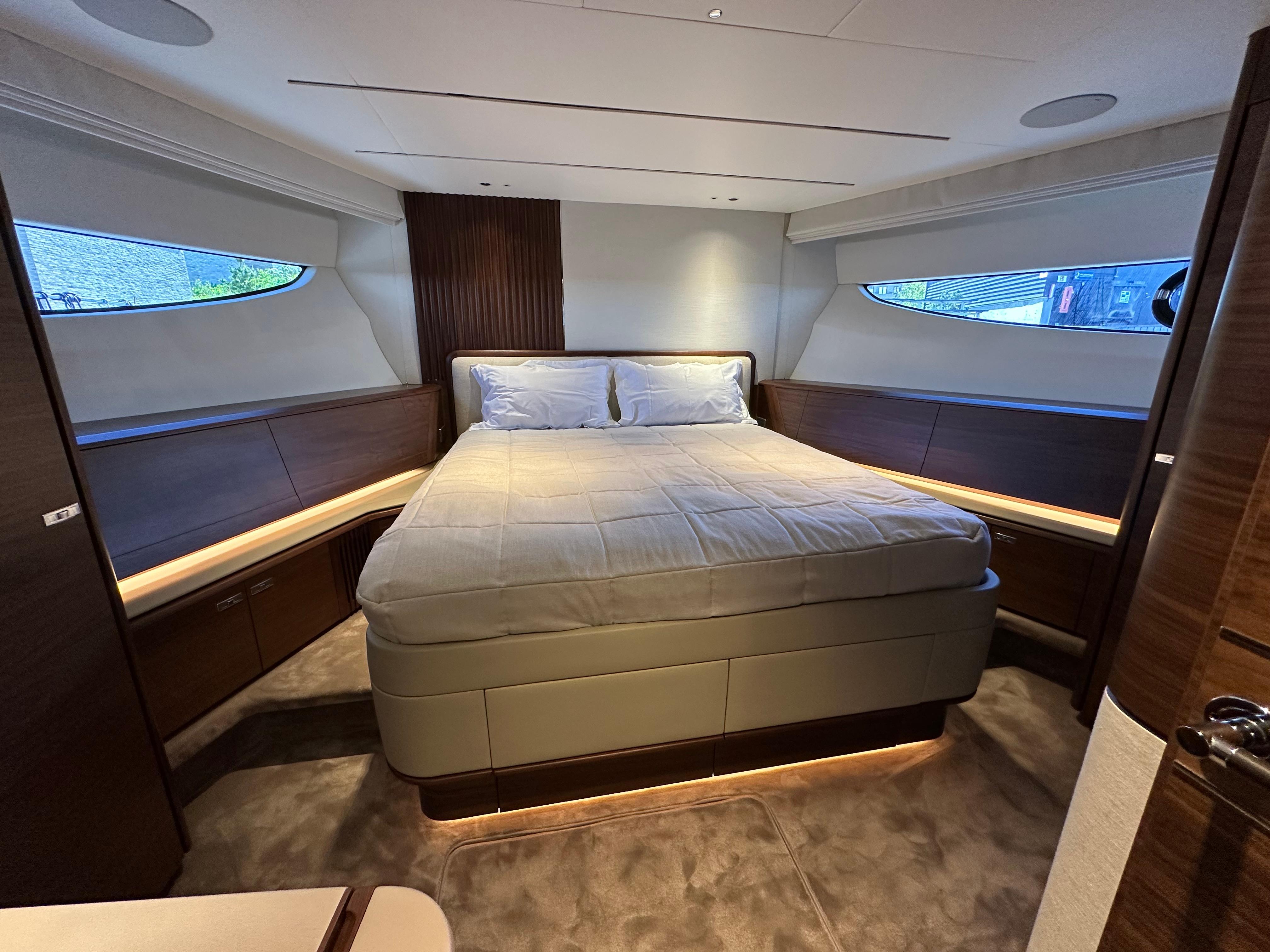

Owner’s Stateroom – 55″ LED TV, Naim Uniti Atom audio system with Bluetooth, multi-zone streaming capability and dedicated app. Paired with upgraded Focal speakers (2) and a subwoofer.
Forward Stateroom 43″ LED TV, Naim Uniti Atom audio system with Bluetooth, multi-zone streaming capability and dedicated app. Paired with upgraded Focal speakers (2) and a subwoofer.

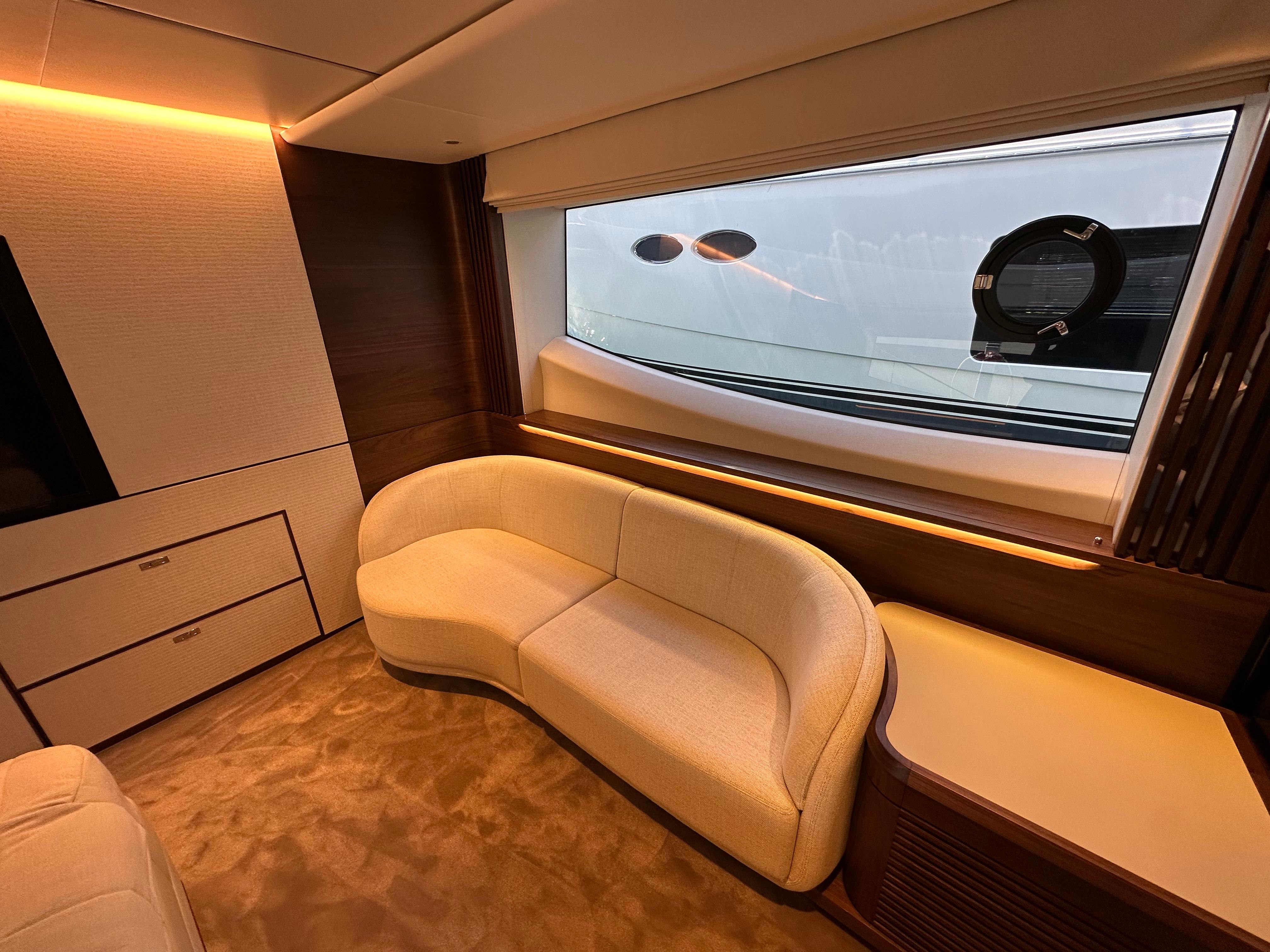

Starboard guest cabin 32” magic mirror TV, Naim Uniti Atom audio system with Bluetooth, multi-zone streaming capability and dedicated app. Paired with upgraded Focal speakers (2).
Port guest cabin 32” LED TV, Naim Uniti Atom audio system with Bluetooth, multi-zone streaming capability and dedicated app. Paired with upgraded Focal speakers (2).
Flybridge –Naim Uniti Star audio system with Bluetooth, multi-zone streaming capability and dedicated app. Paired with JL Audio waterproof speakers (4) and a subwoofer and amplifier.
Cockpit seating area – Naim audio Uniti Atom system with Bluetooth, multi- zone streaming capability and dedicated app. Paired with JL Audio waterproof speakers (2) and asubwoofer and amplifier.
Foredeck seating walk-through area – Naim Uniti Atom audio system with Bluetooth, multi-zone streaming capability and dedicated app. Paired with JL Audio waterproof speakers (2)
System includes:
• On board Ethernet network andG internet capability
• On board WIFI network incorporating external WIFI and 4G/5G antenna for extended range. Enabling connectivity to onshore WIFI networks throughout the vessel including crew and external guest areas. (Mobile internet connectivity requires an activated mobile data SIM card.)
• System is plug and play with external devices via HDMI/USB socket panel
• 256GB SD card
• Combination inverter charger fitted, providing seamless transfer between generators/shore power and inverted battery power for full audio and wi-fi system (includes saloon TV for non-US boats).
NAVIGATION
Standard Navigation equipment incorporates:

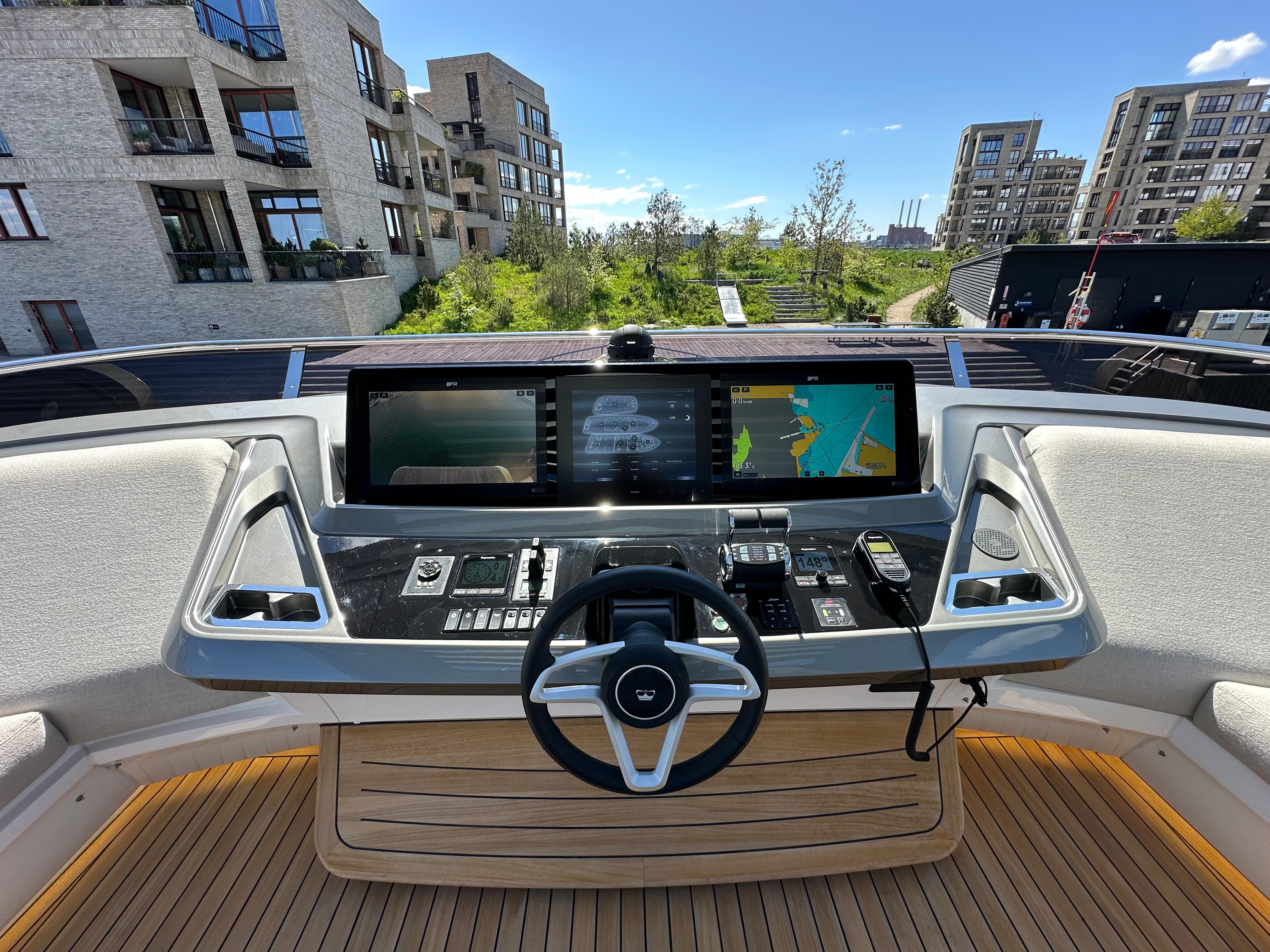

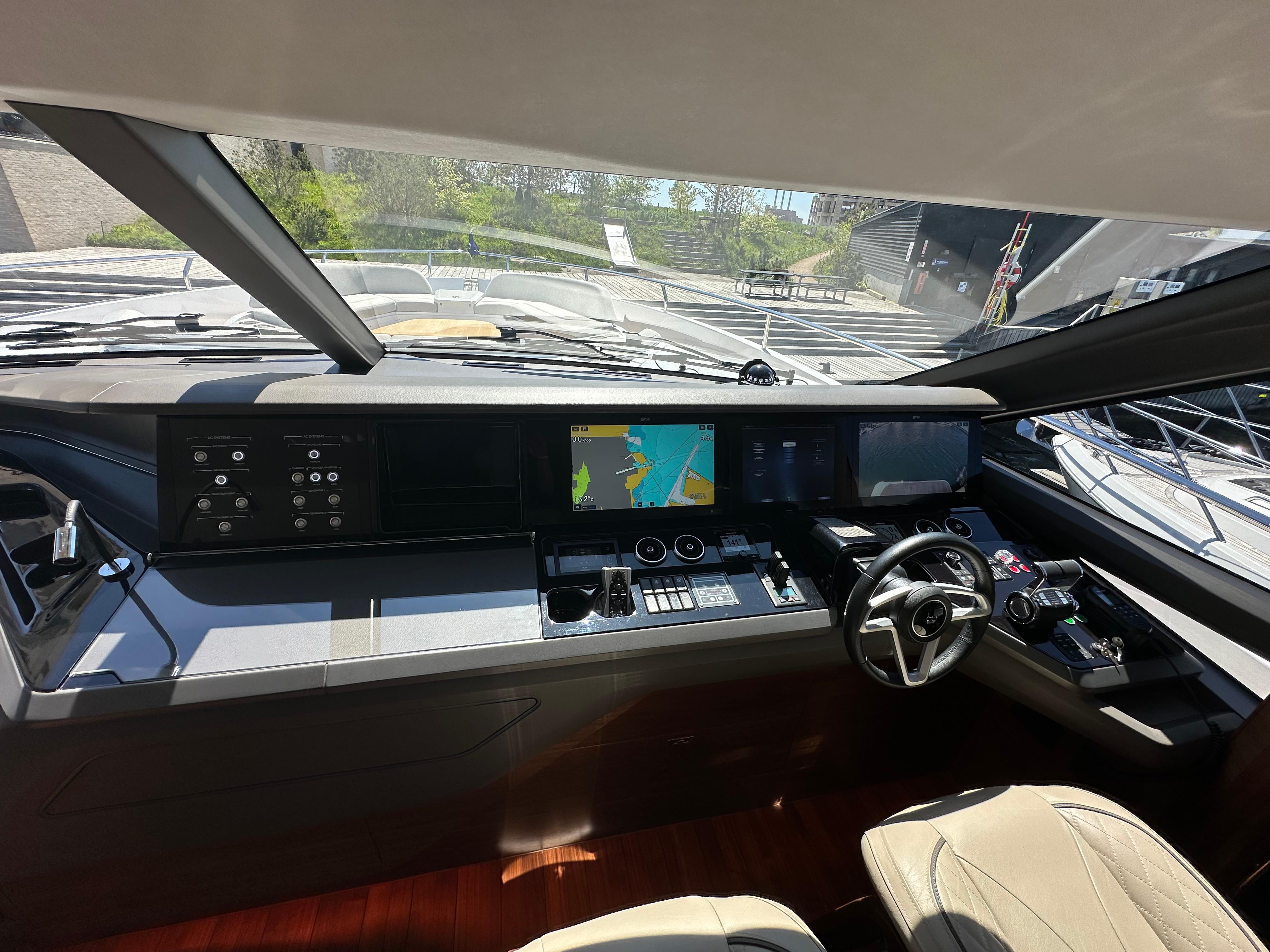

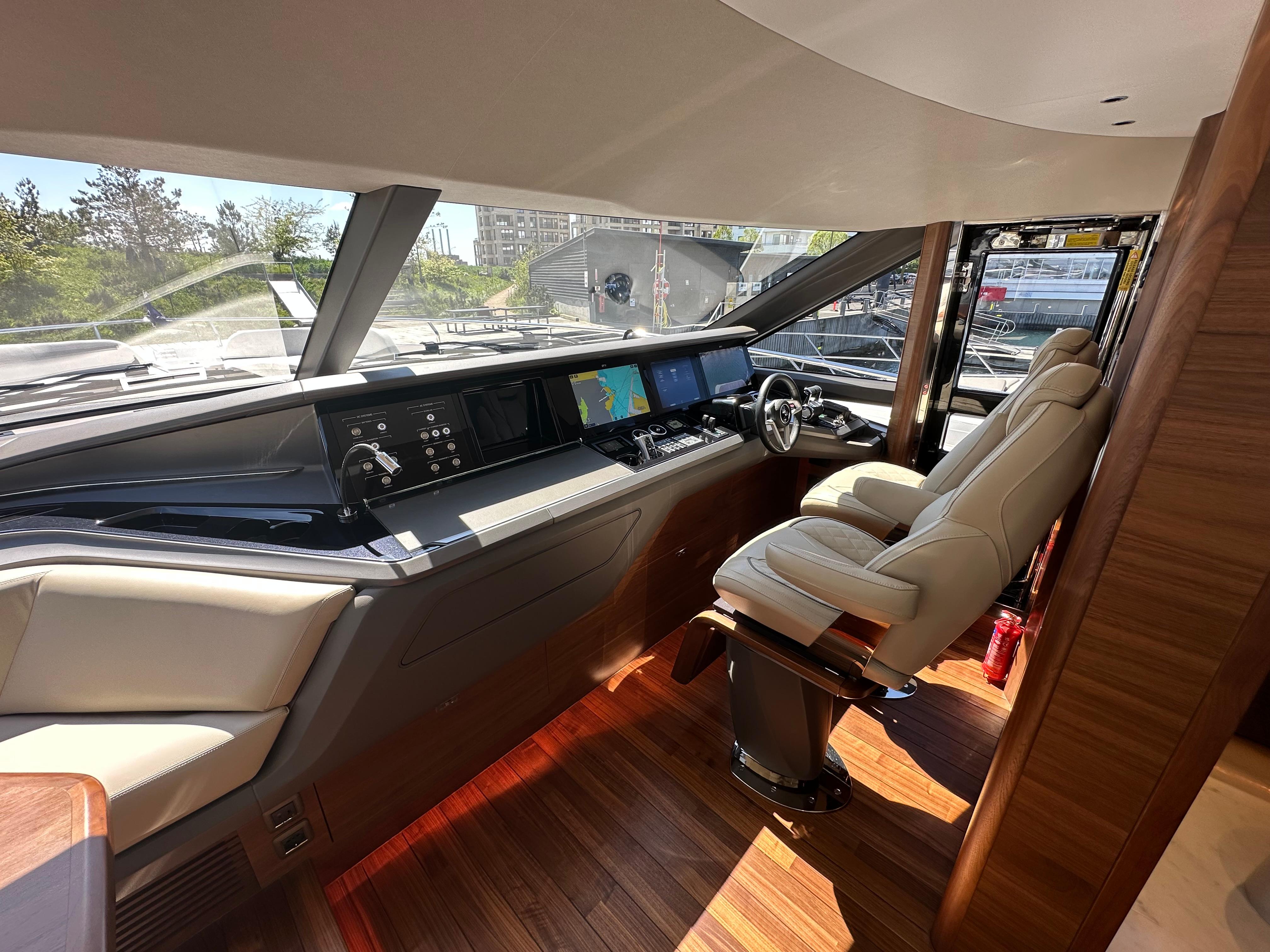

Raymarine Axiom XL Radar/Chartplotter with GPS & 3 x 15.6” brilliant colour multifunction displays (two at lower helm with RMK-10 remote control & one at upper helm) and Raymarine Cyclone Radar 55W pedestal with 4′ open array scanner. Raymarine p70Rs autopilot with rate gyro and i70s colour multifunction instruments (for speed, distance, trip, depth, depth alarm, water temperature etc).
2x Böning screens (one at each helm postion)and switch panel with the following functionality…
-Engine instrumentation (including fuel levels & fuel flow)
-Digital boat alarms
-Lighting controls
-AC/DC control & monitoring
Raymarine Axiom XL multifunction 19” brilliant colour multifunction displays (3) in place of standard 15.6″ displays at helm
Additional Raymarine Axiom XL multifunction 19” brilliant colour multifunction display at upper helm
Raymarine AIS Class B transponder interfaced with chart plotter
Raymarine 90 Dual Station VHF
AIRCONDITIONING
Standard spec. – Reverse Cycle Air Conditioning/heating (186,000 BTU fan capacity with 144,000 BTU chiller capacity) suitable for temperatures to 40°C (tropical) is fitted as standard incorporating a windscreen demist facility. Note: The standard generator is suitable.
EXTERIOR UPHOLSTERY / CANVAS / COVERS
All exterior seating (including: flybridge fixed seating, flybridge helm seats, optional flybridge bar stools (when selected), foredeck fixed seating, optional foredeck converting sunpad (when selected) and cockpit fixed seating) in Cervantes Braisa 02 (NOTE: no warranty on the fabric)
Fit reticulated foam to all fixed exterior cockpit and foredeck seating, flybridge sunbed in place of standard (to improve drainage) – with fixed cockpit seating unit
Fit reticulated foam to optional foredeck converting sunpad (when selected)
Separate cover on cockpit sofa

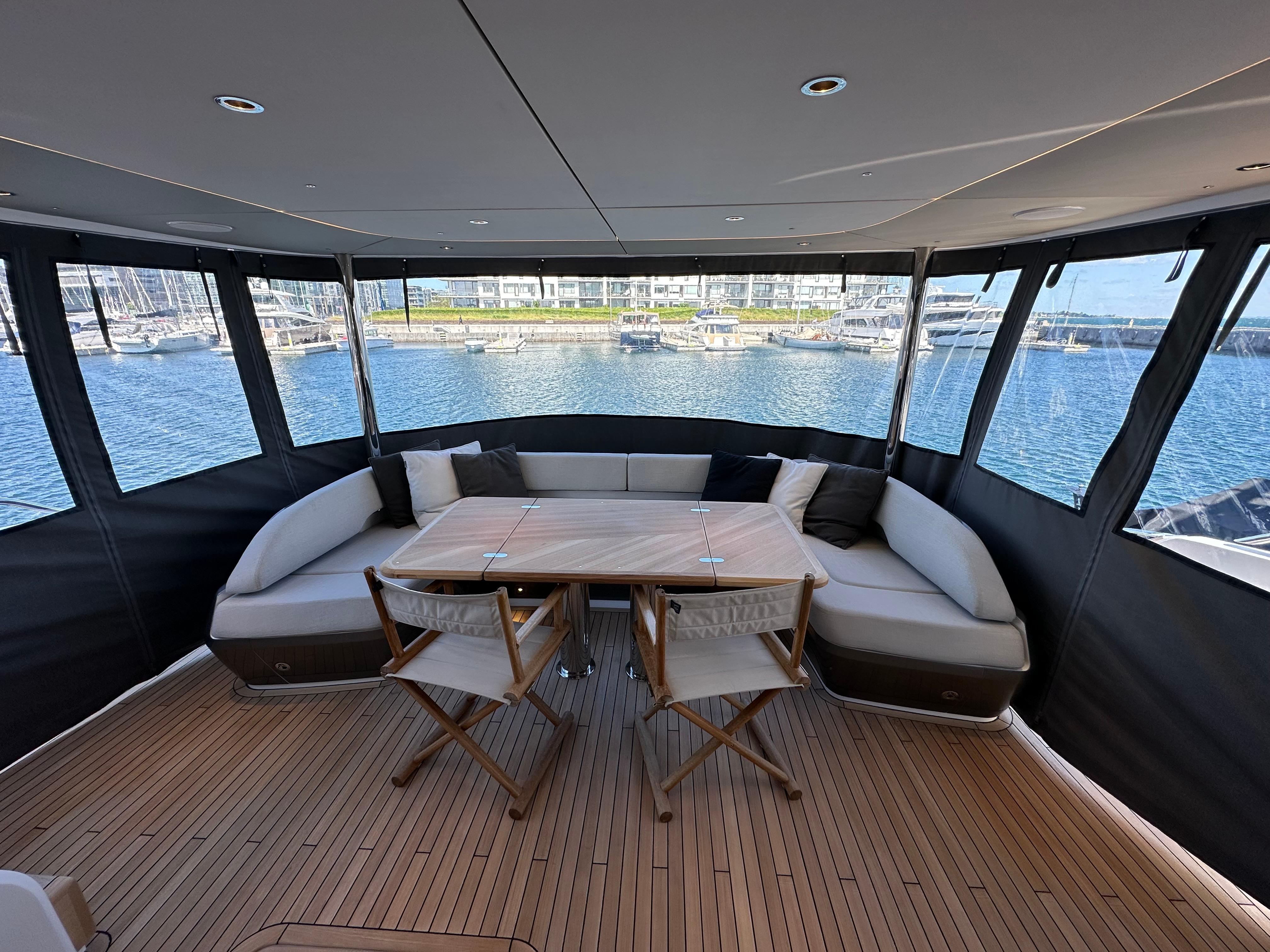

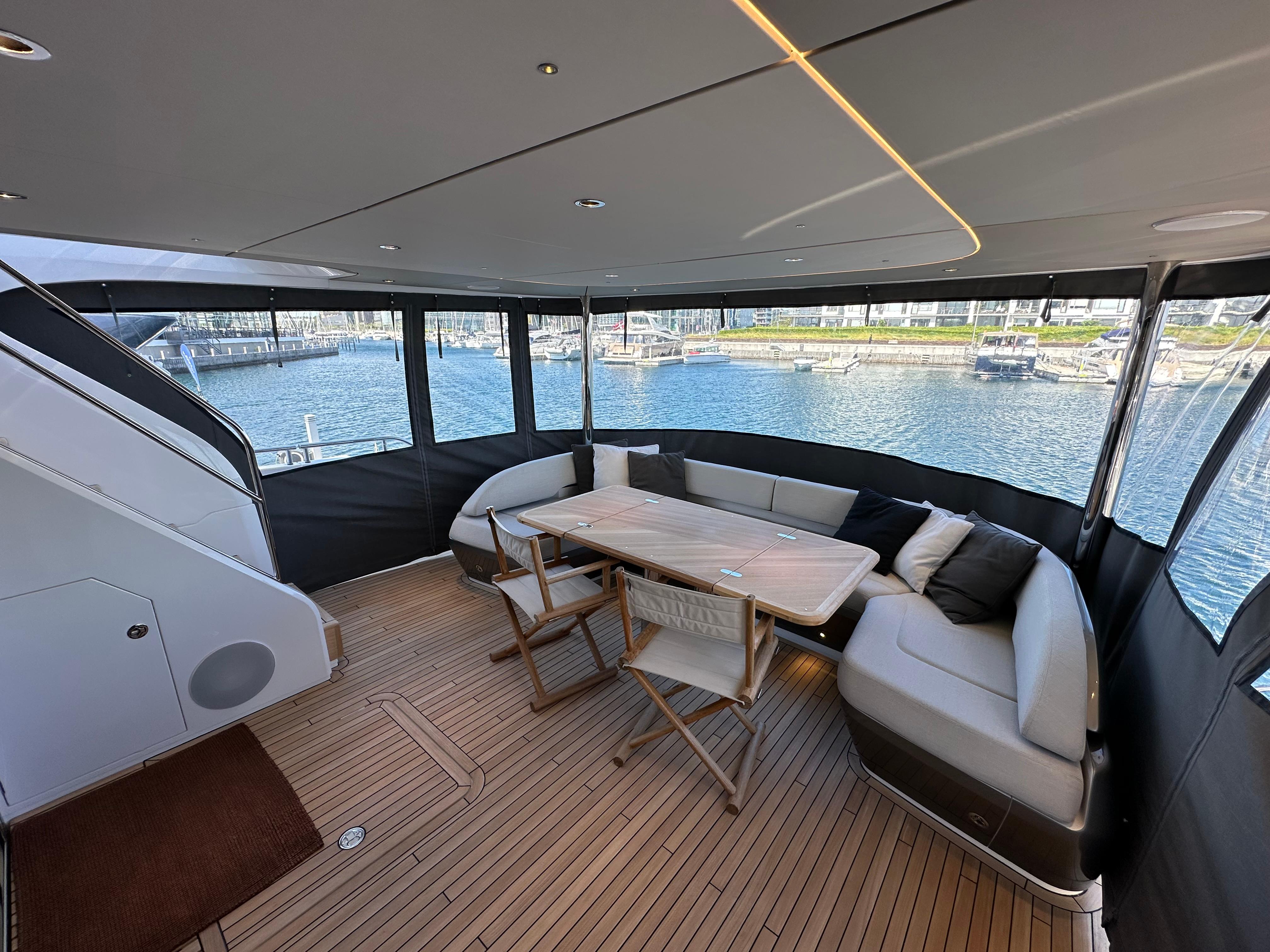

Cockpit privacy screen – Attaches via luff track between the aft canopy support pillars.
